READY LIFT

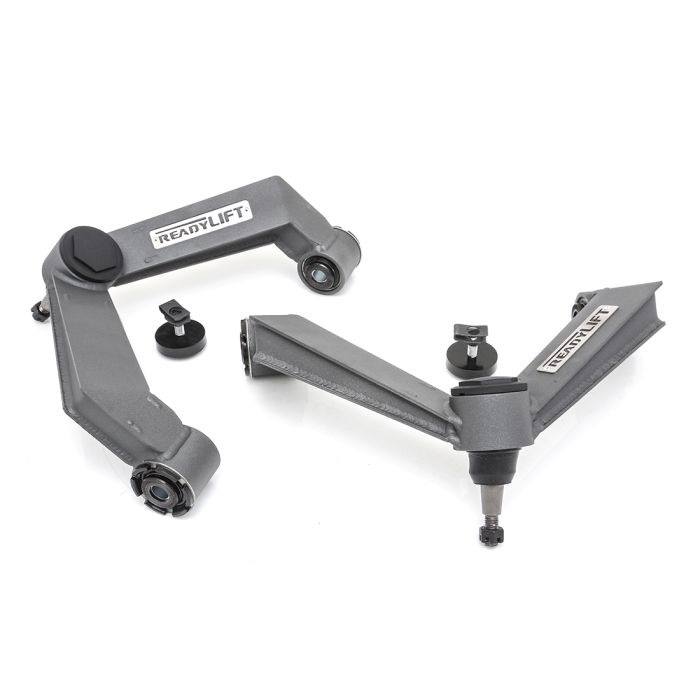

XTREME-DUTY FABRICATED A-ARM KIT - GM SILVERADO / SIERRA 2500HD/3500HD 2020-2023

XTREME-DUTY FABRICATED A-ARM KIT - GM SILVERADO / SIERRA 2500HD/3500HD 2020-2023

Regular price $499.95 USD
Regular price Sale price $499.95 USD
Sale Sold out

SKU:44-3035

QUICK OVERVIEW

2020-2023 GM HD Silverado/Sierra 2500/3500 HD Xtreme-Duty 4130 chromoly fabricated upper control arms with corrected pivot cups for use with leveled or lifted trucks. Includes ReadyLIFT stronger, longer lasting outer and inner TCT pivot bushings Pivots are self-lubricating with a free-float inner sleeve and side-biter washers. Anthracite gray powder coat finish.








44-3035 - 2020-2023 GM Silverado/Sierra 2500/3500 HD 2WD/4WD Xtreme-Duty UCAs. Our Xtreme-Duty fabricated steel control arms (44-3035) found in our popular 3.5" SST Lift Kit are also available separately if you already have a leveling or lift kit! 44-3035 UCAs are Laser cut and CNC bent .125 4130 chromoly plate steel precision construction creating an incredibly strong package engineered to be used on new 2020-23 GM HD trucks. The critical pivot points are maintenance-free and extremely durable for long-lasting use. Our 1-ton spring loaded HD series ball joints maintain the factory driving experience and can take a beating from the excessive weight of heavy aftermarket wheels and tires. To protect the joint from nasty road debris such as salt and sand, our arms include CNC machined billet aluminum caps which helps extend the life of the ball joints. Frame side pivots feature our proprietary new TCT bushings which are self-lubricating and engineered to last. These new bushing include "side biter" washers to aid in maintaining alignment settings. The free-floating bushing design eliminates friction which is the most common culprit of traditional bushing failure. Each ReadyLIFT Extreme-Duty Upper Control Arm features a rugged Anthracite Gray powder coat finish along with stainless steel ReadyLIFT brand arm badge. These new arms are sure to start a new revolution in upper control arm expectations. Now is your chance to be the first to offer them to your customers who really do need a better UCA!




























KIT COMPONENTS

One pair of ReadyLIFT Xtreme-duty fabricated steel upper control arms.

Includes arm bump stops.










INSTALLATION


SAEJ2492 Warning: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than that of factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or roll-over during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.



DO IT YOURSELF!

Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation.



Estimated Installation Time: 2 Hours +/- 0.5 hours (excluding alignment and wheel/tire assembly)









ADDITIONAL INFORMATION

California Residents: Prop 65 WARNING
