5 INCH LIFT KIT TORSION DROP | CHEVY/GMC 2500HD/3500HD (11-19)
5 INCH LIFT KIT TORSION DROP | CHEVY/GMC 2500HD/3500HD (11-19)
SKU:10330
Share
OVERVIEW
Right off the lot The GM 2500 HD has an impressive stance and a killer look, inspiring Rough Country to build a kit that would add crucial enhancements while taking nothing away from this sharp looking, new model truck. The 5" N3 Suspension Lift for GM 2500 HD features a Torsion Drop Design for better ride quality and handling while maintaining proper angles in a factory fashion. This kit also features Heavy Duty components worthy of the HD badge; With 1/4" thick steel crossmembers, 1/4" thick Torsion Bar Drop Brackets, and a durable, thick Skid Plate - all laser-cut and powder coated in our "Hammer Black" color to match the factory components. Installation requires no drilling or modifying the differential, meaning no "invasive" mods to your new toy.
Our innovative HD lift doesn't just look like it came from the showroom floor, it drives like it did too. This kit doesn't widen the stock track width, and the Torsion Drop Brackets design keeps everything at optimum angles, leaving that factory feel to handling corners and turns. A full set of Nitrogen charged N3 Shock Absorbers offer 10-Stage velocity sensitive valving, and are custom valved for each model kit we offer - meaning you get a set of shocks designed to preserve your factory ride quality.
FEATURES
- Maintains factory ride quality
- Maintains the stock track width
- Unmatched ground clearance
- Axles maintain factory position and angle
- No drilling or modifying of the differential
- No drivetrain or exhaust modifications required
- Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
NOTES - IMPORTANT
- Requires minor cutting and drilling.
- Does NOT fit dually models.
- Does NOT fit models with Magnetic Ride Control.
- Gas models may require modification to the exhaust for driveshaft clearance
- Factory rear overload springs will NEED to be removed on equipped models.
- Does NOT work with factory wheels.
- Models equipped with factory 17-inch wheels must use 17-inch or larger aftermarket wheels due to larger calipers/rotor.

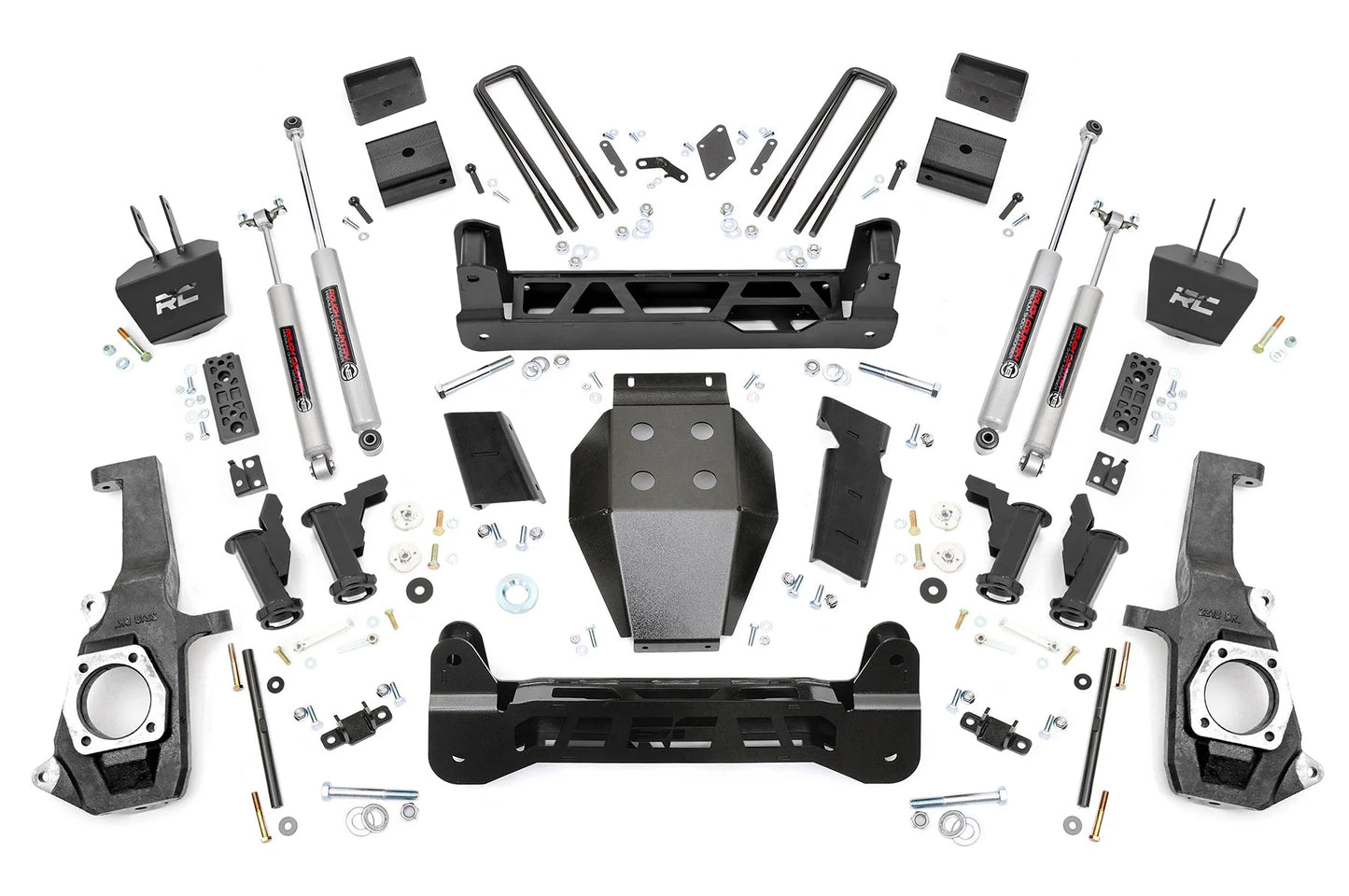

IN THE BOX
- Lifted knuckles
- Front crossmember
- Rear crossmember
- Differential drop brackets
- Differential skid plate
- Torsion bar drop brackets
- Sway-bar link extensions
- Sway-bar brackets
- Upper shock brackets
- Brake line relocation brackets
- Hardware
- Lifted blocks
- U-bolts
- Bump-stop brackets
- Brake line brackets
- E-brake line bracket
- Hardware
- (4) Premium N3 Shocks
VEHICLE FITMENT
2011-2019 2WD GMC Sierra 2500 HD
2011-2019 2WD Chevy Silverado 2500 HD
2011-2019 4WD GMC Sierra 3500 HD
2011-2019 4WD Chevy Silverado 2500 HD
2011-2019 4WD GMC Sierra 2500 HD
2011-2019 4WD Chevy Silverado 3500 HD
2011-2019 2WD Chevy Silverado 3500 HD
2011-2019 2WD GMC Sierra 3500 HD
ALWAYS read all product page details for more important fitment information
RECOMMENDED TIRES & WHEELS
TIRE WHEEL BOLT PATTERN OFFSET NOTE
35x12.50R20 20x9 8x180 -12 -
295/60R20 20x9 8x180 -12 -
35x12.50R20 20x9 8x180 +0 -
295/60R20 20x9 8x180 +0 -
35x12.50R20 20x9 8x180 +1 -
295/60R20 20x9 8x180 +1 -
35x12.50R20 20x10 8x180 -19 Minor Trimming
295/60R20 20x10 8x180 -19 Minor Trimming
35x12.50R20 20x10 8x180 -18 Minor Trimming
295/60R20 20x10 8x180 -18 Minor Trimming
35x12.50R20 20x12 8x180 -44 Trimming Required
295/60R20 20x12 8x180 -44 Trimming Required
35x12.50R22 22x10 8x180 -19 Minor Trimming
285/55R22 22x10 8x180 -19 Minor Trimming
35x12.50R22 22x10 8x180 -18 Minor Trimming
285/55R22 22x10 8x180 -18 Minor Trimming
35x12.50R22 22x12 8x180 -44 Trimming Required
295/50R22 22x12 8x180 -44 Trimming Required
Due to differences in manufacturing, dimension and inflated measurements, tire and wheel combinations should be test fit prior to installation
