READY LIFT

5-6" LIFT KIT - GM SILVERADO / SIERRA 2500HD/3500HD W/ SST3000 SHOCKS 2011-2019

5-6" LIFT KIT - GM SILVERADO / SIERRA 2500HD/3500HD W/ SST3000 SHOCKS 2011-2019

Regular price $2,299.95 USD
Regular price Sale price $2,299.95 USD
Sale Sold out

SKU:44-3050

QUICK OVERVIEW

Lift: Adj. 5"-6". Made to fit 2011-2019 GM 2500HD/3500HD 4WD. Complete front/rear off road suspension system. Includes (4) SST3000 Shocks. Allow for up to 35" tall tires. Uses Your OEM Factory Torsion Keys. Made In U.S.A. See Details for Notes on Tow Package Compatibility.


Note:  Single Cab configuration has not been validated for fitment & drivability by ReadyLIFT.





ReadyLIFT 5'' to 6'' Adjustable Lift Kit Systems made to fit the 2011-2019 Chevy Silverado / GMC Sierra 2500HD/3500HD 2WD/4WD trucks. This kit includes four (4) SST3000 shocks designed for this kit. Lift your GM 2500HD / 3500HD truck the right way! The premium complete 5''-6'' adjustable height front Lift Kit for 2011-2019 Chevy Silverado/GMC Sierra 2500HD/3500HD 2WD/4WD. This kit is specifically designed to give you a quality lift and rugged off road strength while maintaining the factory ride on the street. The complete kit 44-3052 Includes Bilstein 5100 Shocks for a premium ride. This system features precision-designed laser-cut and CNC formed sub-frame assemblies that directly bolt in. Includes custom formed nodular iron knuckles engineered to provide perfect geometry, ride and handling performance. Includes an integrated differential drop bracket system to ensure correct CV axle angles on 4WD applications and maximum performance in 4WD mode. Front lift is provided by ReadyLIFT Forged Torsion keys. This system provides adjustable lift from 5'' to 6'' while maintaining the factory ride. To lift the rear, this system includes OEM quality cast iron rear blocks that doesn't sacrifice ride quality. Kit includes tough steel bump stop extensions, skid plate, and sway bar end links. Stock 20'' wheels OK or 9'' wheel w/ 4.75'' - 5.5'' BS - Stock 17'' or 18'' cannot be run with this system. NOTE: SRW (Single Rear Wheel) models may require custom U-Bolts to accommodate factory tow package. Will not fit DRW (Dual Rear Wheel) applications without custom U-bolts. Towing Capacity will be reduced with the installation of this kit. NOTE: This kit is primarily designed to only be driven in 2WD at speed on public roads and that 4WD is only to be used off-road or in adverse slow speed conditions due to drive line vibrations at high speeds. Double cardan driveshaft may be required to help eliminate some of the high speed 4WD front driveline vibration when kits are 5-8'' high.




















TIRE FITMENT



35" Maximum tire diameter

35x12.50 for no rub on a 9" wide wheel with -6 offset

18" - 35X12.5R18

20" - 35X12.5R20



Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

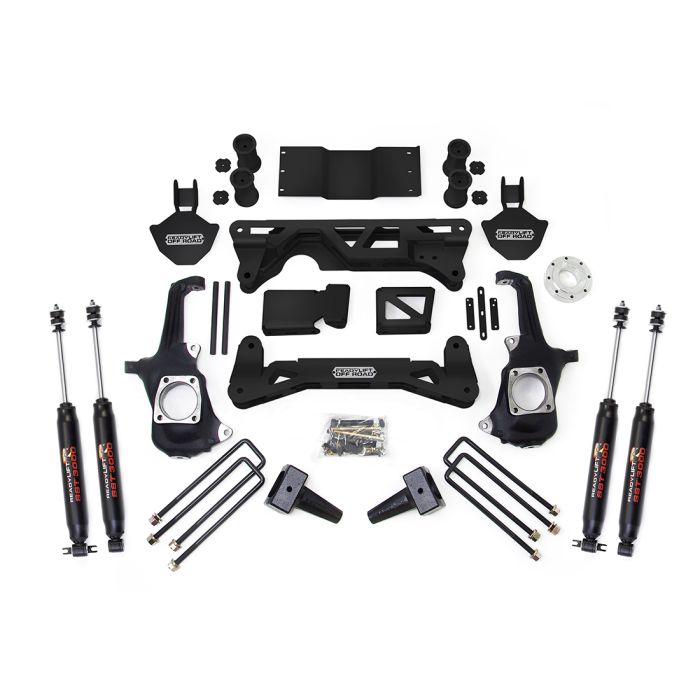

KIT COMPONENTS

Heavy Duty welded steel crossmembers

Heavy Duty iron knuckles

Cast iron rear lift blocks with integrated bump stop landing pads.

Heavy duty skid plate.

Assorted hardware and accessories

Includes SST3000 Shocks.









INSTALLATION


SAEJ2492 Warning: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than that of factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or roll-over during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.



DO IT YOURSELF!

Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation.




Estimated Installation Time: 12 Hours +/- 1 hour (excluding alignment and wheel/tire assembly)









ADDITIONAL INFORMATION

California Residents: Prop 65 WARNING
