4.5 INCH LIFT KIT TOYOTA TUNDRA 2WD/4WD (2007-2015)
4.5 INCH LIFT KIT TOYOTA TUNDRA 2WD/4WD (2007-2015)
Regular price
$1,089.95 USD
Regular price
Sale price
$1,089.95 USD
Unit price
/
per
SKU:75330
Share
OVERVIEW
Take your Toyota Tundra to the next level with Rough Country's 4.5in Suspension Lift for 07 & up models. With heavy-duty components and a high-clearance design, this kit offers aggressive looks, unparalleled off-road performance, and enough ride height to run up to 35in tires.
Instantly gain a meaner lifted and level stance with high-quality equipment that's made to handle the hazards of high-performance while withstanding the test of time. A set of durable lifted knuckles, high-clearance front and rear crossmembers, upper strut spacers, and long-lasting, fabricated rear blocks give you plenty of lift and uncompromised toughness.
This all-inclusive kit features everything you need to take your Tundra off the tread and through the trenches; featuring steering stops, brake line brackets, differential drop brackets, sway-bar drop brackets, and anything else one would need to keep everything working at optimum angles after lifting. Best of all, you can get up and running with Rough Country's 4.5in Toyota Tundra Lift at a price that won't break the bank!
Instantly gain a meaner lifted and level stance with high-quality equipment that's made to handle the hazards of high-performance while withstanding the test of time. A set of durable lifted knuckles, high-clearance front and rear crossmembers, upper strut spacers, and long-lasting, fabricated rear blocks give you plenty of lift and uncompromised toughness.
This all-inclusive kit features everything you need to take your Tundra off the tread and through the trenches; featuring steering stops, brake line brackets, differential drop brackets, sway-bar drop brackets, and anything else one would need to keep everything working at optimum angles after lifting. Best of all, you can get up and running with Rough Country's 4.5in Toyota Tundra Lift at a price that won't break the bank!
FEATURES
- Unmatched ground clearance due to high clearance crossmember design.
- 100% precision laser cut materials used in latest computer aided design process.
- Levels the front with the rear of the vehicle
- Will work with factory 18-inch or larger wheels.
- No strut disassembly or strut compressor required for installation.
- Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
- Requires no modification to the stock differential mounts, drivetrain or exhaust.

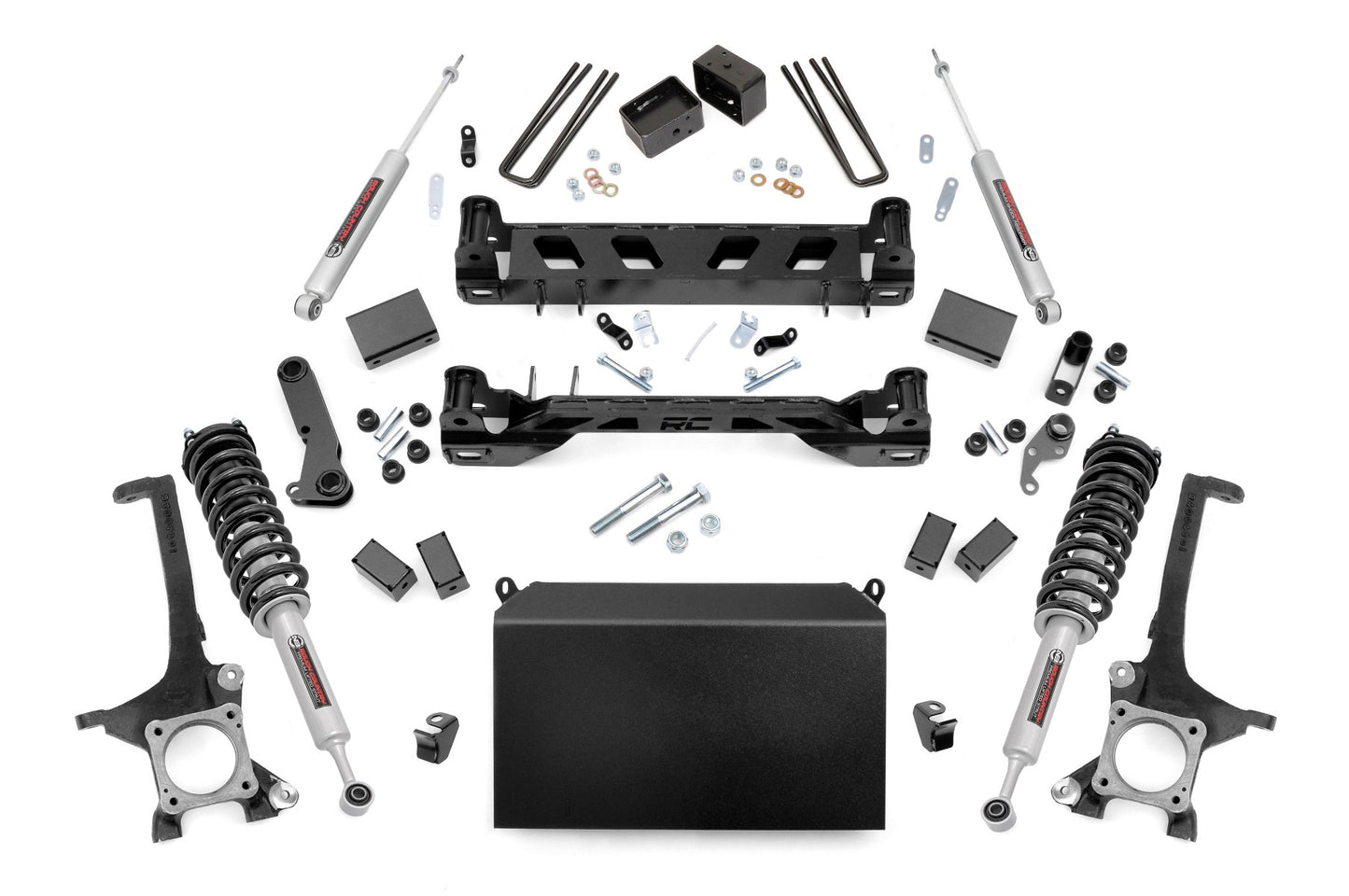

OPTIONAL N3 STRUTS
Maintains smooth, factory-like rideInfinitely Variable DampingLeak-proof piston sealMassive 1 3/8in BoreIncreased ground clearanceOnly fits 4WD models3-year Limited Warranty
NOTES - IMPORTANT
- N3 Loaded Struts are ONLY for 4WD models.
- Does NOT fit Pro Series models
- Does NOT fit Rock Warrior models
- Does NOT fit XSP-X models.
- Minor cutting and drilling is required.
- Requires 18-inch or larger wheels.
- Stock 18-inch or larger wheels can be used but can accommodate tires no wider than 11.5-inch.
- In some cases minor trimming may be needed to clear 35-inch tires.
- On vehicles equipped with a two piece driveshaft there is the potential for take off vibration, this can be corrected with SKU: 1776BOX1 carrier bearing shim kit.

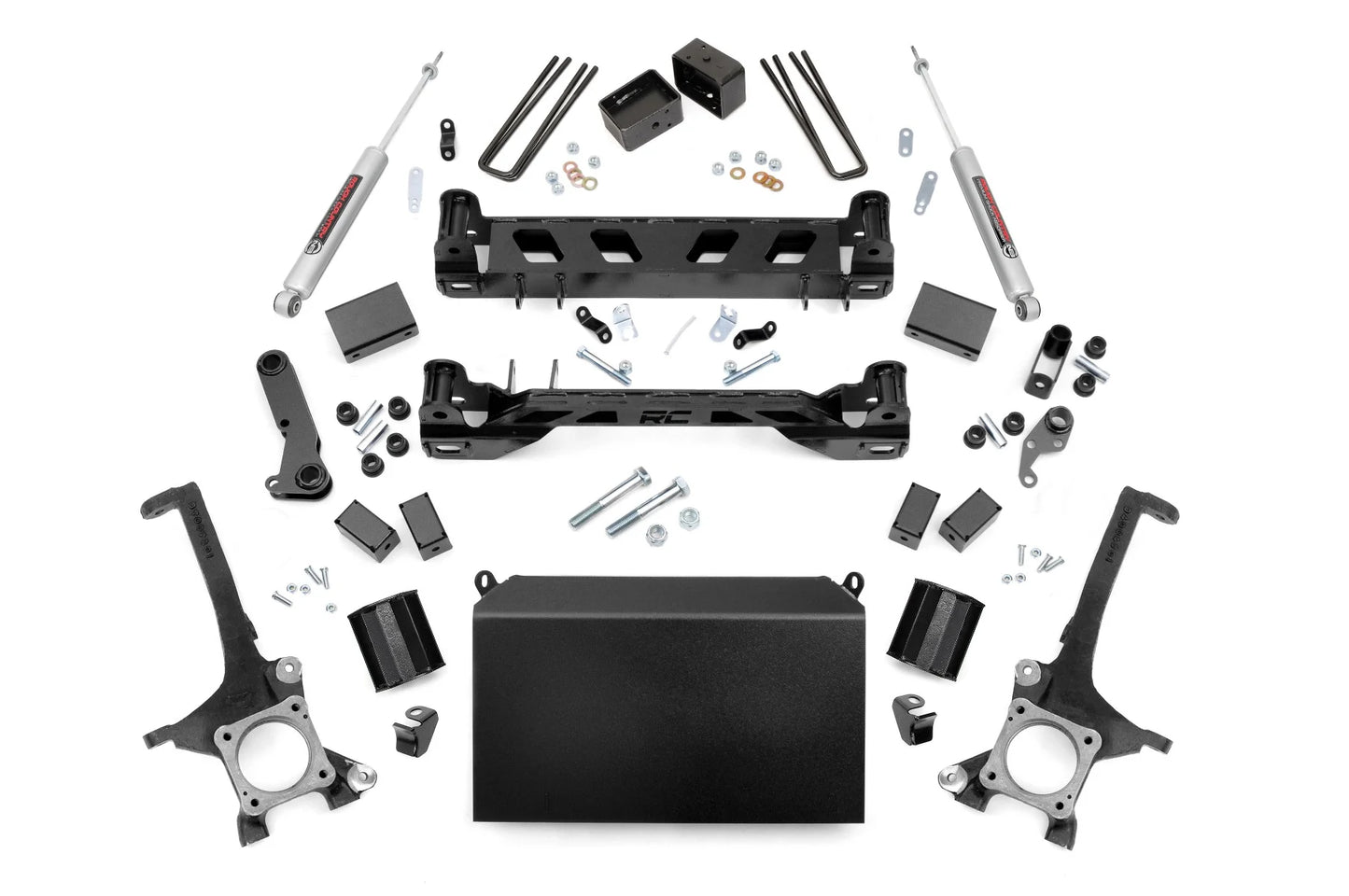

IN THE BOX
FRONT
- Lifted knuckles
- Strut spacers
- Front crossmember
- Rear crossmember
- Steering stops
- Brake line brackets
- Differential drop brackets
- Bumpstop brackets
- Sway-bar brackets
- Lower skid plate
- Hardware
REAR
- Fabricated lift blocks
- U-bolts
- Brake line brackets
- Hardware
SHOCKS
- (2) Premium N3 Series (Rear)
INSTRUCTIONS
- Est. Install Time: 8-10 hours
- Instruction Sheet - Kit Installation
- Instruction Sheet - Optional Strut Installation
VEHICLE FITMENT
YEARS DRIVE MAKE MODEL
2007-2015 2WD Toyota Tundra
2007-2015 4WD Toyota Tundra
ALWAYS read all product page details for more important fitment information
2007-2015 2WD Toyota Tundra
2007-2015 4WD Toyota Tundra
ALWAYS read all product page details for more important fitment information
RECOMMENDED TIRES & WHEELS
TIRE WHEEL BOLT PATTERN OFFSET NOTE
35x12.50R18 18x8.5 5x150 +0 Minor Trimming
35x12.50R18 18x8.5 5x150 +1 Minor Trimming
35x12.50R18 18x9 5x150 -12 Minor Trimming
35x12.50R18 18x9 5x150 +0 Minor Trimming
35x12.50R18 18x9 5x150 +1 Minor Trimming
35x12.50R18 18x9 5x150 +18 -
35x12.50R18 18x9 5x150 +20 -
35x12.50R20 20x9 5x150 -12 Minor Trimming
35x12.50R20 20x9 5x150 +0 Minor Trimming
35x12.50R20 20x9 5x150 +1 Minor Trimming
35x12.50R20 20x9 5x150 +18 -
295/60R20 20x9 5x150 +18 -
35x12.50R20 20x9 5x150 +20 -
295/60R20 20x9 5x150 +20 -
295/60R20 20x10 5x150 -19 Trimming Required
295/60R20 20x10 5x150 -18 Trimming Required
295/50R22 22x10 5x150 -19 Trimming Required
295/50R22 22x10 5x150 -18 Trimming Required
35x12.50R18 18x8.5 5x150 +0 Minor Trimming
35x12.50R18 18x8.5 5x150 +1 Minor Trimming
35x12.50R18 18x9 5x150 -12 Minor Trimming
35x12.50R18 18x9 5x150 +0 Minor Trimming
35x12.50R18 18x9 5x150 +1 Minor Trimming
35x12.50R18 18x9 5x150 +18 -
35x12.50R18 18x9 5x150 +20 -
35x12.50R20 20x9 5x150 -12 Minor Trimming
35x12.50R20 20x9 5x150 +0 Minor Trimming
35x12.50R20 20x9 5x150 +1 Minor Trimming
35x12.50R20 20x9 5x150 +18 -
295/60R20 20x9 5x150 +18 -
35x12.50R20 20x9 5x150 +20 -
295/60R20 20x9 5x150 +20 -
295/60R20 20x10 5x150 -19 Trimming Required
295/60R20 20x10 5x150 -18 Trimming Required
295/50R22 22x10 5x150 -19 Trimming Required
295/50R22 22x10 5x150 -18 Trimming Required
Due to differences in manufacturing, dimension and inflated measurements, tire and wheel combinations should be test fit prior to installation
