7 INCH LIFT KIT 4-DOOR BASE | FORD BRONCO 4WD (2021-2024)
7 INCH LIFT KIT 4-DOOR BASE | FORD BRONCO 4WD (2021-2024)
SKU:51083
Couldn't load pickup availability
Share
OVERVIEW
Improved Ground Clearance and Ride Quality. The Ford Bronco is back and better than ever! Rough Country has hit the ground running to give your 2021-up Ford Bronco an improved, aggressive stance with a 7-inch lift kit! This suspension kit provides everything needed to lift your vehicle, giving you increased ground clearance to run larger tires while reducing the nose-down factory look for a commanding presence.
Innovative Design and Construction. This suspension kit combines the use of durable steel knuckles, forged aluminum control arms, differential brackets, and drop cross members to reduce cv angles and simulate factory angles all while achieving new heights. Featuring a set of upper strut spacers that offer uncompromised strength and rigidity, gaining lift height is no issue. Completing the rear of this suspension kit included is a rear track bar and brake line relocation brackets that allow you to retain factory-like geometry. This combined setup provides enough clearance to run 40" tires with proper wheel backspacing.
Installation. With minor cutting and a strut compressor required to install, an estimated timeframe of 6-8 hours is recommended to complete this full installation. This full kit can be installed at home and can be completed efficiently and quickly!
Limited Lifetime Replacement Warranty. Rough Country's 7" Suspension Lift Kit is backed with a limited lifetime replacement warranty towards manufacturer defects. As such, the product is protected from structural and workmanship damage after the date of purchase. With our industry-leading warranty give yourself peace of mind when using Rough Country's Suspension products!
FEATURES
- Increased ground clearance.
- Aggressive, good looks.
- Levels the front with the rear.
- Forged Aluminum upper control arms for improved suspension geometry and alignment.
NOTES - IMPORTANT
- ONLY fits 4-door base models.
- An aftermarket bumper is required to clear 40" tires. Shop Rough Country's bumper line HERE.
- Does NOT fit models equipped with HOSS 3.0 or 4.0 suspension system.
- Spacer kit 51083 does NOT fit Badlands, Wildtrack, Raptor or First Edition models.
- Spacer kit 51083 does NOT fit models equipped with Sasquatch Package.
- Spacer kit 51083 does NOT fit models equipped with HOSS 3.0 or 4.0 suspension system.
- Vertex kit 51583 does fit Badlands, Wildtrack, and First Edition models.
- Vertex kit 51583 does fit models equipped with Sasquatch Package but will only provide 5-6" of lift.

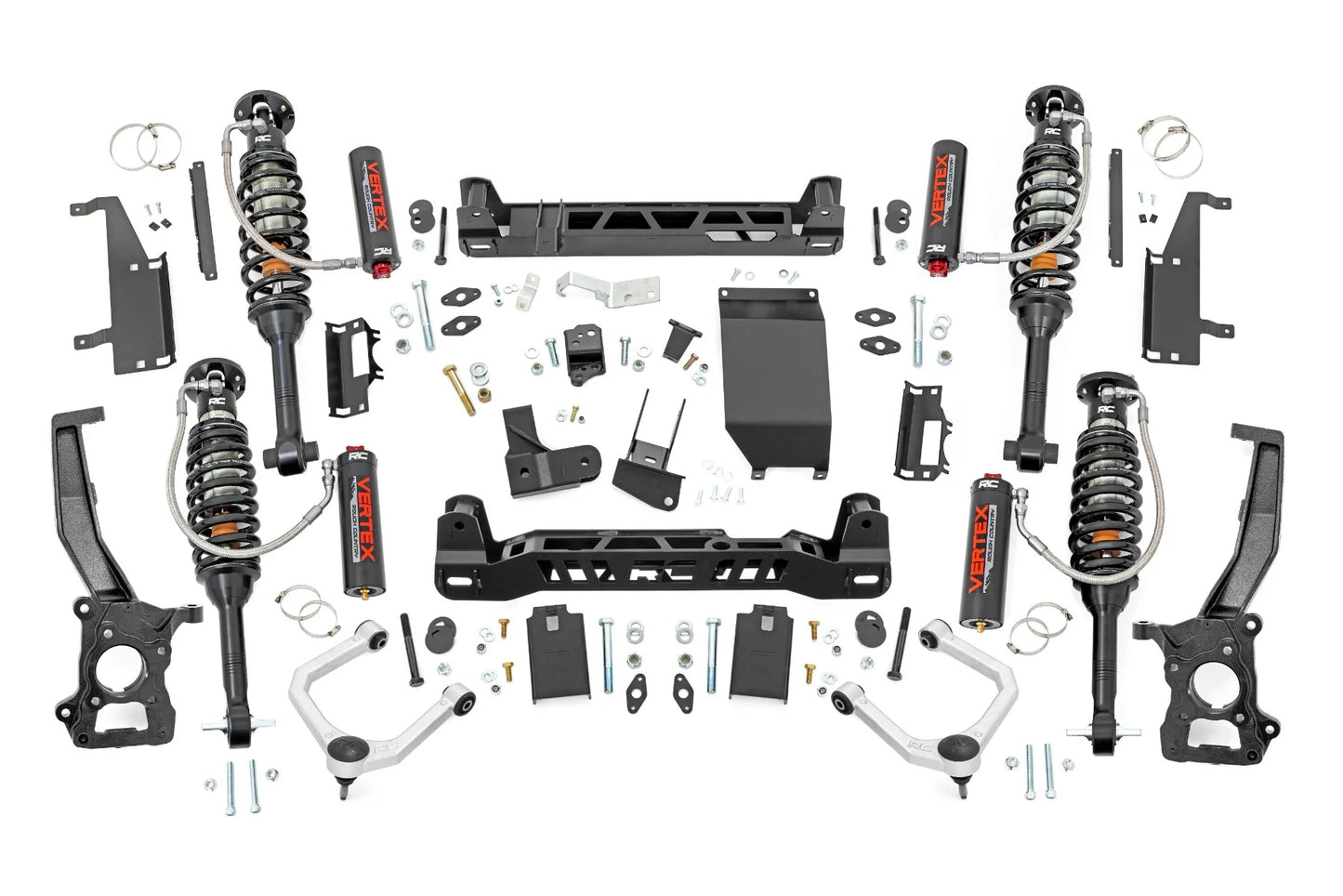

IN THE BOX
- Upper Strut Spacers
- Lifted Knuckles
- Forged Aluminum Control Arms
- Pre-load spacers
- Lower Strut Spacers
- Crossmember
- Skid Plate
- Differential Drop Brackets
- Driveshaft Spacer
- Hardware
- Upper Strut Spacers
- Track Bar Bracket
- Brake Line Relocation Bracket
- Hardware
INSTRUCTIONS
- Est. Install Time: 6-8 hours
- Instruction Sheet - Kit Installation
- Instruction Sheet - Optional Front Vertex Installation
- Instruction Sheet - Optional Rear Vertex Installation
VEHICLE FITMENT
2021-2023 4WD Ford Bronco
ALWAYS read all product page details for more important fitment information
RECOMMENDED TIRES & WHEELS
40x13.50R17 17x9 6x5.5 -19 -
38x12.50R17 17x9 6x5.5 -19 -
40x13.50R17 17x9 6x5.5 -18 -
38x12.50R17 17x9 6x5.5 -18 -
40x13.50R17 17x9 6x5.5 -12 -
38x13.50R17 17x9 6x5.5 -12 -
38x12.50R17 17x9 6x5.5 -12 -
40x13.50R17 17x9 6x5.5 +0 -
38x13.50R17 17x9 6x5.5 +0 -
38x12.50R17 17x9 6x5.5 +0 -
40x13.50R17 17x9 6x5.5 +1 -
38x13.50R17 17x9 6x5.5 +1 -
38x12.50R17 17x9 6x5.5 +1 -
38x13.50R18 18x9 6x5.5 -12 -
38x12.50R18 18x9 6x5.5 -12 -
38x13.50R18 18x9 6x5.5 +0 -
38x12.50R18 18x9 6x5.5 +0 -
38x13.50R18 18x9 6x5.5 +1 -
38x12.50R18 18x9 6x5.5 +1 -
38x13.50R18 18x10 6x5.5 -25 -
38x12.50R18 18x10 6x5.5 -25 -
38x13.50R18 18x10 6x5.5 -19 -
38x12.50R18 18x10 6x5.5 -19 -
38x13.50R18 18x10 6x5.5 -18 -
38x12.50R18 18x10 6x5.5 -18 -
38x13.50R20 20x9 6x5.5 -12 -
38x12.50R20 20x9 6x5.5 -12 -
37x12.50R20 20x9 6x5.5 -12 -
38x13.50R20 20x9 6x5.5 +0 -
38x12.50R20 20x9 6x5.5 +0 -
37x12.50R20 20x9 6x5.5 +0 -
38x13.50R20 20x9 6x5.5 +1 -
38x12.50R20 20x9 6x5.5 +1 -
37x12.50R20 20x9 6x5.5 +1 -
38x13.50R20 20x10 6x5.5 -25 Minor Trimming
38x12.50R20 20x10 6x5.5 -25 Minor Trimming
37x12.50R20 20x10 6x5.5 -25 Minor Trimming
38x13.50R20 20x10 6x5.5 -19 Minor Trimming
38x12.50R20 20x10 6x5.5 -19 Minor Trimming
37x12.50R20 20x10 6x5.5 -19 Minor Trimming
38x13.50R20 20x10 6x5.5 -18 Minor Trimming
38x12.50R20 20x10 6x5.5 -18 Minor Trimming
37x12.50R20 20x10 6x5.5 -18 Minor Trimming
37x12.50R20 20x12 6x5.5 -44 Trimming Required
38x13.50R22 22x10 6x5.5 -25 Minor Trimming
38x12.50R22 22x10 6x5.5 -25 Minor Trimming
38x13.50R22 22x10 6x5.5 -19 Minor Trimming
38x12.50R22 22x10 6x5.5 -19 Minor Trimming
38x13.50R22 22x10 6x5.5 -18 Minor Trimming
38x12.50R22 22x10 6x5.5 -18 Minor Trimming
38x12.50R22 22x12 6x5.5 -44 -
37x12.50R22 22x12 6x5.5 -44 Trimming Required
Due to differences in manufacturing, dimension and inflated measurements, tire and wheel combinations should be test fit prior to installation
