7.5 INCH LIFT KIT CHEVY/GMC 2500HD/3500HD (11-19)
7.5 INCH LIFT KIT CHEVY/GMC 2500HD/3500HD (11-19)
SKU:25330
Share
OVERVIEW
Right off the lot The GM 2500 HD has an impressive stance and a killer look, inspiring Rough Country to build a kit that would add crucial enhancements while taking nothing away from this sharp looking, new model truck. The 7.5" N3 Suspension Lift for GM 2500 HD features a Non-Torsion Drop Design for better clearance and handling while maintaining proper angles in a "clean and tucked away" fashion. This kit also features Heavy Duty components worthy of the HD badge; With 1/4" thick steel crossmembers, 1/2" thick NTD Brackets, and a durable, thick Skid Plate - all laser-cut and powder coated in our "Hammer Black" color to match the factory components. Installation requires no drilling or modifying the differential, meaning no "invasive" mods to your new toy.
Our innovative HD lift doesn't just look like it came from the showroom floor, it drives like it did too. This kit doesn't widen the stock track width, and the Non Torsion Drop design keeps everything at optimum angles, leaving that factory feel to handling corners and turns. A full set of Nitrogen charged N3 Shock Absorbers offer 10-Stage velocity sensitive valving, and are custom valved for each model kit we offer - meaning you get a set of shocks designed to preserve your factory ride quality.
FEATURES
- Maintains factory ride quality.
- Maintains the stock track width.
- Torsion bars stay in the factory location.
- Unmatched ground clearance.
- Axles maintain factory position and angle.
- No drilling or modifying of the differential.
- No drivetrain or exhaust modifications required.
- Includes our latest application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.

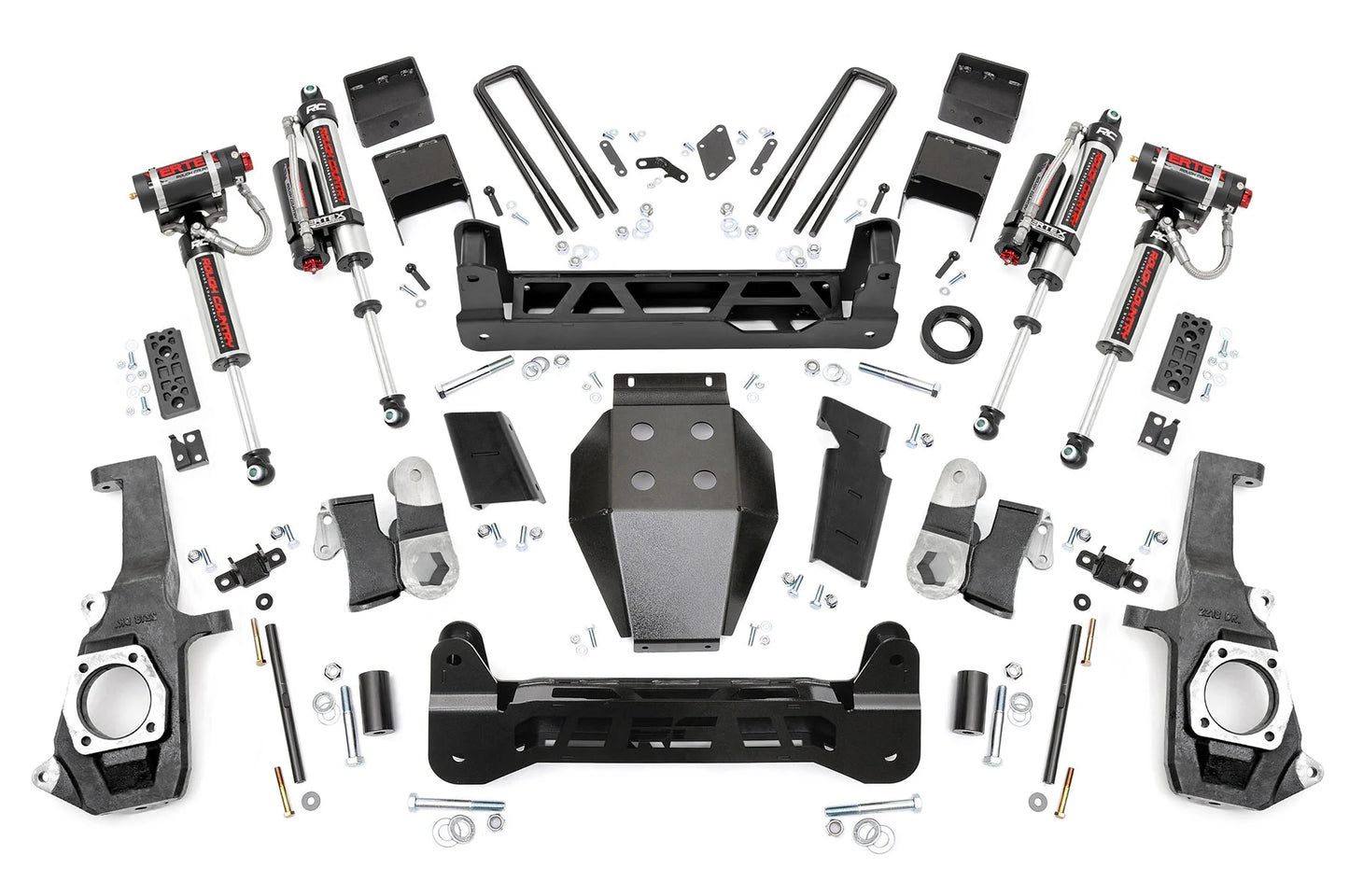

OPTIONAL VERTEX SHOCKS

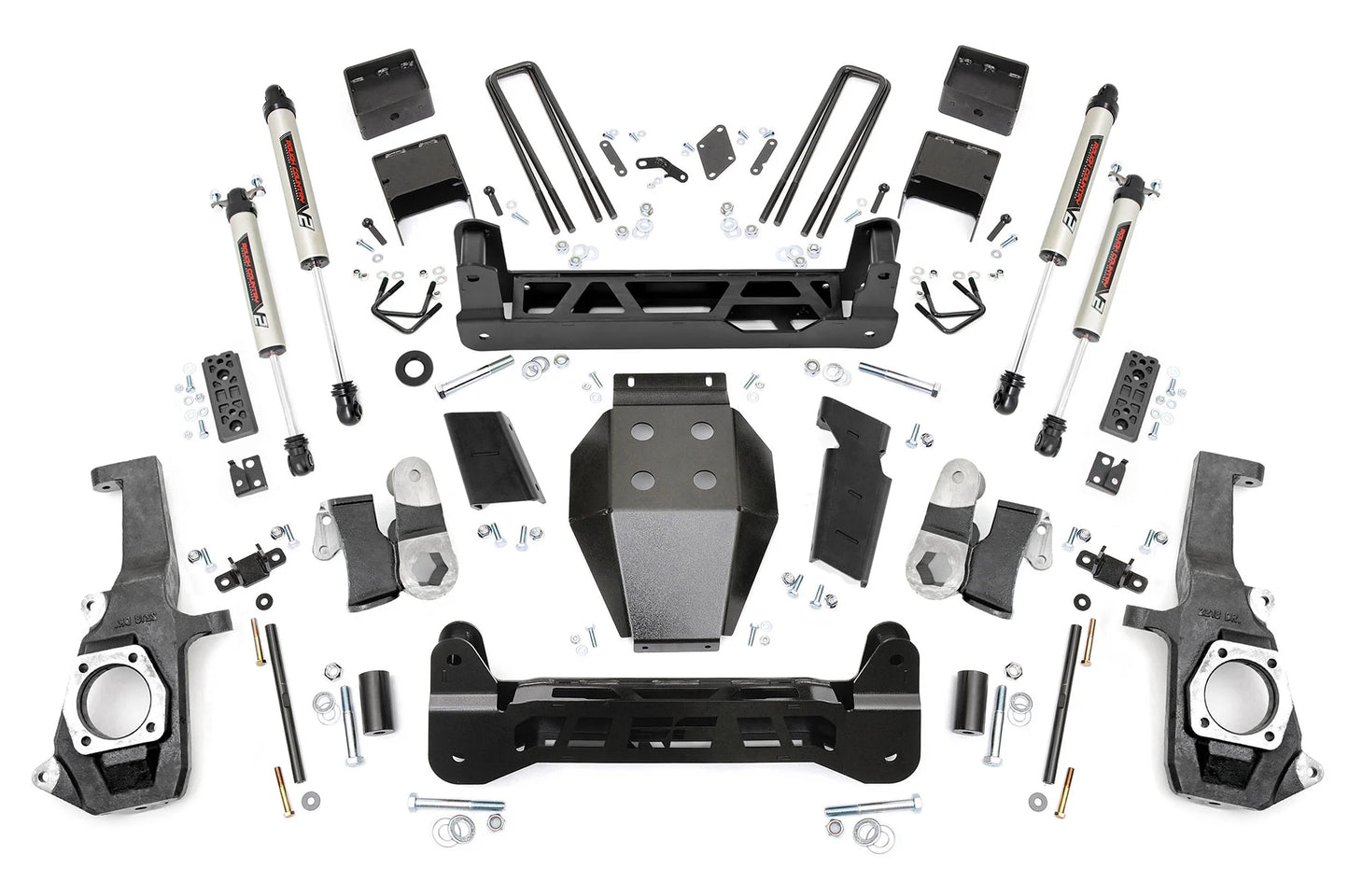

OPTIONAL V2 MONOTUBE SHOCKS
OPTIONAL N3 SHOCKS
NOTES - IMPORTANT
- Does NOT fit dually models.
- Does NOT fit models with Magnetic Ride Control.
- Does NOT work with factory wheels.
- If equipped with factory 17" wheels - new aftermarket wheels must be 17" or larger to clear brake calipers/rotor.
- Gas models may require modification to the exhaust for driveshaft clearance.
- Models equipped with factory rear overload springs require longer u-bolt kit SKU: 7664.

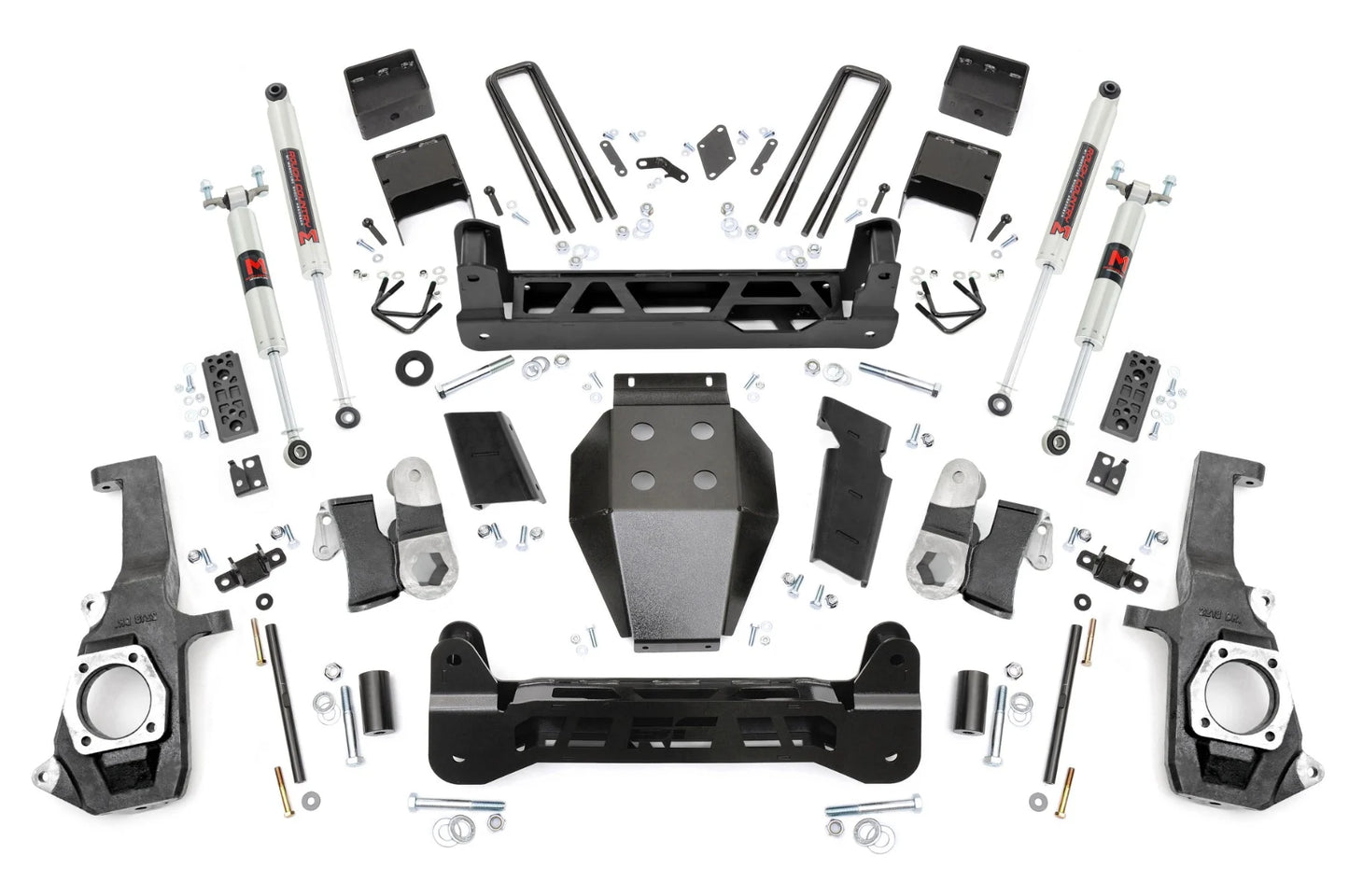

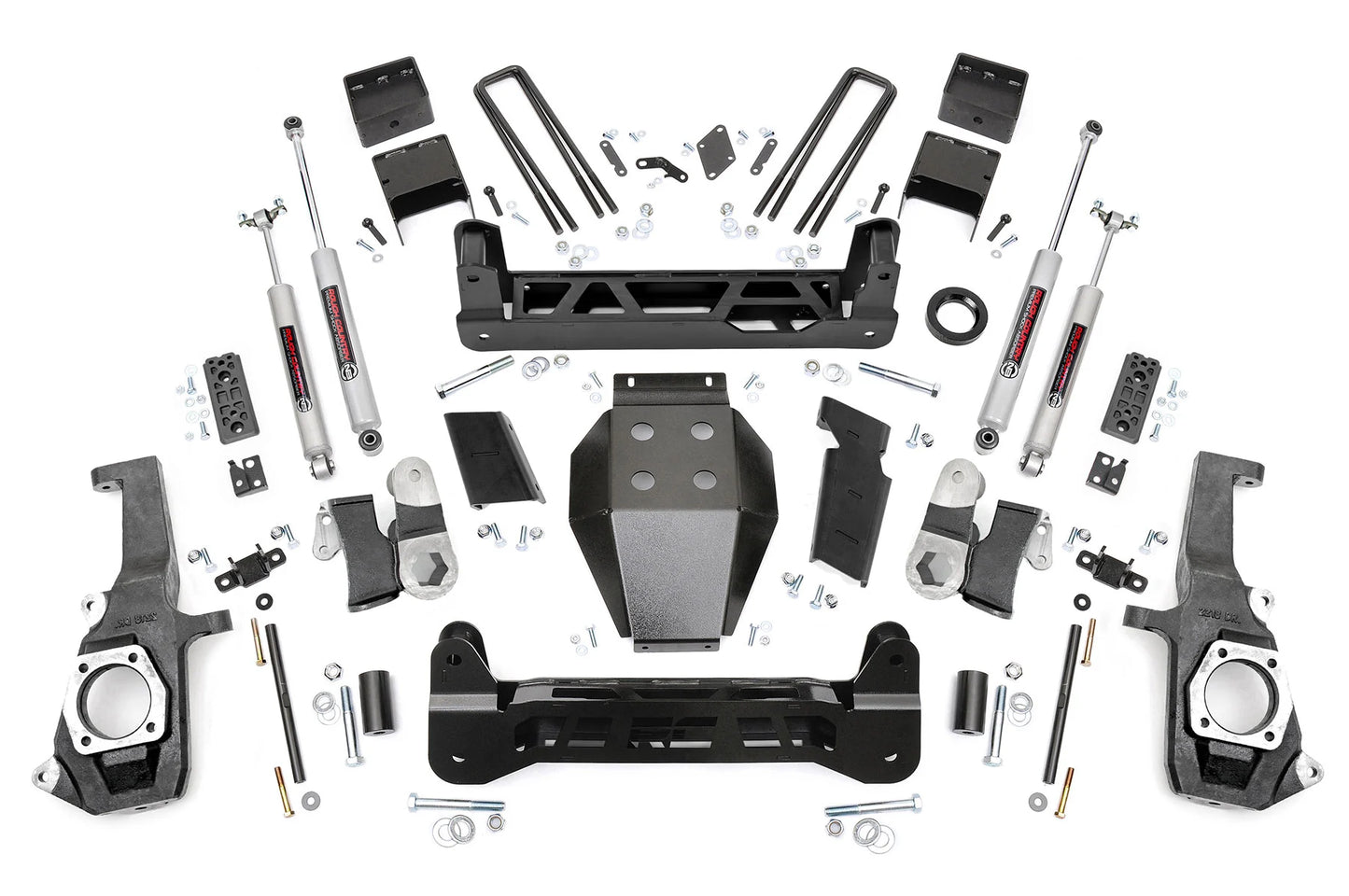

IN THE BOX
- Lifted knuckles
- Front crossmember
- Rear crossmember
- Differential drop brackets
- Differential skid plate
- Non-torsion bar drop brackets
- Sway-bar link extensions
- Sway-bar brackets
- Brake line relocation bracket
- Hardware
- Lifted blocks
- U-bolts
- Bump-stop brackets
- Brake line brackets
- E-brake line bracket
- Hardware
- (4) Premium N3 series
INSTRUCTIONS
- Est. Install Time: 8 - 10 hours
- Instruction Sheet - Kit Installation
- Instruction Sheet - Optional Front Vertex Installation
- Instruction Sheet - Optional Rear Vertex Installation
VEHICLE FITMENT
2011-2019 2WD Chevy Silverado 3500 HD
2011-2019 4WD Chevy Silverado 3500 HD
2011-2019 4WD GMC Sierra 2500 HD
2011-2019 4WD GMC Sierra 3500 HD
2011-2019 2WD GMC Sierra 3500 HD
2011-2019 2WD GMC Sierra 2500 HD
2011-2019 2WD Chevy Silverado 2500 HD
2011-2019 4WD Chevy Silverado 2500 HD
ALWAYS read all product page details for more important fitment information
RECOMMENDED TIRES & WHEELS
TIRE WHEEL BOLT PATTERN OFFSET NOTE
35x12.50R17 17x8.5 8x180 +0 -
35x12.50R17 17x8.5 8x180 +1 -
35x12.50R17 17x9 8x180 +0 -
35x12.50R17 17x9 8x180 +1 -
35x12.50R18 18x8.5 8x180 +0 -
35x12.50R18 18x8.5 8x180 +1 -
35x12.50R18 18x9 8x180 -12 -
35x12.50R18 18x9 8x180 +0 -
35x12.50R18 18x9 8x180 +1 -
35x12.50R20 20x9 8x180 -12 -
35x12.50R20 20x9 8x180 +0 -
295/60R20 20x9 8x180 +0 -
35x12.50R20 20x9 8x180 +1 -
295/60R20 20x9 8x180 +1 -
35x12.50R20 20x10 8x180 -25 Minor Trimming
35x12.50R20 20x10 8x180 -19 Minor Trimming
295/60R20 20x10 8x180 -19 Minor Trimming
35x12.50R20 20x10 8x180 -18 Minor Trimming
295/60R20 20x10 8x180 -18 Minor Trimming
35x12.50R20 20x12 8x180 -44 Trimming Required
35x12.50R22 22x10 8x180 -25 Minor Trimming
35x12.50R22 22x10 8x180 -24 Minor Trimming
35x12.50R22 22x10 8x180 -19 Minor Trimming
285/55R22 22x10 8x180 -19 -
35x12.50R22 22x10 8x180 -18 Minor Trimming
285/55R22 22x10 8x180 -18 -
35x12.50R22 22x12 8x180 -44 Trimming Required
Due to differences in manufacturing, dimension and inflated measurements, tire and wheel combinations should be test fit prior to installation
