6 INCH LIFT KIT GMC SIERRA 1500 2WD/4WD (2019-2024)
6 INCH LIFT KIT GMC SIERRA 1500 2WD/4WD (2019-2024)
Regular price
$1,329.95 USD
Regular price
Sale price
$1,329.95 USD
Unit price
/
per
SKU:26631
Share
OVERVIEW

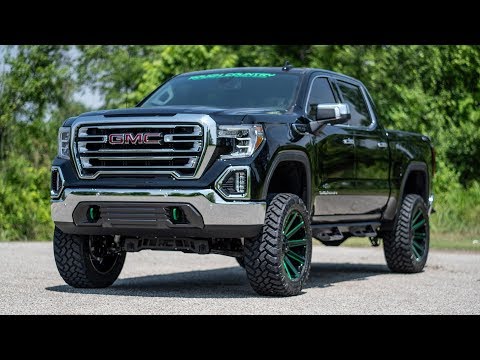

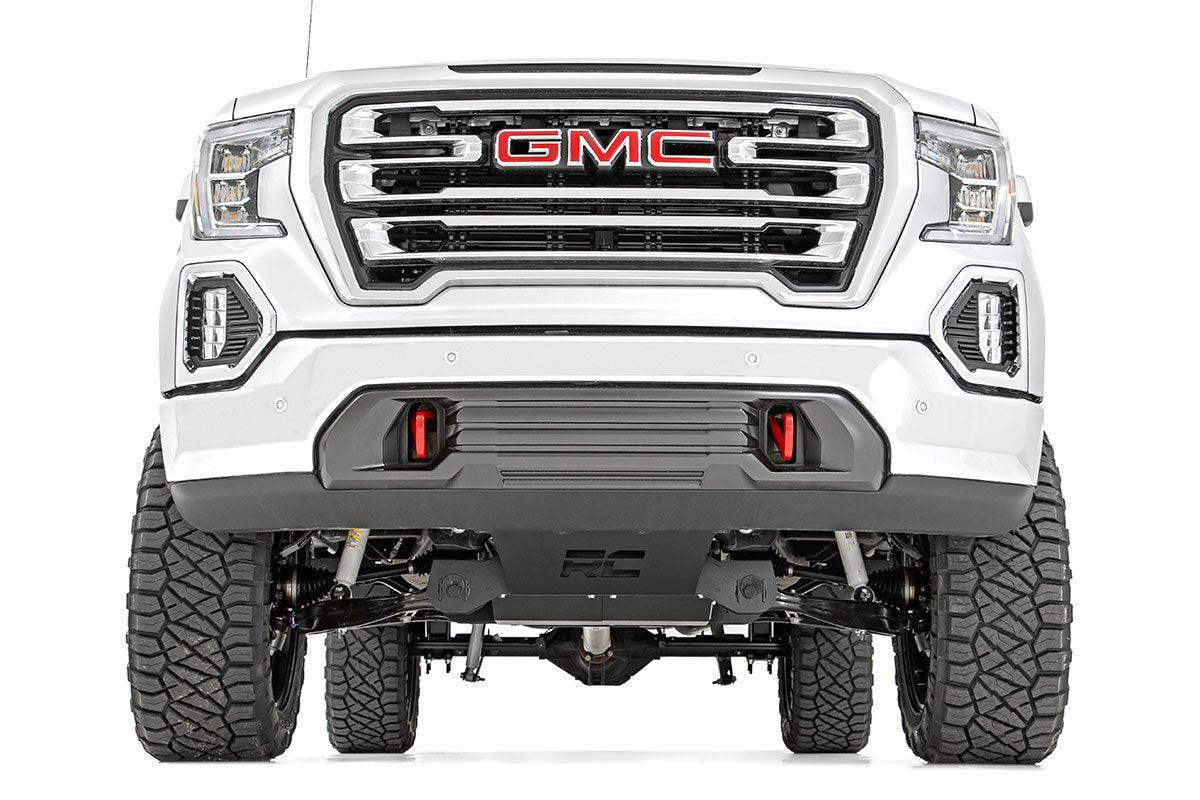

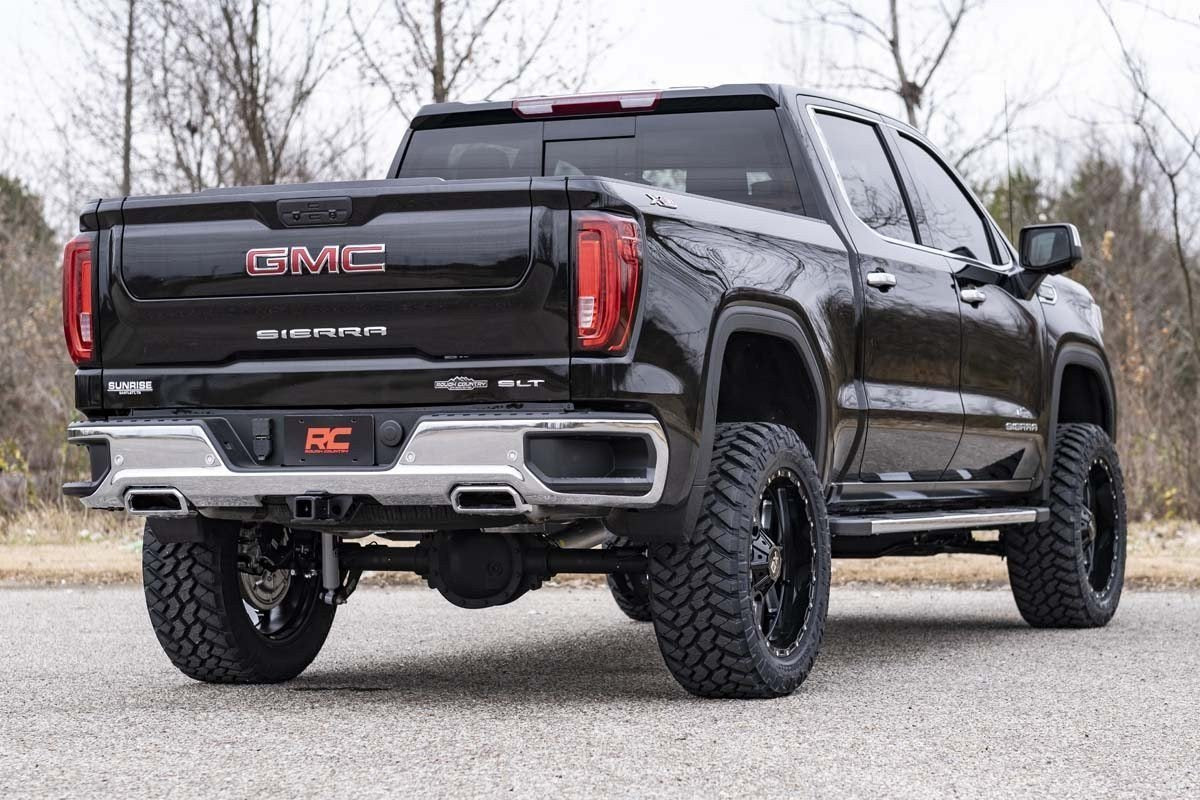

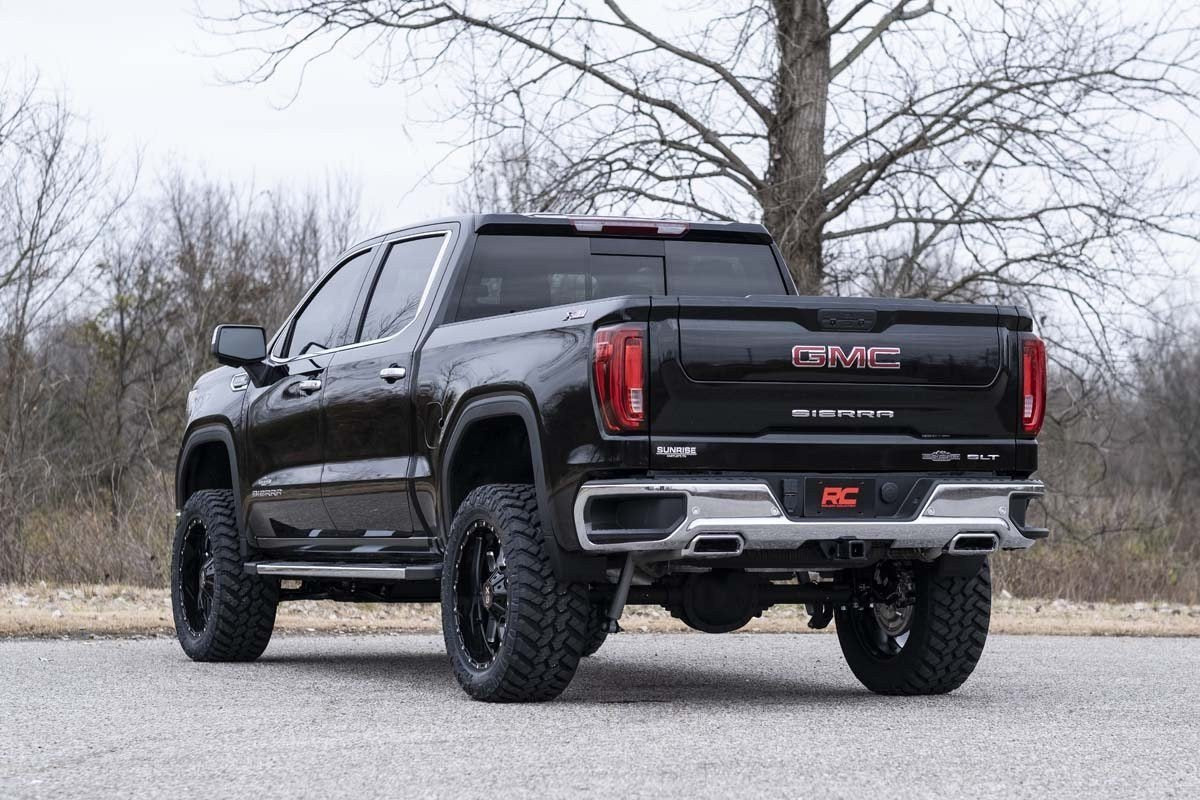

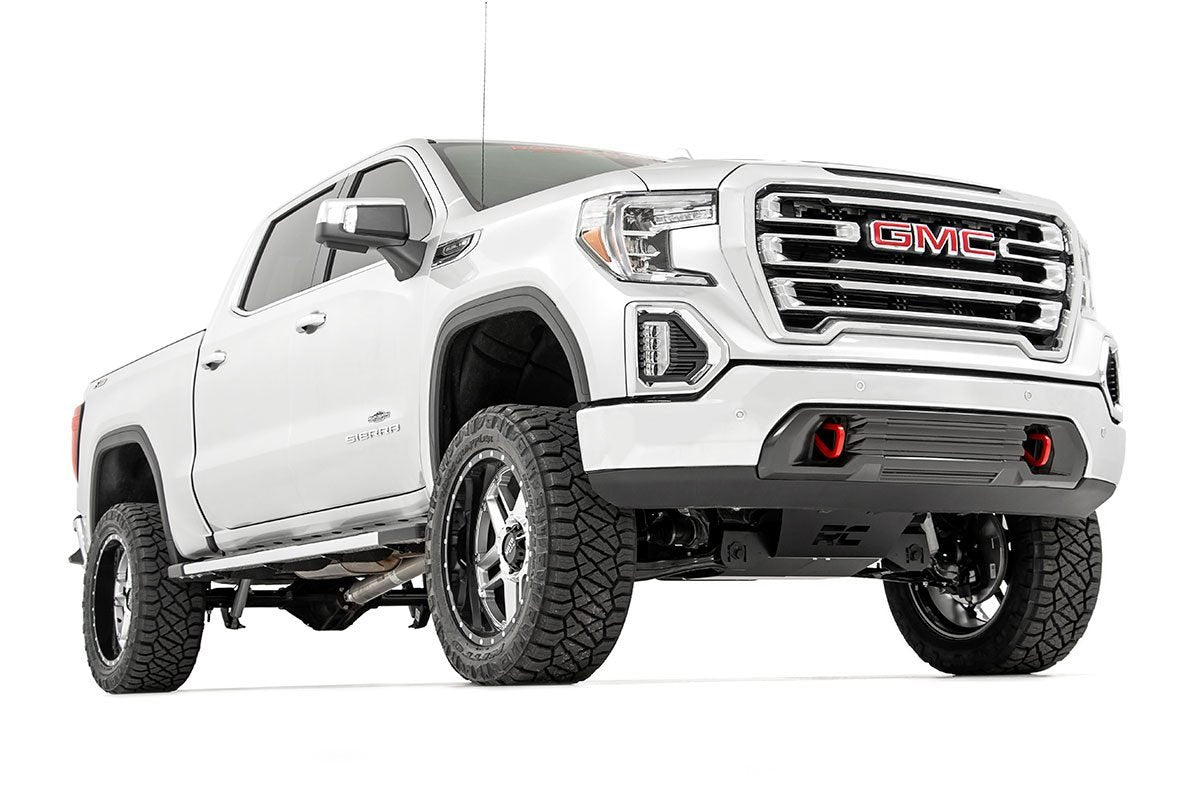

GMC’s 2019 Sierra 1500 features an impressive all-new design that’s built from the ground up, with aggressive angles and head-turning stylings that fit in beautifully when transformed with Rough Country’s 6in Suspension Lift.

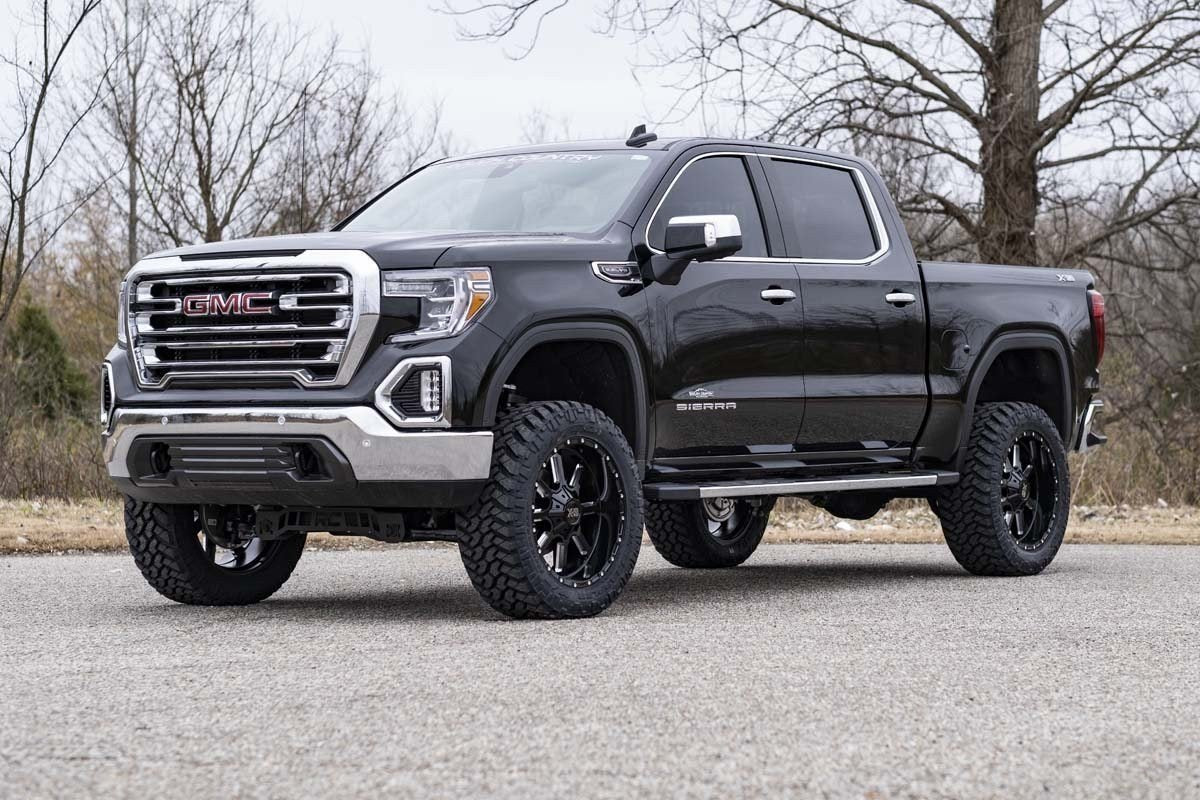

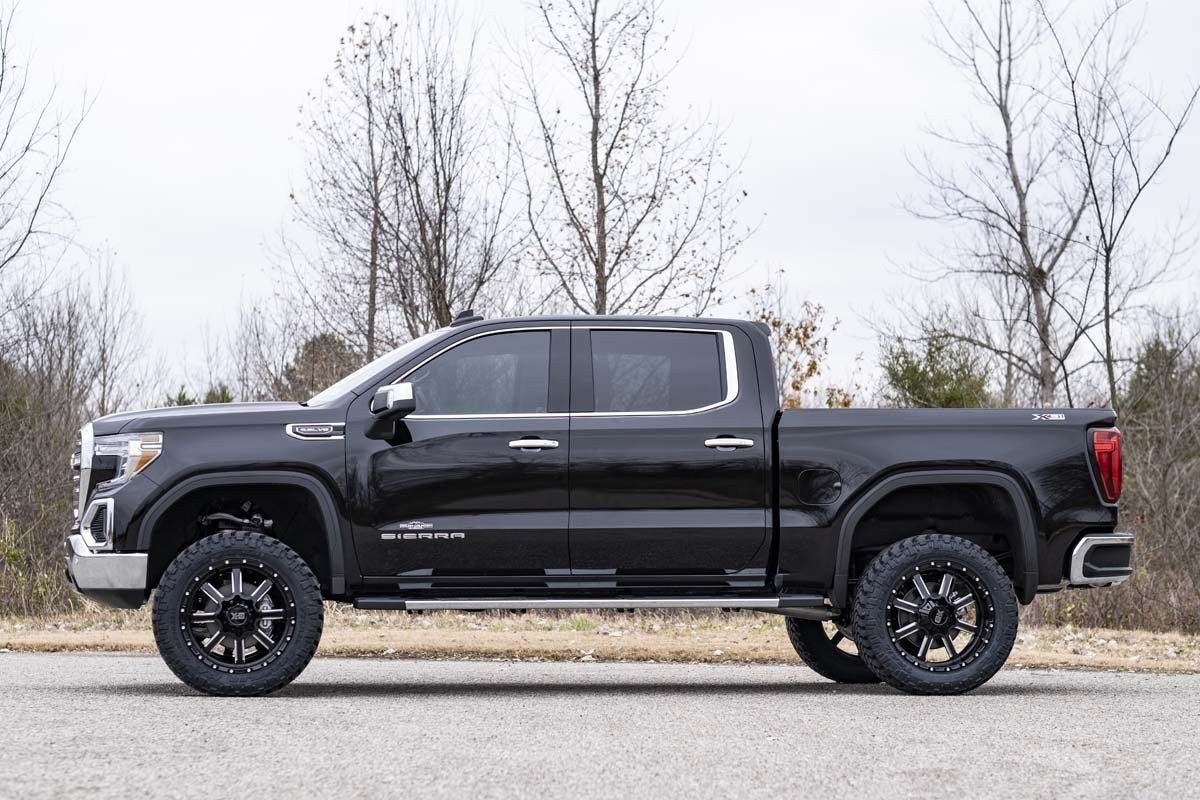

This kit lifts and levels your vehicle for a commanding stance and enough clearance to run 35x12.50 tires on 10in wide wheels. Rough Country has engineered this kit to provide optimal suspension geometry while retaining the factory ride quality, giving you enhanced off-road capabilities without sacrificing the handling and smooth ride that makes this truck so impressive.
Rough Country’s 6in Suspension lift retains the stock track width, allowing for up to a 10in wide wheel with 4.5in backspacing. Each kit includes front and rear crossmembers and a skid plate for enhanced chassis strength as well as cast steel knuckles for incredible durability and performance. Includes Rough Country’s Lifetime Replacement Guarantee!
This kit lifts and levels your vehicle for a commanding stance and enough clearance to run 35x12.50 tires on 10in wide wheels. Rough Country has engineered this kit to provide optimal suspension geometry while retaining the factory ride quality, giving you enhanced off-road capabilities without sacrificing the handling and smooth ride that makes this truck so impressive.
Rough Country’s 6in Suspension lift retains the stock track width, allowing for up to a 10in wide wheel with 4.5in backspacing. Each kit includes front and rear crossmembers and a skid plate for enhanced chassis strength as well as cast steel knuckles for incredible durability and performance. Includes Rough Country’s Lifetime Replacement Guarantee!
FEATURES
- Lifts and levels the vehicle from front to rear.
- High clearance crossmember design for optimal suspension geometry.
- Includes cast knuckles for extreme durability.
- Retains stock track width.
- No strut disassembly required.
- No differential trimming required!
- 100% precision laser cut materials using the latest computer aided design process.
- Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
- Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
NOTES - IMPORTANT
- Requires cutting and drilling.
- Does NOT fit models with two-piece rear driveshaft.
- Does NOT fit Chevy Silverado, for Chevy use SKU: 21731.
- Does NOT fit AT4 models. For AT4 use SKU: 27531.
- Does NOT fit models with Adaptive Ride Control. For models equipped with Adaptive Ride Control use SKU: 29900.
-
// TIRE & WHEEL DETAILS \\
- Does NOT fit factory wheels.
- 20-inch or larger aftermarket wheels are required.
- Wheels must feature 4.5in backspacing to fit.
- Please test fit wheels prior to installation.
- Must verify compatibility of the aftermarket wheel with the 2019 and up GM larger brake caliper system.
- Some aftermarket wheels may require .25" wheel spacer #1065.

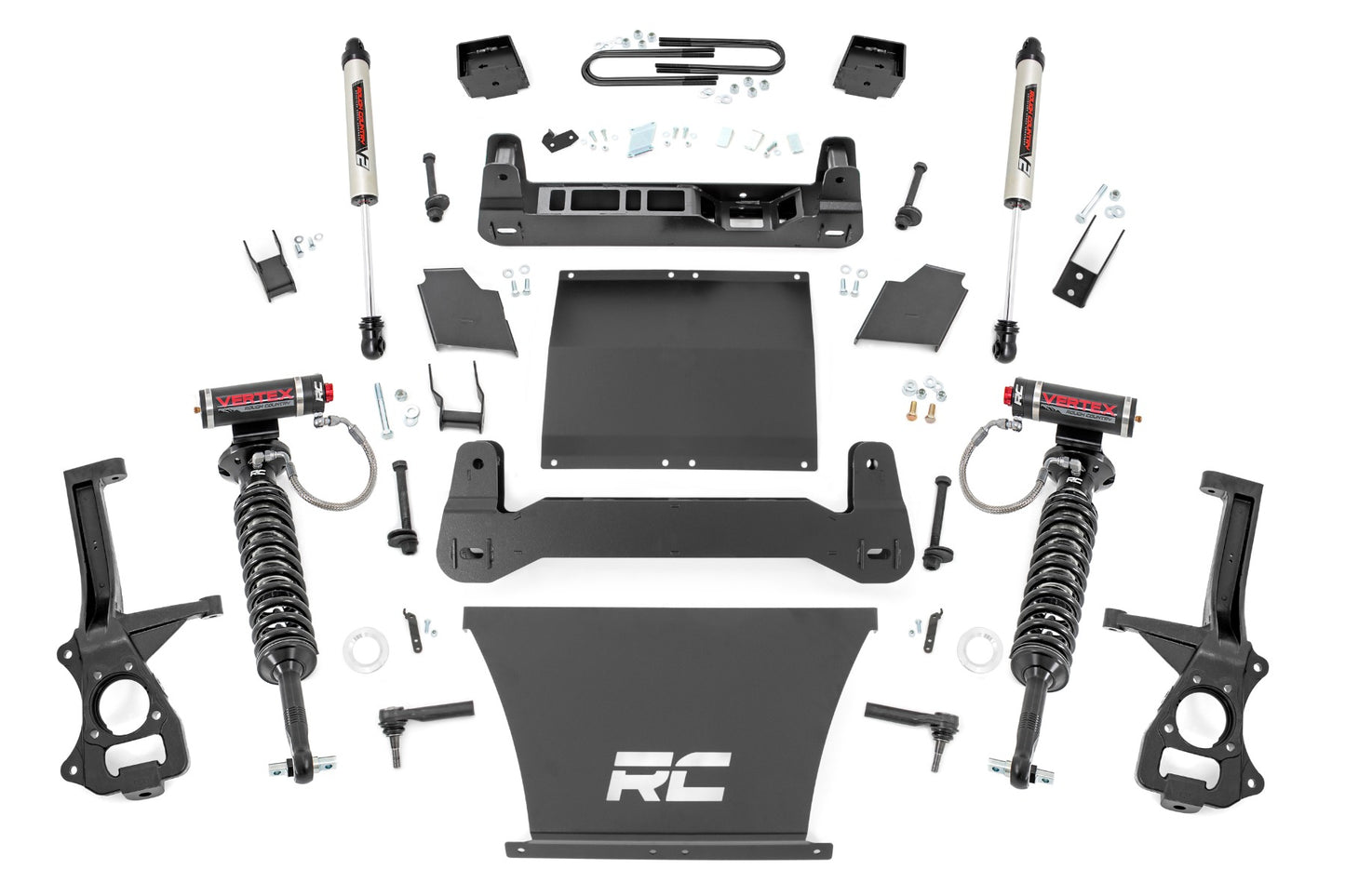

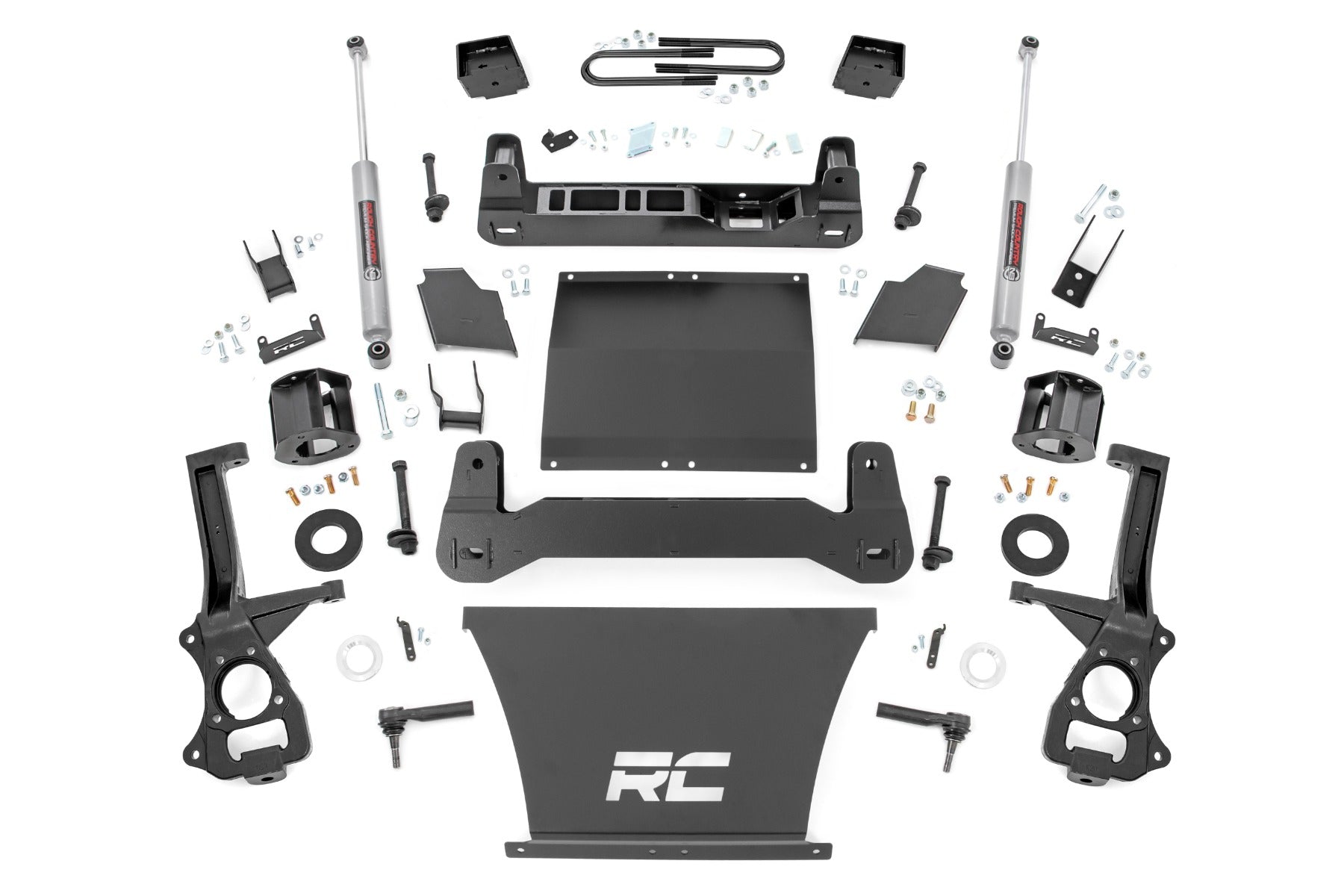

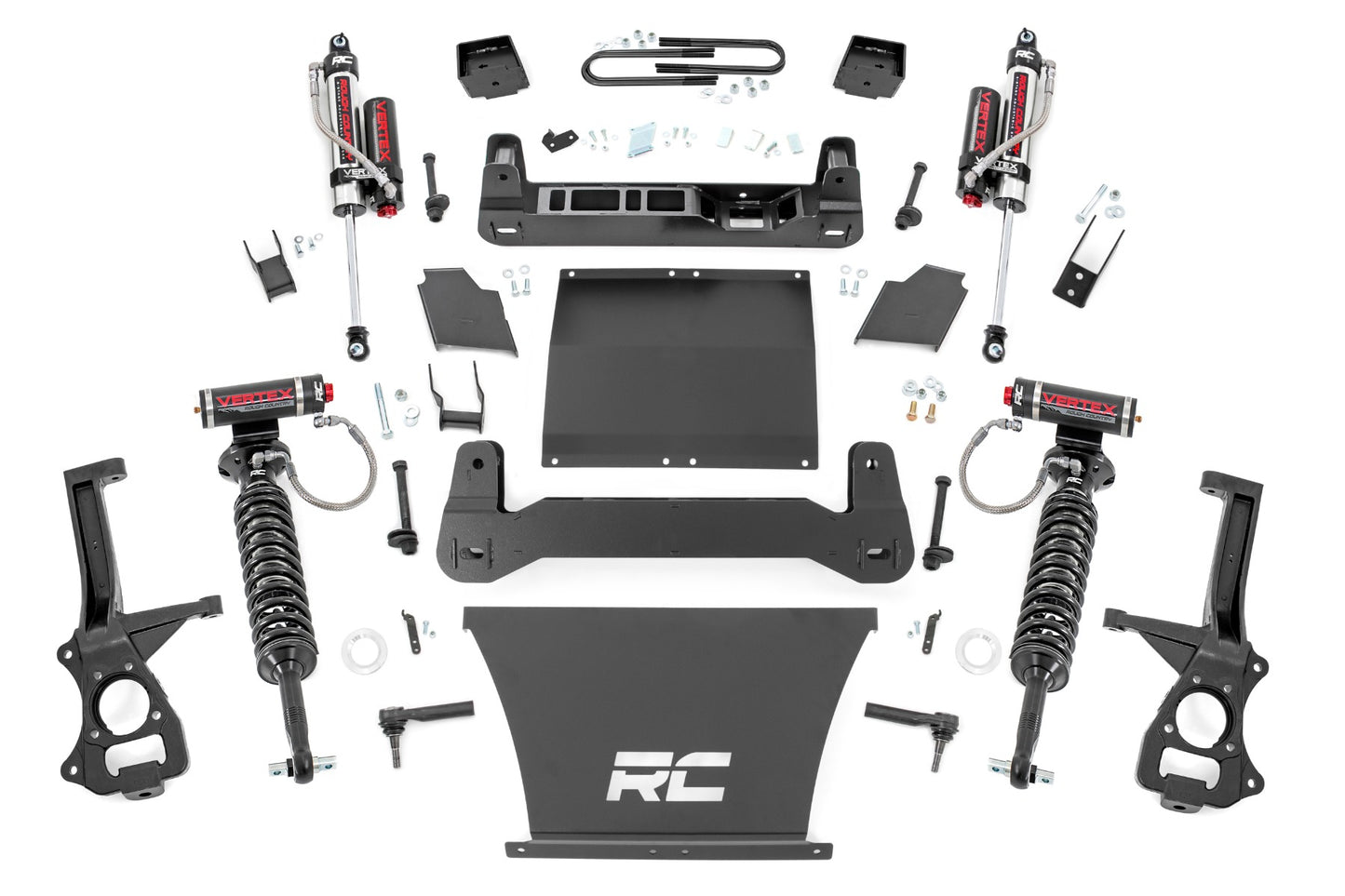

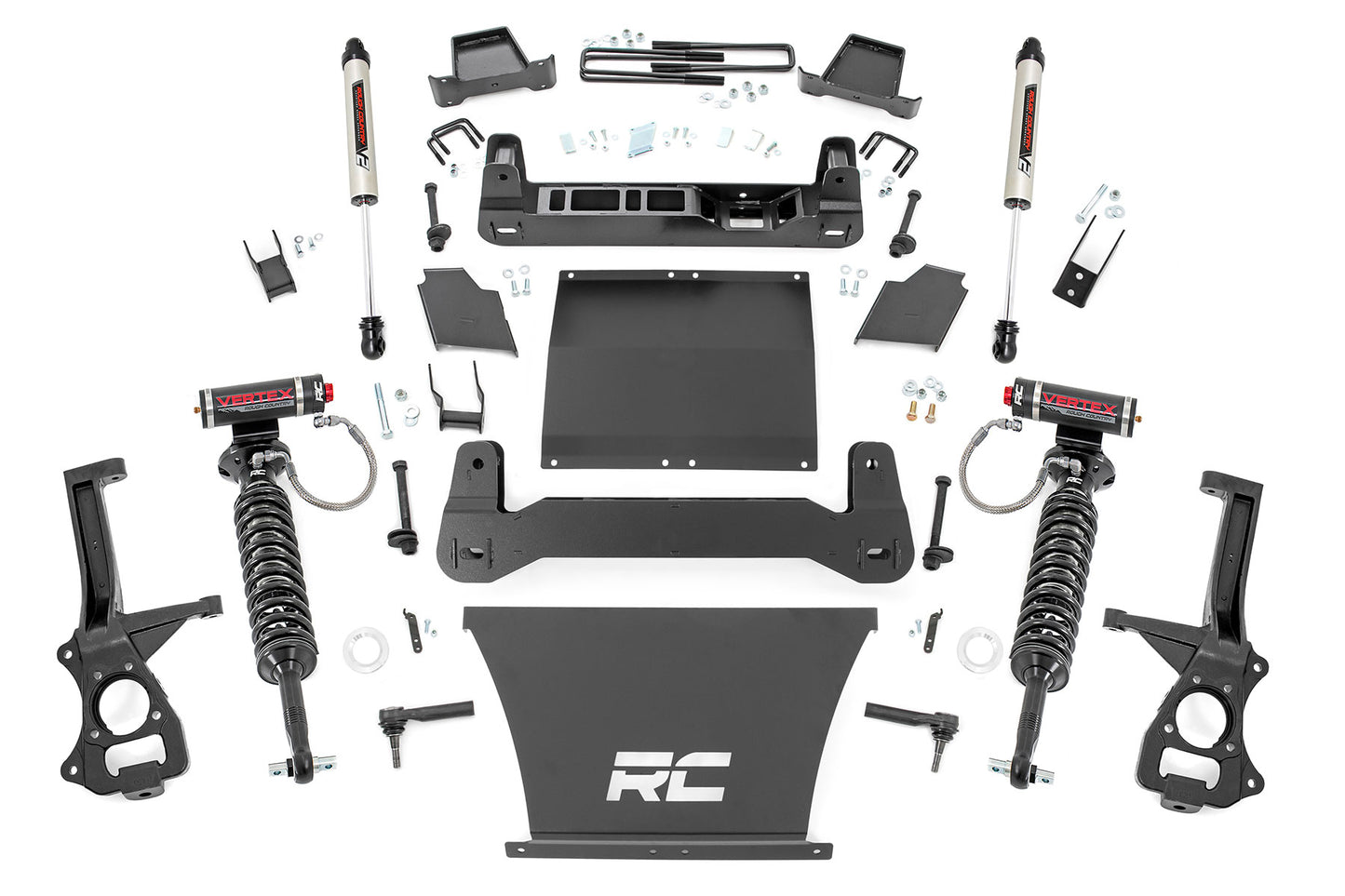

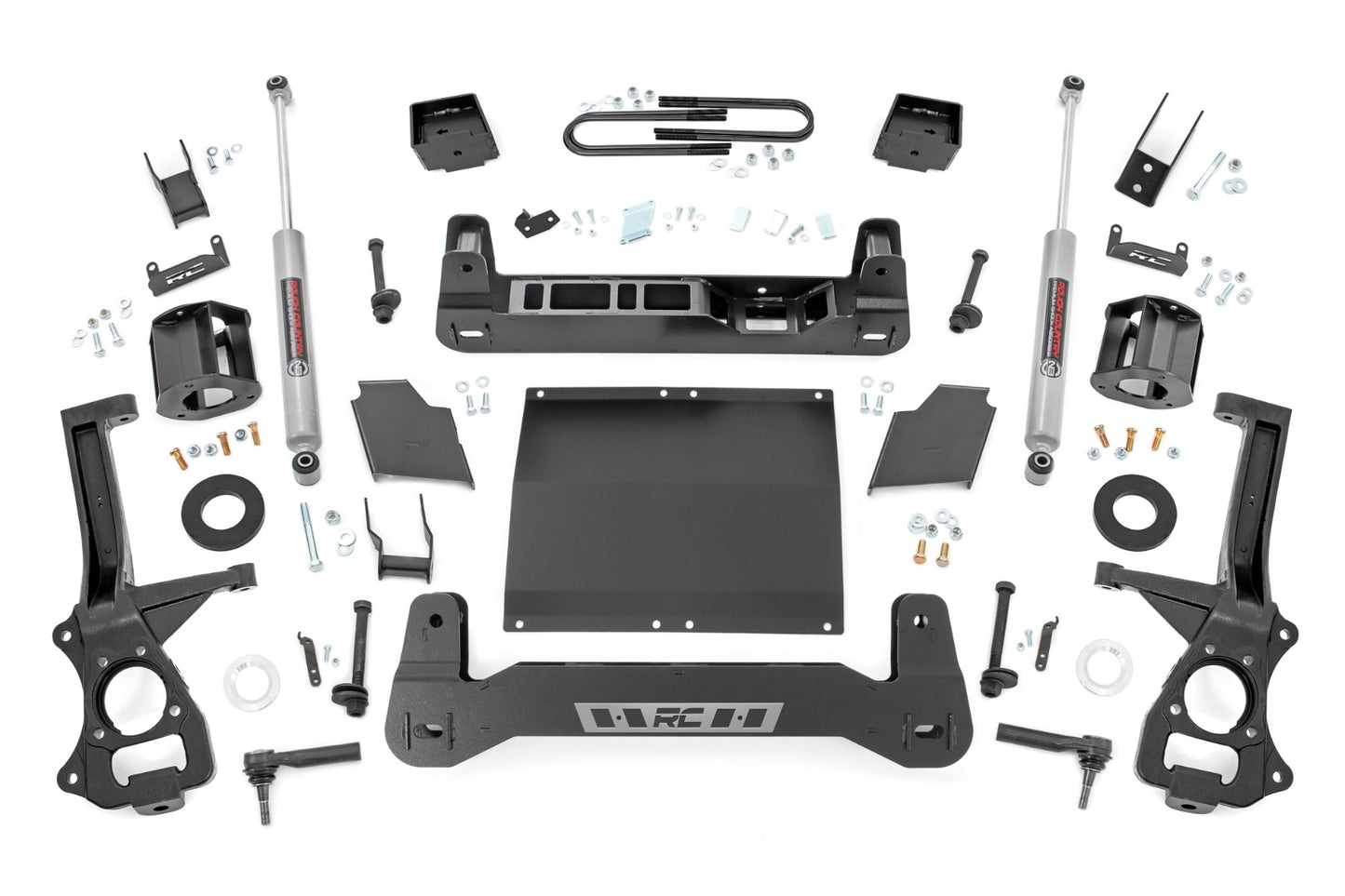

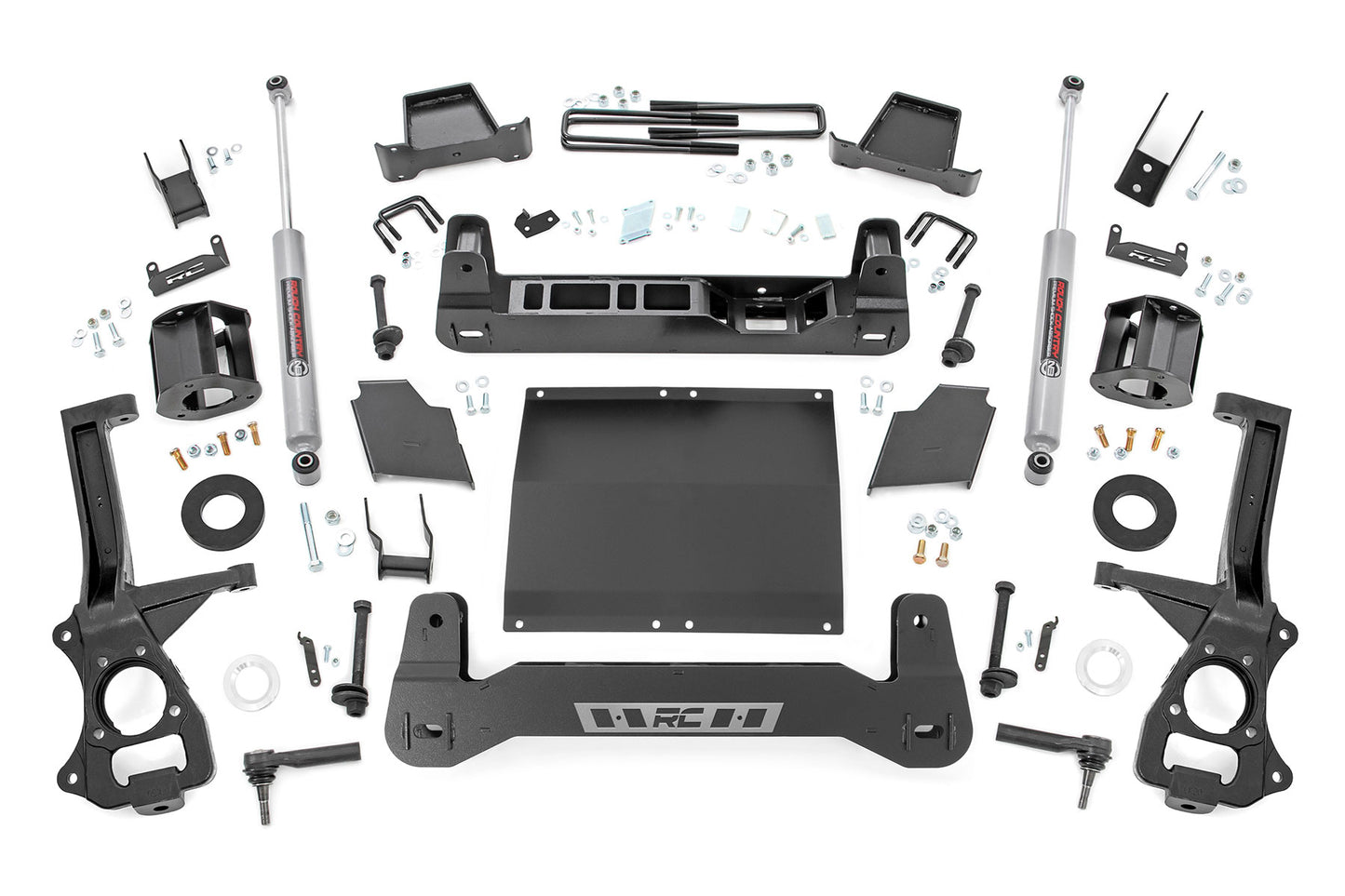

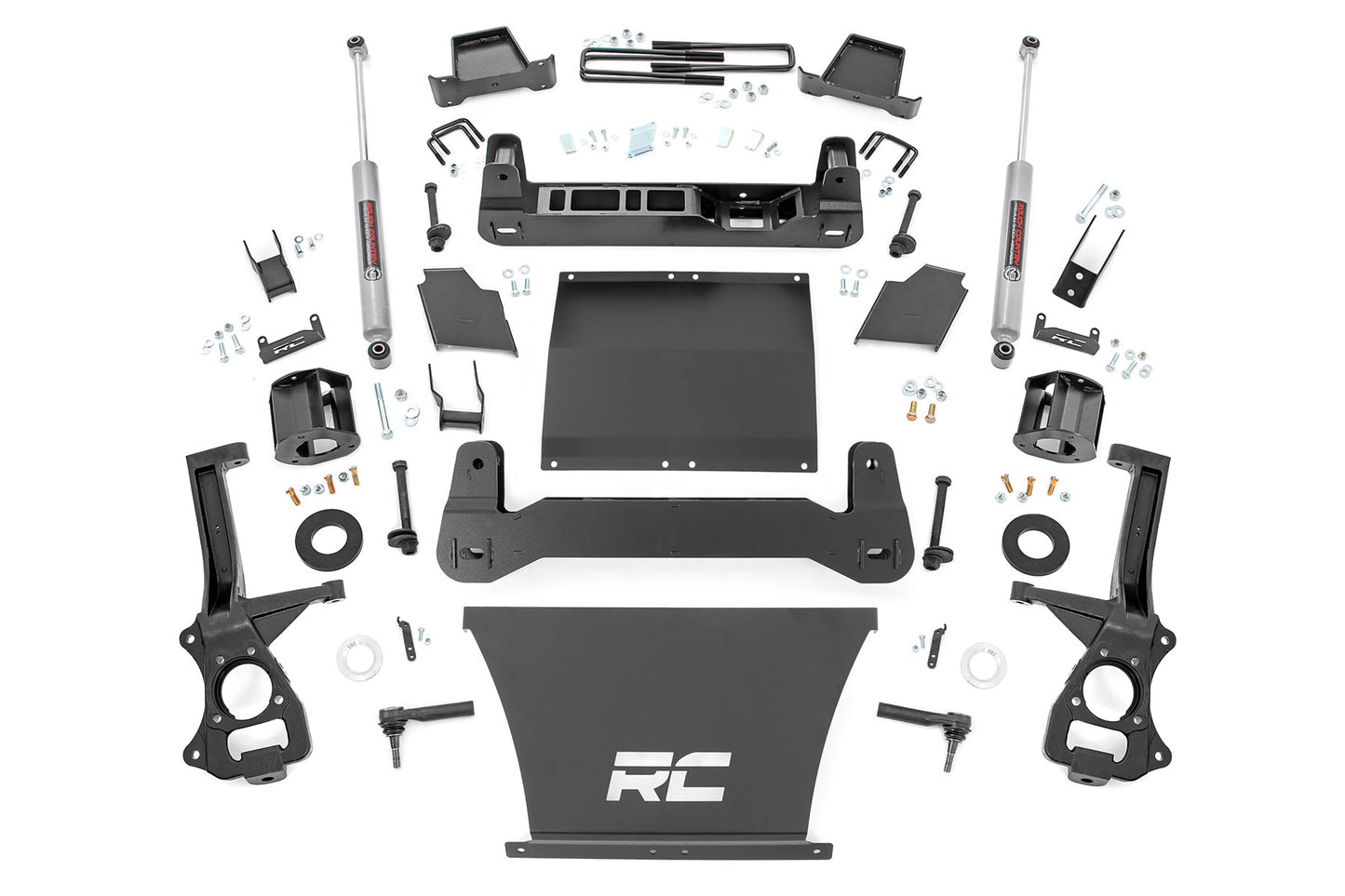

IN THE BOX
FRONT
- Lifted knuckles
- Front crossmember
- Rear crossmember
- Upper strut spacers
- Lower strut spacers
- Differential drop brackets
- Differential skid plate
- Sway-bar drop brackets
- Hardware
REAR
- Fabricated lift blocks
- Brake line brackets
- U-bolts
- Hardware
SHOCKS
- (2) Rear Premium N3 series
INSTRUCTIONS
- Est. Install Time: 8-10 hours
- Instruction Sheet - Kit Instructions
- Instruction Sheet - 2.7& 3.0L Crossmember Instructions
VEHICLE FITMENT
YEARS DRIVE MAKE MODEL
2019-2024 2WD GMC Sierra 1500
2019-2024 4WD GMC Sierra 1500
ALWAYS read all product page details for more important fitment information
2019-2024 2WD GMC Sierra 1500
2019-2024 4WD GMC Sierra 1500
ALWAYS read all product page details for more important fitment information
RECOMMENDED TIRES & WHEELS
TIRE WHEEL BOLT PATTERN OFFSET NOTE
35x12.50R20 20x9 6x5.5 -12 -
33x12.50R20 20x9 6x5.5 -12 -
305/55R20 20x9 6x5.5 -12 -
295/65R20 20x9 6x5.5 -12 -
295/60R20 20x9 6x5.5 -12 -
35x12.50R20 20x10 6x5.5 -25 Minor Trimming
33x12.50R20 20x10 6x5.5 -25 Minor Trimming
305/55R20 20x10 6x5.5 -25 Minor Trimming
295/60R20 20x10 6x5.5 -25 Minor Trimming
35x12.50R20 20x10 6x5.5 -19 Minor Trimming
33x12.50R20 20x10 6x5.5 -19 Minor Trimming
305/55R20 20x10 6x5.5 -19 Minor Trimming
295/65R20 20x10 6x5.5 -19 Minor Trimming
295/60R20 20x10 6x5.5 -19 Minor Trimming
35x12.50R20 20x10 6x5.5 -18 Minor Trimming
33x12.50R20 20x10 6x5.5 -18 Minor Trimming
305/55R20 20x10 6x5.5 -18 Minor Trimming
295/65R20 20x10 6x5.5 -18 Minor Trimming
295/60R20 20x10 6x5.5 -18 Minor Trimming
35x12.50R20 20x12 6x5.5 -44 Trimming Required
33x12.50R20 20x12 6x5.5 -44 Trimming Required
305/55R20 20x12 6x5.5 -44 Trimming Required
35x12.50R22 22x10 6x5.5 -25 Minor Trimming
33x12.50R22 22x10 6x5.5 -25 Minor Trimming
285/55R22 22x10 6x5.5 -25 -
35x12.50R22 22x10 6x5.5 -19 Minor Trimming
33x12.50R22 22x10 6x5.5 -19 Minor Trimming
285/55R22 22x10 6x5.5 -19 -
35x12.50R22 22x10 6x5.5 -18 Minor Trimming
33x12.50R22 22x10 6x5.5 -18 Minor Trimming
285/55R22 22x10 6x5.5 -18 -
35x12.50R22 22x12 6x5.5 -44 Trimming Required
33x12.50R22 22x12 6x5.5 -44 Trimming Required
Does NOT fit factory wheels
35x12.50R20 20x9 6x5.5 -12 -
33x12.50R20 20x9 6x5.5 -12 -
305/55R20 20x9 6x5.5 -12 -
295/65R20 20x9 6x5.5 -12 -
295/60R20 20x9 6x5.5 -12 -
35x12.50R20 20x10 6x5.5 -25 Minor Trimming
33x12.50R20 20x10 6x5.5 -25 Minor Trimming
305/55R20 20x10 6x5.5 -25 Minor Trimming
295/60R20 20x10 6x5.5 -25 Minor Trimming
35x12.50R20 20x10 6x5.5 -19 Minor Trimming
33x12.50R20 20x10 6x5.5 -19 Minor Trimming
305/55R20 20x10 6x5.5 -19 Minor Trimming
295/65R20 20x10 6x5.5 -19 Minor Trimming
295/60R20 20x10 6x5.5 -19 Minor Trimming
35x12.50R20 20x10 6x5.5 -18 Minor Trimming
33x12.50R20 20x10 6x5.5 -18 Minor Trimming
305/55R20 20x10 6x5.5 -18 Minor Trimming
295/65R20 20x10 6x5.5 -18 Minor Trimming
295/60R20 20x10 6x5.5 -18 Minor Trimming
35x12.50R20 20x12 6x5.5 -44 Trimming Required
33x12.50R20 20x12 6x5.5 -44 Trimming Required
305/55R20 20x12 6x5.5 -44 Trimming Required
35x12.50R22 22x10 6x5.5 -25 Minor Trimming
33x12.50R22 22x10 6x5.5 -25 Minor Trimming
285/55R22 22x10 6x5.5 -25 -
35x12.50R22 22x10 6x5.5 -19 Minor Trimming
33x12.50R22 22x10 6x5.5 -19 Minor Trimming
285/55R22 22x10 6x5.5 -19 -
35x12.50R22 22x10 6x5.5 -18 Minor Trimming
33x12.50R22 22x10 6x5.5 -18 Minor Trimming
285/55R22 22x10 6x5.5 -18 -
35x12.50R22 22x12 6x5.5 -44 Trimming Required
33x12.50R22 22x12 6x5.5 -44 Trimming Required
Does NOT fit factory wheels
Due to differences in manufacturing, dimension and inflated measurements, tire and wheel combinations should be test fit prior to installation
