Rough Country
6 INCH LIFT KIT FORD F-150 4WD (2015-2020)
6 INCH LIFT KIT FORD F-150 4WD (2015-2020)
SKU:55730
Couldn't load pickup availability
Share
OVERVIEW
Featuring a set of durable lifted knuckles and strut spacers, you'll gain enough ride height to run up to 35-inch tires with proper wheel spacing! A set of differential drop brackets, sway-bar drop brackets, brake line brackets, and a drive shaft spacer help keep everything at optimum angles for a factory-like ride, even after lifting. A 1/4-inch thick plate steel front and rear crossmember bring uncompromised strength and good looks to your truck, and are updated to fit the new F-150 design. Our Fabricated Rear Blocks offer considerably more strength than their cast iron counterparts, and were specifically engineered by Rough Country to prevent against axle-wrap.
A set of Rough Country's premium N3 shocks are also included in this kit, featuring a large diameter body with a chrome-hardened piston rod and long-lasting polyurethane bushings.
Best of all, Rough Country's Ford F-150 Lift Kit is backed by our Lifetime Replacement Warranty.
FEATURES
- Increased ground clearance
- Track width remains the same as factory
- Works with 18in or larger factory wheels*
- Levels the front with the rear of the vehicle
- Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
- Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problem.

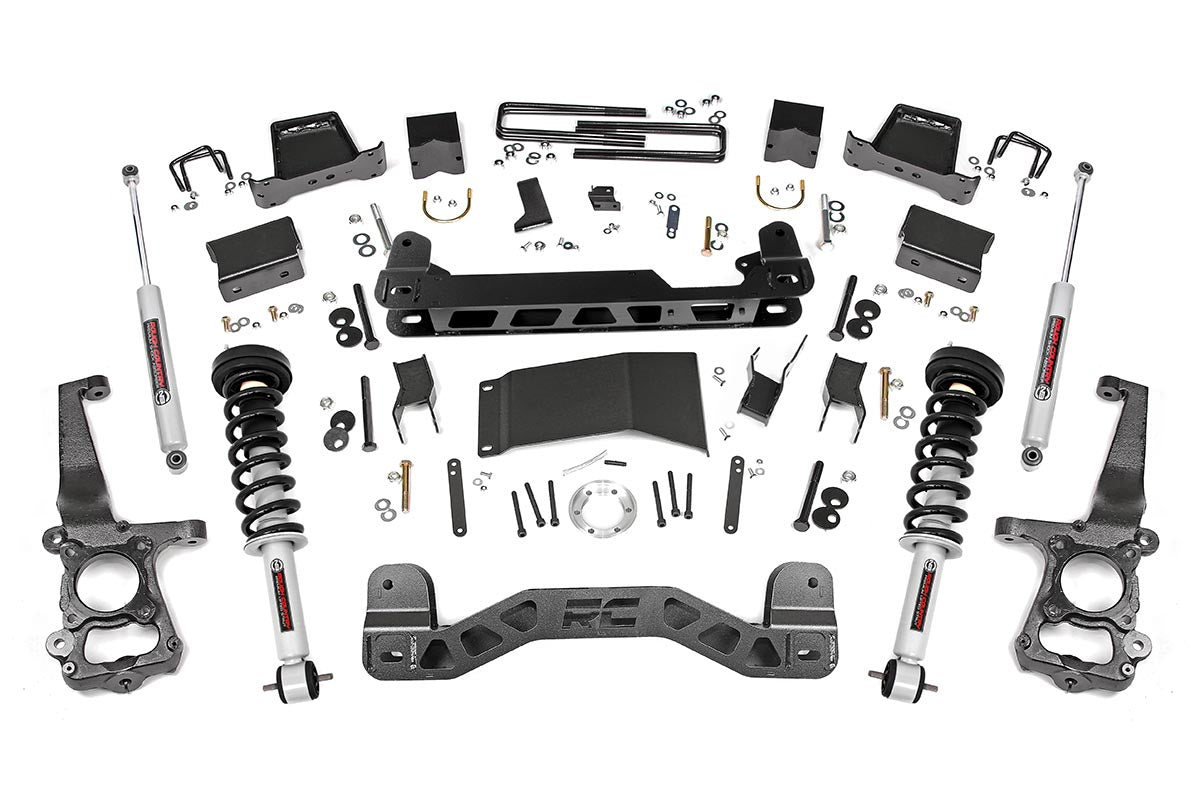

OPTIONAL N3 LOADED STRUTS
- Maintains smooth, factory-like ride
- Increased ground clearance
- Nitrogen-charged
- Engineered for lifted applications
- Infinitely Variable Damping
- Leak-proof piston seal
- Massive 1 3/8in Bore
- Silver powder coat finish
- 3-year Manufacturer's Warranty

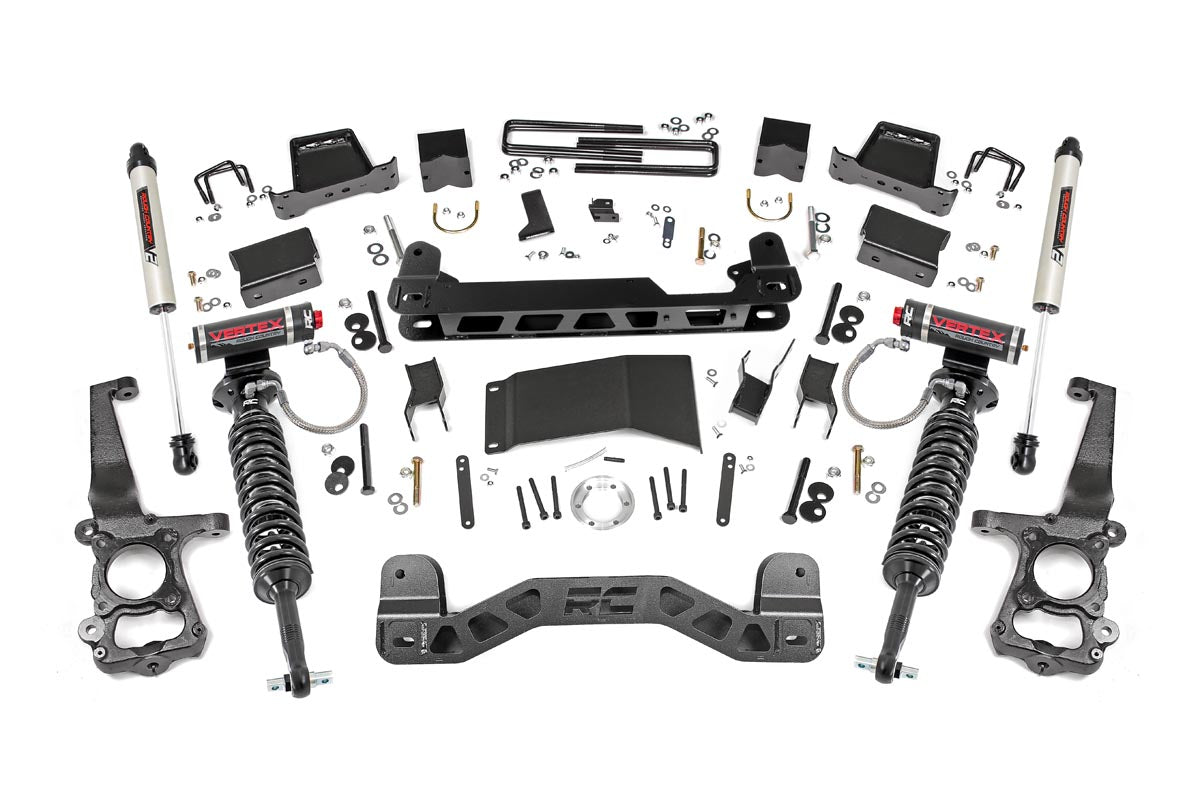

OPTIONAL V2 MONOTUBE SHOCKS
- Monotube design
- Internal floating piston
- Nitrogen-charged
- 46mm high-flow piston
- Fast heat dissipation
- 36kN Tensile Strength
- Mounts inverted
- T6061 brushed aluminum body
- 3-year Manufacturer's Warranty

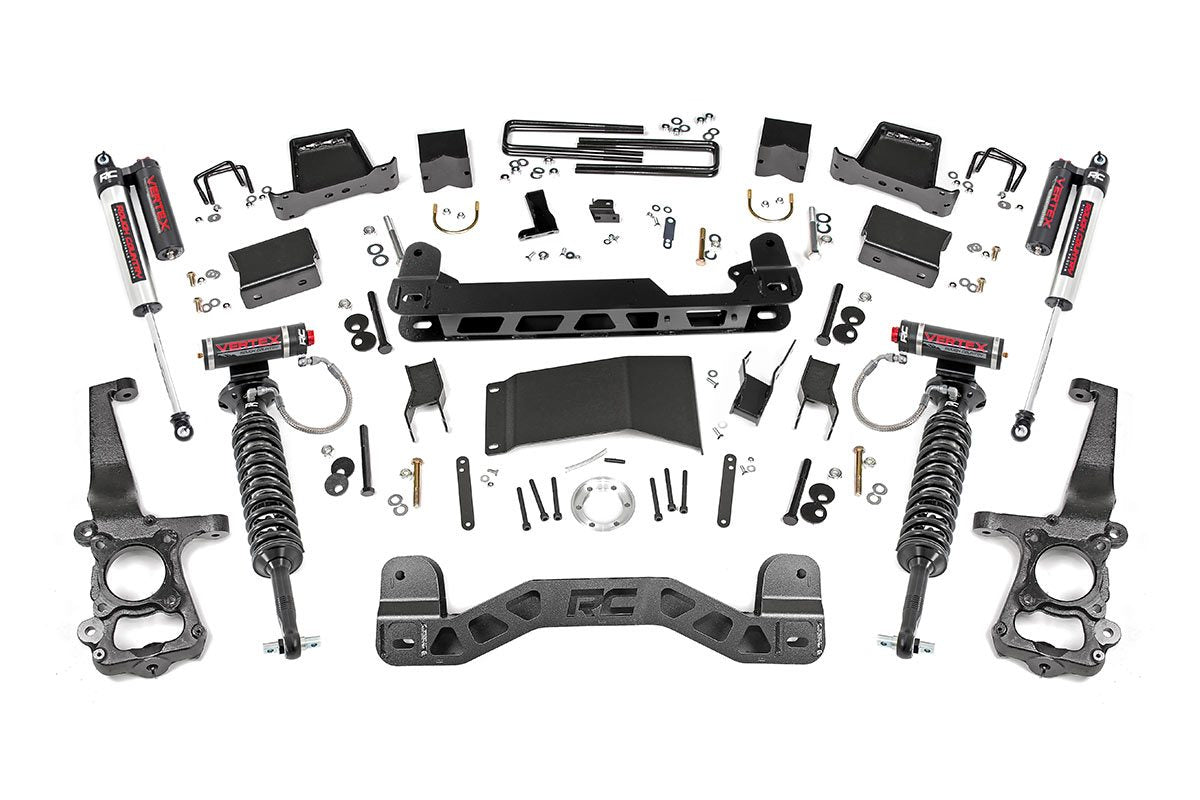

OPTIONAL VERTEX COILOVERS
- 8-Stage Adjustable Damping
- Monotube Design
- Nitrogen-charged
- Massive 2.5in Piston
- 22mm Chrome-Hardened Piston Rod
- 3-Stage Seal System
- Heat-Treated, Alloy Bearing
- Honed Steel Body
- 3-year Manufacturer's Warranty
NOTES - IMPORTANT
- Does NOT fit Single Cab models.
- Will fit Eco Diesel engine models.
- Requires cutting and drilling.
- *When using 18in or larger factory wheels the maximum tire width is 11.5-inches.

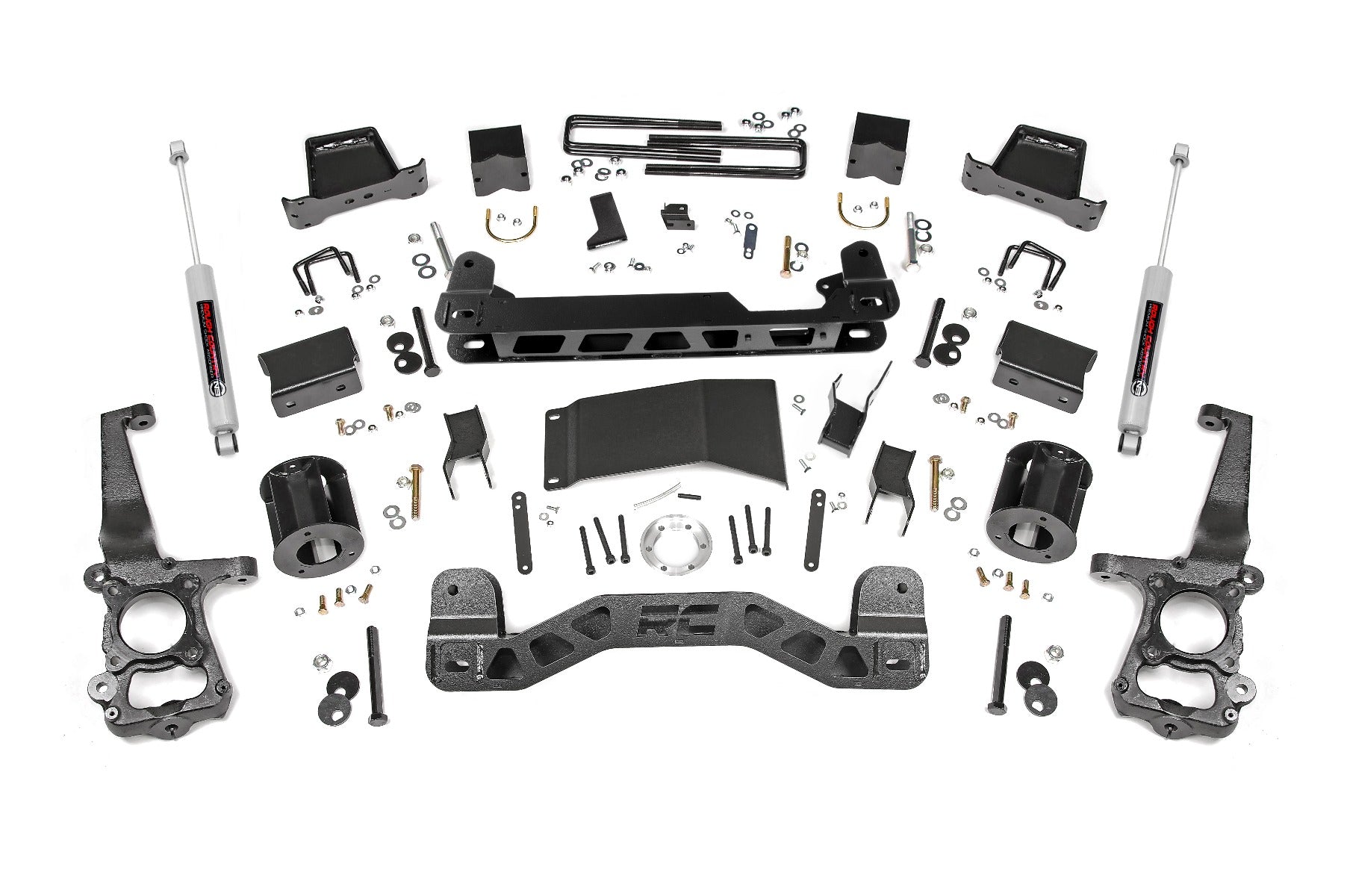

IN THE BOX
- Lifted knuckles
- Strut spacers
- Front crossmember
- Rear crossmember
- Sway-bar drop brackets
- Differential drop brackets
- Brake line brackets
- Driveshaft spacer
- Hardware
- Fabricated anti-wrap lift blocks
- Brake line relocation brackets
- U-bolts
- Hardware
- (2) Rear Premium N3 series
INSTRUCTIONS
- Est. Install Time: 8-10 hours
- Instruction Sheet - Kit Installation
- Instruction Sheet - Optional Strut Installation
- Instruction Sheet - Optional Front Vertex Installation
- Instruction Sheet - Optional Rear Vertex Installation
VEHICLE FITMENT
ALWAYS read all product page details for more important fitment information
RECOMMENDED TIRES & WHEELS
TIRE WHEEL BOLT PATTERN OFFSET NOTE
295/70R18 18x8 6x135 +0 -
295/70R18 18x8 6x135 +1 -
35x12.50R18 18x8.5 6x135 +0 -
295/70R18 18x8.5 6x135 +0 -
285/75R18 18x8.5 6x135 +0 -
35x12.50R18 18x8.5 6x135 +1 -
295/70R18 18x8.5 6x135 +1 -
285/75R18 18x8.5 6x135 +1 -
35x12.50R18 18x9 6x135 -12 -
295/70R18 18x9 6x135 -12 -
295/70R18 18x9 6x135 -6 -
35x12.50R18 18x9 6x135 +0 -
295/70R18 18x9 6x135 +0 -
35x12.50R18 18x9 6x135 +1 -
295/70R18 18x9 6x135 +1 -
35x12.50R18 18x10 6x135 -25 Minor Trimming
295/70R18 18x10 6x135 -25 -
35x12.50R18 18x10 6x135 -24 Minor Trimming
295/70R18 18x10 6x135 -24 -
295/70R18 18x10 6x135 -19 -
295/70R18 18x10 6x135 -18 -
35x12.50R20 20x9 6x135 -12 -
35x11.50R20 20x9 6x135 -12 -
295/65R20 20x9 6x135 -12 -
295/60R20 20x9 6x135 -12 -
35x12.50R20 20x9 6x135 +0 -
295/60R20 20x9 6x135 +0 -
35x12.50R20 20x9 6x135 +1 -
295/60R20 20x9 6x135 +1 -
35x12.50R20 20x10 6x135 -25 Minor Trimming
295/60R20 20x10 6x135 -25 Minor Trimming
35x12.50R20 20x10 6x135 -24 Minor Trimming
295/60R20 20x10 6x135 -24 Minor Trimming
35x12.50R20 20x10 6x135 -19 Minor Trimming
295/60R20 20x10 6x135 -19 Minor Trimming
35x12.50R20 20x10 6x135 -18 Minor Trimming
295/60R20 20x10 6x135 -18 Minor Trimming
35x12.50R20 20x12 6x135 -44 Trimming Required
35x12.50R22 22x10 6x135 -25 Minor Trimming
35x12.50R22 22x10 6x135 -24 Minor Trimming
35x12.50R22 22x10 6x135 -19 Minor Trimming
285/55R22 22x10 6x135 -19 -
35x12.50R22 22x10 6x135 -18 Minor Trimming
285/55R22 22x10 6x135 -18 -
35x12.50R22 22x12 6x135 -44 Trimming Required
Due to differences in manufacturing, dimension and inflated measurements, tire and wheel combinations should be test fit prior to installation
