6 INCH LIFT KIT FORD F-150 4WD (2011-2013)
6 INCH LIFT KIT FORD F-150 4WD (2011-2013)
SKU:57530
Share
OVERVIEW

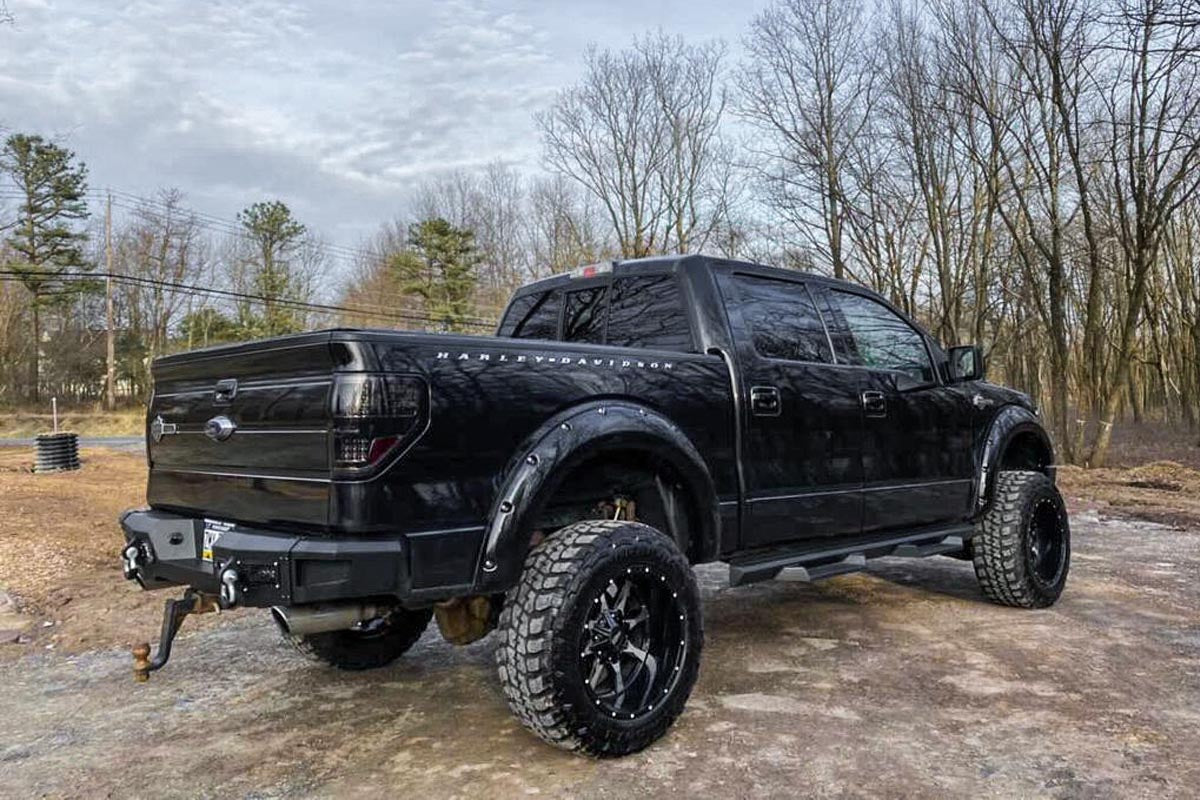

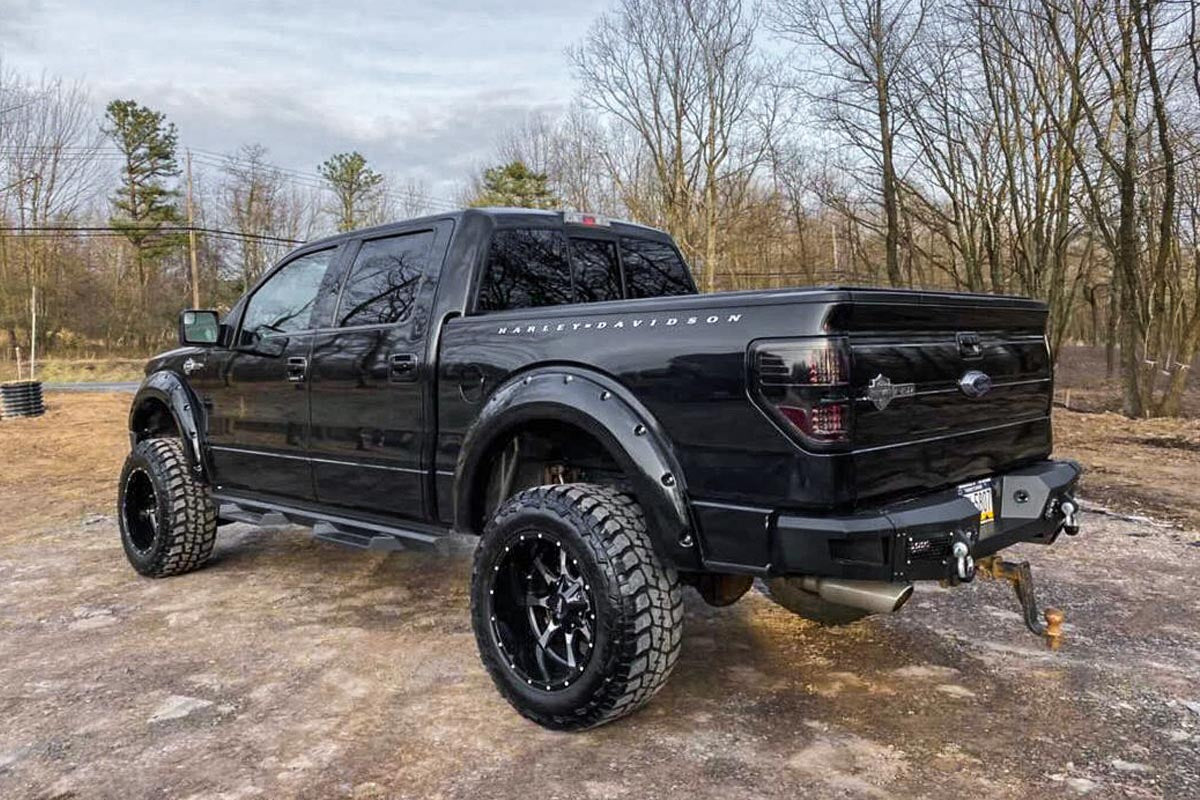

Give your '11 - '13 Ford F-150 an aggressive new look and unparalleled off-road performance with Rough Country's 6-inch Suspension Lift. This all-inclusive kit features everything needed to take your Ford off the freeway and into the fields. Featuring a set of durable lifted knuckles and strut spacers or N3 lifted struts, you'll gain enough ride height to run up to 35-inch tires! A set of differential drop brackets, sway-bar drop brackets, brake line brackets, and a drive shaft spacer help keep everything at an optimum angle for a factory-like ride, even after lifting. A 1/4-inch thick plate steel front and rear cross member bring uncompromised strength and good looks to your truck, featuring a laser-cut "RC" logo and an easy-to-install design. Our 4-inch Fabricated Rear Blocks offer considerably more strength than their cast iron counterparts, and were specifically engineered by Rough Country to prevent against axle-wrap. Improve your on and off-road ride quality with Rough Country's premium N3 shocks! These 10-stage variable valving, high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod and faster-cooling 54mm shock body, this shock offers up to 36kN Tensile Strength for a long lifespan of impressive vibration dampening.
FEATURES
- Track width remains the same as factory
- Increased ground clearance
- Levels the front with the rear of the vehicle
- Fabricated rear blocks are stronger and offer a longer lifespan than cast blocks.
- Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problem.
- Optional Lifted front struts help maintain smooth, factory-like ride
- Optional Front struts are structurally engineered for lifted applications
- Optional Front struts are lifted 6-inches, eliminating the need for strut spacers
OPTIONAL N3 LOADED STRUTS
OPTIONAL V2 MONOTUBE SHOCKS

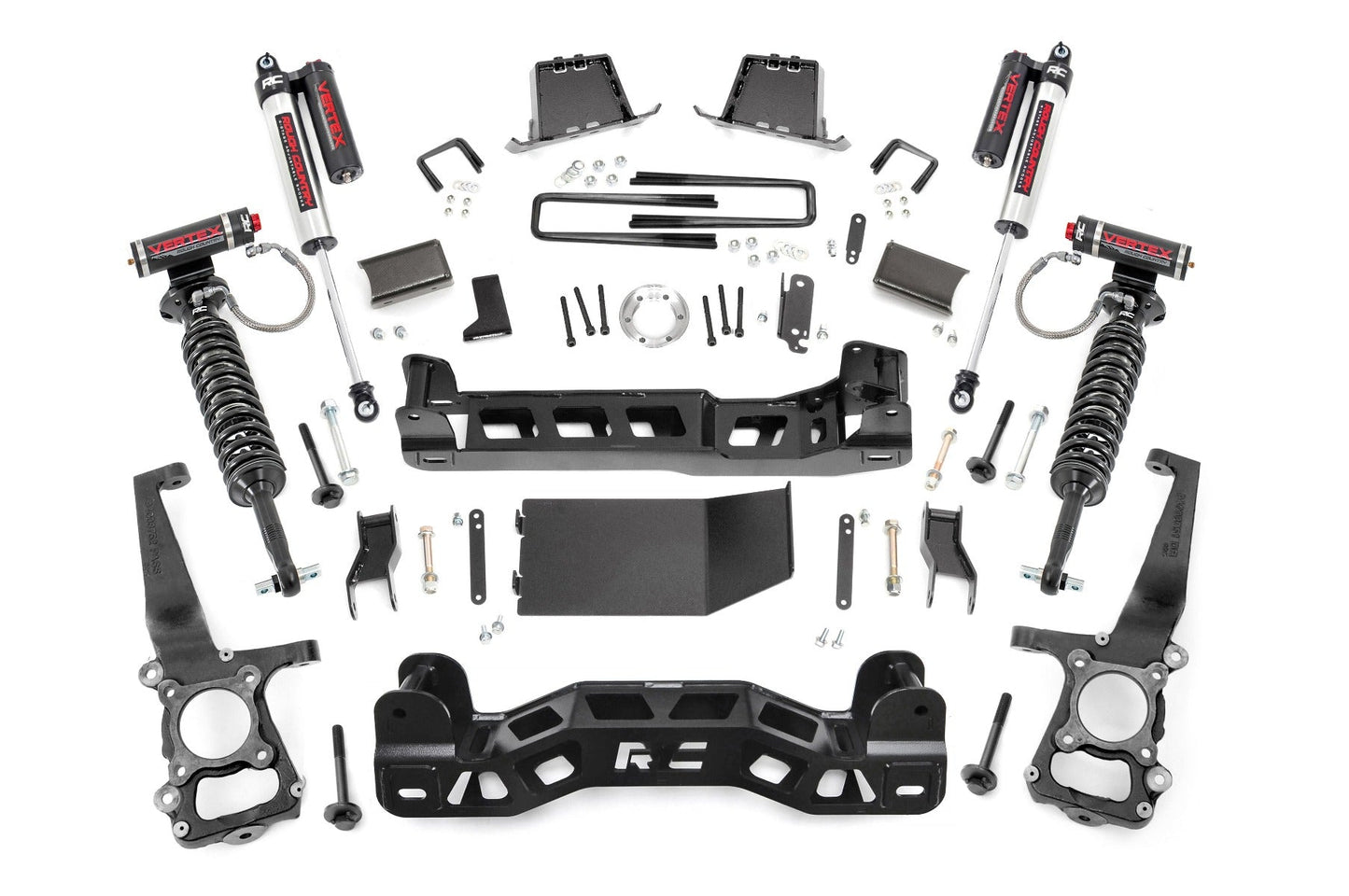

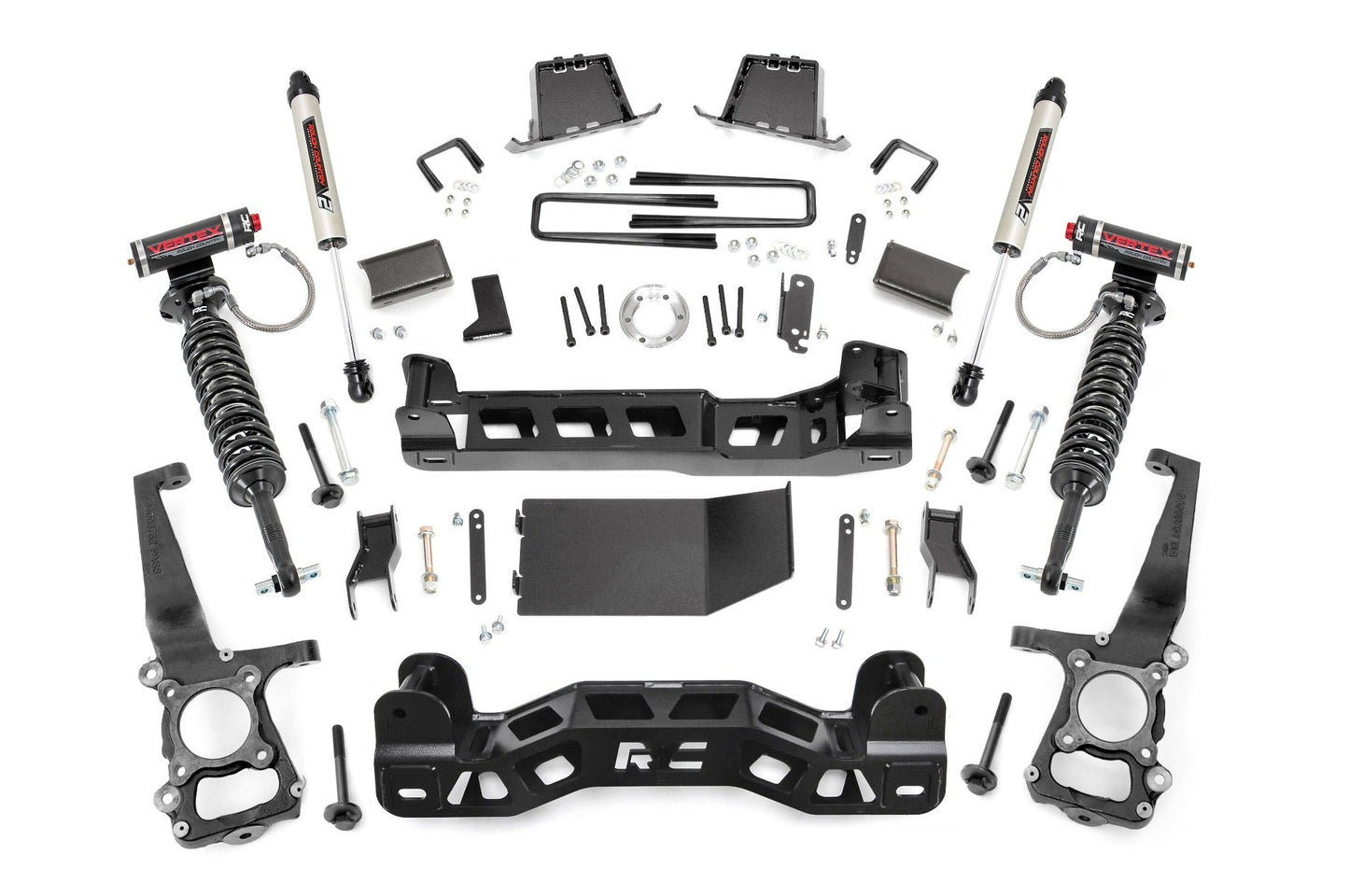

OPTIONAL VERTEX
NOTES - IMPORTANT
- Requires minor cutting and drilling.
- 9-inch wide wheels are recommended.

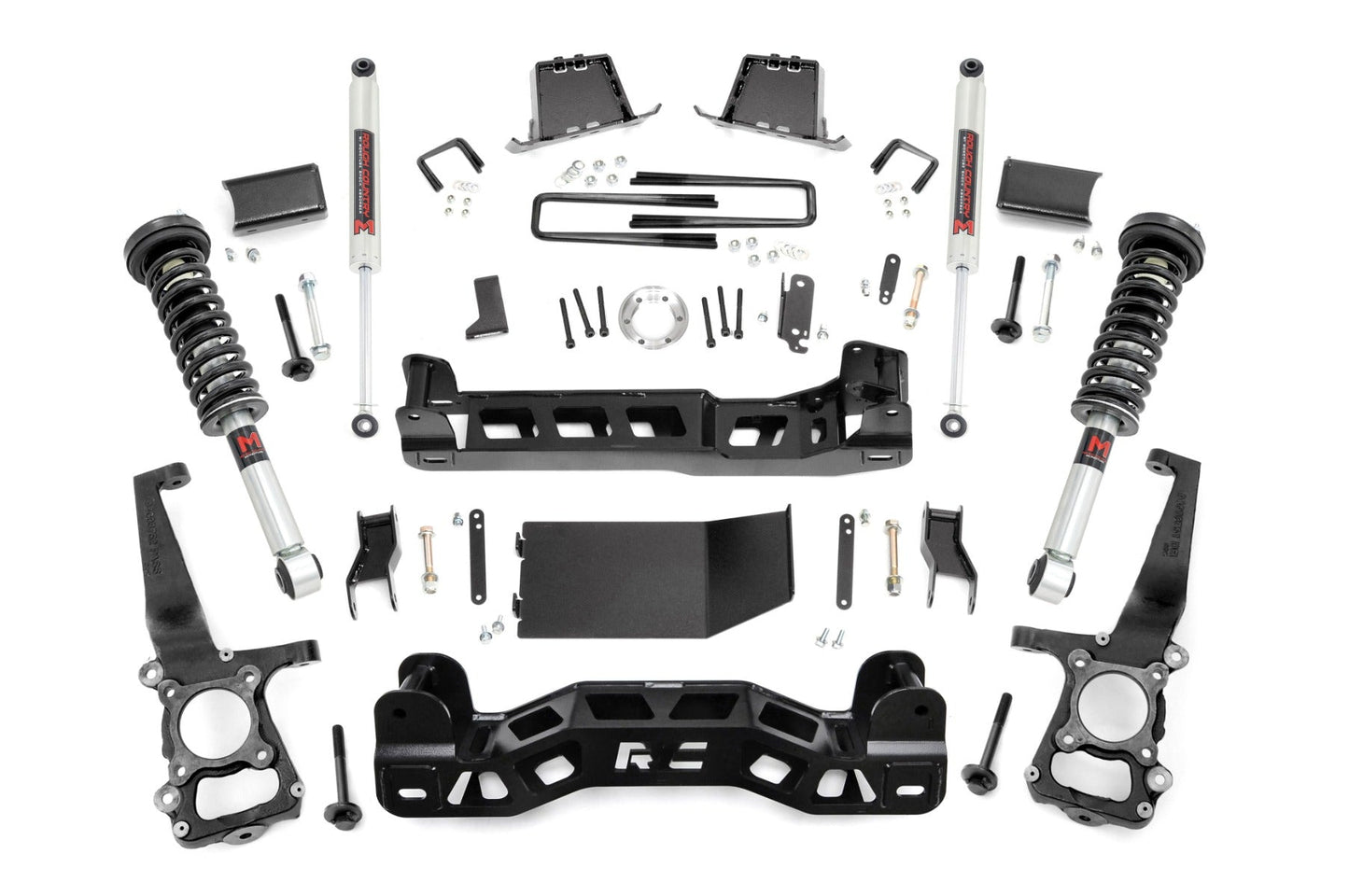

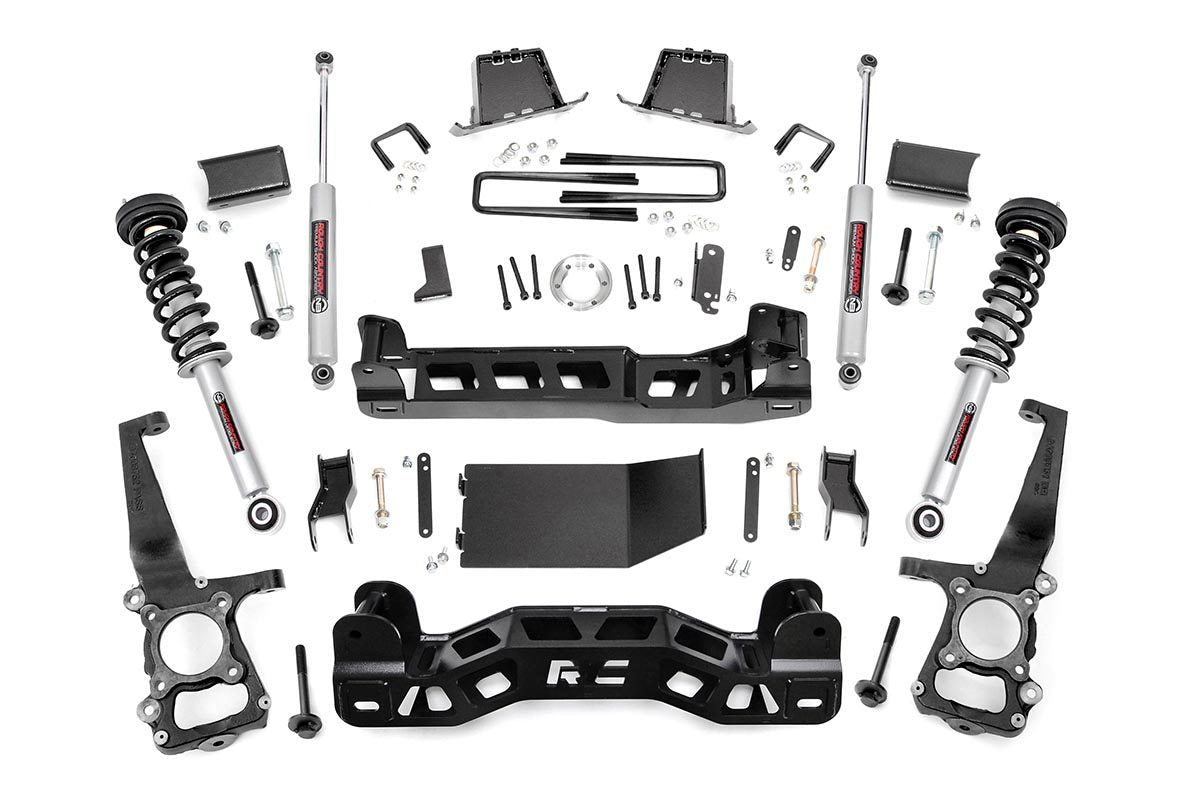

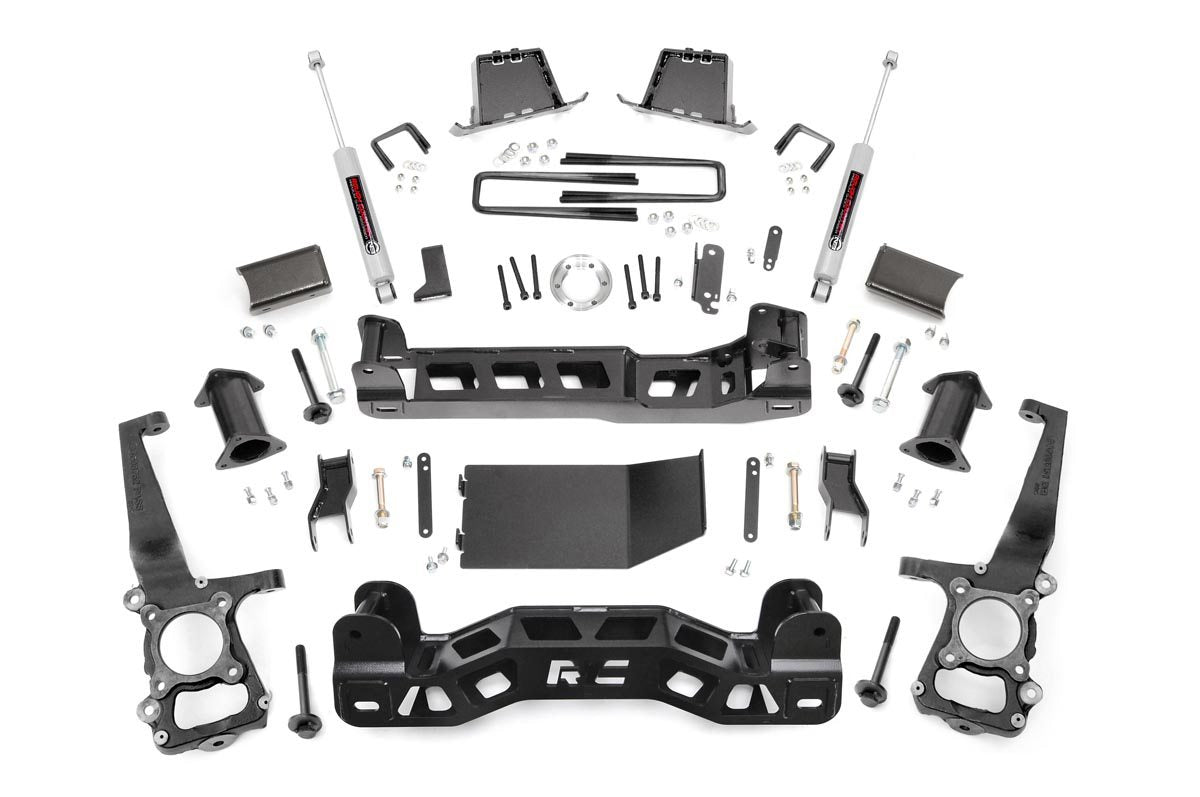

IN THE BOX
- Lifted knuckles
- Upper strut spacers
- Front crossmember
- Rear crossmember
- Sway-bar drop brackets
- Differential drop brackets
- Brake line brackets
- Driveshaft spacer
- Hardware
- 5.5in fabricated anti-wrap lift blocks
- Brake line relocation brackets
- U-bolts
- Hardware
- (2) Rear premium N3 shocks
INSTRUCTIONS
- Est. Install Time: 8-10hours
- Instruction Sheet - Kit Installation
- Instruction Sheet - Optional Strut Installation
- Instruction Sheet - Vertex Installation
VEHICLE FITMENT
ALWAYS read all product page details for more important fitment information
RECOMMENDED TIRES & WHEELS
TIRE WHEEL BOLT PATTERN OFFSET NOTE
35x12.50R18 18x8.5 6x135 +0 -
35x12.50R18 18x8.5 6x135 +1 -
35x12.50R18 18x9 6x135 -12 -
35x12.50R18 18x9 6x135 +0 -
35x12.50R18 18x9 6x135 +1 -
35x12.50R18 18x10 6x135 -25 -
35x12.50R18 18x10 6x135 -24 -
35x12.50R18 18x10 6x135 -19 -
35x12.50R18 18x10 6x135 -18 -
35x12.50R20 20x9 6x135 -12 -
295/60R20 20x9 6x135 -12 -
35x12.50R20 20x9 6x135 +0 -
295/60R20 20x9 6x135 +0 -
35x12.50R20 20x9 6x135 +1 -
295/60R20 20x9 6x135 +1 -
35x12.50R20 20x10 6x135 -25 -
295/60R20 20x10 6x135 -25 -
35x12.50R20 20x10 6x135 -24 -
295/60R20 20x10 6x135 -24 -
35x12.50R20 20x10 6x135 -19 -
295/60R20 20x10 6x135 -19 -
35x12.50R20 20x10 6x135 -18 -
295/60R20 20x10 6x135 -18 -
35x12.50R20 20x12 6x135 -44 Trimming Required
35x12.50R22 22x10 6x135 -25 -
35x12.50R22 22x10 6x135 -24 -
35x12.50R22 22x10 6x135 -19 -
35x12.50R22 22x10 6x135 -18 -
35x12.50R22 22x12 6x135 -44 Trimming Required
35x12.50R22 22x12 6x135 -44 Trimming Required
Due to differences in manufacturing, dimension and inflated measurements, tire and wheel combinations should be test fit prior to installation
