6 INCH LIFT KIT FORD F-150 4WD (2009-2010)
6 INCH LIFT KIT FORD F-150 4WD (2009-2010)
SKU:59830
Share
OVERVIEW
FEATURES
- Track width remains the same as factory
- Increased ground clearance
- Levels the front with the rear of the vehicle
- Fabricated rear blocks are stronger and offer a longer lifespan than cast blocks.
- Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problem.
- Optional Lifted front struts help maintain smooth, factory-like ride
- Optional Front struts are structurally engineered for lifted applications
- Optional Front struts are lifted 6-inches, eliminating the need for strut spacers
OPTIONAL N3 LOADED STRUTS
- Includes pre-loaded coil
- Maintains smooth, factory-like ride
- Increased ground clearance
- Engineered for lifted applications
- Infinitely Variable Damping
- Leak-proof piston seal
- Massive 1 3/8in Bore
- Silver powder coat finish
- 3-year Manufacturer's Warranty
OPTIONAL V2 MONOTUBE SHOCKS
- Monotube design
- Internal floating piston
- Nitrogen-charged
- 46mm high-flow piston
- Fast heat dissipation
- 36kN Tensile Strength
- Mounts inverted
- T6061 brushed aluminum body
- 3-year Manufacturer's Warranty
OPTIONAL VERTEX
- 8-Stage Adjustable Damping
- Monotube Design
- Nitrogen-charged
- Massive 2.5in Piston
- 22mm Chrome-Hardened Piston Rod
- 3-Stage Seal System
- Heat-Treated, Alloy Bearing
- Honed Steel Body
- 3-year Manufacturer's Warranty
NOTES - IMPORTANT
- Requires minor cutting and drilling.
- 9-inch wide wheels are recommended.

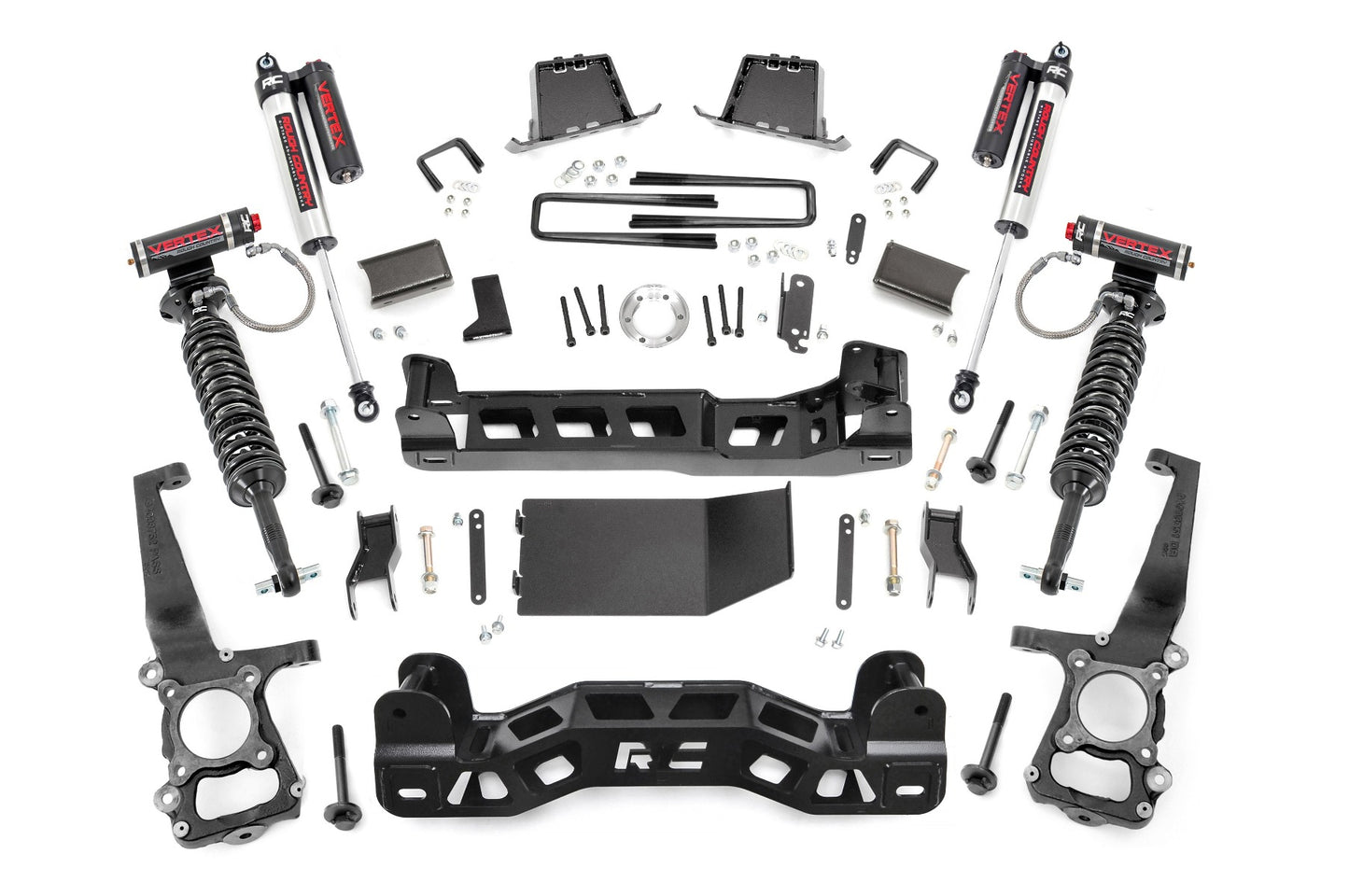

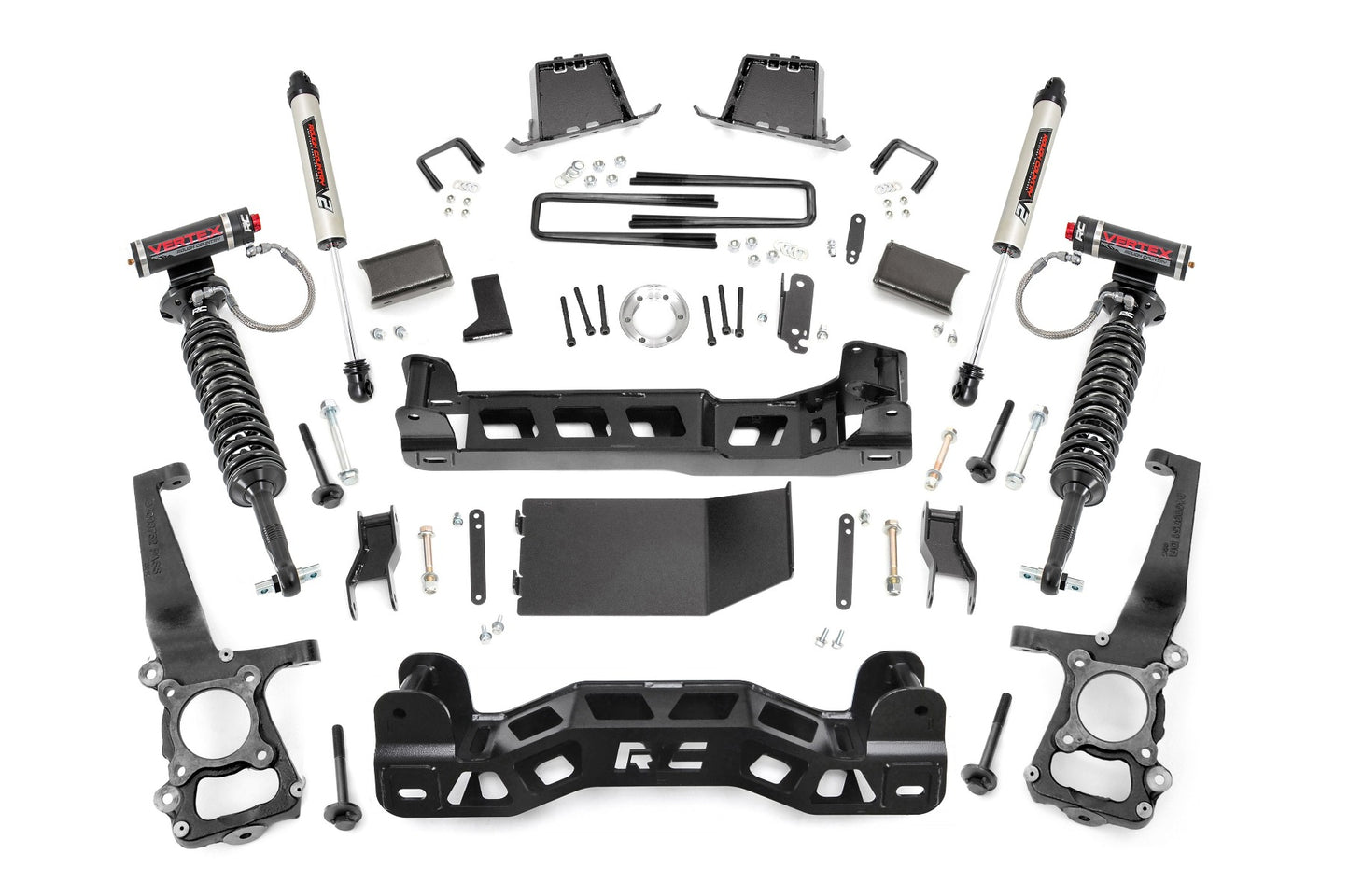

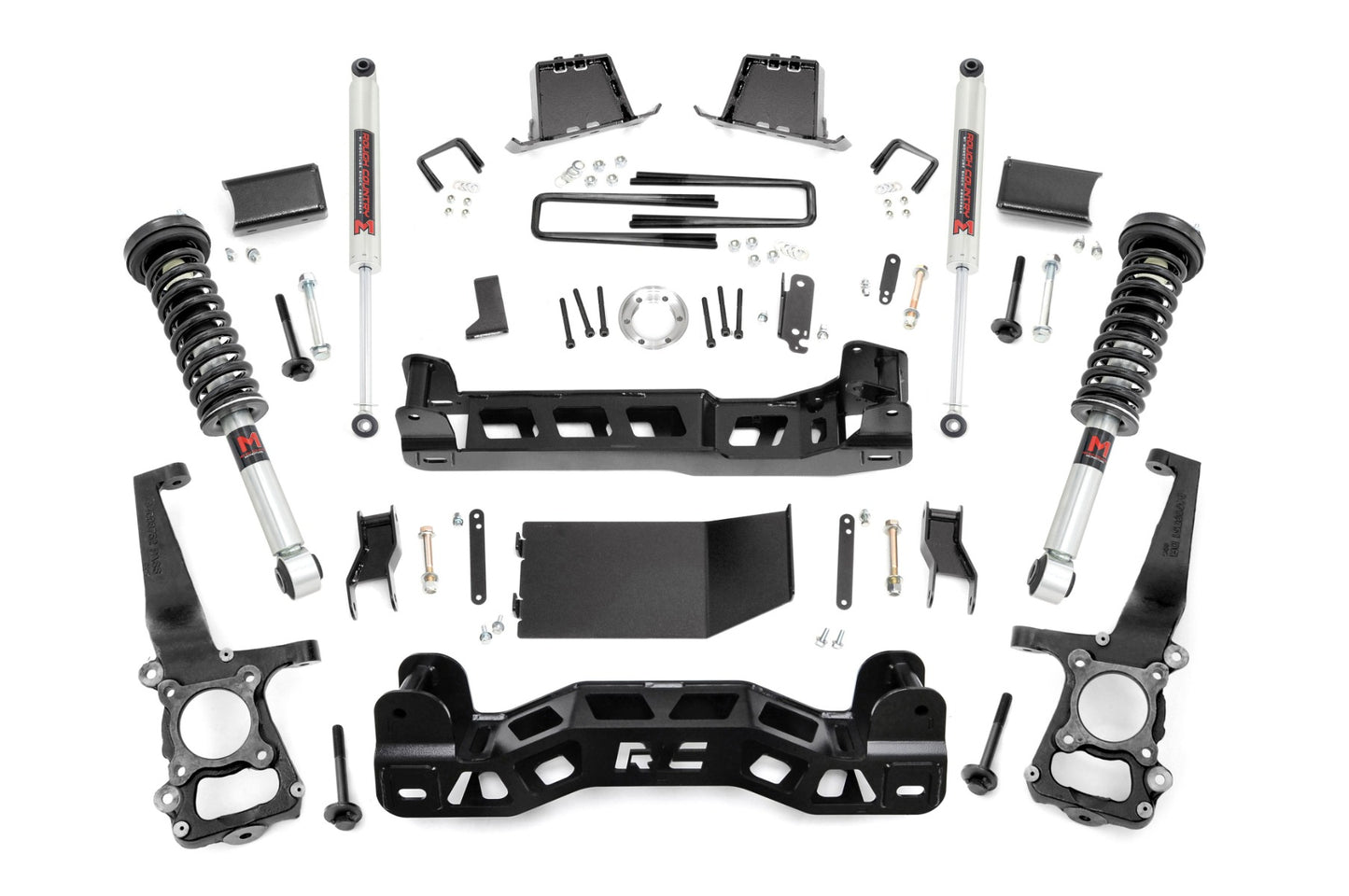

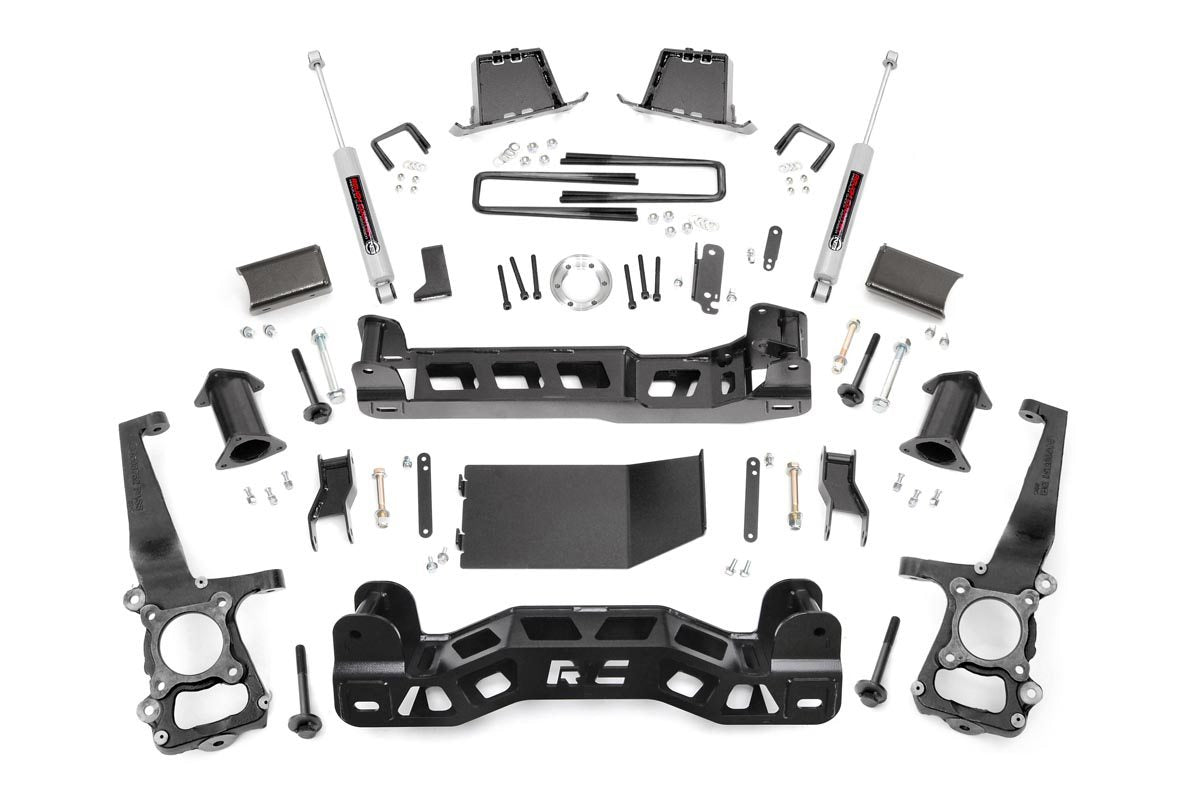

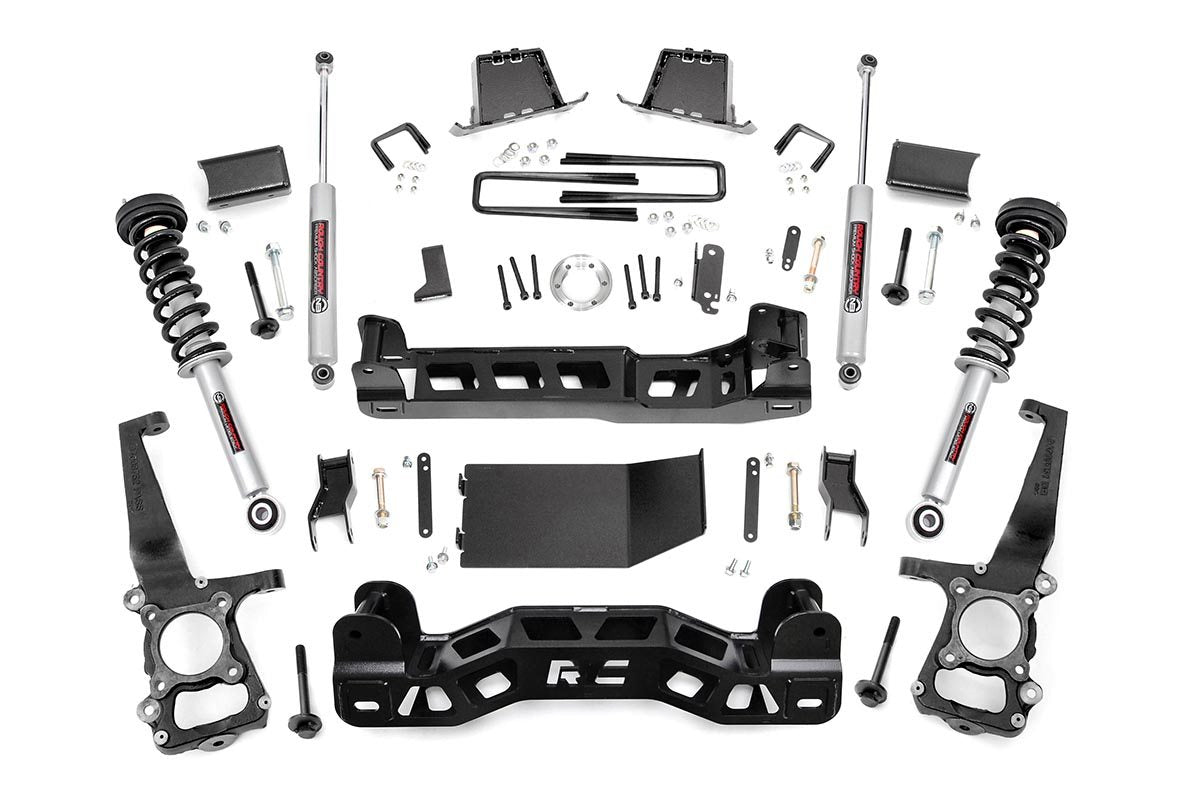

IN THE BOX
- Lifted knuckles
- Upper strut spacers
- Front crossmember
- Rear crossmember
- Sway-bar drop brackets
- Differential drop brackets
- Brake line brackets
- Driveshaft spacer
- Hardware
- 5.5in fabricated anti-wrap lift blocks
- Brake line relocation brackets
- U-bolts
- Hardware
- (2) Rear premium N3 shocks
INSTRUCTIONS
- Est. Install Time: 8-10 hours
- Instruction Sheet - Kit Installation
- Instruction Sheet - Optional Strut Installation
- Instruction Sheet - Vertex Installation
VEHICLE FITMENT
ALWAYS read all product page details for more important fitment information
RECOMMENDED TIRES & WHEELS
TIRE WHEEL BOLT PATTERN OFFSET NOTE
35x12.50R18 18x8.5 6x135 +0 -
295/70R18 18x8.5 6x135 +0 -
285/75R18 18x8.5 6x135 +0 -
35x12.50R18 18x8.5 6x135 +1 -
295/70R18 18x8.5 6x135 +1 -
285/75R18 18x8.5 6x135 +1 -
35x12.50R18 18x9 6x135 -12 -
295/70R18 18x9 6x135 -12 -
35x12.50R18 18x9 6x135 +0 -
295/70R18 18x9 6x135 +0 -
35x12.50R18 18x9 6x135 +1 -
295/70R18 18x9 6x135 +1 -
295/70R18 18x10 6x135 -25 -
295/70R18 18x10 6x135 -19 -
295/70R18 18x10 6x135 -18 -
35x12.50R20 20x9 6x135 -12 -
35x11.50R20 20x9 6x135 -12 -
295/65R20 20x9 6x135 -12 -
295/60R20 20x9 6x135 -12 -
35x12.50R20 20x9 6x135 +0 -
295/60R20 20x9 6x135 +0 -
35x12.50R20 20x9 6x135 +1 -
295/60R20 20x9 6x135 +1 -
35x12.50R20 20x10 6x135 -25 Minor Trimming
295/60R20 20x10 6x135 -25 Minor Trimming
35x12.50R20 20x10 6x135 -19 Minor Trimming
295/60R20 20x10 6x135 -19 Minor Trimming
35x12.50R20 20x10 6x135 -18 Minor Trimming
295/60R20 20x10 6x135 -18 Minor Trimming
35x12.50R20 20x12 6x135 -44 Trimming Required
35x12.50R22 22x10 6x135 -25 Minor Trimming
35x12.50R22 22x10 6x135 -19 Minor Trimming
285/55R22 22x10 6x135 -19 -
35x12.50R22 22x10 6x135 -18 Minor Trimming
285/55R22 22x10 6x135 -18 -
35x12.50R22 22x12 6x135 -44 Trimming Required
Due to differences in manufacturing, dimension and inflated measurements, tire and wheel combinations should be test fit prior to installation
