6 INCH LIFT KIT FORD F-150 4WD (2004-2008)
6 INCH LIFT KIT FORD F-150 4WD (2004-2008)
SKU:54620
Couldn't load pickup availability
Share
OVERVIEW
Give your 04-08 Ford F-150 an aggressive new look and unparalleled off-road performance with Rough Country's 6-inch Suspension Lift. This all-inclusive kit features everything needed to take your Ford off the freeway and onto the trails.
Featuring a set of durable lifted knuckles and strut spacers, you'll gain enough ride height to run up to 35-inch tires with proper wheel backspacing! A set of differential drop brackets, sway-bar drop brackets, brake line brackets to help keep everything at optimum angles for a factory-like ride, even after lifting. A 1/4-inch thick plate steel front and rear crossmember bring uncompromising strength and good looks to your truck. Our Fabricated Rear Blocks offer considerably more strength than their cast iron counterparts, and were specifically engineered by Rough Country to prevent against axle-wrap.
A set of Rough Country's premium N3 shocks are also included in this kit. These fine tuned 10-stage variable high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod and faster-cooling 54mm shock body.
Best of all, Rough Country's 04-08 Ford F-150 Lift Kit is backed by our Lifetime Replacement Warranty.
FEATURES
- Track width remains the same as factory
- Increased ground clearance
- Maintains factory steering geometry
- Levels the front with the rear of the vehicle
- Includes durable differential skid plate for off-road protection
- Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
- Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problem.
OPTIONAL LIFTED N3 STRUTS
- Includes pre-loaded coil for no-fuss installation
- Maintains smooth, factory-like ride
- Nitrogen gas charged to improve ride, handling, and reduce shock oil aeration
- Offers improved tire contact with the road for increased stability and performance
- Infinitely Variable Damping
- Leak-proof piston seal
- Special formulated low friction shock oil
- Massive 1 3/8in Bore
- Hardened chromed piston rod provides superior corrosion resistance and enhances sealing properties
- 3 year warranty
NOTES - IMPORTANT
- Requires minor cutting and drilling.
- 9" wide wheel is recommended.
- Does NOT fit 7-lug models.
- SKU: 54620 includes Front Upper Strut Spacers w/Rear N3 Shocks

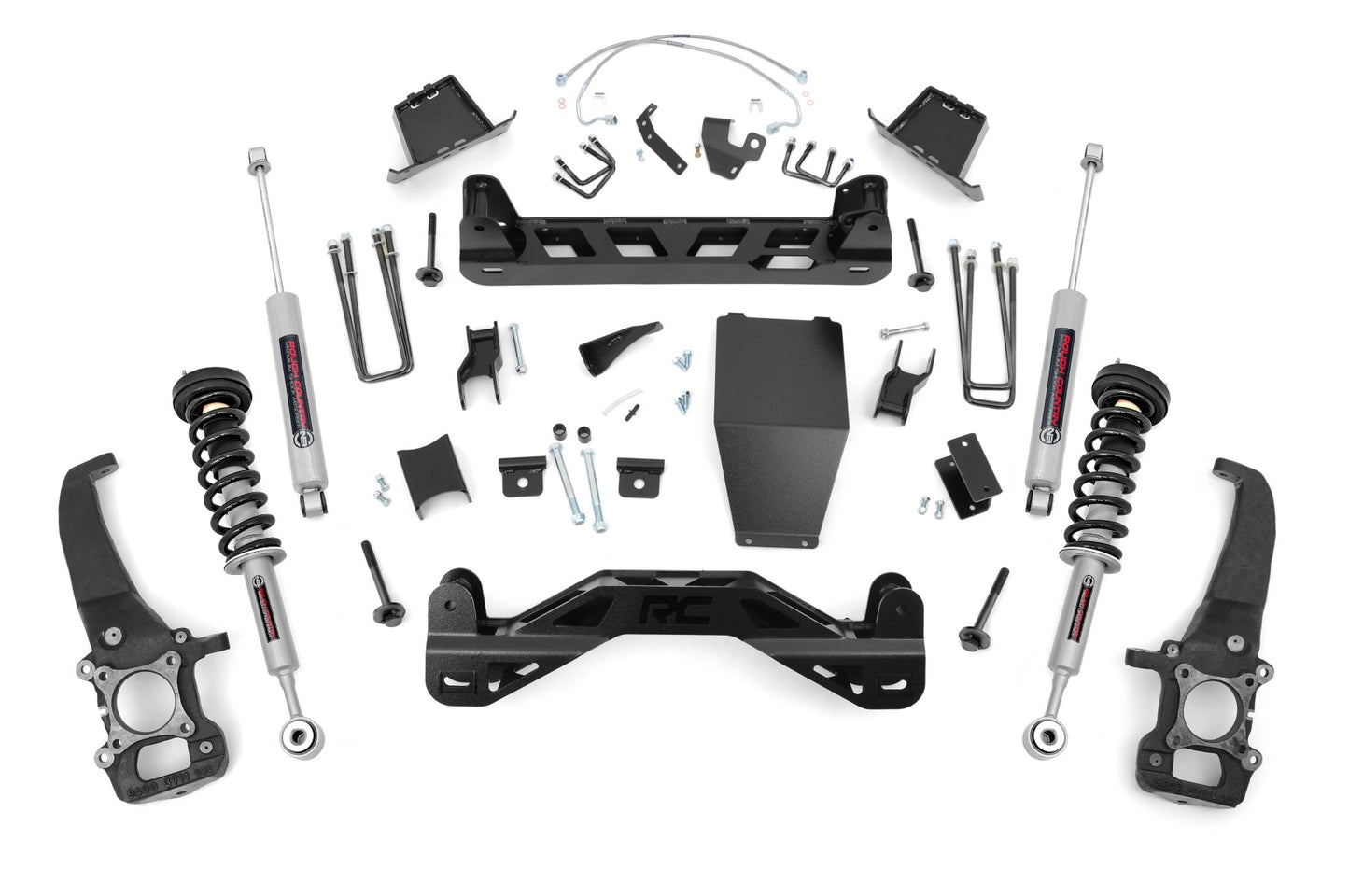

- SKU: 54623 includes N3 Lifted Front Struts w/Rear N3 Shocks

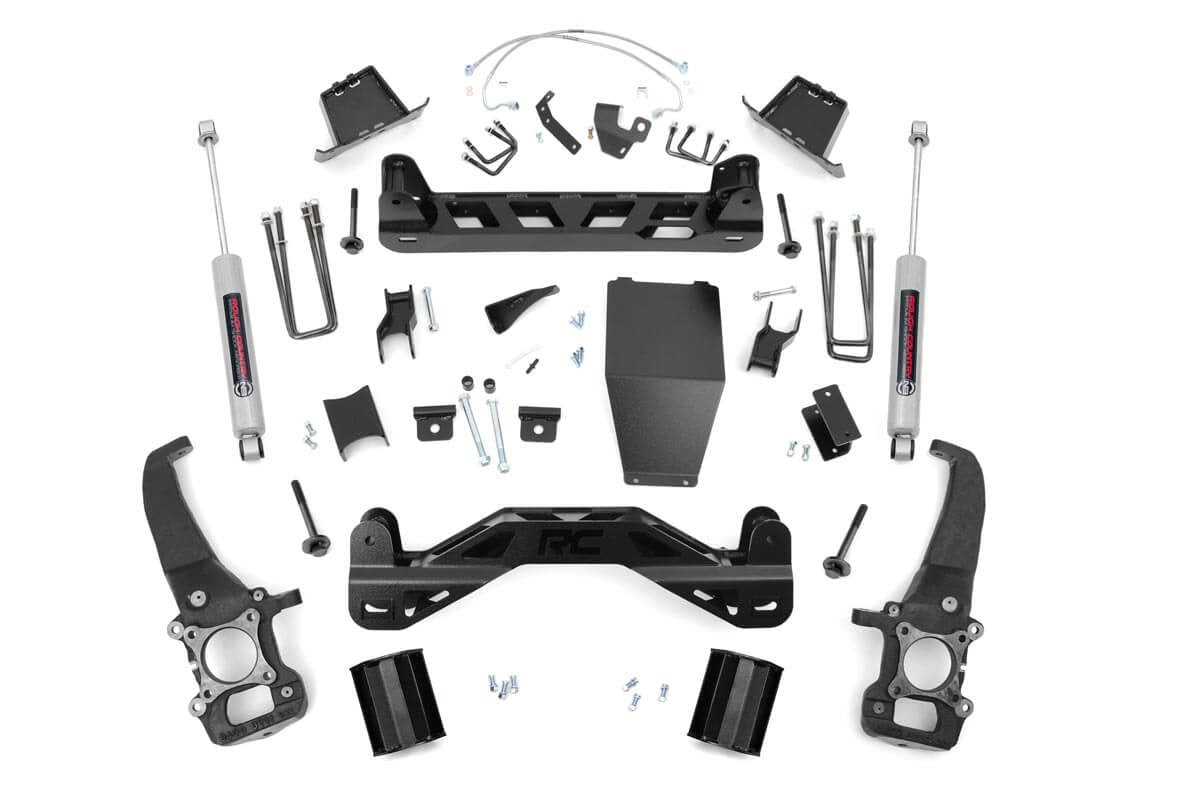

IN THE BOX
- Lifted knuckles
- (2) Strut spacers
- Optional: (2) Premium N3 Lifted Struts (+300)
- Front crossmember
- Rear crossmember
- Differential skid plate
- Rack & pinion drop brackets
- Differential drop brackets
- Stainless steel braided brake lines
- Hardware
- Fabricated anti-wrap lift blocks
- Brake line relocation brackets
- U-bolts
- Hardware
- (2) Rear Premium N3 series
INSTRUCTIONS
- Est. Install Time: 8-10 hours
- View Instruction Sheet
VEHICLE FITMENT
ALWAYS read all product page details for more important fitment information
RECOMMENDED TIRES & WHEELS
TIRE WHEEL BOLT PATTERN OFFSET NOTE
35x12.50R17 17x8.5 6x135 +0 -
35x12.50R17 17x8.5 6x135 +1 -
35x12.50R17 17x9 6x135 -12 -
33x12.50R17 17x9 6x135 -12 -
35x12.50R17 17x9 6x135 -6 -
35x12.50R17 17x9 6x135 +0 -
33x12.50R17 17x9 6x135 +0 -
35x12.50R17 17x9 6x135 +1 -
33x12.50R17 17x9 6x135 +1 -
35x12.50R18 18x8.5 6x135 +0 -
35x12.50R18 18x8.5 6x135 +1 -
35x12.50R18 18x9 6x135 -12 -
35x12.50R18 18x9 6x135 -6 -
35x12.50R18 18x9 6x135 +0 -
35x12.50R18 18x9 6x135 +1 -
35x12.50R20 20x9 6x135 -12 -
33x12.50R20 20x9 6x135 -12 -
305/55R20 20x9 6x135 -12 -
295/60R20 20x9 6x135 -12 -
35x12.50R20 20x9 6x135 -6 -
35x12.50R20 20x9 6x135 +0 -
33x12.50R20 20x9 6x135 +0 -
305/55R20 20x9 6x135 +0 -
295/60R20 20x9 6x135 +0 -
35x12.50R20 20x9 6x135 +1 -
33x12.50R20 20x9 6x135 +1 -
305/55R20 20x9 6x135 +1 -
295/60R20 20x9 6x135 +1 -
35x12.50R20 20x10 6x135 -25 Trimming Required
33x12.50R20 20x10 6x135 -25 -
305/55R20 20x10 6x135 -25 -
295/60R20 20x10 6x135 -25 Minor Trimming
35x12.50R20 20x10 6x135 -24 Trimming Required
33x12.50R20 20x10 6x135 -24 -
305/55R20 20x10 6x135 -24 -
295/60R20 20x10 6x135 -24 Minor Trimming
35x12.50R20 20x10 6x135 -19 Trimming Required
33x12.50R20 20x10 6x135 -19 -
305/55R20 20x10 6x135 -19 -
295/60R20 20x10 6x135 -19 Minor Trimming
35x12.50R20 20x10 6x135 -18 Trimming Required
33x12.50R20 20x10 6x135 -18 -
305/55R20 20x10 6x135 -18 -
295/60R20 20x10 6x135 -18 Minor Trimming
35x12.50R20 20x12 6x135 -44 Trimming Required
33x12.50R20 20x12 6x135 -44 Minor Trimming
305/55R20 20x12 6x135 -44 -
35x12.50R22 22x10 6x135 -25 Trimming Required
35x12.50R22 22x10 6x135 -24 Trimming Required
35x12.50R22 22x10 6x135 -19 Trimming Required
33x12.50R22 22x10 6x135 -19 -
35x12.50R22 22x10 6x135 -18 Trimming Required
35x12.50R22 22x12 6x135 -44 Trimming Required
33x12.50R22 22x12 6x135 -44 Minor Trimming
Due to differences in manufacturing, dimension and inflated measurements, tire and wheel combinations should be test fit prior to installation
