6 INCH LIFT KIT CHEVY SILVERADO & GMC SIERRA 1500 4WD (1999-2006 & CLASSIC)

$1,029.95 USD

Sale Sold out

Quantity

SKU:27220A

OVERVIEW

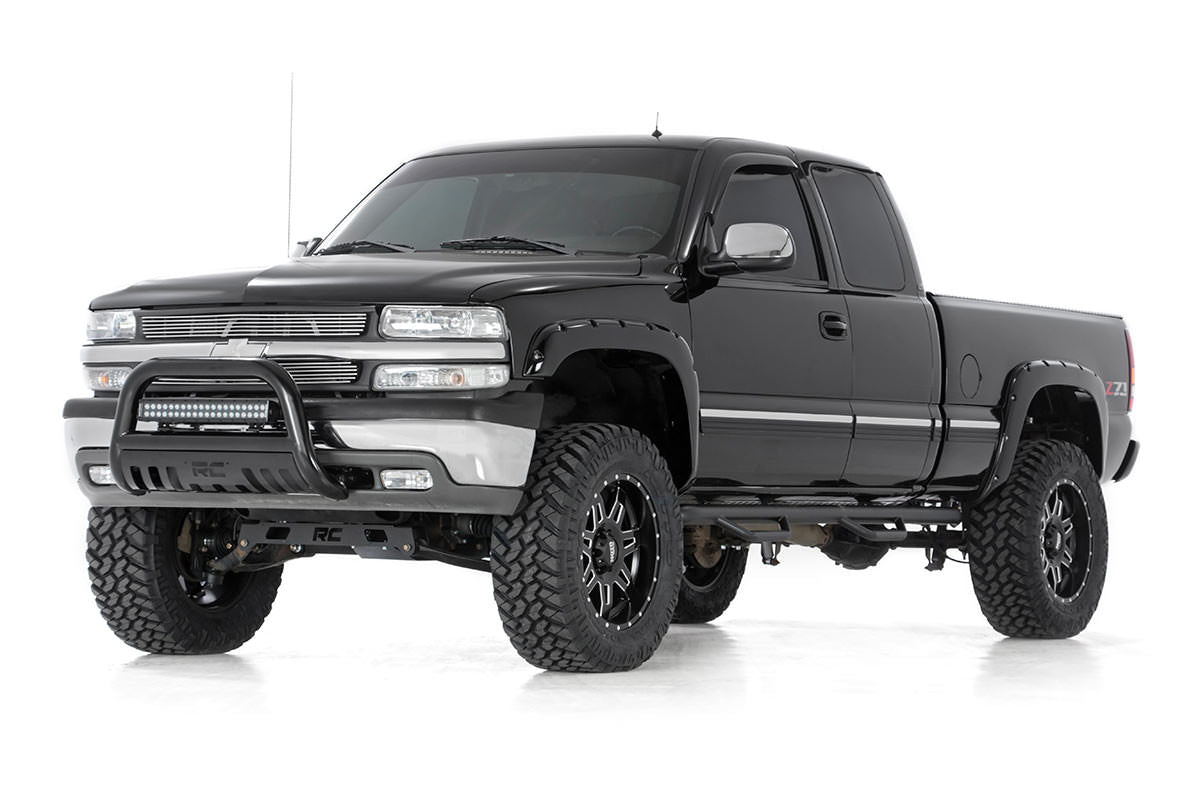

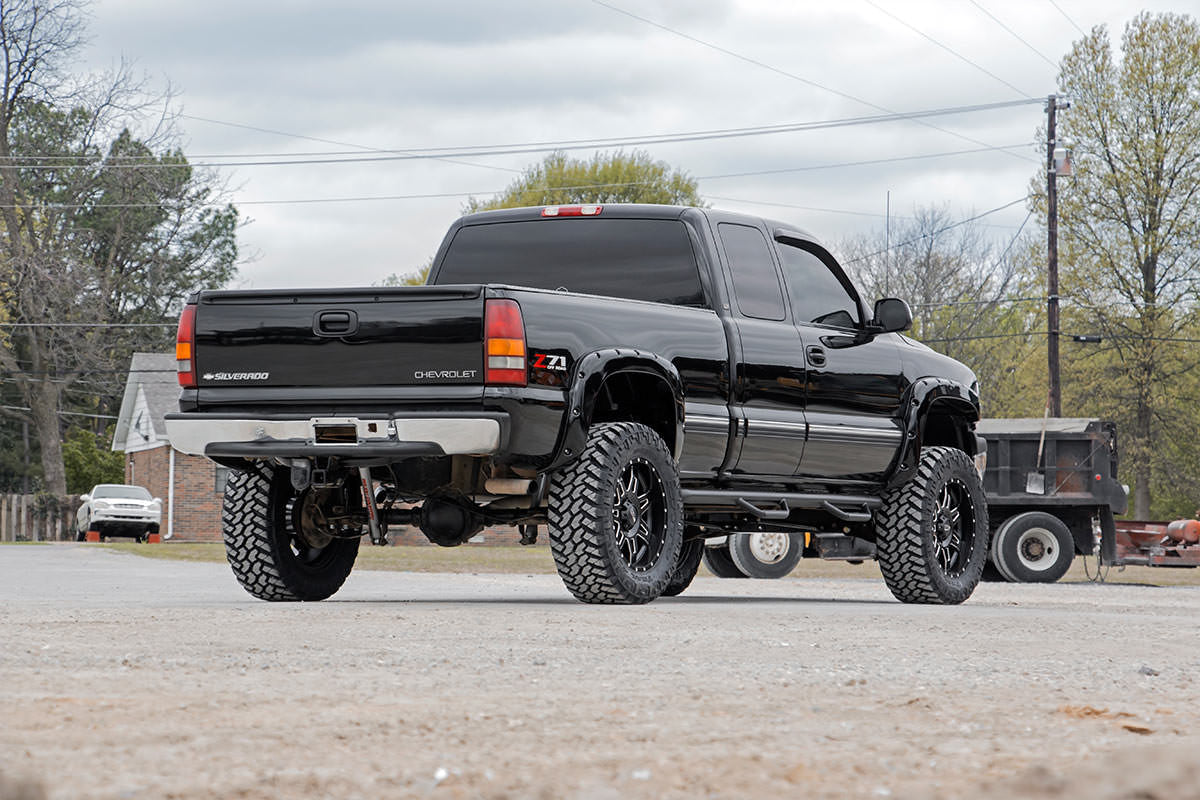

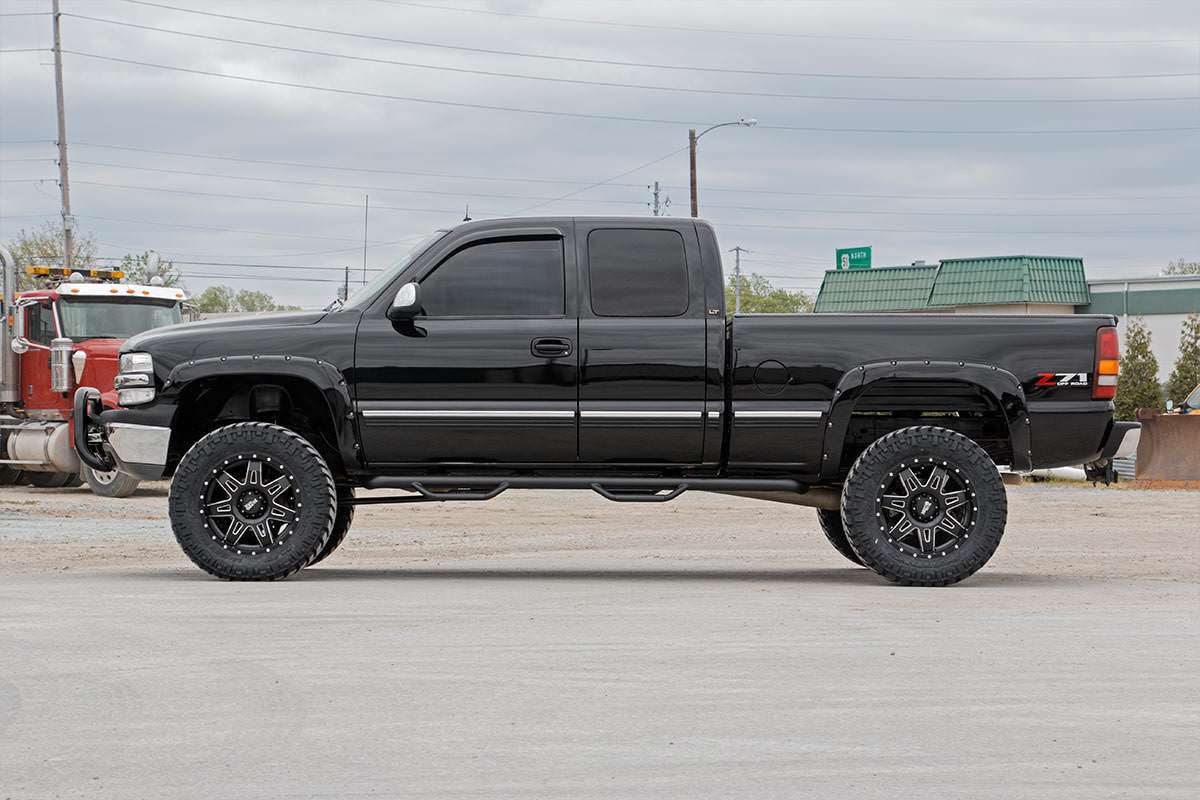

Improved Ground Clearance and Ride Quality. We've raised the bar on our 6" NTD suspension for 1999-2006 Chevy/GMC 1500 pickups! Rough Country has hit the ground running to give your first-generation an improved, aggressive stance with a 6-inch lift kit! This suspension kit provides everything needed to lift your vehicle, giving you increased ground clearance to run larger tires while reducing the nose-down factory look for a commanding presence.

Innovative Design and Construction. This suspension kit combines the use of durable steel knuckles, differential brackets, cv spacers, and drop cross members to reduce cv angles and simulate factory angles all while achieving new heights. This kit utilizes a set of non-torsion bar drop brackets which allows you to keep your torsion bars high, tucked, and hidden providing more ground clearance for tackling the terrain ahead. Completing the rear of this suspension kit included is a set of 6.25" fabricated anti-wrap lift blocks. This innovative design not only corrects the pinion angle after lifting but allows you to secure the leaf spring to the block directly using the additional u-bots supplied. This combined setup provides enough clearance to run 35" tires without additional modifications.

Installation. With minor cutting and drilling required to install, an estimated timeframe of 8-10 hours is recommended to complete this full installation. This full kit can be installed at home and can be completed efficiently and quickly!

Limited Lifetime Replacement Warranty. Rough Country's 6" Suspension Lift Kit is backed with a limited lifetime replacement warranty towards manufacturer defects. As such, the product is protected from structural and workmanship damage after the date of purchase. With our industry-leading warranty give yourself peace of mind when using Rough Country's Suspension products!

FEATURES

Torsion bars stay in factory location.
Redesigned for easier installation.
Maintains factory ride quality.
Applicable with Autotrac equipped models.
Unmatched ground clearance.
Axles maintain factory position and angle.
No drivetrain or exhaust modifications required.
Designed to reuse factory compression travel stops.
New fabricated lift block replaces your factory equipped block.
Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problem.

NOTES - IMPORTANT

Will fit 2007 "Classic" models.
Does NOT fit HD models.
Does NOT fit 1999 "Classic" models.
Frame bracket modification required.
Differential modification required.
Models equipped with a factory painted bumpers will require trimming to valance and bumper.
If equipped with factory 17" wheels and purchasing new wheels - the new wheels must be 17" or larger.
Torsion bar unloading tool required for installation. Available here! SKU: 1067

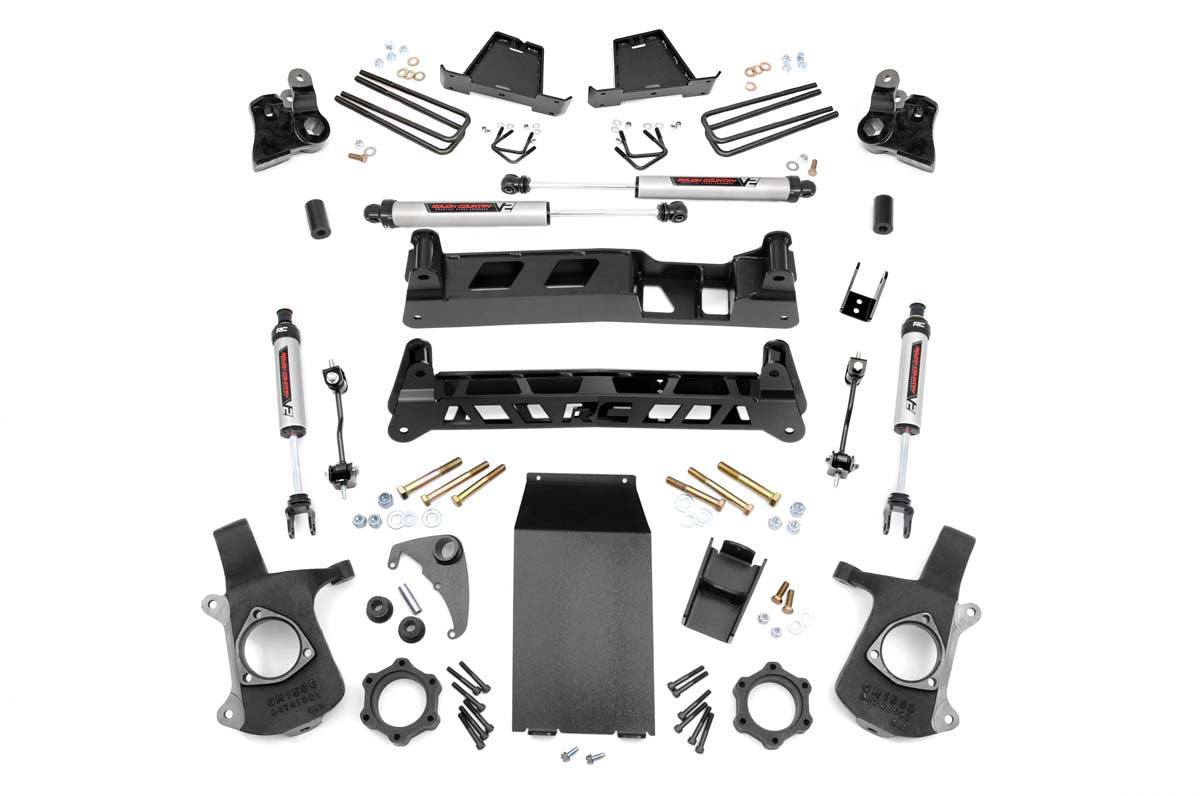

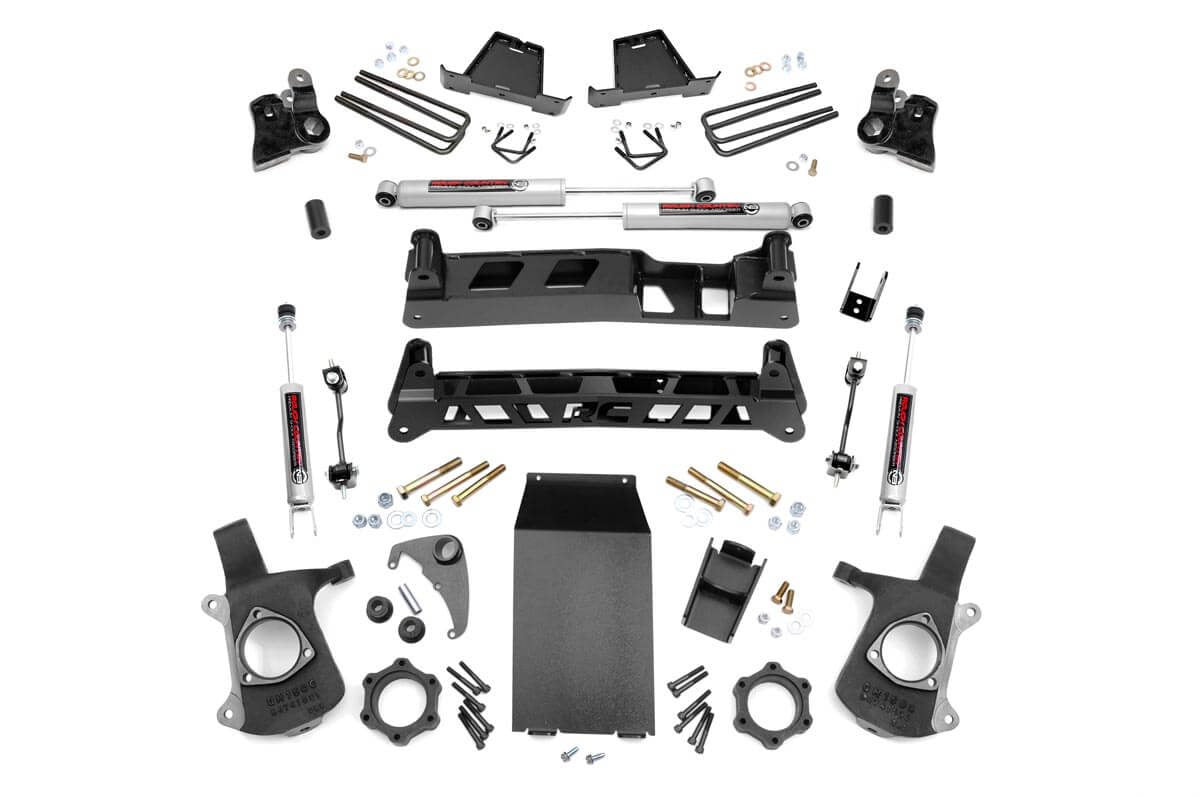

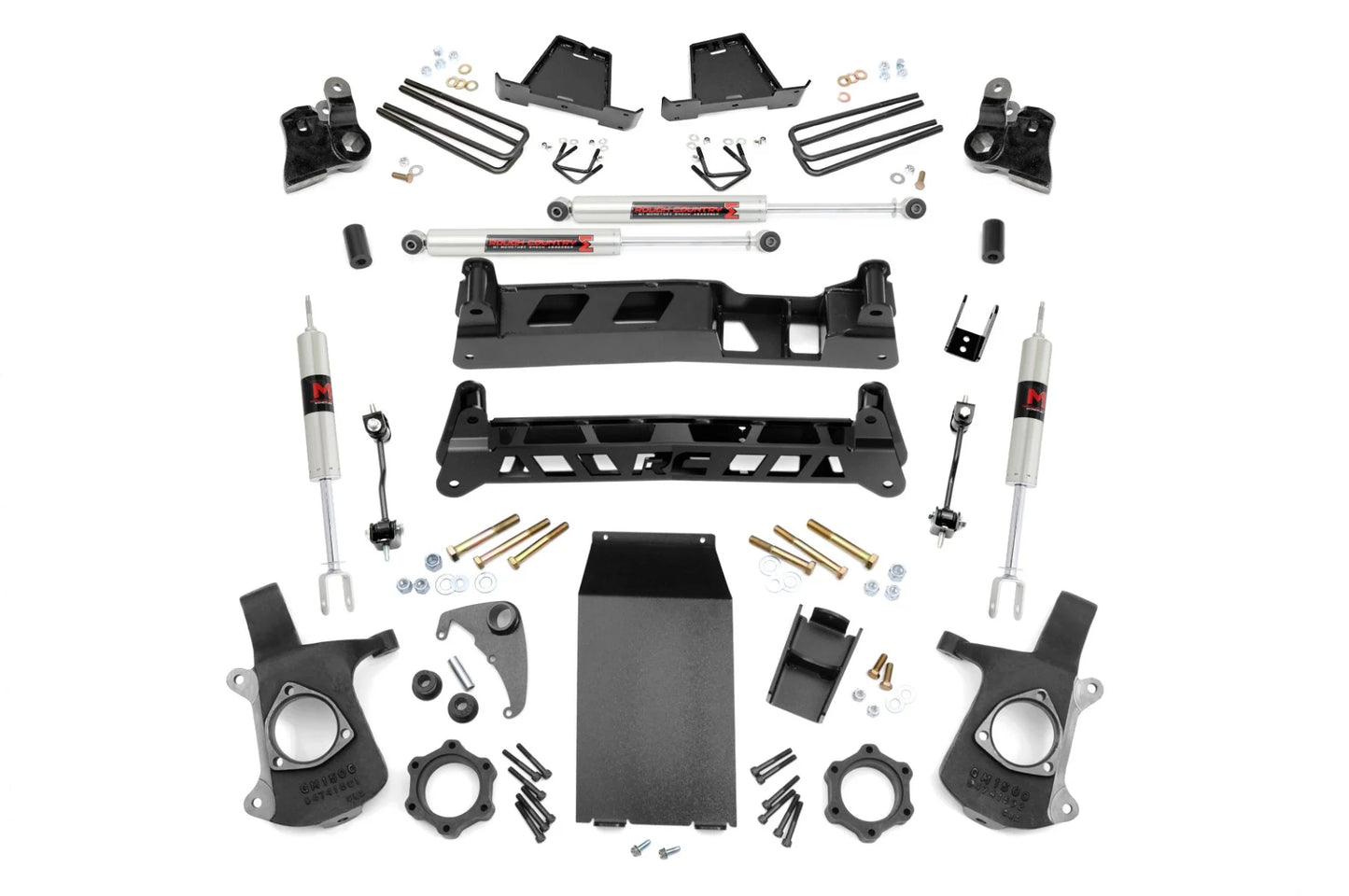

IN THE BOX

FRONT

Lifted Knuckles
Front Crossmember
Rear Crossmember
Non-Torsion Bar Drop Brackets
Differential Drop Brackets
Sway-Bar Links
CV Spacers
Skid Plate
Hardware

REAR

6.25in Fabricated Lift Blocks
U-Bolts
Hardware

SHOCKS

(4) Premium N3 Series

INSTRUCTIONS

Est. Install Time: 8 - 10 hours
View Instruction Sheet

VEHICLE FITMENT

YEARS DRIVE MAKE MODEL
2007-2007 4WD Chevy Silverado 1500 Classic
2007-2007 4WD GMC Sierra 1500 Classic
1999-2006 4WD GMC Sierra 1500
1999-2006 4WD Chevy Silverado 1500
ALWAYS read all product page details for more important fitment information

RECOMMENDED TIRES & WHEELS

TIRE WHEEL BOLT PATTERN OFFSET NOTE
315/75R16 16x8 6x5.5 -6 -
305/70R17 17x8.5 6x5.5 -12 -
295/70R17 17x8.5 6x5.5 -12 -
285/75R17 17x8.5 6x5.5 -12 -
35x12.50R17 17x8.5 6x5.5 +0 -
305/70R17 17x8.5 6x5.5 +0 -
295/70R17 17x8.5 6x5.5 +0 -
285/75R17 17x8.5 6x5.5 +0 -
35x12.50R17 17x8.5 6x5.5 +1 -
305/70R17 17x8.5 6x5.5 +1 -
295/70R17 17x8.5 6x5.5 +1 -
285/75R17 17x8.5 6x5.5 +1 -
315/70R17 17x9 6x5.5 -19 -
305/70R17 17x9 6x5.5 -19 -
295/70R17 17x9 6x5.5 -19 -
285/75R17 17x9 6x5.5 -19 -
315/70R17 17x9 6x5.5 -18 -
305/70R17 17x9 6x5.5 -18 -
295/70R17 17x9 6x5.5 -18 -
285/75R17 17x9 6x5.5 -18 -
35x12.50R17 17x9 6x5.5 -12 -
33x12.50R17 17x9 6x5.5 -12 -
305/70R17 17x9 6x5.5 -12 -
295/70R17 17x9 6x5.5 -12 -
285/75R17 17x9 6x5.5 -12 -
35x12.50R17 17x9 6x5.5 +0 -
33x12.50R17 17x9 6x5.5 +0 -
315/70R17 17x9 6x5.5 +0 -
305/70R17 17x9 6x5.5 +0 -
295/70R17 17x9 6x5.5 +0 -
285/75R17 17x9 6x5.5 +0 -
35x12.50R17 17x9 6x5.5 +1 -
33x12.50R17 17x9 6x5.5 +1 -
315/70R17 17x9 6x5.5 +1 -
305/70R17 17x9 6x5.5 +1 -
295/70R17 17x9 6x5.5 +1 -
285/75R17 17x9 6x5.5 +1 -
295/70R18 18x8.5 6x5.5 -12 -
35x12.50R18 18x8.5 6x5.5 +0 -
295/70R18 18x8.5 6x5.5 +0 -
285/75R18 18x8.5 6x5.5 +0 -
35x12.50R18 18x8.5 6x5.5 +1 -
295/70R18 18x8.5 6x5.5 +1 -
285/75R18 18x8.5 6x5.5 +1 -
35x12.50R18 18x9 6x5.5 -12 -
295/70R18 18x9 6x5.5 -12 -
285/75R18 18x9 6x5.5 -12 -
285/70R18 18x9 6x5.5 -12 -
35x12.50R18 18x9 6x5.5 +0 -
295/70R18 18x9 6x5.5 +0 -
285/75R18 18x9 6x5.5 +0 -
285/70R18 18x9 6x5.5 +0 -
35x12.50R18 18x9 6x5.5 +1 -
295/70R18 18x9 6x5.5 +1 -
285/75R18 18x9 6x5.5 +1 -
285/70R18 18x9 6x5.5 +1 -
35x12.50R20 20x9 6x5.5 -12 -
33x12.50R20 20x9 6x5.5 -12 -
305/55R20 20x9 6x5.5 -12 -
295/60R20 20x9 6x5.5 -12 -
285/60R20 20x9 6x5.5 -12 -
35x12.50R20 20x9 6x5.5 +0 -
33x12.50R20 20x9 6x5.5 +0 -
305/55R20 20x9 6x5.5 +0 -
295/65R20 20x9 6x5.5 +0 -
295/60R20 20x9 6x5.5 +0 -
285/60R20 20x9 6x5.5 +0 -
35x12.50R20 20x9 6x5.5 +1 -
33x12.50R20 20x9 6x5.5 +1 -
305/55R20 20x9 6x5.5 +1 -
295/65R20 20x9 6x5.5 +1 -
295/60R20 20x9 6x5.5 +1 -
285/60R20 20x9 6x5.5 +1 -
35x12.50R20 20x10 6x5.5 -25 Trimming Required
33x12.50R20 20x10 6x5.5 -25 Minor Trimming
305/55R20 20x10 6x5.5 -25 Minor Trimming
295/65R20 20x10 6x5.5 -25 Minor Trimming
295/60R20 20x10 6x5.5 -25 Minor Trimming
285/60R20 20x10 6x5.5 -25 Minor Trimming
35x12.50R20 20x10 6x5.5 -19 Trimming Required
33x12.50R20 20x10 6x5.5 -19 Minor Trimming
305/55R20 20x10 6x5.5 -19 Minor Trimming
295/65R20 20x10 6x5.5 -19 Minor Trimming
295/60R20 20x10 6x5.5 -19 Minor Trimming
285/60R20 20x10 6x5.5 -19 Minor Trimming
35x12.50R20 20x10 6x5.5 -18 Trimming Required
33x12.50R20 20x10 6x5.5 -18 Minor Trimming
305/55R20 20x10 6x5.5 -18 Minor Trimming
295/65R20 20x10 6x5.5 -18 Minor Trimming
295/60R20 20x10 6x5.5 -18 Minor Trimming
285/60R20 20x10 6x5.5 -18 Minor Trimming
35x12.50R20 20x12 6x5.5 -44 Trimming Required
33x12.50R20 20x12 6x5.5 -44 Trimming Required
305/55R20 20x12 6x5.5 -44 Trimming Required
295/65R20 20x12 6x5.5 -44 Trimming Required
35x12.50R22 22x10 6x5.5 -25 Trimming Required
33x12.50R22 22x10 6x5.5 -25 Minor Trimming
295/55R22 22x10 6x5.5 -25 Minor Trimming
295/50R22 22x10 6x5.5 -25 Minor Trimming
285/55R22 22x10 6x5.5 -25 -
35x12.50R22 22x10 6x5.5 -19 Trimming Required
33x12.50R22 22x10 6x5.5 -19 Minor Trimming
295/55R22 22x10 6x5.5 -19 Minor Trimming
295/50R22 22x10 6x5.5 -19 Minor Trimming
285/55R22 22x10 6x5.5 -19 -
35x12.50R22 22x10 6x5.5 -18 Trimming Required
33x12.50R22 22x10 6x5.5 -18 Minor Trimming
295/55R22 22x10 6x5.5 -18 Minor Trimming
295/50R22 22x10 6x5.5 -18 Minor Trimming
285/55R22 22x10 6x5.5 -18 -
35x12.50R22 22x12 6x5.5 -44 Trimming Required

Due to differences in manufacturing, dimension and inflated measurements, tire and wheel combinations should be test fit prior to installation
