6 INCH LIFT KIT CHEVY/GMC CANYON/COLORADO (15-22)
6 INCH LIFT KIT CHEVY/GMC CANYON/COLORADO (15-22)
SKU:24133
Share
OVERVIEW

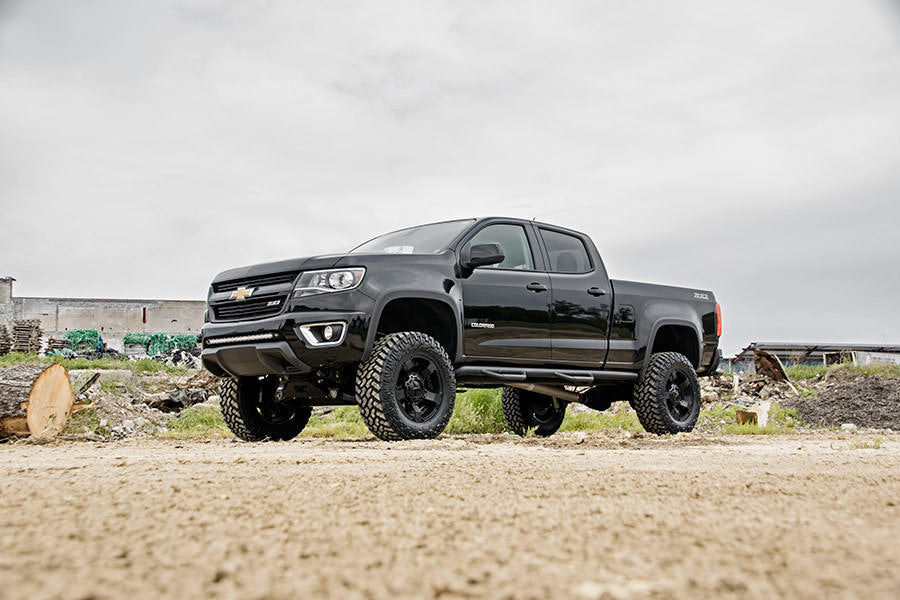

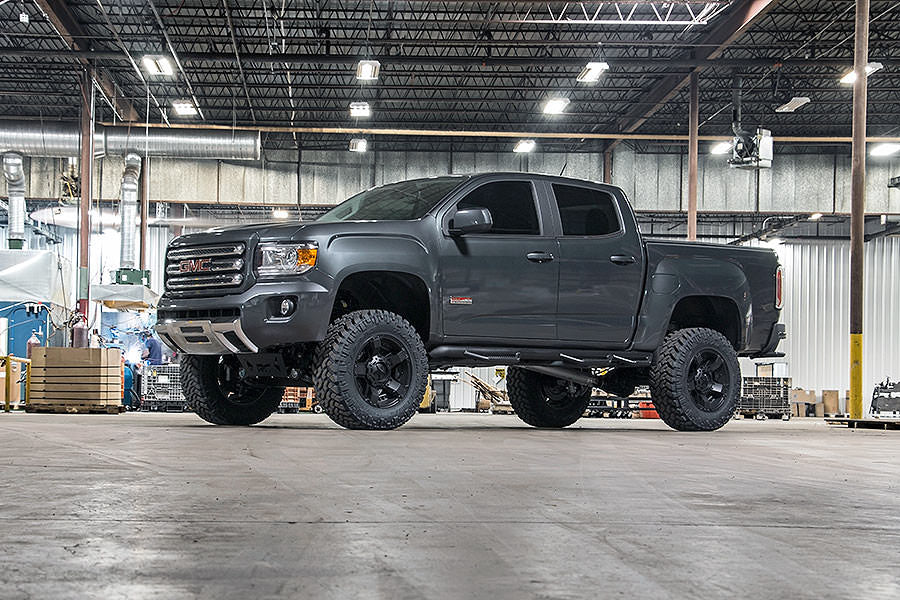

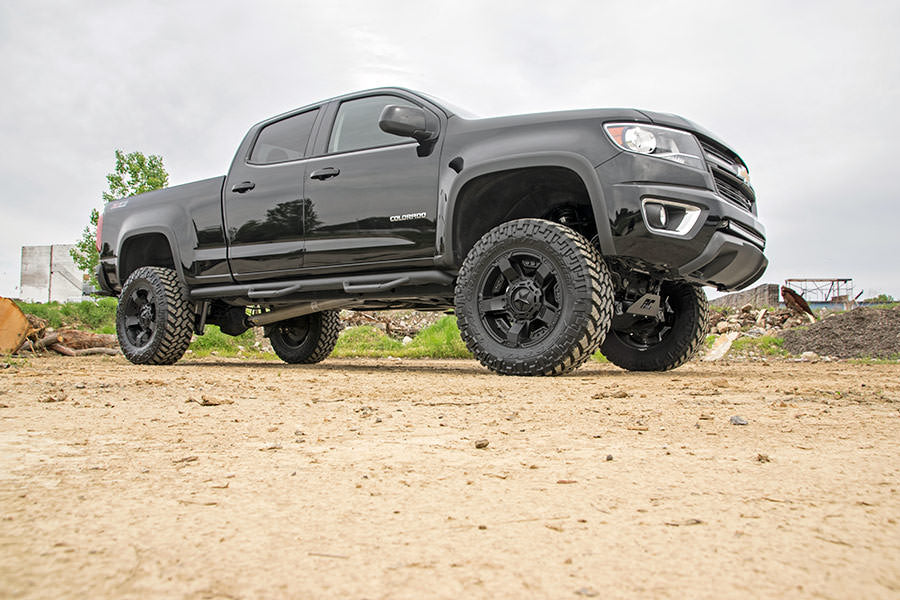

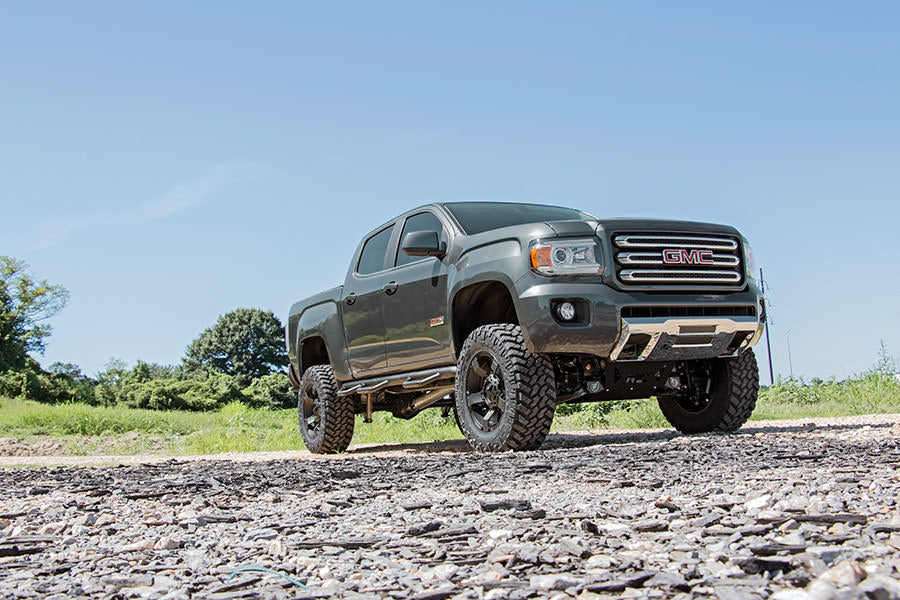

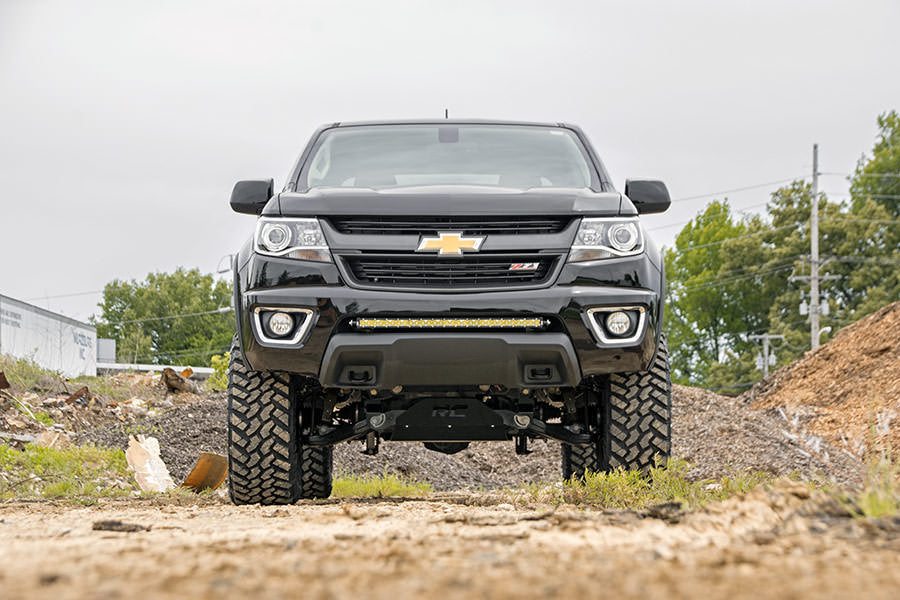

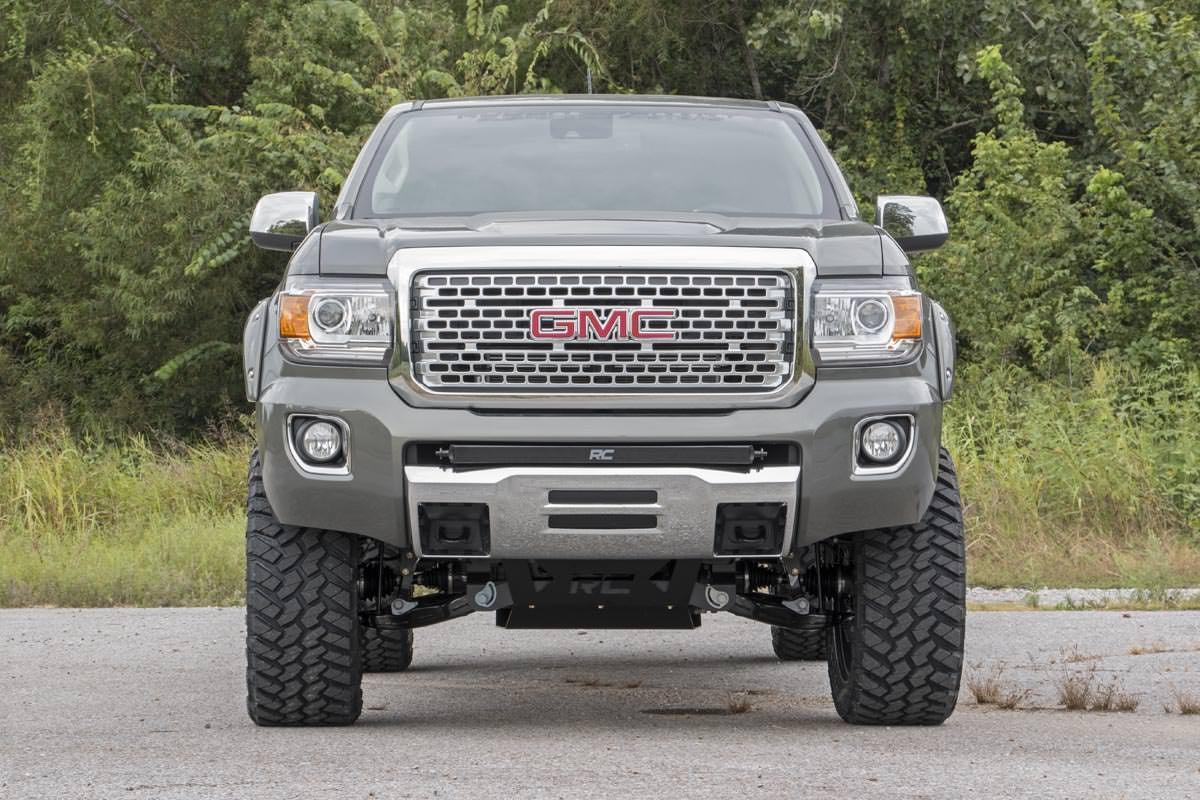

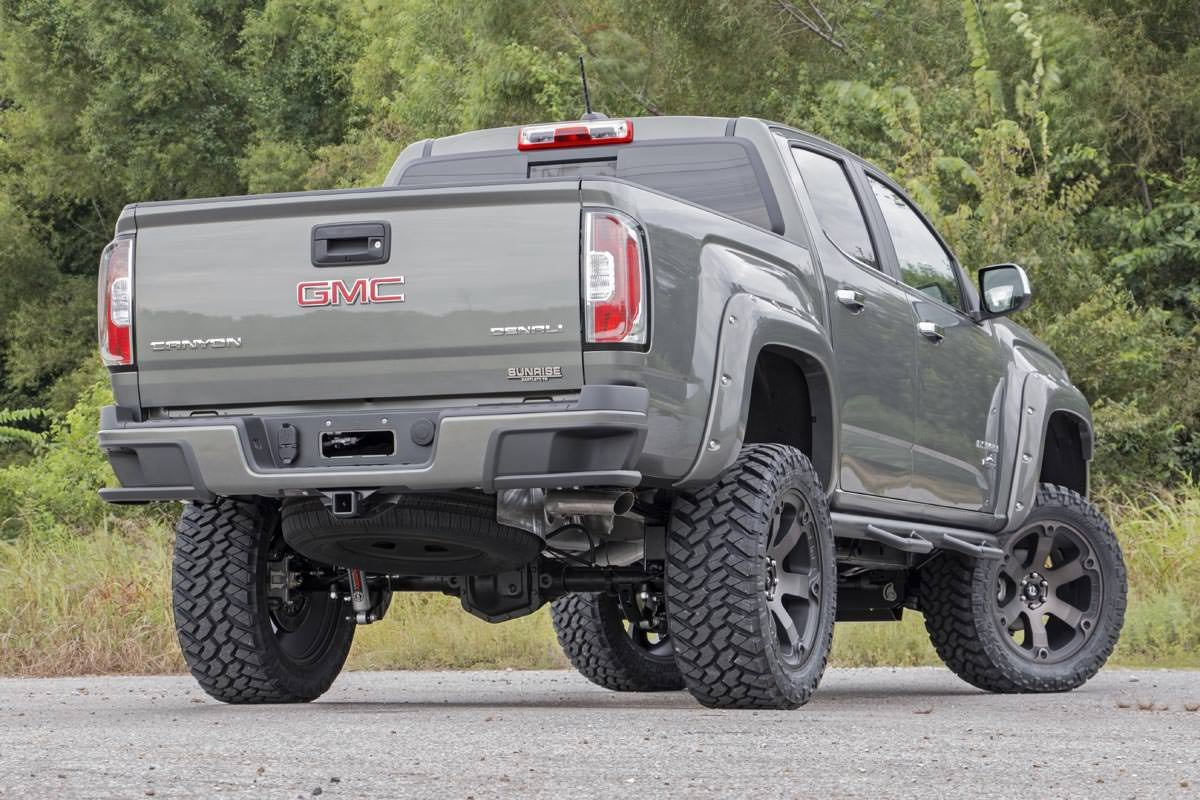

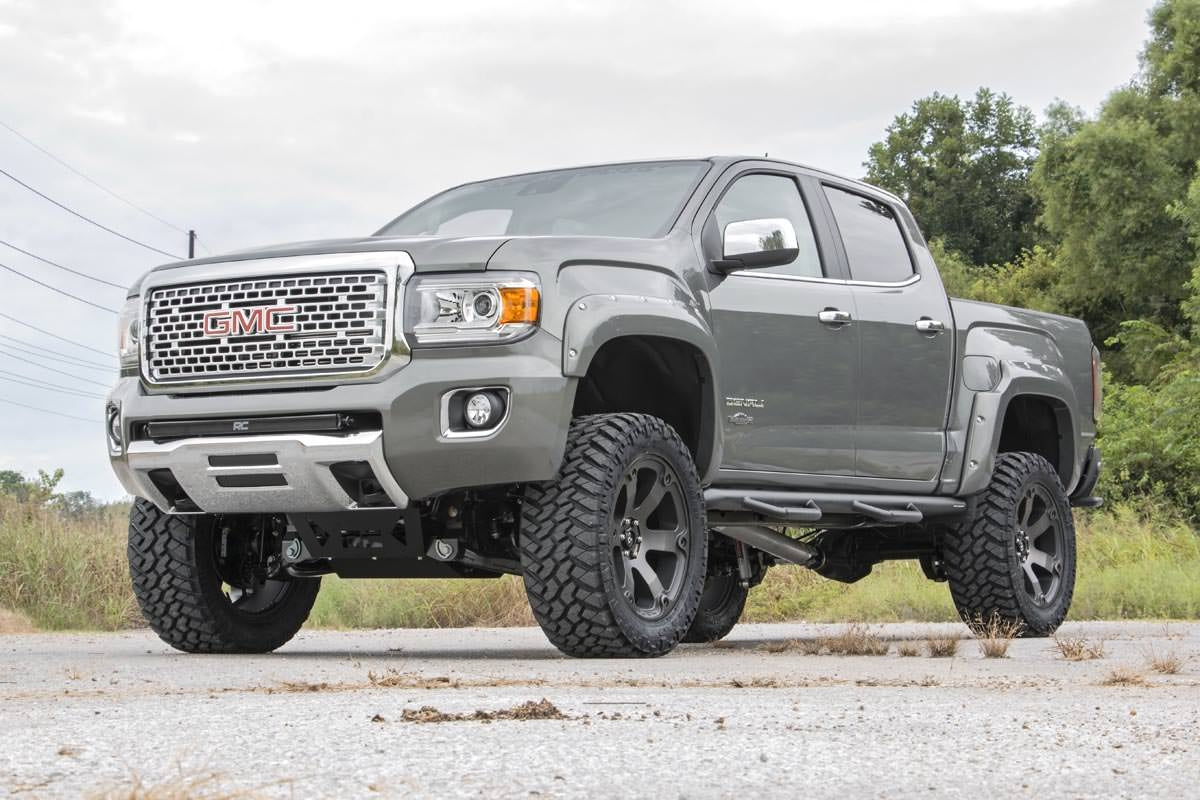

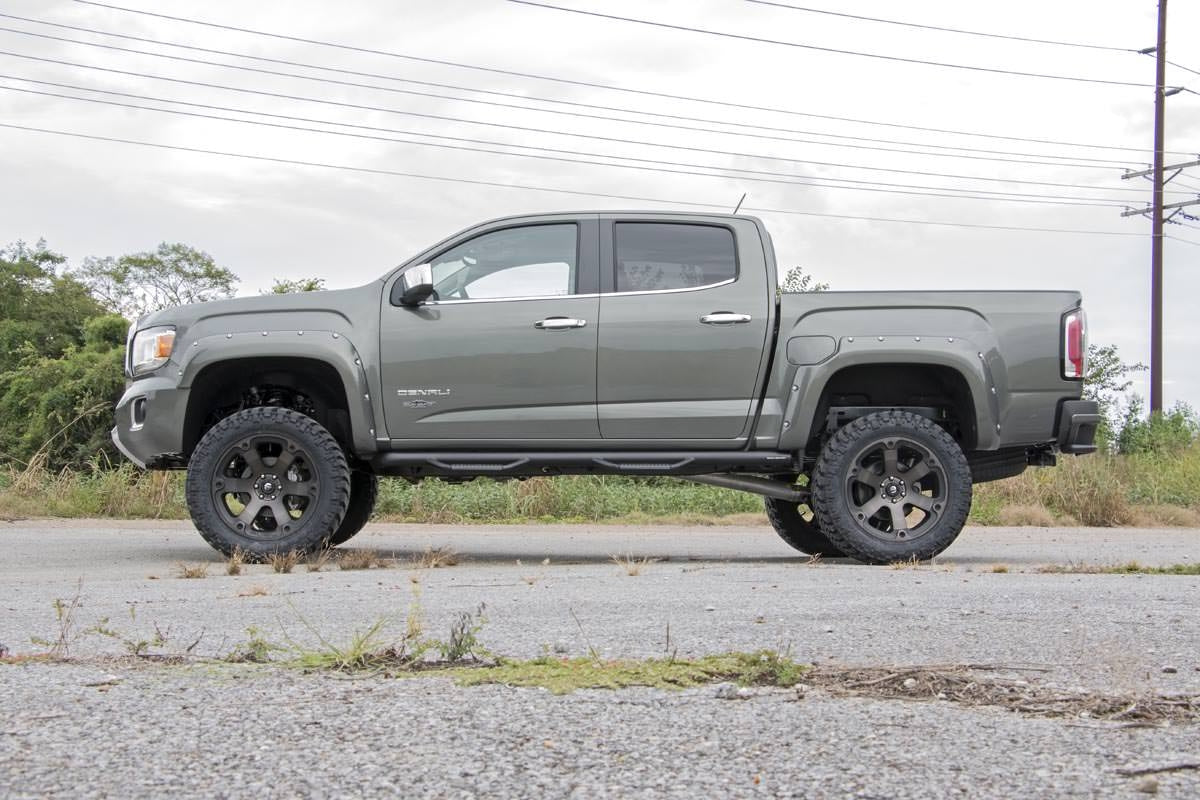

Transform your GM Colorado / Canyon from mid-size to masterpiece with Rough Country’s 6-inch Lift Kit! This kit includes everything you need for a monster makeover of your rig. A set of durable front and rear crossmembers keep everything in line, while a full front and lower skid plate setup offers unbridled protection against off-road obstacles. A set of lifted, one-piece cast knuckles and rear, fabricated lift blocks offer plenty of ride height to run larger wheels and tires.
This kit features Rough Country's premium N3 shocks! These 10-stage variable valving, high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod and faster-cooling 54mm shock body, this shock offers up to 36kN Tensile Strength for a long lifespan of vibration dampening. Features natural rubber bushings and an eye-catching metallic silver paint.
Rough Country’s GM Colorado / Canyon kit is designed to be minimally invasive and easier to install. No welding or disassembly of the strut is required for installation, and only minor cutting and drilling is necessary. This kit does not change the stock track width, and maintains a smooth, factory-like ride! Includes Rough Country’s Lifetime Replacement Guarantee.
FEATURES
- Increased ground clearance
- Maintains factory track width.
- Maintains factory-like ride.
- No welding or strut disassembly required to install.
- No tie rod cutting or replacing required.

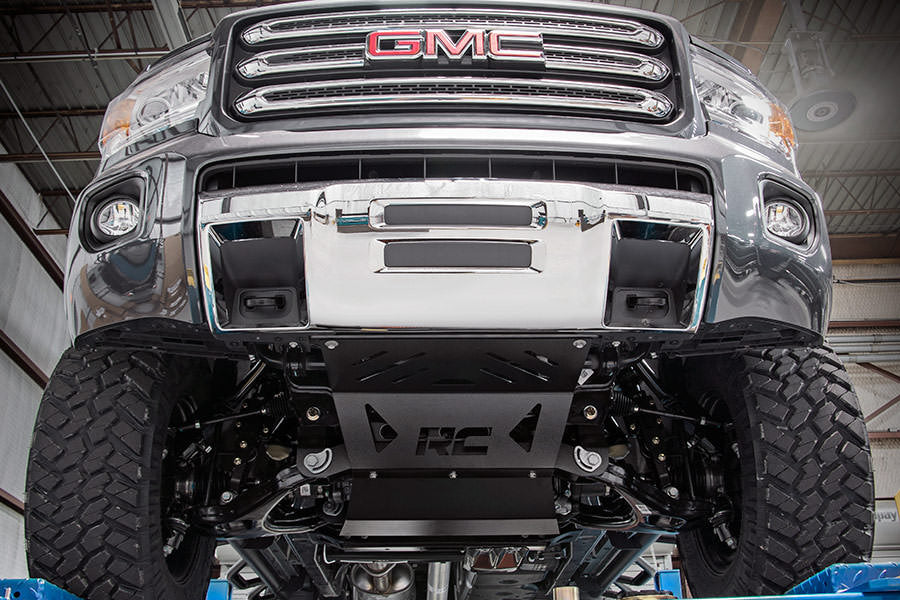

- Front skid plate features a laser cut "RC" logo.
- Lifted knuckles are designed to keep as close to OE geometry as possible.
- Rear lift blocks are fabricated - stronger and offer a longer lifespan than cast blocks.
NOTES - IMPORTANT
- Fits both Gas and Diesel models.
- Does NOT fit Trail Boss/ZR2 models.
- Does NOT fit models equipped with Multimatic DSSV suspension. (AT4X)
- Requires minor cutting and drilling.
- Requires aftermarket 18" wheels - Factory wheels will NOT work.
- Highly recommended that aftermarket wheels, and / or wheel spacers, be hub-centric.

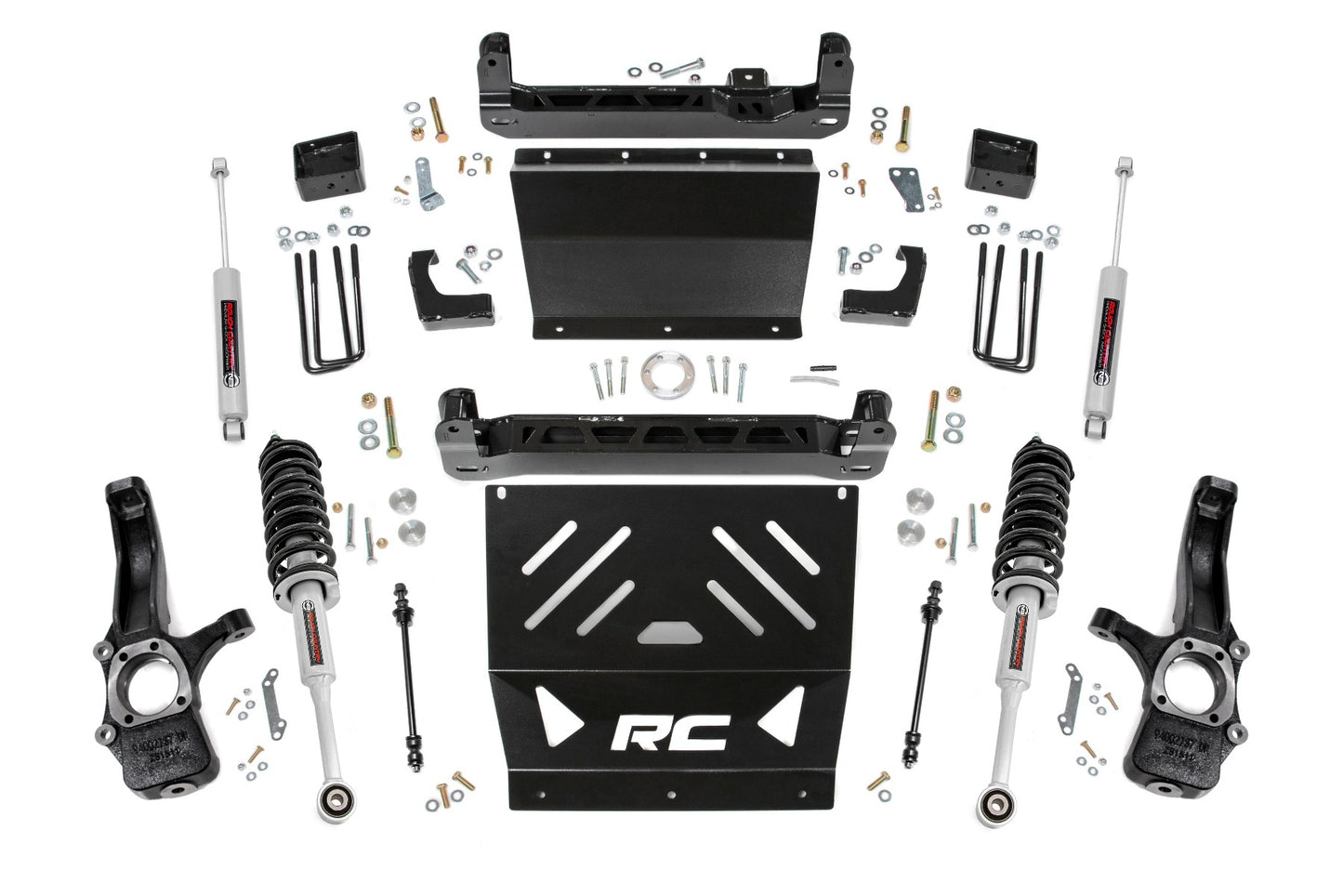

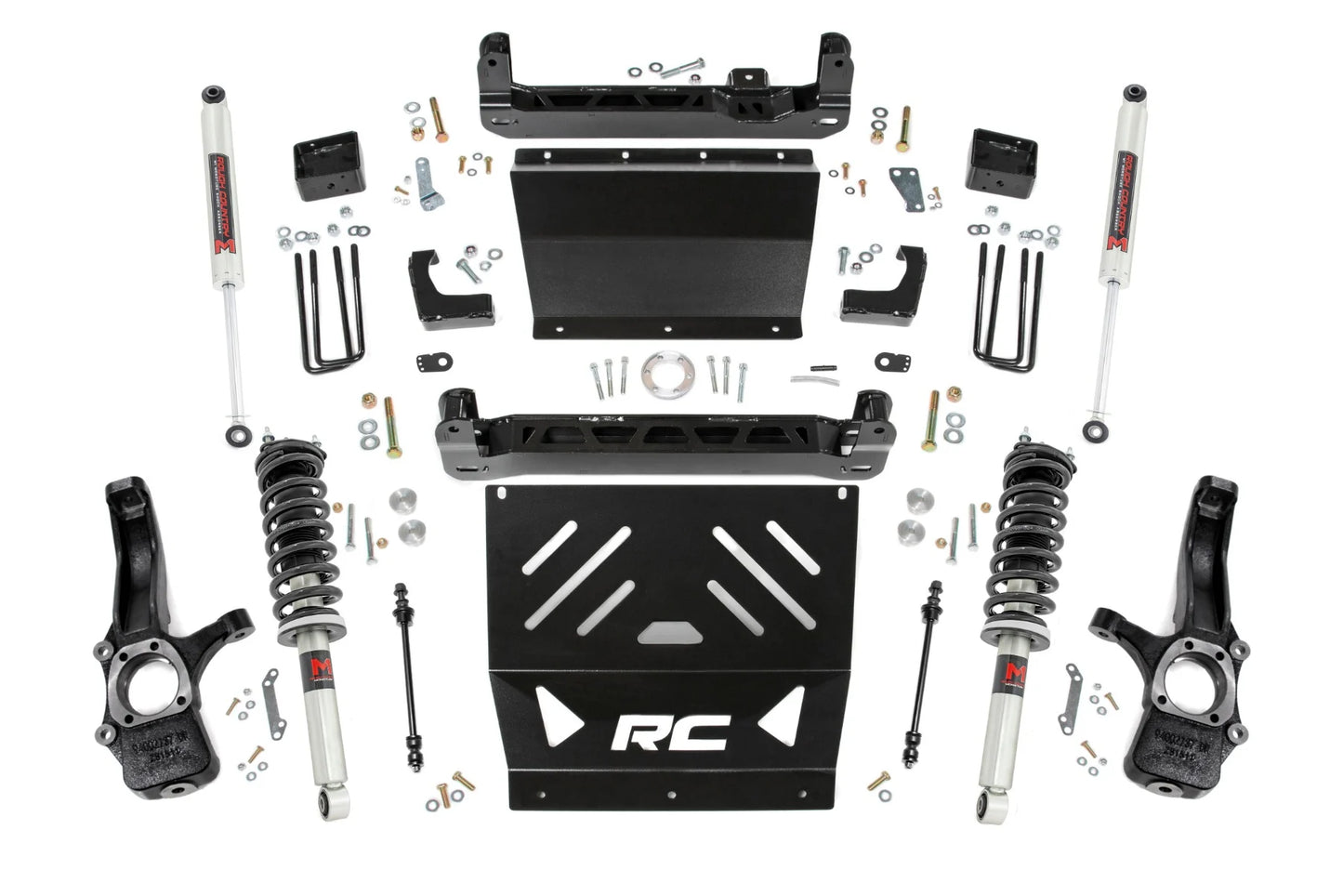

IN THE BOX
- Lifted knuckles
- Lower strut extensions
- Strut clamps
- Front crossmember
- Rear crossmember
- Differential drop brackets
- Sway-bar links
- Brake line brackets
- Front skid plate
- Lower skid plate
- Hardware
- 4.5in fabricated lift blocks
- Brake line relocation brackets
- U-bolts
- Hardware
- (2) Premium N3 series [rear]
- (2) Premium N3 Lifted Struts [front]
INSTRUCTIONS
- Est. Install Time: 8-10 hours
- View Instruction Sheet
VEHICLE FITMENT
YEARS DRIVE MAKE MODEL
2015-2022 4WD Chevy Colorado
2015-2022 4WD GMC Canyon
2015-2022 2WD GMC Canyon
2015-2022 2WD Chevy Colorado
ALWAYS read all product page details for more important fitment information
RECOMMENDED TIRES & WHEELS
TIRE WHEEL BOLT PATTERN OFFSET NOTE
285/65R18 18x8.5 6x120 +0 -
285/65R18 18x8.5 6x120 +1 -
285/65R18 18x9 6x120 +0 -
285/65R18 18x9 6x120 +1 -
285/55R20 20x9 6x120 +0 -
285/55R20 20x9 6x120 +1 -
Due to differences in manufacturing, dimension and inflated measurements, tire and wheel combinations should be test fit prior to installation
