6 INCH LIFT KIT CHEVY/GMC 2500HD 4WD (01-10)
6 INCH LIFT KIT CHEVY/GMC 2500HD 4WD (01-10)
SKU:29730A
Share
OVERVIEW
Take your Heavy Duty Truck to the next level with Rough Country's 6-inch Suspension Lift designed to run up to 35-inch tires. Gain increased ground clearance while maintaining factory ride quality with this all-inclusive kit designed to give the best of both worlds, on or off-road.
Featuring CNC machined Knuckles, Heavy-duty front and rear laser cut cross members, and our expertly valved N3 shocks this kit gives you a bang for your buck like no other! While a full set of high clearance drop crossmembers, differential drop brackets andtorsion bar drop brackets keep everything at optimum angles.
Rough Country’s 6" Suspension Kit features (4) Premium N3 Nitrogen-charged shocks, giving your truck incredible ride-quality both on and off-road. Also included are a set of front CV spacers, sway-bar links, and a protective skid plate to give you everything you need to get rolling in one of our best kits, at our best price ever!
This all-inclusive kit comes with everything you need, and best of all this kit features Rough Country’s Lifetime Replacement Warranty.
FEATURES
- Maintains factory ride quality.
- Increased ground clearance.
- Designed to run 35x12.50 tires.
- One-piece quality cast CNC machined knuckles.
- Integrated skid plate does not sacrifice ground clearance.
- Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
NOTES - IMPORTANT
- Requires minor modification to the front differential.
- If equipped with factory 17-inch wheels and purchasing new wheels - the new wheels must be 17-inch or larger.
- Use of a 35x12.50 tire may require modification to the front valance.
- If equipped with a gas engine, then an exhaust reroute modification may be needed for front driveshaft clearance.
- Torsion bar unloading tool required for installation. Available here! SKU: 1067

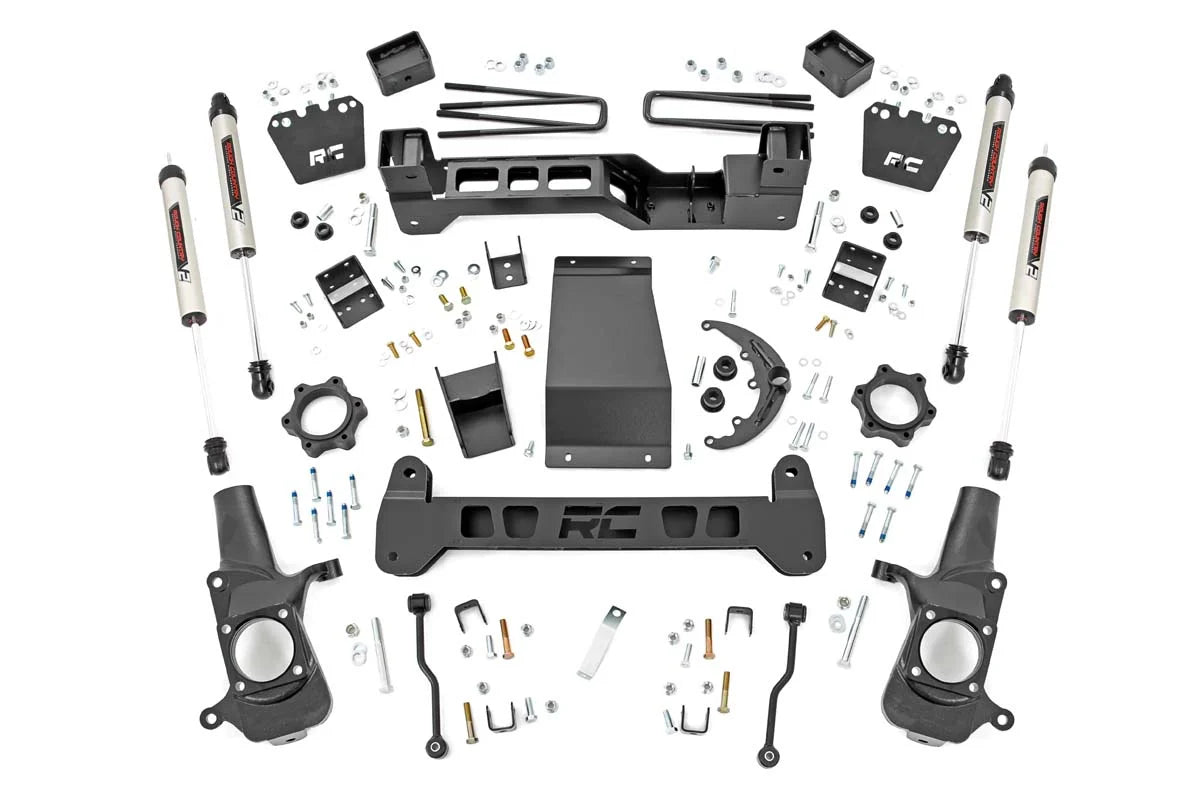

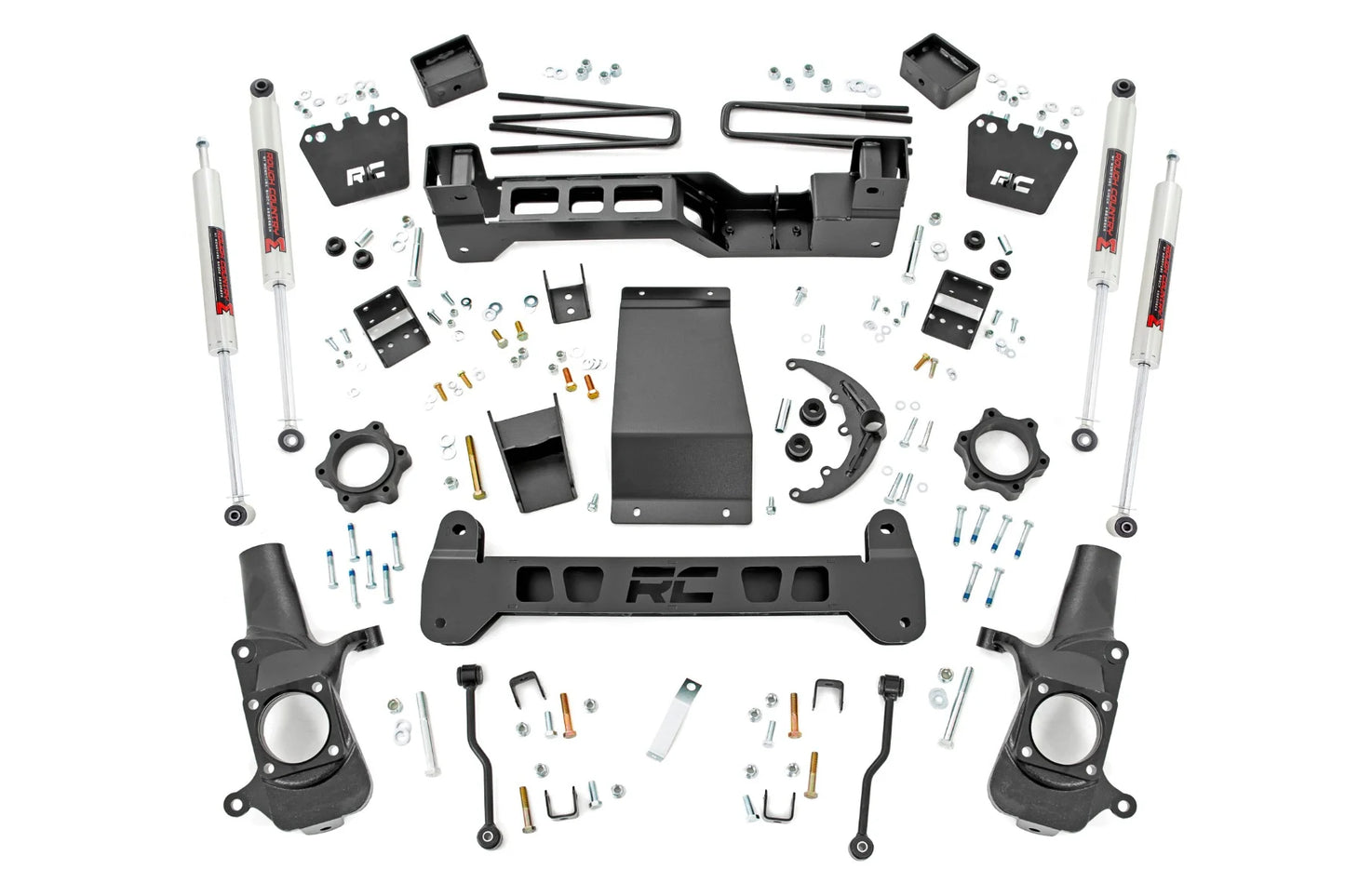

IN THE BOX
- Lifted knuckles
- Front crossmember
- Rear crossmember
- Differential drop brackets
- Lower integrated HD skid plate
- CV spacers
- Sway-bar links
- Hardware
- Lifted blocks
- U-bolts
- Hardware
- (4) Premium N3 series
VEHICLE FITMENT
2001-2010 4WD Chevy Silverado 2500 HD
2001-2010 4WD GMC Sierra 2500 HD
ALWAYS read all product page details for more important fitment information
RECOMMENDED TIRES & WHEELS
TIRE WHEEL BOLT PATTERN OFFSET NOTE
5x12.50R17 17x8.5 8x6.5/8x165.1 +0 -
35x12.50R17 17x8.5 8x6.5/8x165.1 +1 -
35x12.50R17 17x9 8x6.5/8x165.1 -12 -
35x12.50R17 17x9 8x6.5/8x165.1 +0 -
35x12.50R17 17x9 8x6.5/8x165.1 +1 -
35x12.50R18 18x8.5 8x6.5/8x165.1 +0 -
295/70R18 18x8.5 8x6.5/8x165.1 +0 -
35x12.50R18 18x8.5 8x6.5/8x165.1 +1 -
295/70R18 18x8.5 8x6.5/8x165.1 +1 -
35x12.50R18 18x9 8x6.5/8x165.1 -12 -
295/70R18 18x9 8x6.5/8x165.1 -12 -
295/70R18 18x9 8x6.5/8x165.1 -6 -
35x12.50R18 18x9 8x6.5/8x165.1 +0 -
295/70R18 18x9 8x6.5/8x165.1 +0 -
35x12.50R18 18x9 8x6.5/8x165.1 +1 -
295/70R18 18x9 8x6.5/8x165.1 +1 -
295/70R18 18x10 8x6.5/8x165.1 -25 -
295/70R18 18x10 8x6.5/8x165.1 -24 -
295/70R18 18x10 8x6.5/8x165.1 -19 -
295/70R18 18x10 8x6.5/8x165.1 -18 -
35x12.50R20 20x9 8x6.5/8x165.1 -12 -
35x12.50R20 20x9 8x6.5/8x165.1 +0 -
295/60R20 20x9 8x6.5/8x165.1 +0 -
35x12.50R20 20x9 8x6.5/8x165.1 +1 -
295/60R20 20x9 8x6.5/8x165.1 +1 -
35x12.50R20 20x10 8x6.5/8x165.1 -25 Minor Trimming
35x12.50R20 20x10 8x6.5/8x165.1 -24 Minor Trimming
35x12.50R20 20x10 8x6.5/8x165.1 -19 Minor Trimming
295/60R20 20x10 8x6.5/8x165.1 -19 Minor Trimming
35x12.50R20 20x10 8x6.5/8x165.1 -18 Minor Trimming
295/60R20 20x10 8x6.5/8x165.1 -18 Minor Trimming
35x12.50R20 20x12 8x6.5/8x165.1 -44 Trimming Required
35x12.50R22 22x10 8x6.5/8x165.1 -25 Minor Trimming
35x12.50R22 22x10 8x6.5/8x165.1 -24 Minor Trimming
35x12.50R22 22x10 8x6.5/8x165.1 -19 Minor Trimming
285/55R22 22x10 8x6.5/8x165.1 -19 -
35x12.50R22 22x10 8x6.5/8x165.1 -18 Minor Trimming
285/55R22 22x10 8x6.5/8x165.1 -18 -
35x12.50R22 22x12 8x6.5/8x165.1 -44 Trimming Required
Due to differences in manufacturing, dimension and inflated measurements, tire and wheel combinations should be test fit prior to installation
