6 INCH LIFT KIT CHEVY/GMC 2500HD 2WD (01-10)
6 INCH LIFT KIT CHEVY/GMC 2500HD 2WD (01-10)
SKU:220N3A
Share
OVERVIEW
This all inclusive kit features everything you need to run up to 35x12.50 tires on factory 17-inch wheels. Our beefy, one-piece, CNC machined lifted knuckles are designed for a precision fit to your vehicle. Includes a set of front and rear high-clearance crossmembers. This 6-inch Lift also comes with a set of front and rear N3 Shocks for a balanced ride on and off-road.
Give your pickup a lifted and leveled stance easily, with no modification to the stock differential mounts, drive-train or exhaust required to install! The 100% Bolt-On installation process makes setup far easier than more complicated kits. Includes Rough Country's Lifetime Replacement Warranty.
FEATURES
- Maintains factory ride quality
- Increased ground clearance
- Designed to run 35x12.50 tires
- One-piece quality cast CNC machined knuckles
- Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
NOTES - IMPORTANT
- Fits 2WD models ONLY
- Does NOT fit dually models
- If equipped with factory 17-inch wheels and purchasing new wheels - the new wheels must be 17-inch or larger.
- Use of a 35 x 12.50 tire may require modification to the front valance.
- Torsion bar unloading tool required for installation. Available below (#1067)

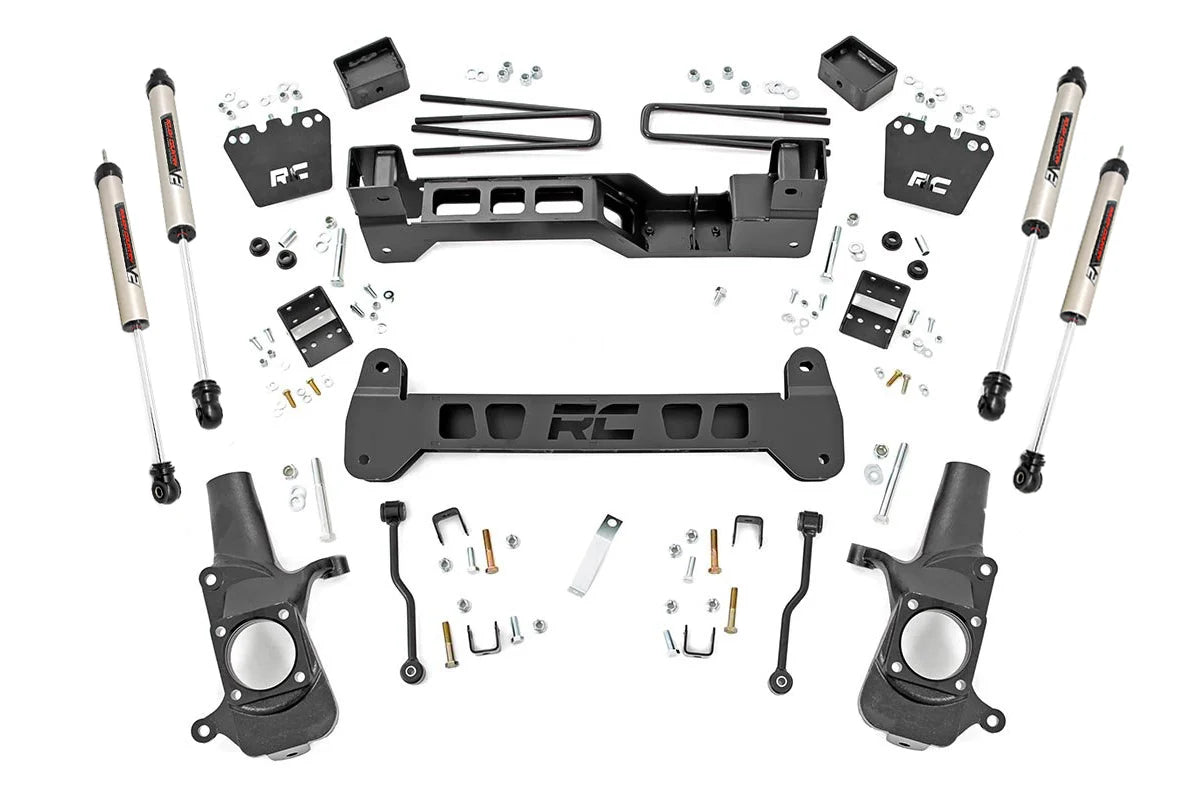

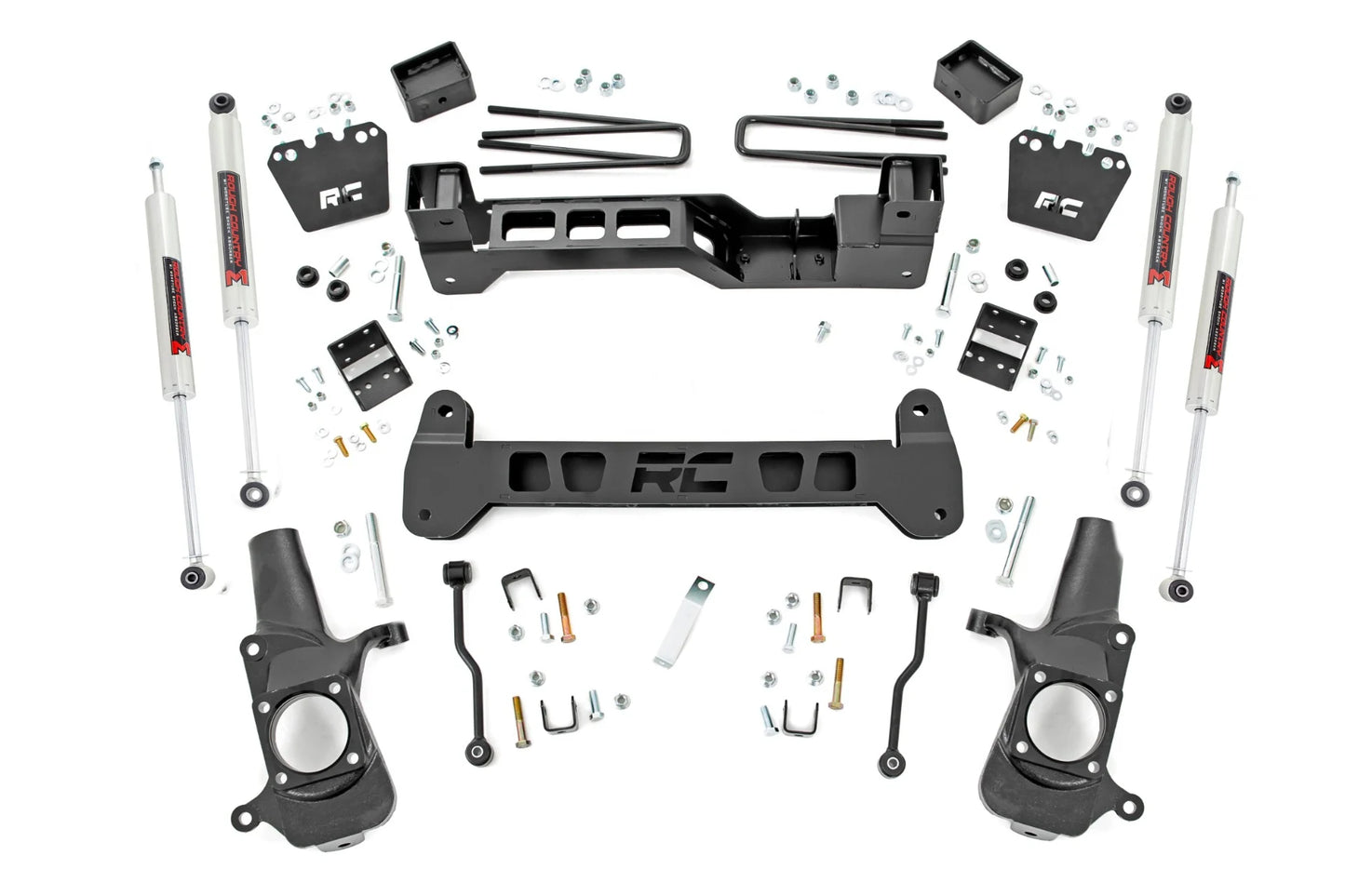

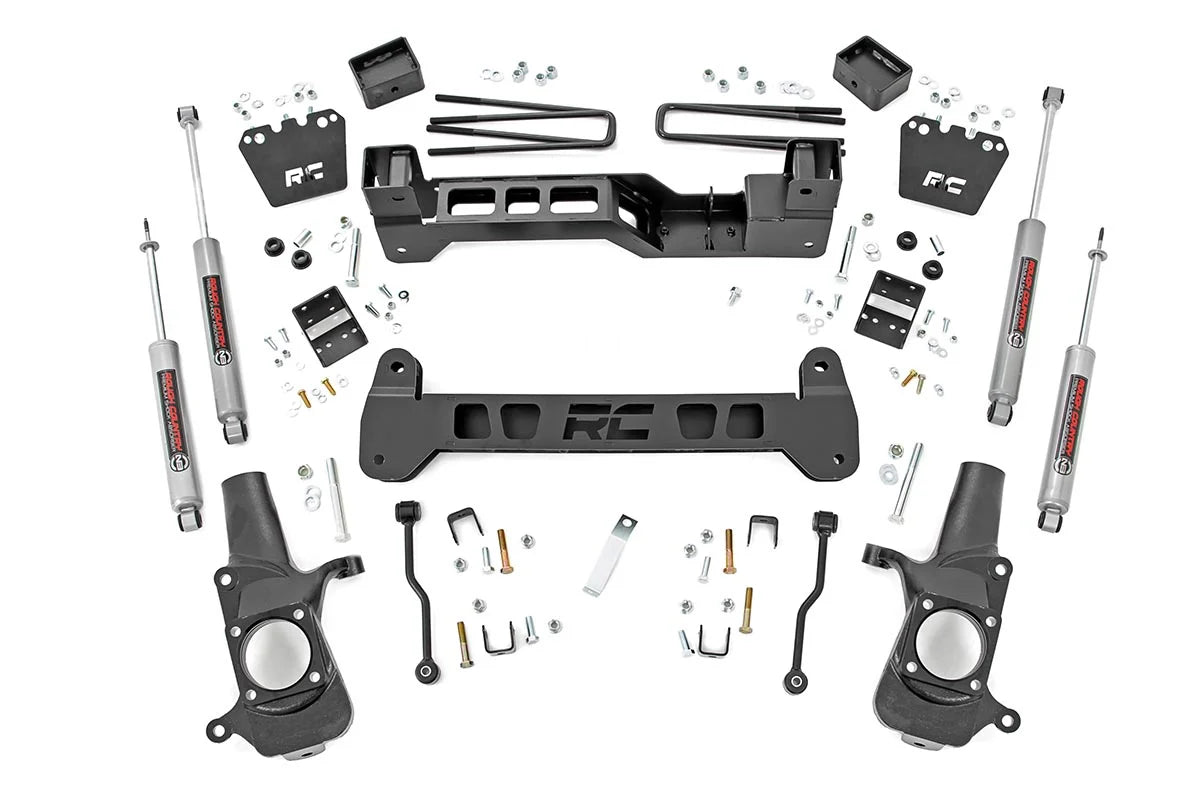

IN THE BOX
- Lifted knuckles
- Front crossmember
- Rear crossmember
- Sway-bar links
- Hardware
- Lifted blocks
- U-bolts
- Hardware
- (4) Premium N3 series
VEHICLE FITMENT
2001-2010 2WD Chevy Silverado 2500 HD
2001-2010 2WD GMC Sierra 2500 HD
ALWAYS read all product page details for more important fitment information
RECOMMENDED TIRES & WHEELS
TIRE WHEEL BOLT PATTERN OFFSET NOTE
315/70R17 17x8.5 8x6.5/8x165.1 +0 -
315/70R17 17x8.5 8x6.5/8x165.1 +1 -
315/70R17 17x9 8x6.5/8x165.1 -12 -
315/70R17 17x9 8x6.5/8x165.1 +0 -
315/70R17 17x9 8x6.5/8x165.1 +1 -
285/75R18 18x8.5 8x6.5/8x165.1 +0 -
285/75R18 18x8.5 8x6.5/8x165.1 +1 -
285/75R18 18x9 8x6.5/8x165.1 -12 -
285/75R18 18x9 8x6.5/8x165.1 +0 -
285/75R18 18x9 8x6.5/8x165.1 +1 -
295/65R20 20x9 8x6.5/8x165.1 -12 -
305/55R20 20x9 8x6.5/8x165.1 +0 -
295/65R20 20x9 8x6.5/8x165.1 +0 -
295/60R20 20x9 8x6.5/8x165.1 +0 -
305/55R20 20x9 8x6.5/8x165.1 +1 -
295/65R20 20x9 8x6.5/8x165.1 +1 -
295/60R20 20x9 8x6.5/8x165.1 +1 -
305/55R20 20x10 8x6.5/8x165.1 -19 Minor Trimming
295/60R20 20x10 8x6.5/8x165.1 -19 Minor Trimming
305/55R20 20x10 8x6.5/8x165.1 -18 Minor Trimming
295/60R20 20x10 8x6.5/8x165.1 -18 -
295/60R20 20x10 8x6.5/8x165.1 -18 Minor Trimming
295/50R22 22x10 8x6.5/8x165.1 -19 Minor Trimming
285/55R22 22x10 8x6.5/8x165.1 -19 -
295/50R22 22x10 8x6.5/8x165.1 -18 Minor Trimming
285/55R22 22x10 8x6.5/8x165.1 -18 -
Due to differences in manufacturing, dimension and inflated measurements, tire and wheel combinations should be test fit prior to installation
