QUICK OVERVIEW

Tapered front strut spacers to correct strut angle

Heavy-duty fabricated steel components utilizing 3/16" and 1/4" sheet steel

Kits include carrier-bearing drop bracket kit for 2-piece driveline-equipped trucks

Full-coverage differential skid plate constructed from 3/16" steel

Includes HD alignment cam bolts for a proper front-end alignment adjustment

High-performance ride and handling courtesy of Falcon 1.1 rear shocks

Tire size 295/65R20 (35x11.50) with a 20x9 with a 0-offset wheel

Max tire with trimming 37x12.50 with a 20x9 with a 0-offset wheel

*Does not fit 2WD or Raptor trucks.

Note:  Single Cab configuration has not been validated for fitment & drivability by ReadyLIFT.

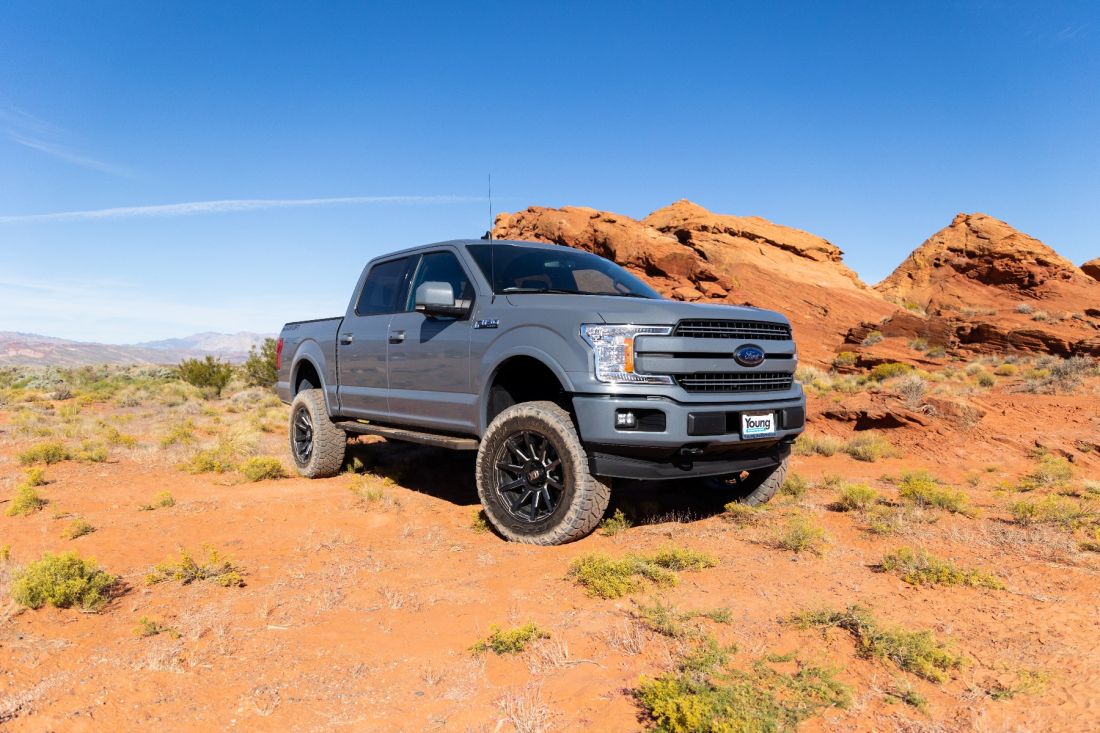

ReadyLIFT is now shipping our all-new 6" Lift Kit for the 2015-2020 Ford F-150 equipped with 4WD. Our new kit delivers a first-class ride, smooth handling, plenty of tire clearance, and a great-looking, neutral stance. This newly designed lift kit incorporates the latest engineering strategies and finest materials allowing for a straightforward installation that results in an amazing driving experience. The all-new Ford F-150 4WD 6' Big Lift Kit is available for customers seeking the ultimate in comfort and ride control, ReadyLIFT offers our industry-exclusive Falcon 1.1 Monotube performance rear shock ‚¬ SKU 44-25620. These high-performance 6' big lift kits are equipped with front and rear crossmembers made with heavy-duty 1/4" steel plate that delivers unmatched strength for all driving conditions. Each kit features a set of durable cast iron lifted knuckles and steel strut spacers providing enough ride height to run up to a 295/65R20 tires without trimming when installed on the right wheel! This system includes everything necessary to correct suspension, steering, and driveline geometry to maintain on-road handling while improving strength and offroad capability. A pair of cast steel 4" tall rear blocks offers the ideal amount of rear lift while the factory-style U-bolts aid in ease of installation.

TIRE FITMENT

295/65R20 for no rub on a 9" wide wheel with 0 offset

37" Maximum tire diameter with possible trimming.

Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

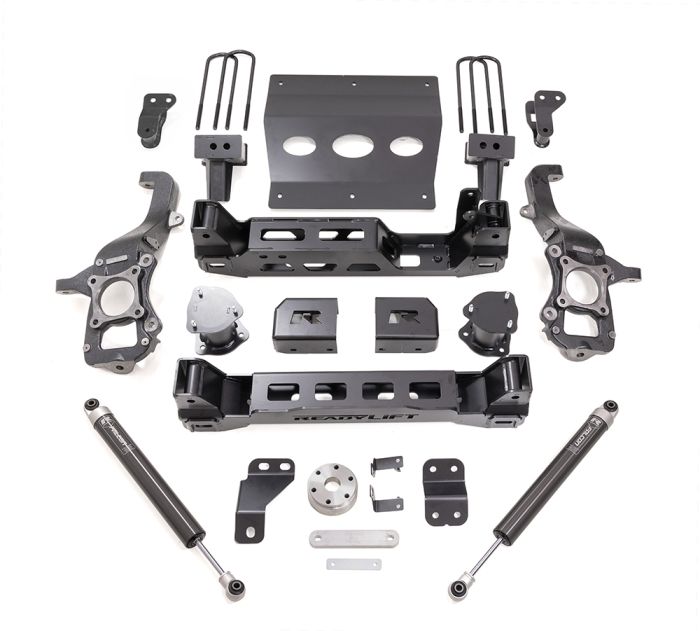

KIT COMPONENTS

-2 front strut spacers

-1 Driver Knuckle

-1 Passenger Knuckle

-1 Front Crossmember

-1 Rear Crossmember

-1 Driver Diff Drop

-1 Driver Diff Support Bracket

-1 Passenger Diff Drop

-1 Passenger Diff Support Bracket

-1 Skid Plate

-1 Driver Brake line Bracket

-1 Passenger Brake Line Bracket

-1 Driver Sway Bar Drop

-1 Passenger Sway Bar Drop

-1 Front Driveline Spacer

-1 Driver Rear Block

-1 Passenger Rear Block

-4 U-Bolts

-1 Rear Brake Line Bracket

-2 Rear Shocks

-1 Carrier Bearing Drop

-1 Alignment Cam Kit

-1 Hardware Pack
