READY LIFT

6'' BIG LIFT KIT 2019-2023 1500 DENALI / HIGH COUNTRY WITH ARC

6'' BIG LIFT KIT 2019-2023 1500 DENALI / HIGH COUNTRY WITH ARC

$2,399.95 USD
$2,399.95 USD
Sale Sold out

44-39615

QUICK OVERVIEW

ReadyLIFT now offers an all-new 6" Big Lift Kit for the new 2019-2023 Chevy Silverado High Country and GMC Sierra 1500 Denali trucks with Adaptive Ride Control (ARC) engineered for incredible ride quality and superior handling performance while retaining full operation of the factory equipped ARC system. Includes ReadyGuard Powertrain Warranty. Note: Use of Auto 4 Hi feature not recommended. Note: Only compatible with Adaptive Ride Control suspension vehicles.




Note: Not compatible with rear mono-leaf springs. Click here to learn how to determine if you have rear mono-leaf springs.





The 44-39615 lift kit utilizes the very best in ReadyLIFT engineering with boxed steel front/rear cross members and full-width front skid plate constructed of thick 3/16" plate steel. New 1/4-inch boxed plate steel differential drop brackets feature a double gusset and boxed center rib to take the abuse of front differential torsional twisting. Our 6" lift kit features heavy-duty angled and offset top mount strut extensions that realigns the struts to optimize shock performance and minimize wear. A specially designed lower mount strut pre-load spacer offers the added benefit of a slight increase in spring rate to better handle the larger wheels and tires that will find their way onto this new lifted truck. To lift the rear, new 5" tall fabricated steel rear blocks with integrated bump stop landings have been added as well as new rear shock extensions to retain full functional use of the factory ARC rear shocks. With over 9 months of engineering and development and more awesome features than we could possibly mention, the bottom line is this new Big Lift Kit is the best 6" lift kit you can install on a new body style 2019-2023 GM 1500 4WD truck!

Thousands of miles of road and trail testing have proven our new 6" lift kit makes these new GM 1500 trucks ride better than stock! Wheel and tire fitment information: 44-39615 6" Lift Kit - Recommended max tire with no trimming: 20x9 0 offset - 35x12.50 tire. *Max with trimming: 20x10 -18 offset - 35x12.50 or 325/60R20 *Trimming requirements for larger than recommended wheel/tire include front valance, front felt liner edge, rear felt liner edge and front-rear well edge mud flap.

NOTE: This GM 1500 kit is NOT COMPATIBLE with vehicles equipped with rear composite mono-leaf springs. The mono-leaf is easily identifiable the U-bolt is round/circular around the top of the leaf spring. This kit only works with vehicle equipped with traditional steel leaf springs identified by square U-bolts.













TIRE FITMENT

44-39615 6" Lift Kit - Recommended max tire with no trimming: 20x9 0 offset - 35x12.50 tire. *Max with trimming: 20x10 -18 offset - 35x12.50 or 325/60R20 *Trimming requirements for larger than recommended wheel/tire include front valance, front felt liner edge, rear felt liner edge and front rear well edge mud flap.





Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

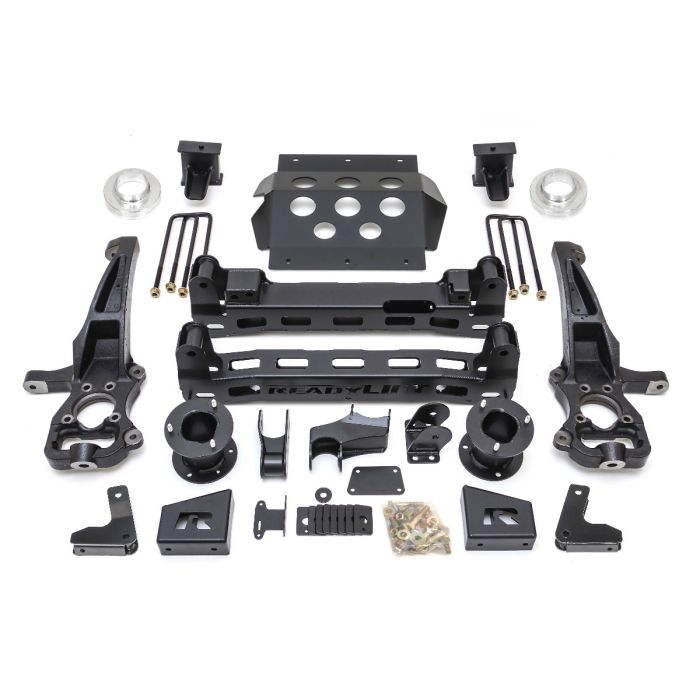

KIT COMPONENTS

Heavy-duty front-rear cross members and skid plate

Heavy-duty top mount strut extensions and rear shock extensions

Sway bar drop brackets

Heavy-duty fab steel rear lift blocks with bump stop landings.

Heavy-duty cast iron lift knuckles engineered to retain factory quality geometry.

All necessary hardware and instructions.




INSTALLATION


SAEJ2492 Warning: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than that of factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or roll-over during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner‚¬„s manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.


DO IT YOURSELF!

Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation.

Download Pdf Instructions
Estimated Installation Time: 10 Hours +/- 1 hour (excluding alignment and wheel/tire assembly)




ADDITIONAL INFORMATION

 California Residents: Prop 65 WARNING








View full details
