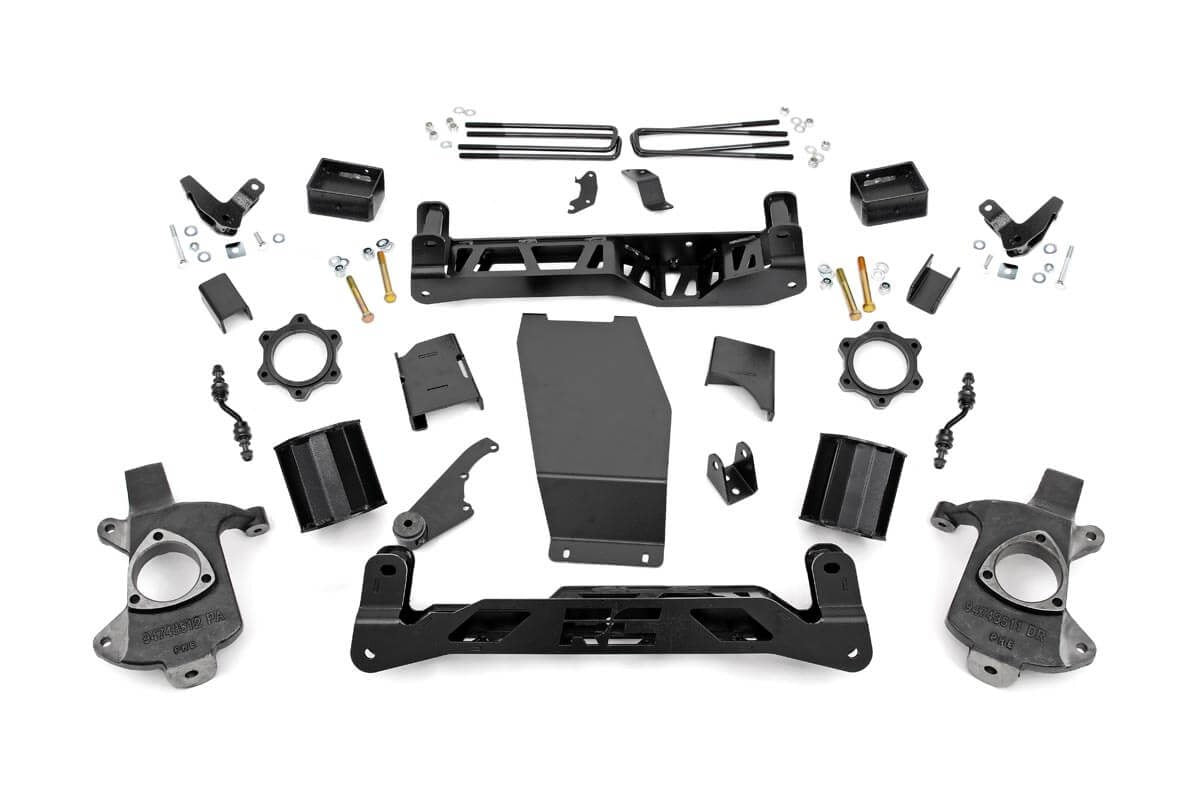

5" LIFT KIT GMC SIERRA 1500 DENALI 4WD (14-18)
5" LIFT KIT GMC SIERRA 1500 DENALI 4WD (14-18)
Regular price
$929.95 USD
Regular price
Sale price
$929.95 USD
Unit price
/
per
SKU:18300
Share
OVERVIEW
Get the look you really want with Rough Country's 5-inch Suspension Kit for GMC Sierra Denali 1500 Pickups equipped with Magnetic Ride Control. This massive kit affords your truck the ability to run 33-inch tires on factory wheels with our beefy lifted knuckles and is designed with 100% laser-cut materials for the best possible fit on your vehicle.
Includes a set of front and rear high-clearance crossmembers featuring the "RC" logo and a differential skid-plate. Each kit also comes with a set of durable, fabricated lift blocks that are stronger and offer a longer lifespan than cast blocks.
Give your pickup an aggressive, lifted and level stance with incredible ride quality! Our innovative Lifted Knuckle design boosts ride height while keeping all components at the optimum angles for a factory-like ride. Includes Rough Country's Lifetime Replacement Warranty.
Includes a set of front and rear high-clearance crossmembers featuring the "RC" logo and a differential skid-plate. Each kit also comes with a set of durable, fabricated lift blocks that are stronger and offer a longer lifespan than cast blocks.
Give your pickup an aggressive, lifted and level stance with incredible ride quality! Our innovative Lifted Knuckle design boosts ride height while keeping all components at the optimum angles for a factory-like ride. Includes Rough Country's Lifetime Replacement Warranty.
FEATURES
- Can run 33-inch tires on factory 20-inch wheels.
- Provides highly sought level stance.
- High clearance crossmember design gives unmatched ground clearance.
- 100% precision laser cut materials using the latest computer aided design process.
- Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
NOTES - IMPORTANT
- Requires cutting and drilling.
- ONLY fit GMC Denali models with Magnetic Ride Control.
- Must know if Stock Upper Control Arms are Cast Aluminum, Cast Steel or Stamped Steel.
- If wider than 33x12.50 tires are used, offset wheels will be required and trimming may be required.
- 18-inch or larger wheels are required.
- Please view installation instructions for complete information on proper tire/wheel combinations.
- If truck is equipped with a mass damper on the front differential, the damper must be removed.

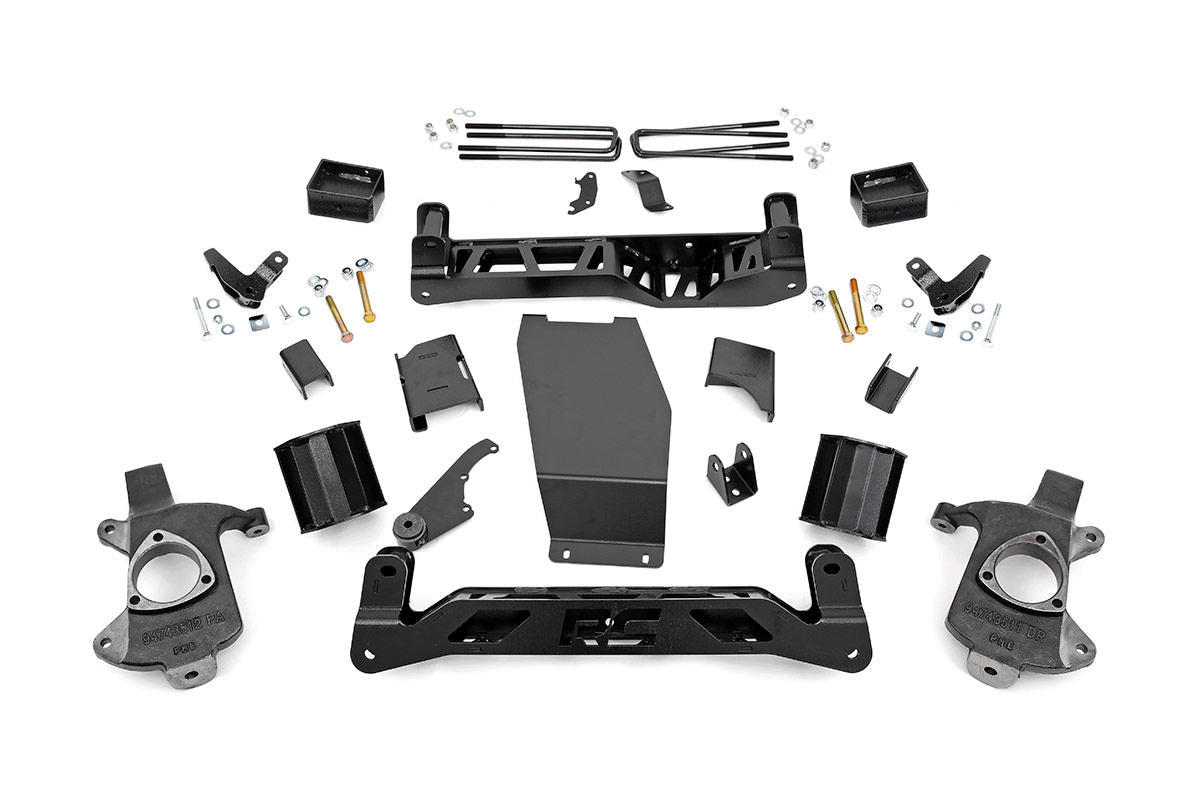

IN THE BOX
FRONT
- Lifted knuckles
- Front crossmember
- Rear crossmember
- Upper strut spacers
- CV spacers
- Differential drop brackets
- Differential skid plate
- Sway-bar drop brackets
- Hardware
REAR
- Fabricated lift blocks
- Brake line brackets
- U-bolts
- Hardware
VEHICLE FITMENT
YEARS DRIVE MAKE MODEL
2014-2018 4WD GMC Sierra 1500
ALWAYS read all product page details for more important fitment information
2014-2018 4WD GMC Sierra 1500
ALWAYS read all product page details for more important fitment information
RECOMMENDED TIRES & WHEELS
TIRE WHEEL BOLT PATTERN OFFSET NOTE
295/70R17 Factory 17 6x5.5 - -
295/55R20 Factory 20 6x5.5 - 0.25 Spacer
285/65R18 Factory 18 6x5.5 - -
305/70R17 17x8.5 6x5.5 +0 -
295/70R17 17x8.5 6x5.5 +0 -
285/70R17 17x8.5 6x5.5 +0 -
305/70R17 17x8.5 6x5.5 +1 -
295/70R17 17x8.5 6x5.5 +1 -
285/70R17 17x8.5 6x5.5 +1 -
305/70R17 17x9 6x5.5 +18 -
295/70R17 17x9 6x5.5 +18 -
285/70R17 17x9 6x5.5 +18 -
305/70R17 17x9 6x5.5 +20 -
295/70R17 17x9 6x5.5 +20 -
285/70R17 17x9 6x5.5 +20 -
295/70R18 18x8.5 6x5.5 +0 -
295/70R18 18x8.5 6x5.5 +1 -
285/65R18 18x9 6x5.5 +18 -
285/65R18 18x9 6x5.5 +20 -
305/55R20 20x9 6x5.5 +18 -
295/60R20 20x9 6x5.5 +18 Minor Trimming
295/55R20 20x9 6x5.5 +18 -
305/55R20 20x9 6x5.5 +20 -
295/60R20 20x9 6x5.5 +20 -
295/55R20 20x9 6x5.5 +20 -
305/55R20 20x10 6x5.5 -19 Minor Trimming
295/60R20 20x10 6x5.5 -19 Trimming Required
295/55R20 20x10 6x5.5 -19 -
305/55R20 20x10 6x5.5 -18 Minor Trimming
295/60R20 20x10 6x5.5 -18 Trimming Required
295/55R20 20x10 6x5.5 -18 -
305/45R22 22x10 6x5.5 -19 -
295/50R22 22x10 6x5.5 -19 Minor Trimming
305/45R22 22x10 6x5.5 -18 -
295/50R22 22x10 6x5.5 -18 Minor Trimming
295/70R17 Factory 17 6x5.5 - -
295/55R20 Factory 20 6x5.5 - 0.25 Spacer
285/65R18 Factory 18 6x5.5 - -
305/70R17 17x8.5 6x5.5 +0 -
295/70R17 17x8.5 6x5.5 +0 -
285/70R17 17x8.5 6x5.5 +0 -
305/70R17 17x8.5 6x5.5 +1 -
295/70R17 17x8.5 6x5.5 +1 -
285/70R17 17x8.5 6x5.5 +1 -
305/70R17 17x9 6x5.5 +18 -
295/70R17 17x9 6x5.5 +18 -
285/70R17 17x9 6x5.5 +18 -
305/70R17 17x9 6x5.5 +20 -
295/70R17 17x9 6x5.5 +20 -
285/70R17 17x9 6x5.5 +20 -
295/70R18 18x8.5 6x5.5 +0 -
295/70R18 18x8.5 6x5.5 +1 -
285/65R18 18x9 6x5.5 +18 -
285/65R18 18x9 6x5.5 +20 -
305/55R20 20x9 6x5.5 +18 -
295/60R20 20x9 6x5.5 +18 Minor Trimming
295/55R20 20x9 6x5.5 +18 -
305/55R20 20x9 6x5.5 +20 -
295/60R20 20x9 6x5.5 +20 -
295/55R20 20x9 6x5.5 +20 -
305/55R20 20x10 6x5.5 -19 Minor Trimming
295/60R20 20x10 6x5.5 -19 Trimming Required
295/55R20 20x10 6x5.5 -19 -
305/55R20 20x10 6x5.5 -18 Minor Trimming
295/60R20 20x10 6x5.5 -18 Trimming Required
295/55R20 20x10 6x5.5 -18 -
305/45R22 22x10 6x5.5 -19 -
295/50R22 22x10 6x5.5 -19 Minor Trimming
305/45R22 22x10 6x5.5 -18 -
295/50R22 22x10 6x5.5 -18 Minor Trimming
Due to differences in manufacturing, dimension and inflated measurements, tire and wheel combinations should be test fit prior to installation
