5 INCH LIFT KIT FORD F-150 4WD (1997-2003)
5 INCH LIFT KIT FORD F-150 4WD (1997-2003)
SKU:476.20
Share
OVERVIEW
Give your 97-03 Ford F-150 an aggressive new look and unparalleled off-road performance with Rough Country's 5-inch Suspension Lift. This all-inclusive kit features everything needed to take your Ford off the freeway and onto the trails.
Featuring a set of durable lifted knuckles, you'll gain enough ride height to run up to 35-inch tires with proper wheel spacing! A set of differential drop brackets, sway-bar links, bump stop brackets, and torsion bar drop brackets to keep everything at optimum angles for a factory-like ride, even after lifting. A 3-piece front and rear steel crossmember bring uncompromising strength and good looks to your truck. Our Fabricated Rear Blocks offer considerably more strength than their cast iron counterparts.
A set of Rough Country's premium N3 shocks are also included in this kit. These fine tuned 10-stage variable high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod and faster-cooling 54mm shock body.
Best of all, Rough Country's 97-03 Ford F-150 Lift Kit is backed by our Lifetime Replacement Warranty.
FEATURES
- Easy bolt-on installation
- Increased ground clearance
- Levels the front with the rear of the vehicle
- No drivetrain or exhaust modifications required
NOTES - IMPORTANT
- Fits 2004 "Heritage" edition models
- Does NOT fit models with 7 lug wheels (7700 series).
- Does NOT work with factory wheels.

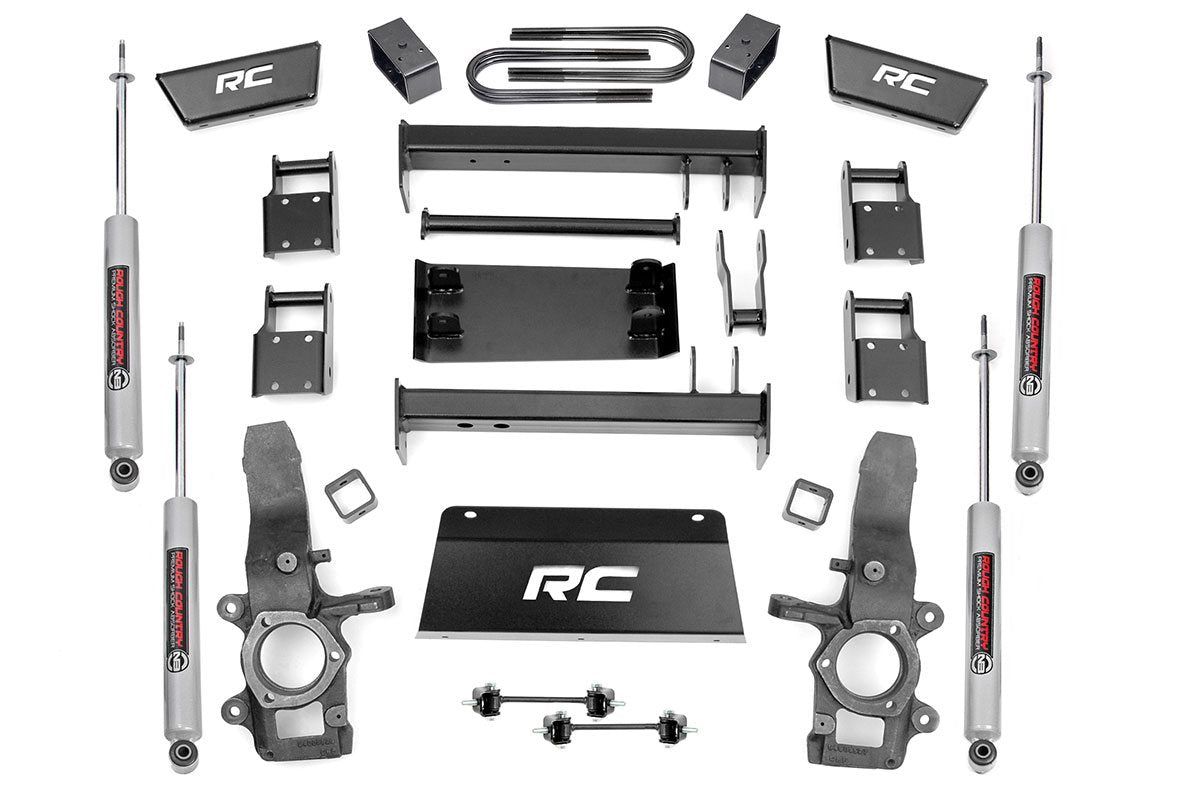

IN THE BOX
- Lifted knuckles
- Upper skid plate
- Differential skid plate
- Front 3-piece crossmember
- Rear 3-piece crossmember
- Extended sway-bar links
- Bump-stop brackets
- Torsion bar drop brackets
- Hardware
- 4in lift blocks
- U-bolts
- Hardware
- (4) Premium N3 series
INSTRUCTIONS
- Est. Install Time: 6 - 8 hours
- View Instruction Sheet
VEHICLE FITMENT
1997-2003 4WD Ford F-150
ALWAYS read all product page details for more important fitment information
RECOMMENDED TIRES & WHEELS
TIRE WHEEL BOLT PATTERN OFFSET NOTE
35x12.50R17 17x8.5 5x135 +0 -
35x12.50R17 17x8.5 5x135 +1 -
35x12.50R17 17x9 5x135 -12 -
35x12.50R17 17x9 5x135 +0 -
35x12.50R17 17x9 5x135 +1 -
35x12.50R18 18x8.5 5x135 +0 -
35x12.50R18 18x8.5 5x135 +1 -
35x12.50R18 18x9 5x135 -12 -
35x12.50R18 18x9 5x135 +0 -
35x12.50R18 18x9 5x135 +1 -
35x12.50R20 20x9 5x135 -12 -
35x12.50R20 20x9 5x135 +0 -
35x12.50R20 20x9 5x135 +1 -
35x12.50R20 20x10 5x135 -19 -
35x12.50R20 20x10 5x135 -18 -
35x12.50R22 22x10 5x135 -19 Minor Trimming
35x12.50R22 22x10 5x135 -18 Minor Trimming
Due to differences in manufacturing, dimension and inflated measurements, tire and wheel combinations should be test fit prior to installation
