5 INCH LIFT KIT CHEVY/GMC SUV 1500 2WD/4WD (2007-2014)
5 INCH LIFT KIT CHEVY/GMC SUV 1500 2WD/4WD (2007-2014)
Regular price
$1,149.95 USD
Regular price
Sale price
$1,149.95 USD
Unit price
/
per
SKU:28100
Couldn't load pickup availability
Share
OVERVIEW
This all-inclusive kit ships with everything you need to get going and hit the mudholes. Featuring a set of beefy lifted knuckles and 1/4in thick steel front and rear high-clearance crossmembers, this kit offers plenty of muscle to handle hazards both on and off-road.
A set of Lifted Coil Springs and Upper Strut Spacers provide plenty of ride height - enough to run up to a 33in tire on our 5in option, or a 35in tire on our 7.5in option. Both kits feature sway-bar links, shock extensions, brakeline brackets, a rough and tumble lower skid plate, and Grade 8 Hardware.
Included sway-bar drop brackets and differential drop brackets help keep vehicle components properly aligned after lifting, providing a factory-like ride while boasting an aggressive stance.
A set of Lifted Coil Springs and Upper Strut Spacers provide plenty of ride height - enough to run up to a 33in tire on our 5in option, or a 35in tire on our 7.5in option. Both kits feature sway-bar links, shock extensions, brakeline brackets, a rough and tumble lower skid plate, and Grade 8 Hardware.
Included sway-bar drop brackets and differential drop brackets help keep vehicle components properly aligned after lifting, providing a factory-like ride while boasting an aggressive stance.
FEATURES
- Unmatched ground clearance from high clearance crossmember design.
- 100% precision laser cut materials used in latest computer aided design process.
- No strut disassembly or strut compressor required for installation.
- Requires no modification to the stock differential mounts, drivetrain or exhaust.
- Provides highly sought level stance when complete.
NOTES - IMPORTANT
- Does NOT fit Auto Ride or Auto Leveling models.
- Does NOT fit models with electric steering.
- Does NOT fit AWD models.
- Minor cutting and drilling is required.
- 18in or larger wheels are required.
- Please view instructions for complete information on proper tire/wheel combinations.

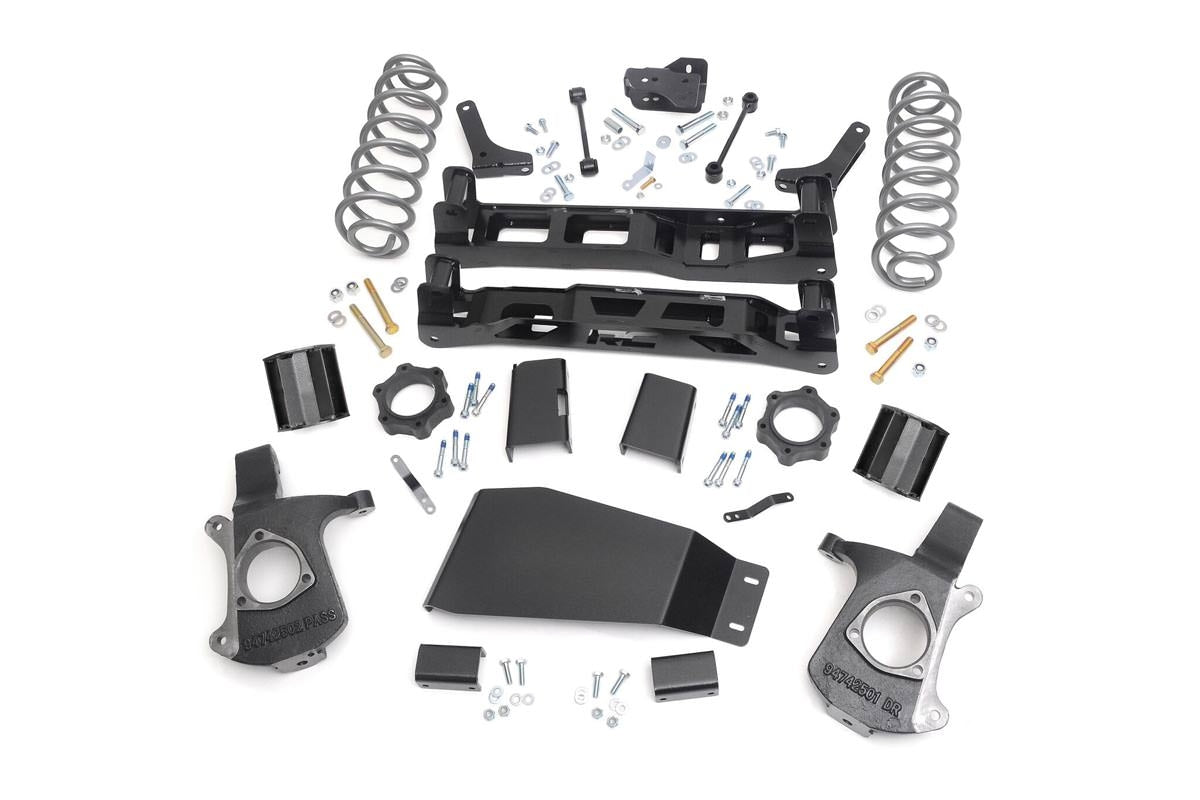

IN THE BOX
FRONT
- Lifted knuckles
- Front crossmember
- Rear crossmember
- Upper strut spacers (SKU: 281)
- Differential drop brackets
- CV spacers
- Sway-bar brackets
- Lower skid plate
- Brake line brackets
- Hardware
REAR
- Coil springs
- Sway-bar links
- Track bar bracket
- Shock extensions
- Hardware
SHOCKS

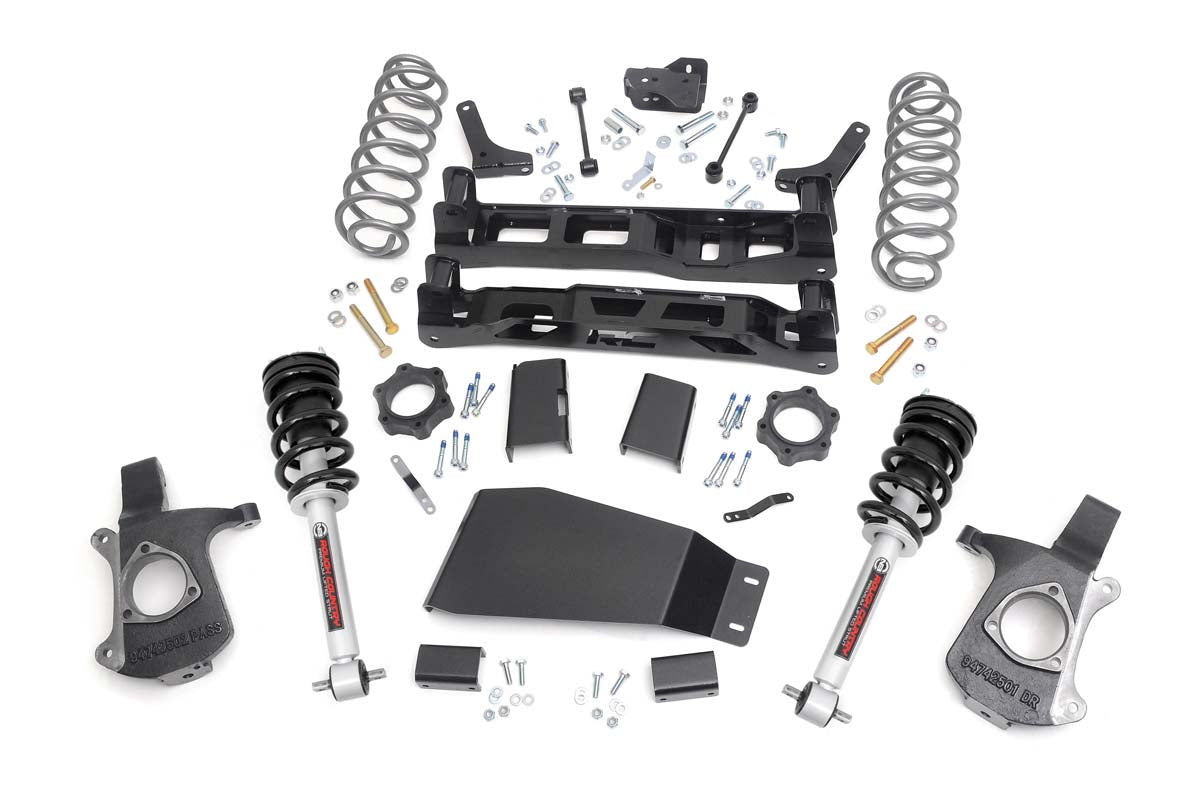

- Optional: (2) Premium N2.0 Series Lifted Struts (Front)
VEHICLE FITMENT
YEARS DRIVE MAKE MODEL
2007-2014 4WD GMC Yukon
2007-2014 2WD Chevy Tahoe
2007-2014 2WD GMC Yukon
2007-2014 4WD GMC Yukon XL 1500
2007-2014 4WD Chevy Tahoe
2007-2014 2WD Chevy Suburban 1500
2007-2014 2WD GMC Yukon XL 1500
2007-2014 4WD Chevy Suburban 1500
ALWAYS read all product page details for more important fitment information
2007-2014 4WD GMC Yukon
2007-2014 2WD Chevy Tahoe
2007-2014 2WD GMC Yukon
2007-2014 4WD GMC Yukon XL 1500
2007-2014 4WD Chevy Tahoe
2007-2014 2WD Chevy Suburban 1500
2007-2014 2WD GMC Yukon XL 1500
2007-2014 4WD Chevy Suburban 1500
ALWAYS read all product page details for more important fitment information
RECOMMENDED TIRES & WHEELS
TIRE WHEEL BOLT PATTERN OFFSET NOTE
295/55R20 Factory 20 6x5.5 - 0.25 Spacer
285/65R18 Factory 18 6x5.5 - -
33x12.50R18 18x8.5 6x5.5 +0 -
295/70R18 18x8.5 6x5.5 +0 -
33x12.50R18 18x8.5 6x5.5 +1 -
295/70R18 18x8.5 6x5.5 +1 -
33x12.50R18 18x9 6x5.5 +0 -
285/65R18 18x9 6x5.5 +0 -
33x12.50R18 18x9 6x5.5 +1 -
285/65R18 18x9 6x5.5 +1 -
33x12.50R18 18x9 6x5.5 +18 Minor Trimming
285/65R18 18x9 6x5.5 +18 -
33x12.50R18 18x9 6x5.5 +20 Minor Trimming
285/65R18 18x9 6x5.5 +20 -
33x12.50R20 20x9 6x5.5 +0 -
305/55R20 20x9 6x5.5 +0 -
295/60R20 20x9 6x5.5 +0 Minor Trimming
295/55R20 20x9 6x5.5 +0 -
33x12.50R20 20x9 6x5.5 +1 -
305/55R20 20x9 6x5.5 +1 -
295/60R20 20x9 6x5.5 +1 Minor Trimming
295/55R20 20x9 6x5.5 +1 -
33x12.50R20 20x9 6x5.5 +18 Minor Trimming
305/55R20 20x9 6x5.5 +18 -
295/60R20 20x9 6x5.5 +18 Minor Trimming
295/55R20 20x9 6x5.5 +18 -
33x12.50R20 20x9 6x5.5 +20 Minor Trimming
305/55R20 20x9 6x5.5 +20 -
295/60R20 20x9 6x5.5 +20 Minor Trimming
295/55R20 20x9 6x5.5 +20 -
33x12.50R20 20x10 6x5.5 -19 Minor Trimming
305/55R20 20x10 6x5.5 -19 Minor Trimming
295/60R20 20x10 6x5.5 -19 Trimming Required
295/55R20 20x10 6x5.5 -19 -
33x12.50R20 20x10 6x5.5 -18 Minor Trimming
305/55R20 20x10 6x5.5 -18 Minor Trimming
295/60R20 20x10 6x5.5 -18 Trimming Required
295/55R20 20x10 6x5.5 -18 -
33x12.50R22 22x10 6x5.5 -19 Minor Trimming
305/45R22 22x10 6x5.5 -19 -
33x12.50R22 22x10 6x5.5 -18 Minor Trimming
305/45R22 22x10 6x5.5 -18 -
295/55R20 Factory 20 6x5.5 - 0.25 Spacer
285/65R18 Factory 18 6x5.5 - -
33x12.50R18 18x8.5 6x5.5 +0 -
295/70R18 18x8.5 6x5.5 +0 -
33x12.50R18 18x8.5 6x5.5 +1 -
295/70R18 18x8.5 6x5.5 +1 -
33x12.50R18 18x9 6x5.5 +0 -
285/65R18 18x9 6x5.5 +0 -
33x12.50R18 18x9 6x5.5 +1 -
285/65R18 18x9 6x5.5 +1 -
33x12.50R18 18x9 6x5.5 +18 Minor Trimming
285/65R18 18x9 6x5.5 +18 -
33x12.50R18 18x9 6x5.5 +20 Minor Trimming
285/65R18 18x9 6x5.5 +20 -
33x12.50R20 20x9 6x5.5 +0 -
305/55R20 20x9 6x5.5 +0 -
295/60R20 20x9 6x5.5 +0 Minor Trimming
295/55R20 20x9 6x5.5 +0 -
33x12.50R20 20x9 6x5.5 +1 -
305/55R20 20x9 6x5.5 +1 -
295/60R20 20x9 6x5.5 +1 Minor Trimming
295/55R20 20x9 6x5.5 +1 -
33x12.50R20 20x9 6x5.5 +18 Minor Trimming
305/55R20 20x9 6x5.5 +18 -
295/60R20 20x9 6x5.5 +18 Minor Trimming
295/55R20 20x9 6x5.5 +18 -
33x12.50R20 20x9 6x5.5 +20 Minor Trimming
305/55R20 20x9 6x5.5 +20 -
295/60R20 20x9 6x5.5 +20 Minor Trimming
295/55R20 20x9 6x5.5 +20 -
33x12.50R20 20x10 6x5.5 -19 Minor Trimming
305/55R20 20x10 6x5.5 -19 Minor Trimming
295/60R20 20x10 6x5.5 -19 Trimming Required
295/55R20 20x10 6x5.5 -19 -
33x12.50R20 20x10 6x5.5 -18 Minor Trimming
305/55R20 20x10 6x5.5 -18 Minor Trimming
295/60R20 20x10 6x5.5 -18 Trimming Required
295/55R20 20x10 6x5.5 -18 -
33x12.50R22 22x10 6x5.5 -19 Minor Trimming
305/45R22 22x10 6x5.5 -19 -
33x12.50R22 22x10 6x5.5 -18 Minor Trimming
305/45R22 22x10 6x5.5 -18 -
Due to differences in manufacturing, dimension and inflated measurements, tire and wheel combinations should be test fit prior to installation
