5 INCH LIFT KIT CHEVY AVALANCHE 1500 2WD/4WD (2007-2013)
5 INCH LIFT KIT CHEVY AVALANCHE 1500 2WD/4WD (2007-2013)
SKU:20800
Share
OVERVIEW
Enhance Appearance and Performance. If you're looking to add some height and attitude to your Avalanche 1500, Rough Country's 5-Inch Lift Kit is the perfect solution. This lift kit improves clearance, handling, and off-road performance while giving your Avalanche 1500 a bolder look. A high clearance crossmember design means you can fit larger tires on your Avalanche and get that level stance you've been looking for without sacrificing ride quality and driving performance.
Ultimate Performance Upgrade. With 100% precision laser cut materials using the latest computer-aided design process, this kit is engineered at every angle to ensure factory geometry is maintained at all times, so you get the best performance possible from your suspension after lifting. Our 5-Inch kit includes everything you need to get the job done right, including rear differential drop brackets, sway bar links, and track bar brackets to maintain optimum angles after lifting. We also include a durable lower skid plate to keep crucial components protected.
Installation and Warranty. With no modifications to the stock differential mounts, drivetrain, or exhaust, this kit is perfect for those looking for an affordable lift that won't compromise the ride quality of your Chevy. Minor cutting and drilling are required, but you will not have to disassemble your struts. All necessary components and instructions are included for a simple installation that can be completed in 8-10 hours. You will also get our limited lifetime replacement warranty. As such, Rough Country products are protected from structural and workmanship damage after the date of purchase. Our industry-leading warranty gives you peace of mind when using Rough Country products!
FEATURES
- Provides highly sought level stance.
- High clearance crossmember design gives unmatched ground clearance.
- Requires no modification to the stock differential mounts, drivetrain or exhaust.
- 100% precision laser cut materials using the latest computer aided design process.
- No need to disassemble your struts to install (SKU: 208)
NOTES - IMPORTANT
- Does NOT fit Auto Ride or Auto Leveling models.
- Does NOT fit models with electric steering.
- Does NOT fit AWD models.
- Minor cutting and drilling is required.
- 18" or larger wheels are required.
- Please view installation instructions for complete information on proper tire/wheel combinations.

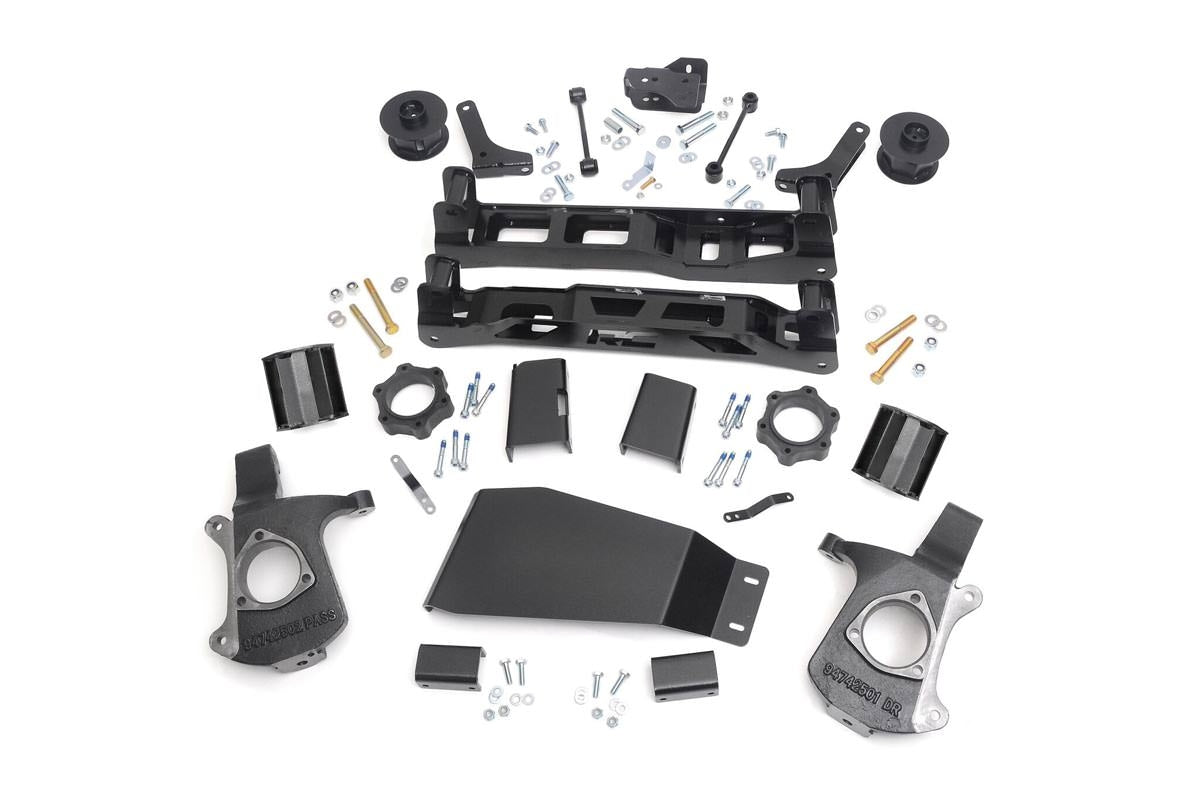

IN THE BOX
- Lifted knuckles
- Front crossmember
- Rear crossmember
- Upper strut spacers (SKU: 208)
- Differential drop brackets
- CV spacers
- Lower skid plate
- Sway-bar drop brackets
- Brake line brackets
- Hardware
- Coil spring spacers
- Sway-bar links
- Track bar bracket
- Shock extensions
- Hardware

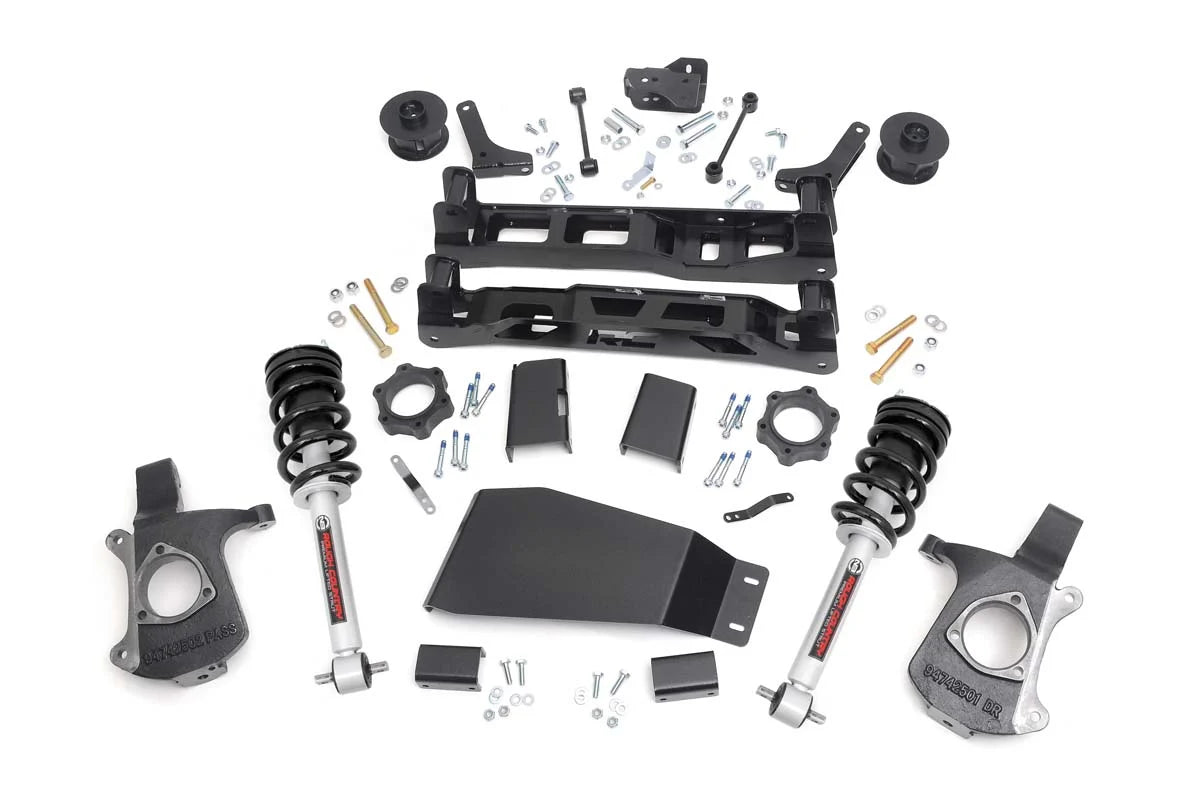

- Optional: (2) Premium N2.0 Series Lifted Struts [+$200] (SKU: 208.23)
INSTRUCTIONS
- Est. Install Time: 8-10 hours
- View Instruction Sheet
VEHICLE FITMENT
YEARS DRIVE MAKE MODEL2007-2013 2WD Chevy Avalanche
2007-2013 4WD Chevy Avalanche
RECOMMENDED TIRES & WHEELS
285/65R18 Factory 18 6x5.5 - -
295/70R18 18x8.5 6x5.5 +0 -
295/70R18 18x8.5 6x5.5 +1 -
285/65R18 18x9 6x5.5 +18 -
285/65R18 18x9 6x5.5 +20 -
305/55R20 20x9 6x5.5 +18 -
295/60R20 20x9 6x5.5 +18 -
295/55R20 20x9 6x5.5 +18 -
305/55R20 20x9 6x5.5 +20 -
295/60R20 20x9 6x5.5 +20 -
295/55R20 20x9 6x5.5 +20 -
305/55R20 20x10 6x5.5 -19 Minor Trimming
295/60R20 20x10 6x5.5 -19 Trimming Required
295/55R20 20x10 6x5.5 -19 -
305/55R20 20x10 6x5.5 -18 Minor Trimming
295/60R20 20x10 6x5.5 -18 Trimming Required
295/55R20 20x10 6x5.5 -18 -
305/45R22 22x10 6x5.5 -19 -
295/50R22 22x10 6x5.5 -19 Trimming Required
305/45R22 22x10 6x5.5 -18 -
295/50R22 22x10 6x5.5 -18 Trimming Required
