Rough Country
4 INCH LIFT KIT FORD F-150 4WD (2004-2008)
4 INCH LIFT KIT FORD F-150 4WD (2004-2008)
SKU:54720
Couldn't load pickup availability
Share
OVERVIEW
Give your 04-08 Ford F-150 an aggressive new look and unparalleled off-road performance with Rough Country's 4-inch Suspension Lift. This all-inclusive kit features everything needed to take your Ford off the freeway and onto the trails.
Featuring a set of durable lifted knuckles and strut spacers, you'll gain enough ride height to run up to 35-inch tires with proper wheel backspacing! A set of differential drop brackets, sway-bar drop brackets, brake line brackets, and a drive shaft spacer help keep everything at optimum angles for a factory-like ride, even after lifting. A 1/4-inch thick plate steel front and rear crossmember bring uncompromising strength and good looks to your truck.
A set of Rough Country's premium N3 shocks are also included in this kit. These fine tuned 10-stage variable high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod and faster-cooling 54mm shock body.
Best of all, Rough Country's 04-08 Ford F-150 Lift Kit is backed by our Lifetime Replacement Warranty.
FEATURES
- Track width remains the same as factory
- Increased ground clearance
- Maintains factory steering geometry
- Levels the front with the rear of the vehicle
- Includes durable differential skid plate for off-road protection
NOTES - IMPORTANT
- Requies minor cutting and drilling.
- 9" wide wheel is recommended.
- Does NOT fit 7-lug models.

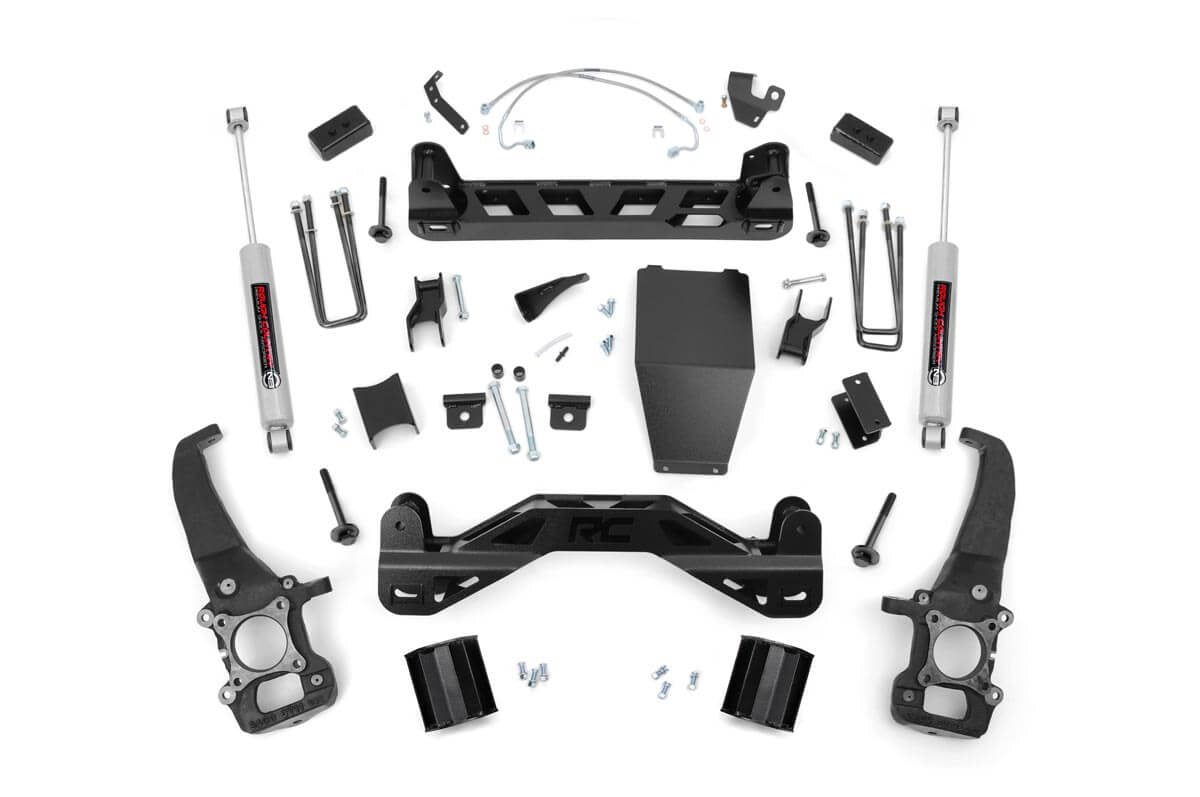

IN THE BOX
- Lifted knuckles
- Strut spacers
- Front crossmember
- Rear crossmember
- Differential skid plate
- Rack & pinion drop brackets
- Differential drop brackets
- Stainless steel braided brake lines
- Hardware
- 2" lift blocks
- Brake line relocation brackets
- U-bolts
- Hardware
- (2) Rear Premium N3 series
INSTRUCTIONS
- Est. Install Time: 8 - 10 hours
- View Instruction Sheet
VEHICLE FITMENT
2004-2008 4WD Ford F-150
ALWAYS read all product page details for more important fitment information
RECOMMENDED TIRES & WHEELS
TIRE WHEEL BOLT PATTERN OFFSET NOTE
33x12.50R18 18x8.5 6x135 +0 -
305/60R18 18x8.5 6x135 +0 -
285/65R18 18x8.5 6x135 +0 -
275/65R18 18x8.5 6x135 +0 -
33x12.50R18 18x8.5 6x135 +1 -
305/60R18 18x8.5 6x135 +1 -
285/65R18 18x8.5 6x135 +1 -
275/65R18 18x8.5 6x135 +1 -
33x12.50R18 18x9 6x135 -12 -
305/60R18 18x9 6x135 -12 -
285/65R18 18x9 6x135 -12 -
275/65R18 18x9 6x135 -12 -
33x12.50R18 18x9 6x135 +0 -
305/60R18 18x9 6x135 +0 -
285/65R18 18x9 6x135 +0 -
275/65R18 18x9 6x135 +0 -
33x12.50R18 18x9 6x135 +1 -
305/60R18 18x9 6x135 +1 -
285/65R18 18x9 6x135 +1 -
275/65R18 18x9 6x135 +1 -
33x12.50R20 20x9 6x135 -12 -
305/55R20 20x9 6x135 -12 -
285/55R20 20x9 6x135 -12 -
33x12.50R20 20x9 6x135 +0 -
305/55R20 20x9 6x135 +0 -
285/55R20 20x9 6x135 +0 -
33x12.50R20 20x9 6x135 +1 -
305/55R20 20x9 6x135 +1 -
285/55R20 20x9 6x135 +1 -
33x12.50R20 20x10 6x135 -25 Minor Trimming
305/55R20 20x10 6x135 -25 Minor Trimming
285/55R20 20x10 6x135 -25 Minor Trimming
33x12.50R20 20x10 6x135 -19 Minor Trimming
305/55R20 20x10 6x135 -19 Minor Trimming
285/55R20 20x10 6x135 -19 Minor Trimming
33x12.50R20 20x10 6x135 -18 Minor Trimming
305/55R20 20x10 6x135 -18 Minor Trimming
285/55R20 20x10 6x135 -18 Minor Trimming
33x12.50R20 20x12 6x135 -44 Trimming Required
305/55R20 20x12 6x135 -44 Trimming Required
33x12.50R22 22x10 6x135 -25 Minor Trimming
33x12.50R22 22x10 6x135 -19 Minor Trimming
305/45R22 22x10 6x135 -19 -
33x12.50R22 22x10 6x135 -18 Minor Trimming
305/45R22 22x10 6x135 -18 -
33x12.50R22 22x12 6x135 -44 Trimming Required
305/45R22 22x12 6x135 -44 -
Due to differences in manufacturing, dimension and inflated measurements, tire and wheel combinations should be test fit prior to installation
