4 INCH LIFT KIT FORD F-150 4WD (1980-1996)
4 INCH LIFT KIT FORD F-150 4WD (1980-1996)
SKU:465.20
Couldn't load pickup availability
Share
OVERVIEW
Give your Ford an aggressive look from front to rear with Rough Country’s 4" Ford Suspension Lift Kit! This easy-to-install leveling kit raises the front of your vehicle to be equal height with the rear for a leveled, flush look that gives a better ride height and more aggressive appearance.
This kit features a set of front, durable coil springs allowing you gain additional ride height without sacrificing ride quality or performance. A set of radius arm and axle drop brackets are provided to keep everything at optimum angles for a factory-like ride, even after lifting. Our fabricated rear blocks offer considerably more strength than their cast iron counterparts.
A set of Rough Country's premium N3 shocks are also included in this kit. These fine tuned 10-stage variable high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod and faster-cooling 54mm shock body.
Get the wheels you want! Rough Country's 4" Ford Suspension Lift Kit comes with everything you need to fit up to a 33" tire with proper wheel backspacing.
Best of all, Rough Country's 4" Ford Suspension Lift Kit is backed by our Lifetime Replacement Warranty.
FEATURES
- Increased ground clearance
- Levels the front with the rear of the vehicle

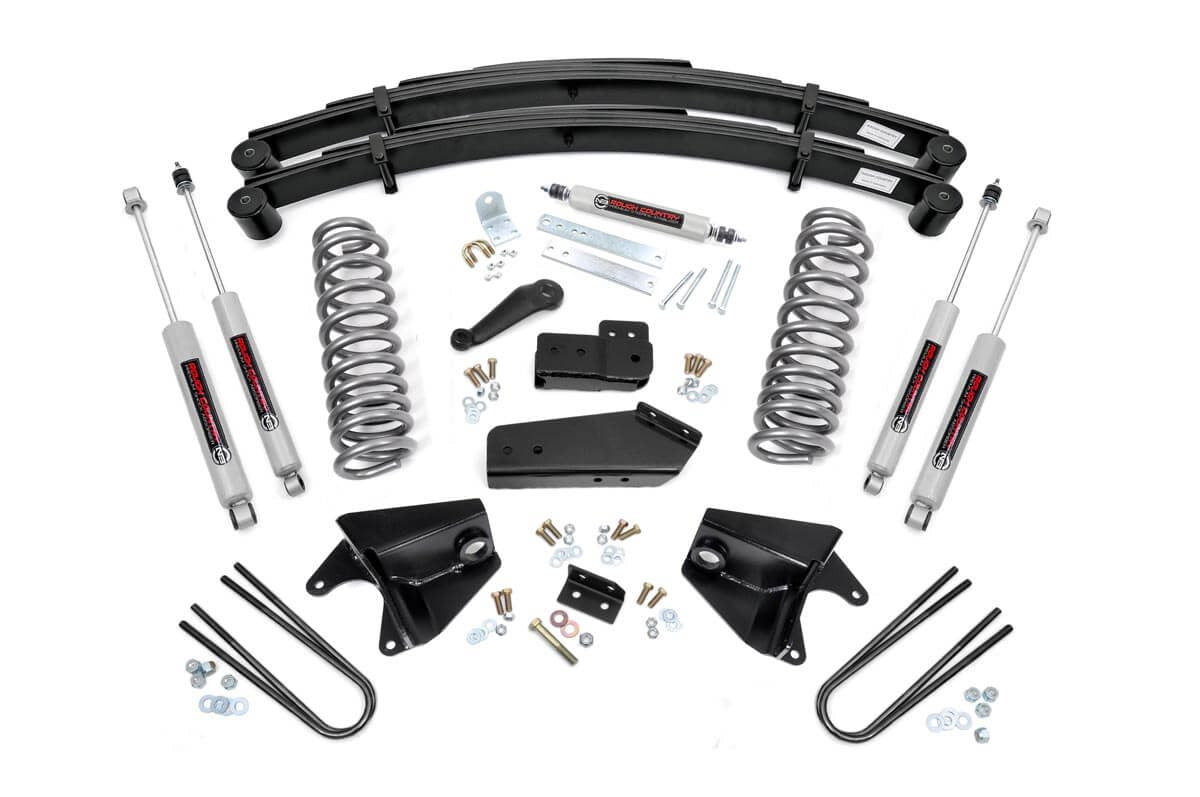

OPTIONAL LEAF SPRINGS
- Leaf springs are double tapered with teflon pad inserts for a softer ride quality.
- Maintains smooth, factory-like ride.
- 5 year warranty.
NOTES - IMPORTANT
- Extended brake lines are recommended.
- If vehicle is equipped with a front sway-bar, drop brackets are recommended. (SKU: 1018)
- Vehicles with factory quad shocks (2 front shocks per side) will simply use a single aftermarket shock.

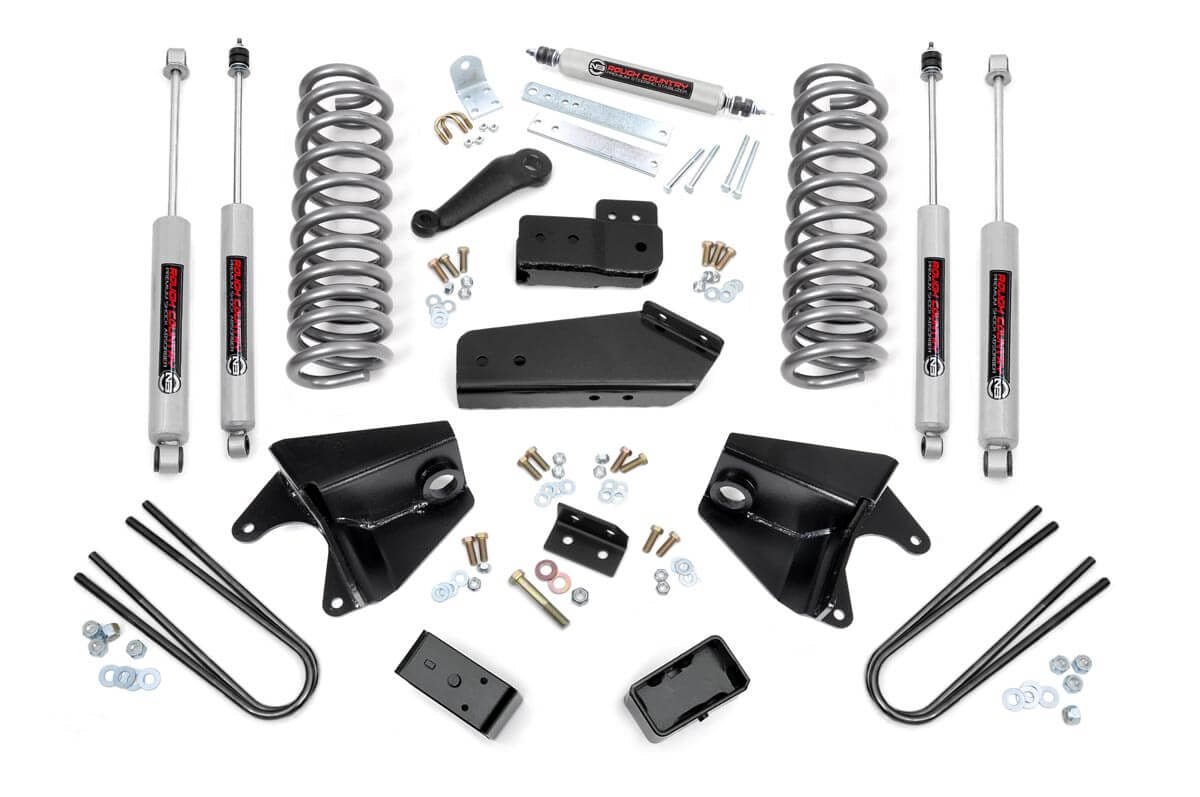

IN THE BOX
- Lifted coil springs
- Radius arm drop brackets
- I-beam drop brackets
- Power steering pitman arm
- FREE steering stabilizer
- Hardware
- 3" lift blocks
- U-bolts
- Hardware
- (4) Premium N3 Series
INSTRUCTIONS
- Est. Install Time: 6-8 hours
- View Instruction Sheet
VEHICLE FITMENT
1980-1996 4WD Ford F-150
ALWAYS read all product page details for more important fitment information
RECOMMENDED TIRES & WHEELS
TIRE WHEEL BOLT PATTERN OFFSET NOTE
33x12.50R15 15x8 5x5.5 -19 -
33x12.50R15 15x8 5x5.5 -18 -
33x12.50R16 16x8 5x5.5 -12 -
285/75R16 16x8 5x5.5 -12 -
33x12.50R16 16x8 5x5.5 -6 -
33x12.50R17 17x8.5 5x5.5 +0 -
33x12.50R17 17x8.5 5x5.5 +1 -
33x12.50R17 17x9 5x5.5 -12 -
33x12.50R17 17x9 5x5.5 +0 -
285/70R17 17x9 5x5.5 +0 -
33x12.50R17 17x9 5x5.5 +1 -
285/70R17 17x9 5x5.5 +1 -
33x12.50R18 18x8.5 5x5.5 +0 -
33x12.50R18 18x8.5 5x5.5 +1 -
33x12.50R18 18x9 5x5.5 -12 -
33x12.50R18 18x9 5x5.5 +0 -
305/60R18 18x9 5x5.5 +0 -
285/65R18 18x9 5x5.5 +0 -
275/65R18 18x9 5x5.5 +0 -
33x12.50R18 18x9 5x5.5 +1 -
305/60R18 18x9 5x5.5 +1 -
285/65R18 18x9 5x5.5 +1 -
275/65R18 18x9 5x5.5 +1 -
33x12.50R20 20x9 5x5.5 -12 -
33x12.50R20 20x9 5x5.5 +0 -
305/55R20 20x9 5x5.5 +0 -
285/55R20 20x9 5x5.5 +0 -
33x12.50R20 20x9 5x5.5 +1 -
305/55R20 20x9 5x5.5 +1 -
285/55R20 20x9 5x5.5 +1 -
285/55R20 20x10 5x5.5 -19 Minor Trimming
285/55R20 20x10 5x5.5 -18 Minor Trimming
305/45R22 22x10 5x5.5 -19 -
295/45R22 22x10 5x5.5 -19 -
285/45R22 22x10 5x5.5 -19 -
305/45R22 22x10 5x5.5 -18 -
295/45R22 22x10 5x5.5 -18 -
285/45R22 22x10 5x5.5 -18 -
Due to differences in manufacturing, dimension and inflated measurements, tire and wheel combinations should be test fit prior to installation
