Rough Country
4 INCH LIFT KIT FORD F-150 2WD (2015-2020)
4 INCH LIFT KIT FORD F-150 2WD (2015-2020)
SKU:55130
Couldn't load pickup availability
Share
OVERVIEW
Featuring a set of durable lifted knuckles and strut spacers, you'll gain enough ride height to run up to 33-inch tires with proper wheel spacing! A set of sway-bar drop brackets, brake line brackets, and a drive shaft spacer help keep everything at optimum angles for a factory-like ride, even after lifting. A 1/4-inch thick plate steel front and rear crossmember bring uncompromised strength and good looks to your truck, and are updated to fit the new F-150 design.
A set of Rough Country's premium shock absorbers - N3 - are also included in this kit, featuring a large diameter body with a chrome-hardened piston rod and long-lasting polyurethane bushings.
Best of all, Rough Country's 2015 Ford F-150 Lift Kit is backed by our Lifetime Replacement Warranty.
FEATURES
- Increased ground clearance
- Track width remains the same as factory
- Works with 18in or larger factory wheels*
- Levels the front with the rear of the vehicle
NOTES - IMPORTANT
- Requires cutting and drilling.
- *When using 18in or larger factory wheels the maximum tire width is 11.5-inches.

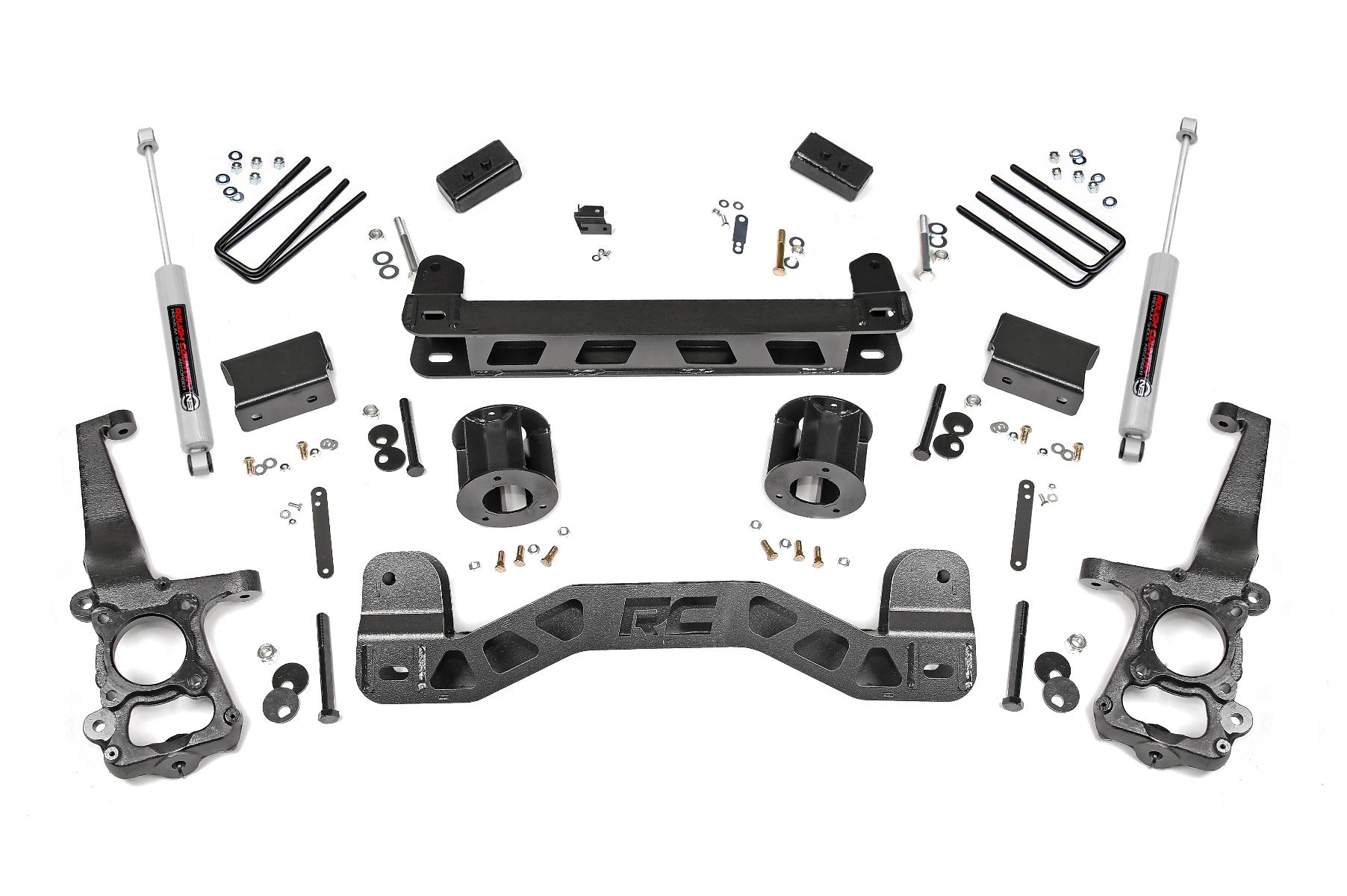

IN THE BOX
- Lifted knuckles
- Strut spacers
- Front crossmember
- Rear crossmember
- Sway-bar drop brackets
- Brake line brackets
- Driveshaft spacer
- Hardware
- Lift blocks
- Brake line relocation brackets
- U-bolts
- Hardware
- (2) Rear Premium N3 series
INSTRUCTIONS
- Est. Install Time: 8 - 10 hours
- View Instruction Sheet
VEHICLE FITMENT
2015-2020 2WD Ford F-150
ALWAYS read all product page details for more important fitment information
RECOMMENDED TIRES & WHEELS
TIRE WHEEL BOLT PATTERN OFFSET NOTE
33x12.50R18 18x8.5 6x135 +0 -
33x12.50R18 18x8.5 6x135 +1 -
33x12.50R18 18x9 6x135 -12 -
285/65R18 18x9 6x135 -12 -
33x12.50R18 18x9 6x135 +0 -
33x12.50R18 18x9 6x135 +1 -
285/65R18 18x9 6x135 +1 -
33x12.50R18 18x10 6x135 -25 -
33x12.50R18 18x10 6x135 -24 -
33x12.50R18 18x10 6x135 -19 -
33x12.50R18 18x10 6x135 -18 -
33x12.50R20 20x9 6x135 -12 -
305/55R20 20x9 6x135 -12 -
285/55R20 20x9 6x135 -12 -
33x12.50R20 20x9 6x135 +0 -
305/55R20 20x9 6x135 +0 -
285/55R20 20x9 6x135 +0 -
33x12.50R20 20x9 6x135 +1 -
305/55R20 20x9 6x135 +1 -
285/55R20 20x9 6x135 +1 -
305/55R20 20x10 6x135 -44 Trimming Required
33x12.50R20 20x10 6x135 -25 -
305/55R20 20x10 6x135 -25 -
285/55R20 20x10 6x135 -25 -
33x12.50R20 20x10 6x135 -24 -
305/55R20 20x10 6x135 -24 -
285/55R20 20x10 6x135 -24 -
33x12.50R20 20x10 6x135 -19 -
305/55R20 20x10 6x135 -19 -
285/55R20 20x10 6x135 -19 -
33x12.50R20 20x10 6x135 -18 -
305/55R20 20x10 6x135 -18 -
285/55R20 20x10 6x135 -18 -
33x12.50R20 20x12 6x135 -44 Trimming Required
305/55R20 20x12 6x135 -44 -
33x12.50R22 22x10 6x135 -25 -
33x12.50R22 22x10 6x135 -24 -
33x12.50R22 22x10 6x135 -19 -
33x12.50R22 22x10 6x135 -18 -
33x12.50R22 22x12 6x135 -44 Trimming Required
