4 INCH LIFT KIT CHEVY/GMC CANYON/COLORADO (15-22)

$1,239.95 USD

Sale Sold out

Quantity

SKU:22131

OVERVIEW

FEATURES

Increased ground clearance
Maintains factory track width.
Maintains factory-like ride.
No welding or strut disassembly required to install.
No tie-rod cutting or replacing required.
Front skid plate features a laser cut "RC" logo.
Lifted knuckles are designed to keep as close to OE geometry as possible.
Rear lift blocks are fabricated - stronger and offer a longer lifespan than cast blocks.

NOTES - IMPORTANT

Fits both Gas and Diesel models.
Does NOT fit ZR2 models
Does NOT fit models equipped with Multimatic DSSV suspension. (AT4X)
Requires minor cutting and drilling.
Requires aftermarket 18" wheels - Factory wheels will NOT work.
Highly recommended that aftermarket wheels, and / or wheel spacers, be hub-centric.

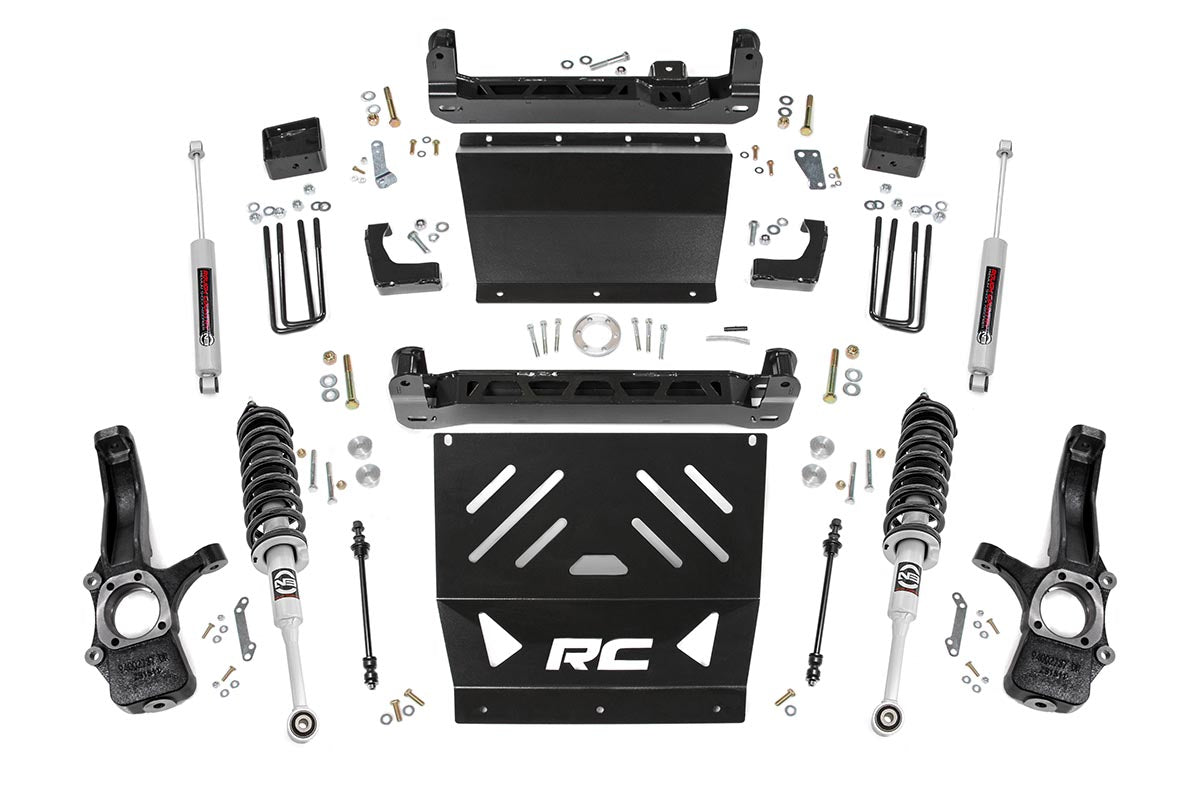

IN THE BOX

FRONT

Lifted knuckles
N3 Loaded Struts
Front crossmember
Rear crossmember
Differential drop brackets
Sway-bar links
Brake line brackets
Front skid plate
Lower skid plate
Hardware

REAR

2.5in fabricated lift blocks
Brake line relocation brackets
U-bolts
Hardware

SHOCKS

(2) Premium N3 series [rear]

INSTRUCTIONS

Est. Install Time: 8-10 hours
View Instruction Sheet

VEHICLE FITMENT

YEARS DRIVE MAKE MODEL
2015-2022 2WD Chevy Colorado
2015-2022 2WD GMC Canyon
2015-2022 4WD Chevy Colorado
2015-2022 4WD GMC Canyon
ALWAYS read all product page details for more important fitment information

RECOMMENDED TIRES & WHEELS

TIRE WHEEL BOLT PATTERN OFFSET NOTE
285/65R18 18x8.5 6x120 +0 -
285/65R18 18x8.5 6x120 +1 -
285/65R18 18x9 6x120 +0 -
285/65R18 18x9 6x120 +1 -
285/55R20 20x9 6x120 +0 -
285/55R20 20x9 6x120 +1 -
Due to differences in manufacturing, dimension and inflated measurements, tire and wheel combinations should be test fit prior to installation
