Rough Country

4.75 INCH LIFT KIT COMBO | CHEVY/GMC 1500 2WD (07-13)

$599.95 USD

Sale Sold out

Quantity

SKU:254.20

OVERVIEW

This 4.75" combo kit features our Nitrogen charged N3 Shocks offer the best in balanced performance for on and off-road use, featuring a 10-stage velocity sensitive valving custom tuned for this specific application. That means these shocks are specifically valved for use with this specific vehicle and lift combo, giving you unparalleled performance for any driving situation.

This kit also features upgraded POM ball joints that offer a greater range of motion for more wheel articulation than standard or OE replacements and feature a Polyoxymethylene ball race with an extremely low coefficient of friction for longer life, and a larger ball diameter to improve range of motion with a maintenance free design. A sealed boot design with grease-relief valve keeps contaminants out while providing a sealed, serviceable environment.

Also included in this kit are a set of fabricated rear blocks. Fabricated blocks are stronger and offer a longer lifespan than cast blocks while being less susceptible to damage and the environment.

FEATURES

Easy bolt-on installation
Maintains factory ride quality
Increased ground clearance
Able to be returned to stock
Levels the front with the rear of the vehicle
No need to disassemble your struts to install
Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
Body lift provides 1.25" of lift as opposed to the standard 1".
Body lift includes front bumper brackets.

NOTES - IMPORTANT

Requires minor cutting and drilling.
Does NOT fit 2007 "Classic" models.
Does NOT fit models with electric steering.
Retain your factory wheels with our 0.25" wheel spacers (#1065).

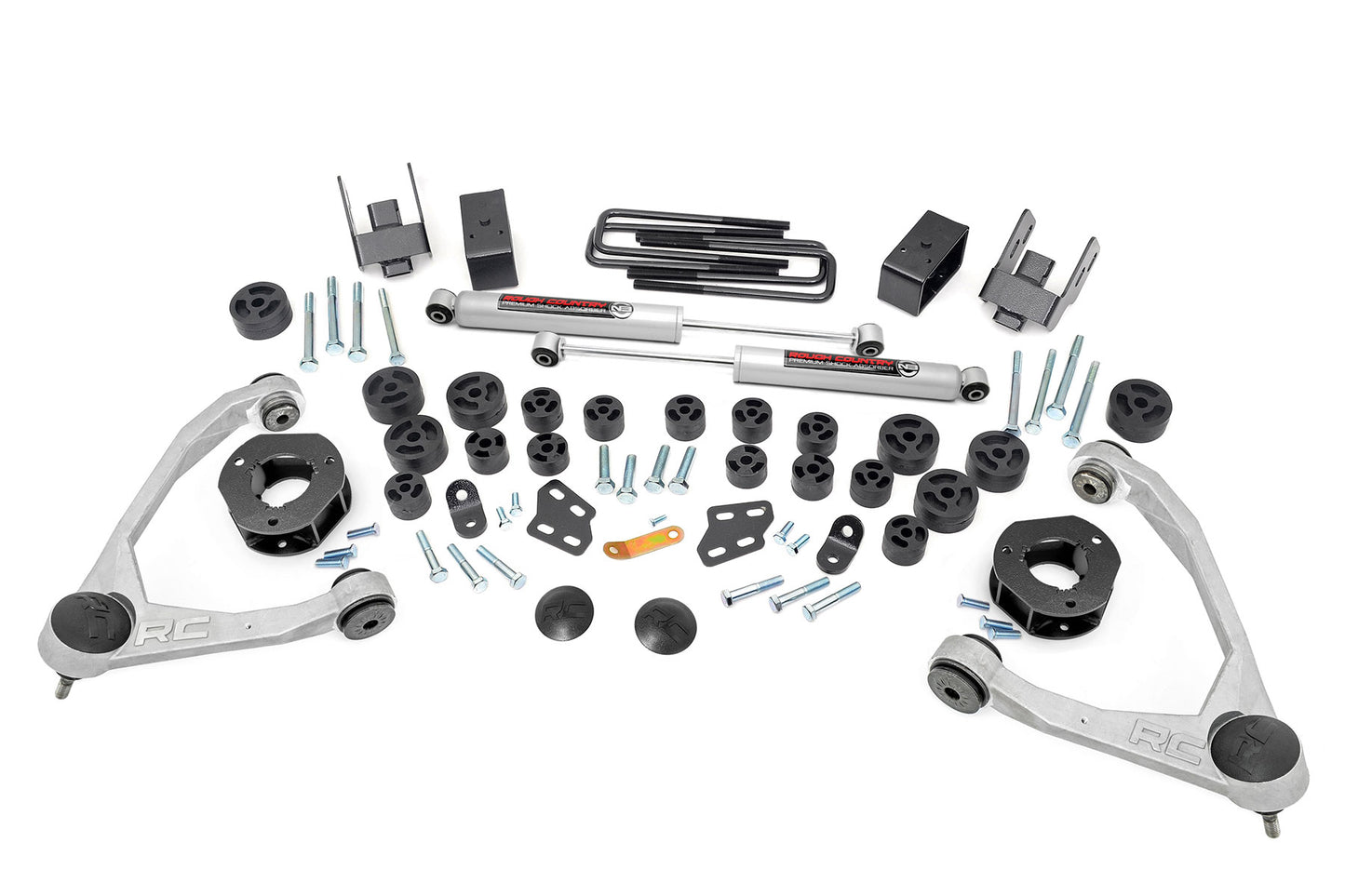

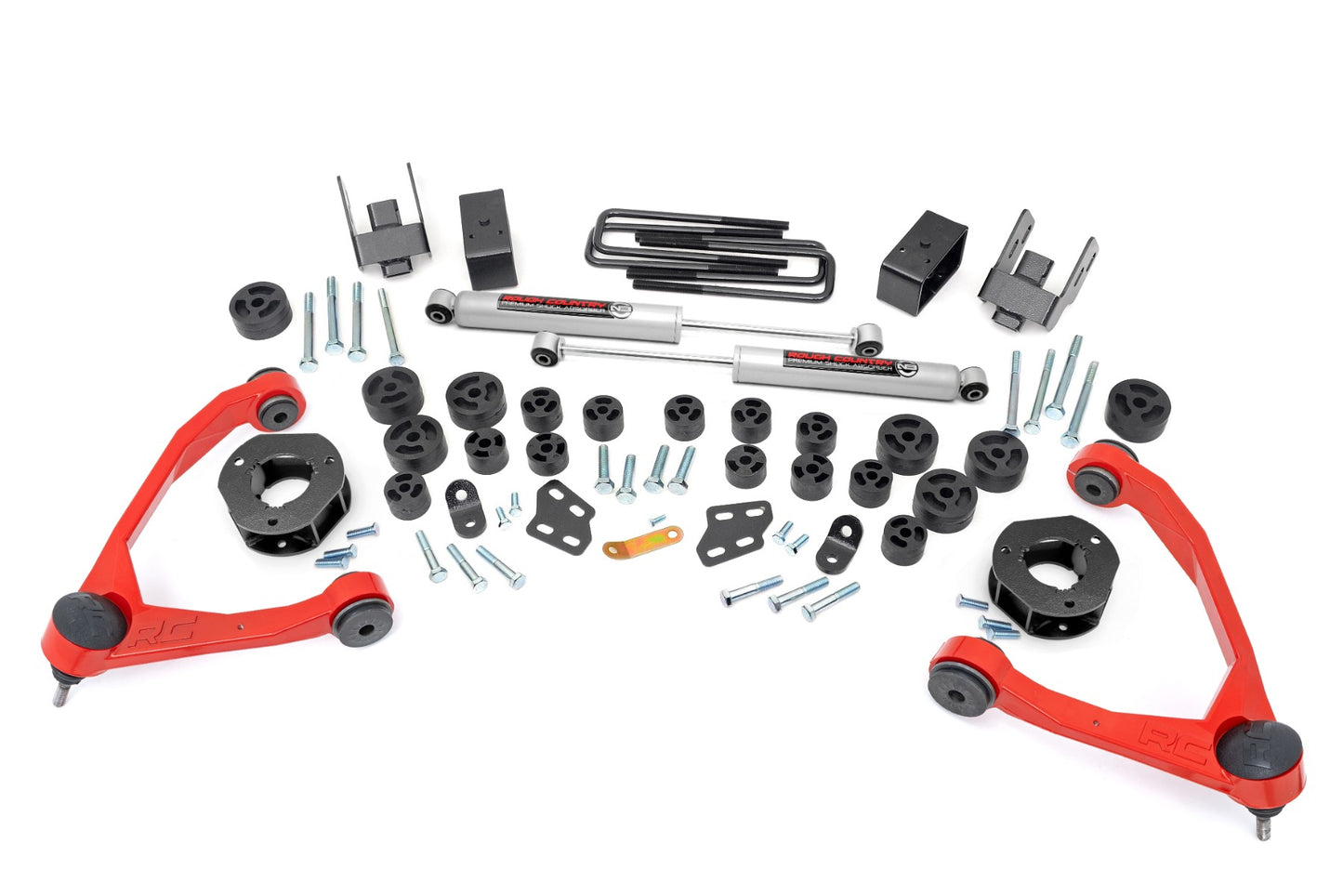

IN THE BOX

FRONT

Upper strut spacers
Upper control arms
Upper ball joints
Hardware

REAR

1.5" lift blocks
U-bolts
Hardware

SHOCKS

(2) Rear Premium N3 series

INSTRUCTIONS

Est. Install Time: 6 - 8 hours
View Instruction Sheet

VEHICLE FITMENT

YEARS DRIVE MAKE MODEL
2007-2013 2WD Chevy Silverado 1500
2007-2013 2WD GMC Sierra 1500
ALWAYS read all product page details for more important fitment information

RECOMMENDED TIRES & WHEELS

TIRE WHEEL BOLT PATTERN OFFSET NOTE
305/70R17 Factory 17 6x5.5 - -
305/65R18 Factory 18 6x5.5 - -
305/55R20 Factory 20 6x5.5 - -
305/70R17 17x8.5 6x5.5 +0 -
295/70R17 17x8.5 6x5.5 +0 -
285/70R17 17x8.5 6x5.5 +0 -
305/70R17 17x8.5 6x5.5 +1 -
295/70R17 17x8.5 6x5.5 +1 -
285/70R17 17x8.5 6x5.5 +1 -
305/70R17 17x9 6x5.5 +0 -
295/70R17 17x9 6x5.5 +0 -
285/70R17 17x9 6x5.5 +0 -
305/70R17 17x9 6x5.5 +1 -
295/70R17 17x9 6x5.5 +1 -
285/70R17 17x9 6x5.5 +1 -
295/70R17 17x9 6x5.5 +12 -
305/70R17 17x9 6x5.5 +18 -
295/70R17 17x9 6x5.5 +18 -
285/70R17 17x9 6x5.5 +18 -
305/70R17 17x9 6x5.5 +20 -
295/70R17 17x9 6x5.5 +20 -
285/70R17 17x9 6x5.5 +20 -
295/70R18 18x8.5 6x5.5 +0 -
285/65R18 18x8.5 6x5.5 +0 -
295/70R18 18x8.5 6x5.5 +1 -
285/65R18 18x8.5 6x5.5 +1 -
295/70R18 18x9 6x5.5 -6 -
305/65R18 18x9 6x5.5 +0 -
295/70R18 18x9 6x5.5 +0 -
285/65R18 18x9 6x5.5 +0 -
305/65R18 18x9 6x5.5 +1 -
295/70R18 18x9 6x5.5 +1 -
285/65R18 18x9 6x5.5 +1 -
295/70R18 18x9 6x5.5 +12 -
285/65R18 18x9 6x5.5 +12 -
305/65R18 18x9 6x5.5 +18 -
295/70R18 18x9 6x5.5 +18 -
285/65R18 18x9 6x5.5 +18 -
295/70R18 18x9 6x5.5 +19 -
285/65R18 18x9 6x5.5 +19 -
305/65R18 18x9 6x5.5 +20 -
295/70R18 18x9 6x5.5 +20 -
285/65R18 18x9 6x5.5 +20 -
305/55R20 20x9 6x5.5 +0 -
295/60R20 20x9 6x5.5 +0 Minor Trimming
295/55R20 20x9 6x5.5 +0 -
285/60R20 20x9 6x5.5 +0 -
285/55R20 20x9 6x5.5 +0 -
305/55R20 20x9 6x5.5 +1 -
295/60R20 20x9 6x5.5 +1 Minor Trimming
295/55R20 20x9 6x5.5 +1 -
285/60R20 20x9 6x5.5 +1 -
285/55R20 20x9 6x5.5 +1 -
295/55R20 20x9 6x5.5 +12 -
305/55R20 20x9 6x5.5 +18 -
295/60R20 20x9 6x5.5 +18 Minor Trimming
295/55R20 20x9 6x5.5 +18 -
285/60R20 20x9 6x5.5 +18 -
285/55R20 20x9 6x5.5 +18 -
305/55R20 20x9 6x5.5 +20 -
295/60R20 20x9 6x5.5 +20 Minor Trimming
295/55R20 20x9 6x5.5 +20 -
285/60R20 20x9 6x5.5 +20 -
285/55R20 20x9 6x5.5 +20 -
305/55R20 20x10 6x5.5 -19 Minor Trimming
295/60R20 20x10 6x5.5 -19 Minor Trimming
295/55R20 20x10 6x5.5 -19 -
285/60R20 20x10 6x5.5 -19 -
285/55R20 20x10 6x5.5 -19 Minor Trimming
305/55R20 20x10 6x5.5 -18 Minor Trimming
295/60R20 20x10 6x5.5 -18 Minor Trimming
295/55R20 20x10 6x5.5 -18 -
285/60R20 20x10 6x5.5 -18 -
285/55R20 20x10 6x5.5 -18 Minor Trimming
305/45R22 22x10 6x5.5 -19 -
285/45R22 22x10 6x5.5 -19 Minor Trimming
305/45R22 22x10 6x5.5 -18 -
285/45R22 22x10 6x5.5 -18 Minor Trimming
Due to differences in manufacturing, dimension and inflated measurements, tire and wheel combinations should be test fit prior to installation
