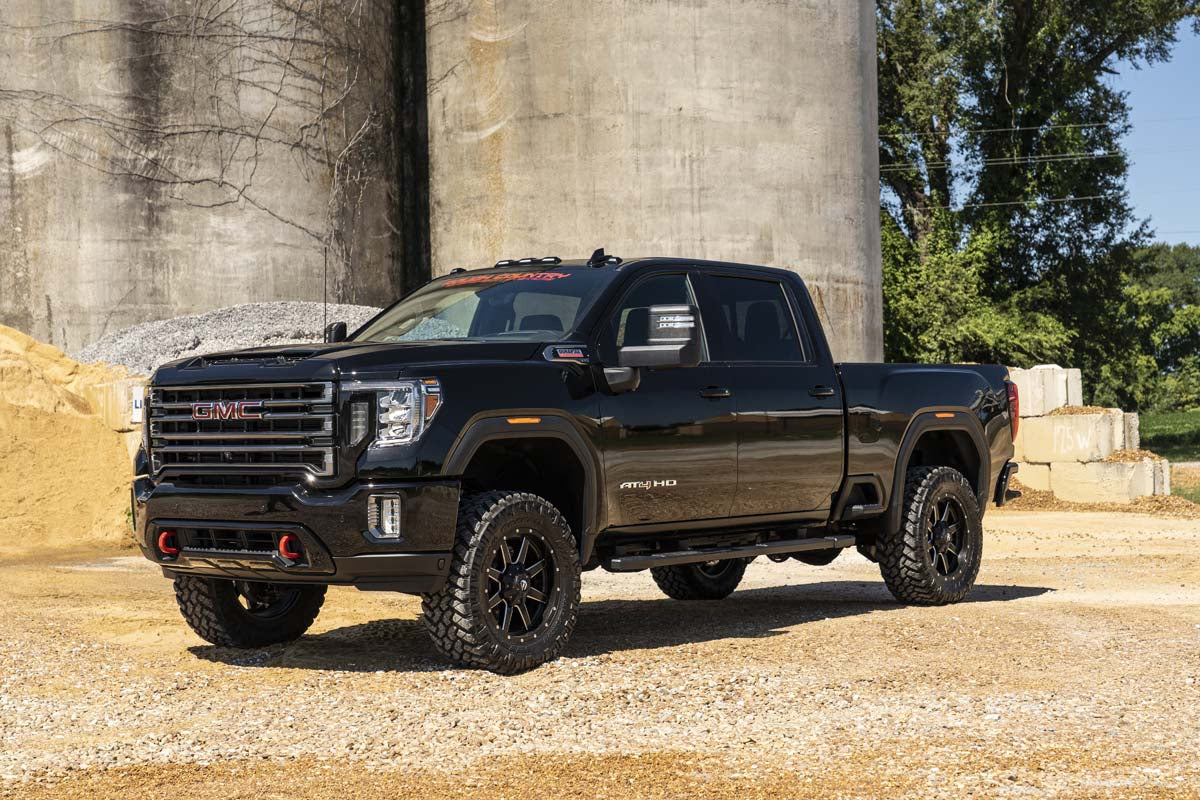

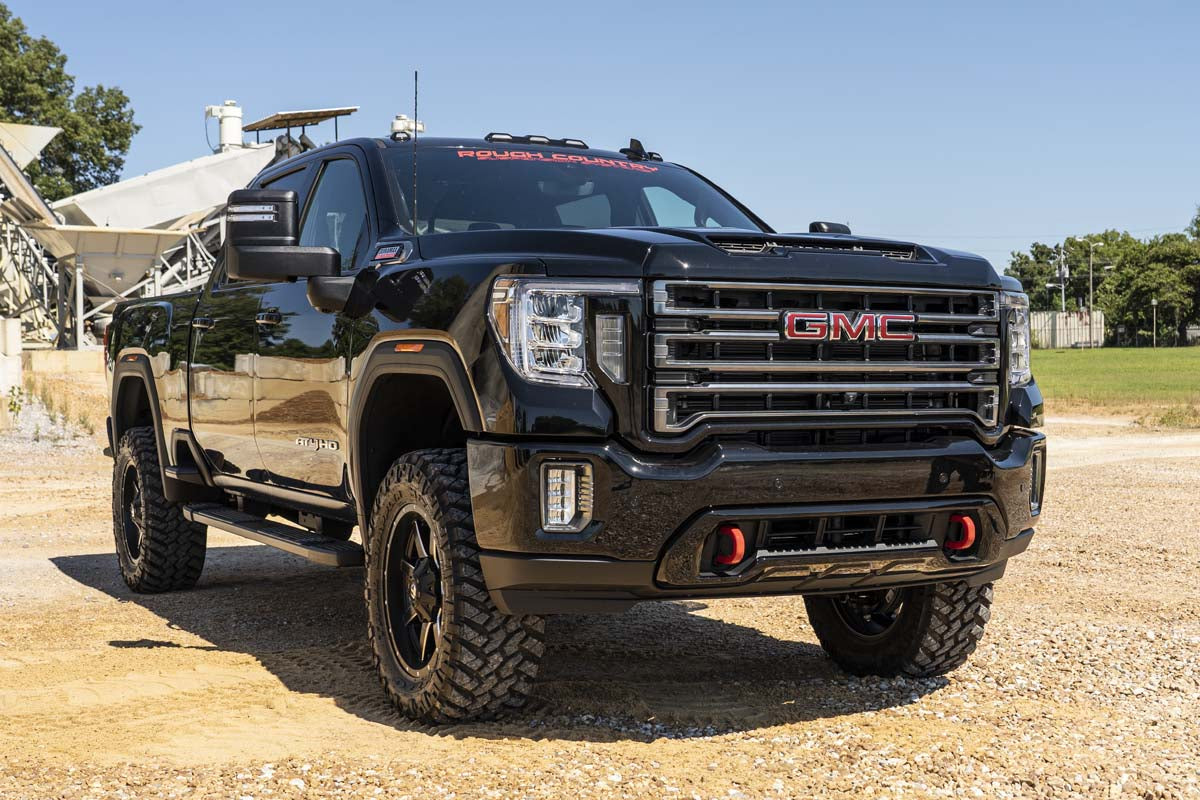

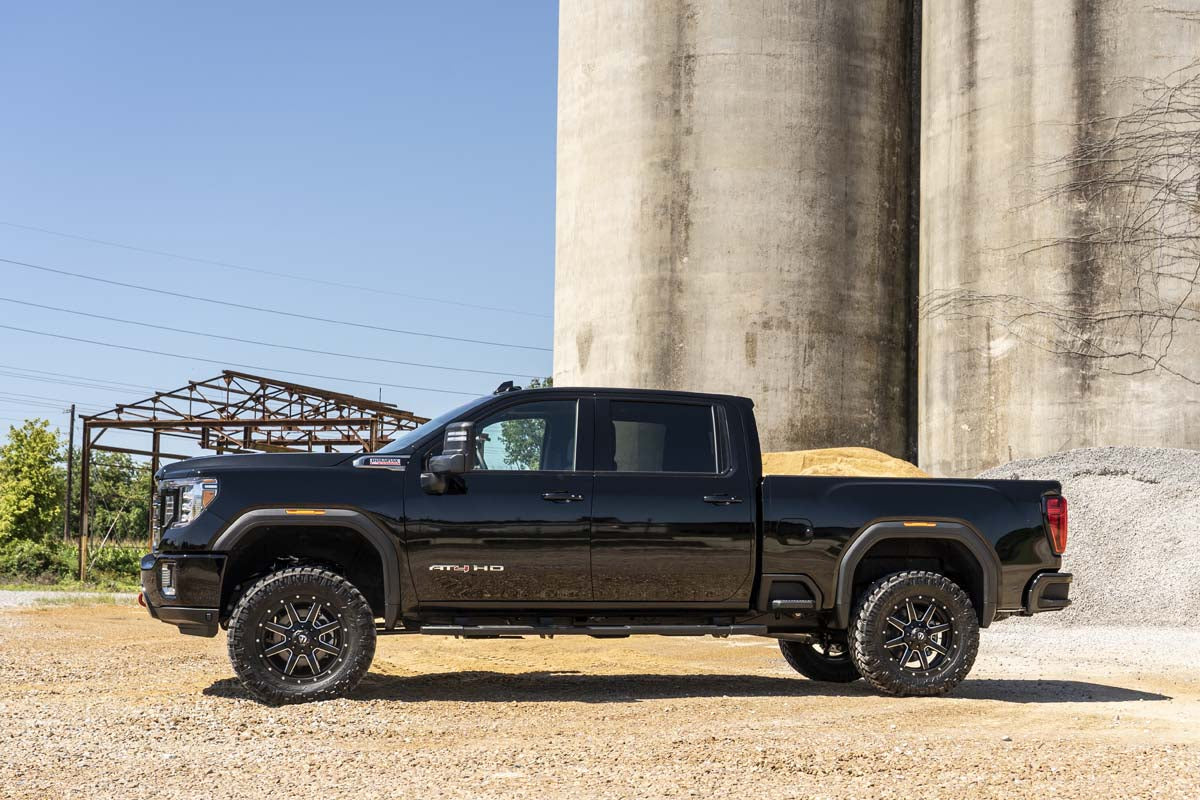

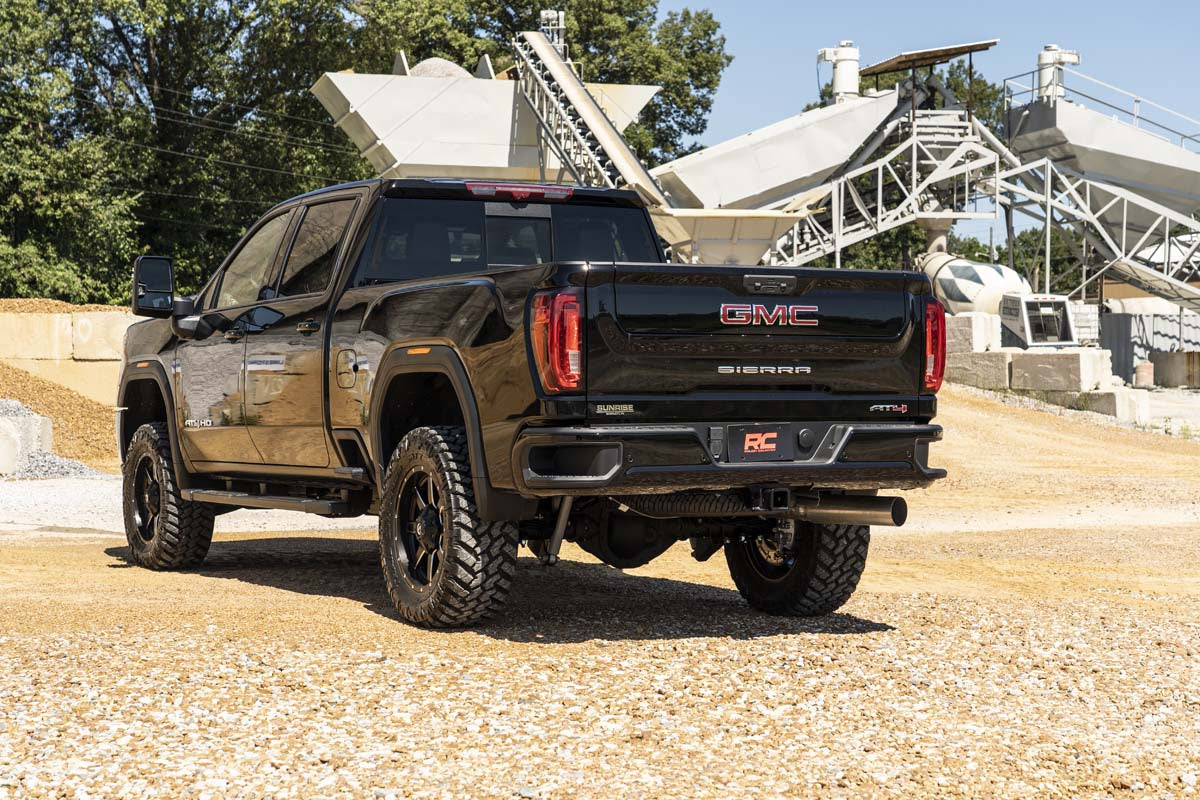

3 INCH LIFT KIT CHEVY/GMC 2500HD (20-25)
3 INCH LIFT KIT CHEVY/GMC 2500HD (20-25)
SKU:95830
Share
OVERVIEW

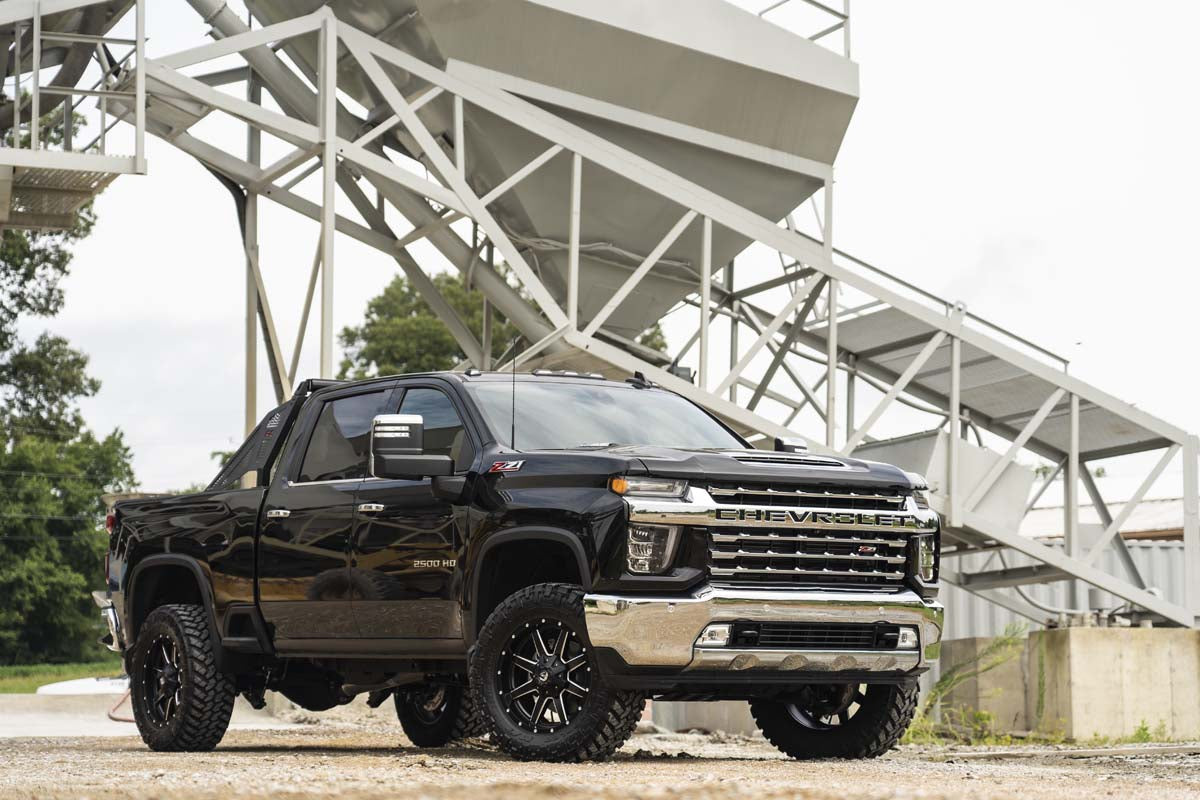

Rough Country's 3in Bolt-On Kit offers easy installation and aggressive good looks at an incredible value. Take your truck to new heights with this excellent option for GM HD Models.
This kit features a set of high-quality, Forged Aluminum Upper Control Arms with Clevite rubber bushings for enhanced durability. These arms are designed to promote a factory-like geometry by keeping the ball joint at optimum angles after lifting. This design allows for an improved, full range of motion from the ball-joint, with less stress, wear and tear.
This kit also features a set of durable, forged torsion bar keys, offering uncompromising strength and rigidity over factory keys. A set of front and rear N3 Nitrogen-charged shocks are also included in the kit, giving your truck incredible ride-quality both on and off-road. Once installed, this kit gives your truck plenty of ride height for up to larger tires while offering a clean, level look from front to rear.
This all-inclusive kit comes with everything you need, and installation is a piece of cake compared to other kits on the market! Featuring a 100% bolt-on installation process that requires zero cutting or drilling, this kit can give your truck a huge transformation while preserving the ability to return to stock if needed. Best of all this kit features Rough Country’s Lifetime Replacement Warranty!
FEATURES
- Easy bolt-on installation
- No cutting, drilling or welding
- Increased ground clearance
- Levels the front with the rear of the vehicle
- Torsion bar keys are forged for uncompromised strength
- Keys are indexed to not stress OE components
- Upper control arms help maintain factory-like geometry while keeping a full range of motion
- Upper control arms feature OEM style Clevite rubber bushings
- Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.

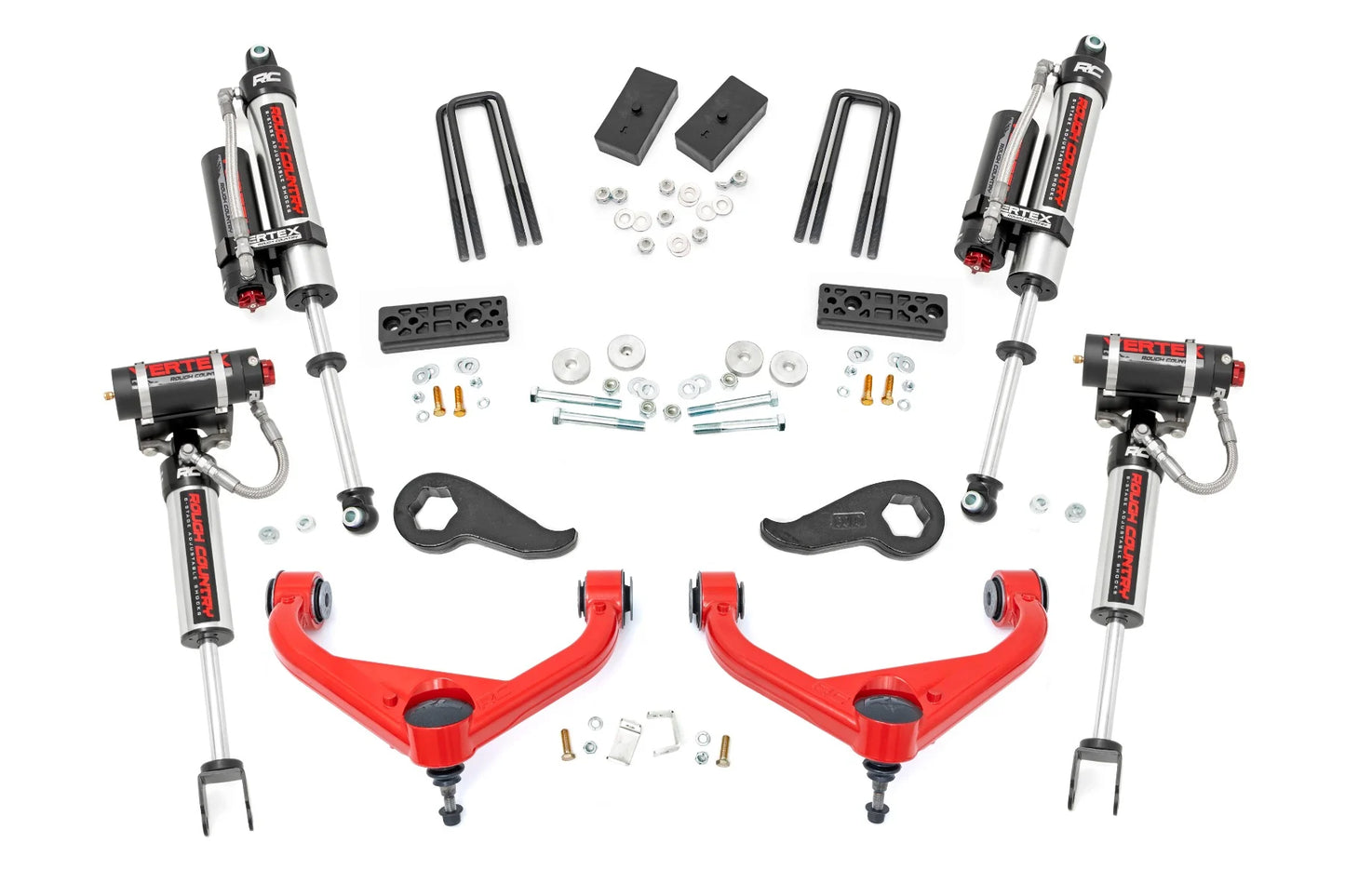

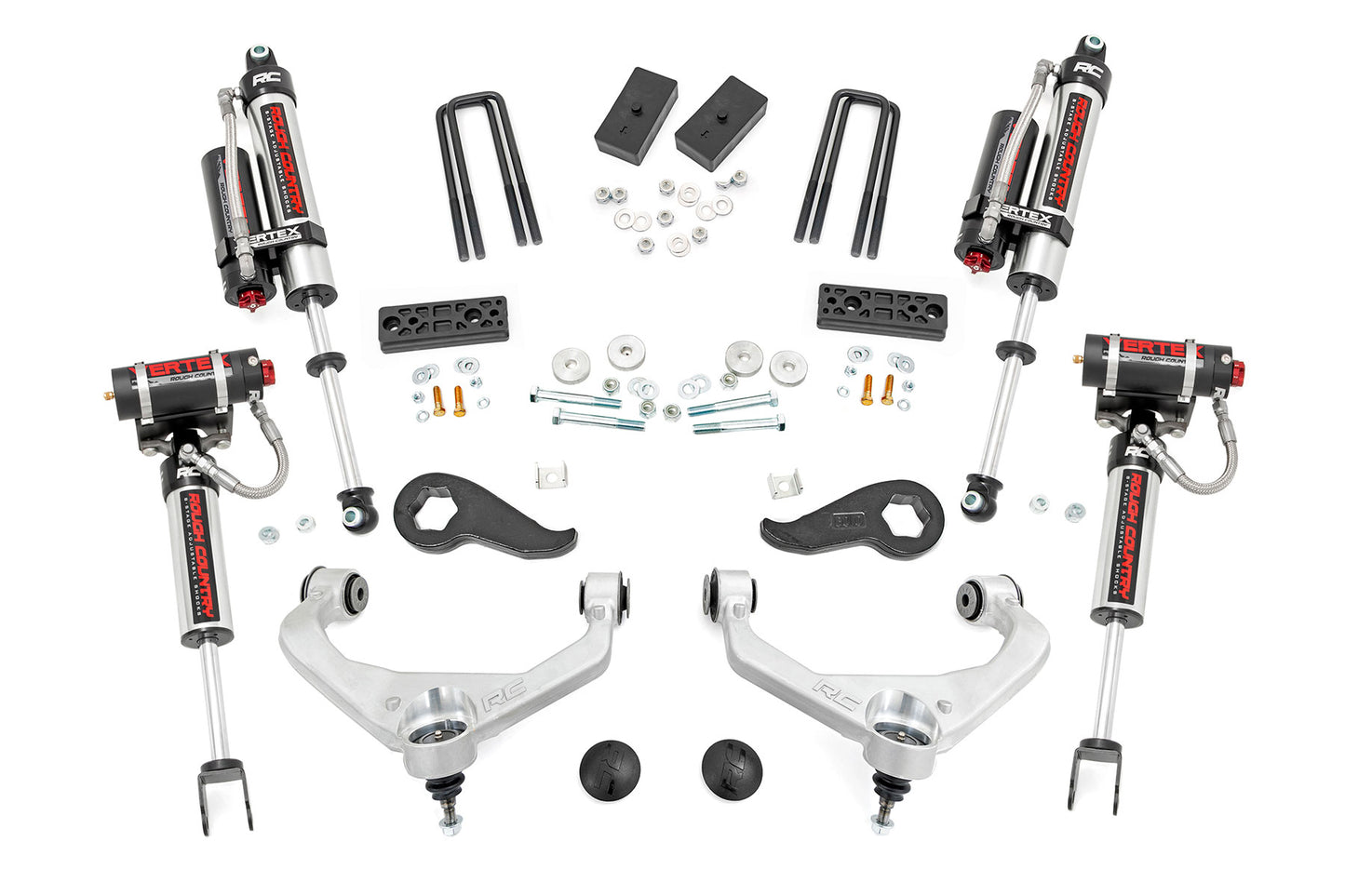

OPTIONAL VERTEX SHOCKS
8-Stage Adjustable DampingMonotube DesignNitrogen-ChargedMassive 2.5in Piston3-Stage Seal SystemHeat-Treated, Alloy Bearing3-year Manufacturer's Warranty

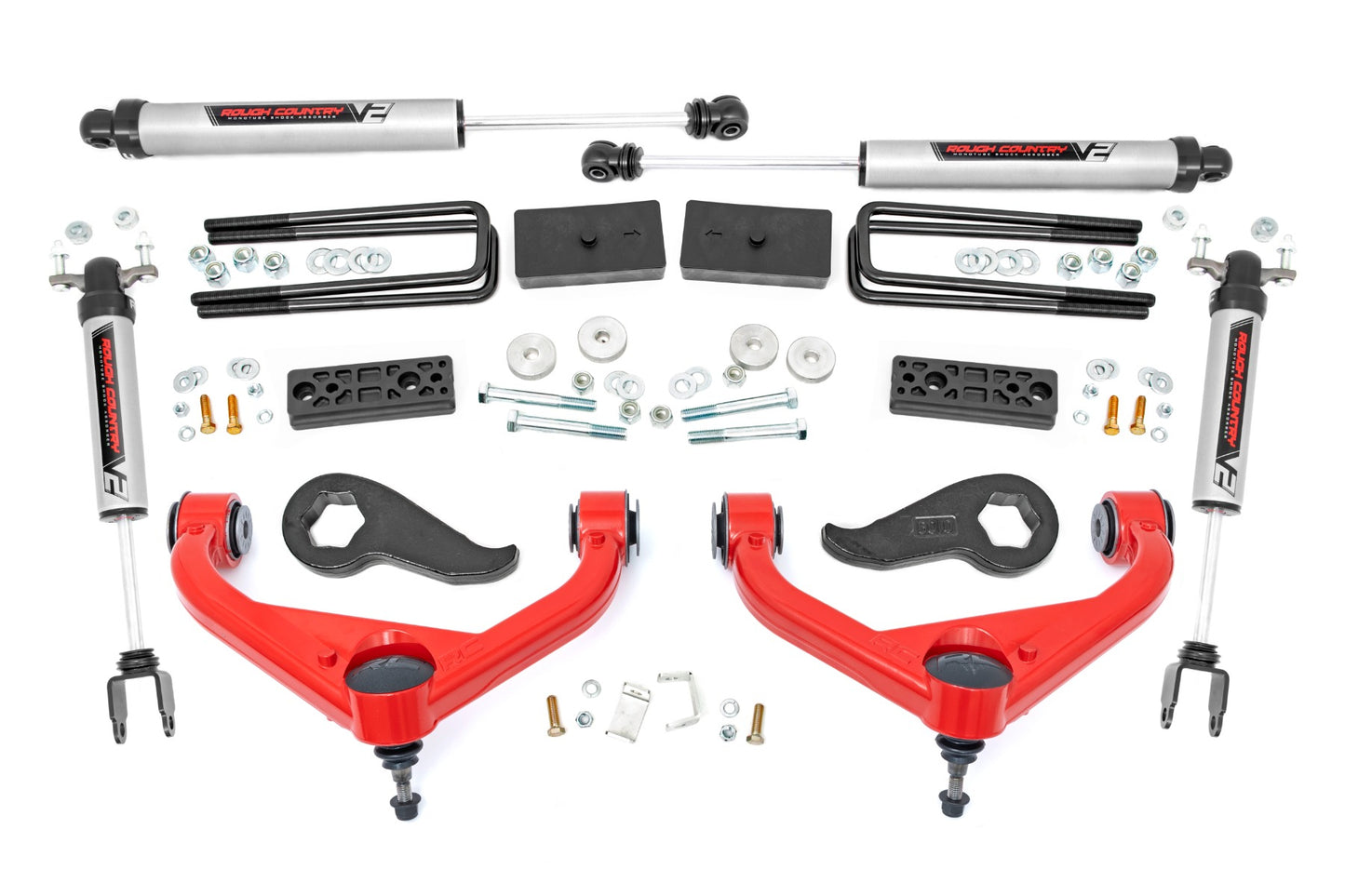

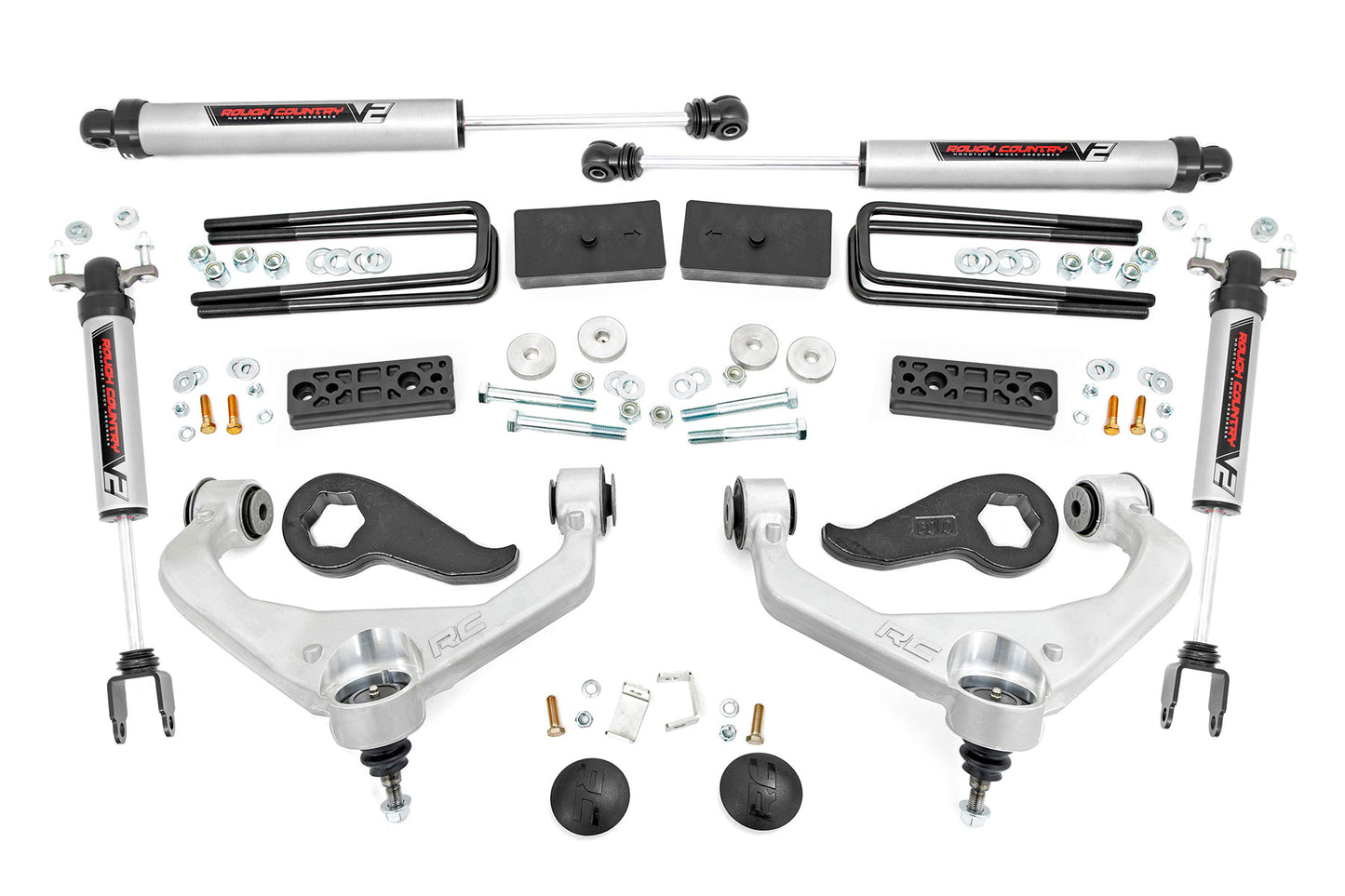

OPTIONAL V2 MONOTUBE SHOCKS
Incredible ride quality & performanceMonotube designNitrogen-charged46mm high-flow pistonMounts inverted36kN Tensile Strength3-year Manufacturer's Warranty

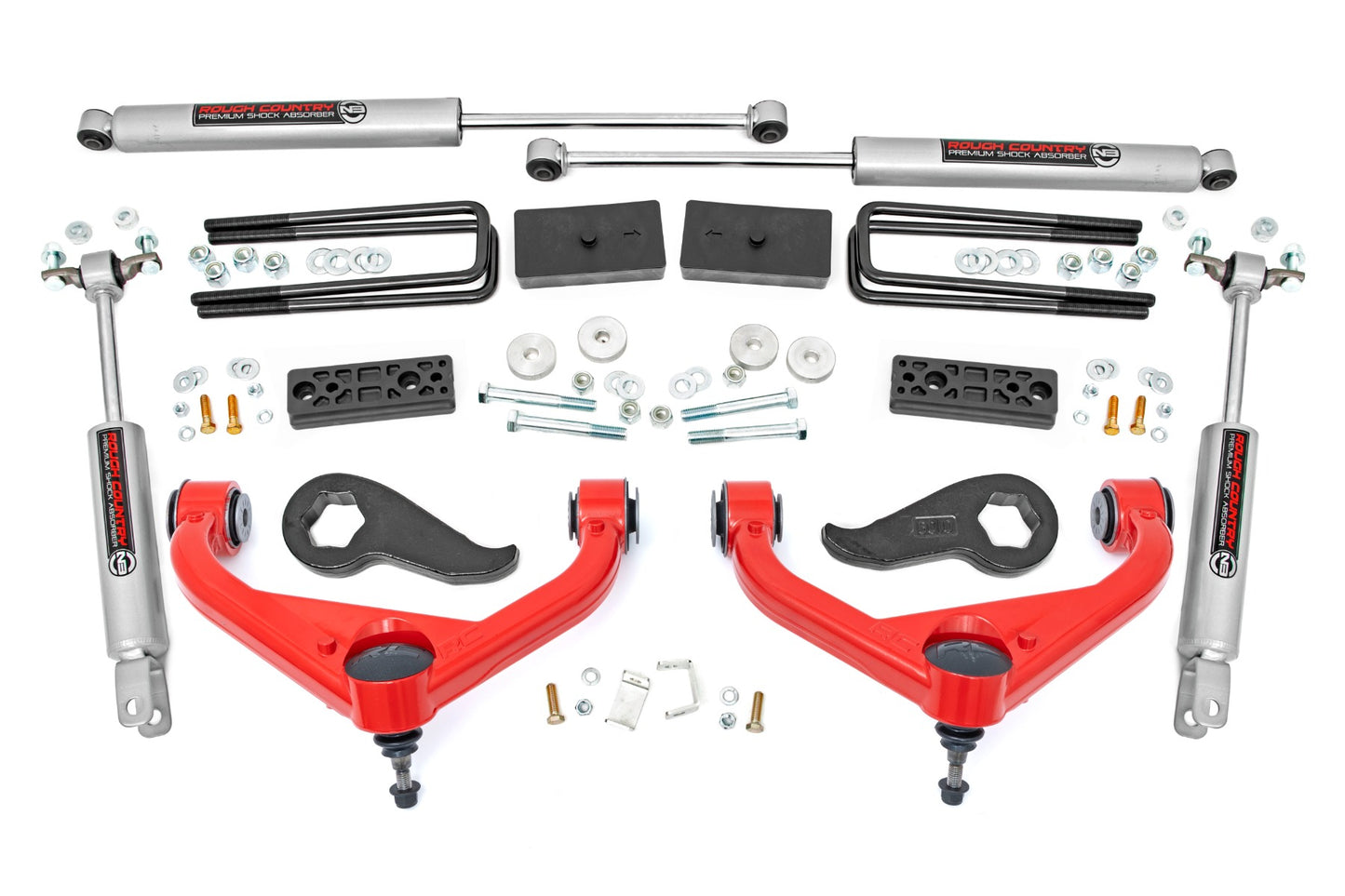

OPTIONAL N3 SHOCKS
10-Stage Variable ValvingHigh Pressure Nitrogen Charged35mm PistonChromed Hardened 18mm Piston Rod36kN Tensile StrengthSpring Loaded Piston Rod Seal3-year Limited Warranty
NOTES - IMPORTANT
- Does NOT fit models with rear overload springs
- Does NOT fit models with Magnetic Ride Control

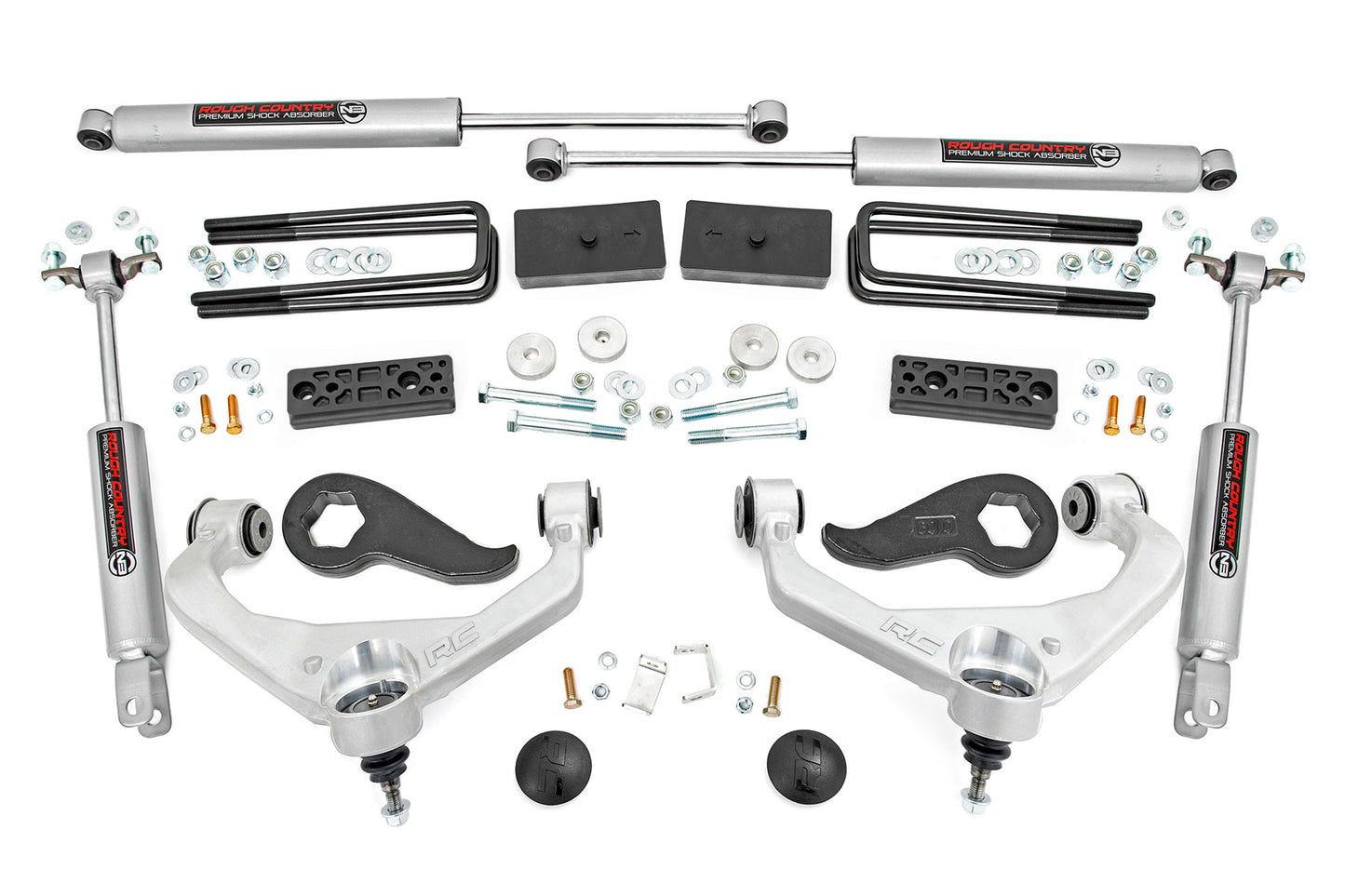

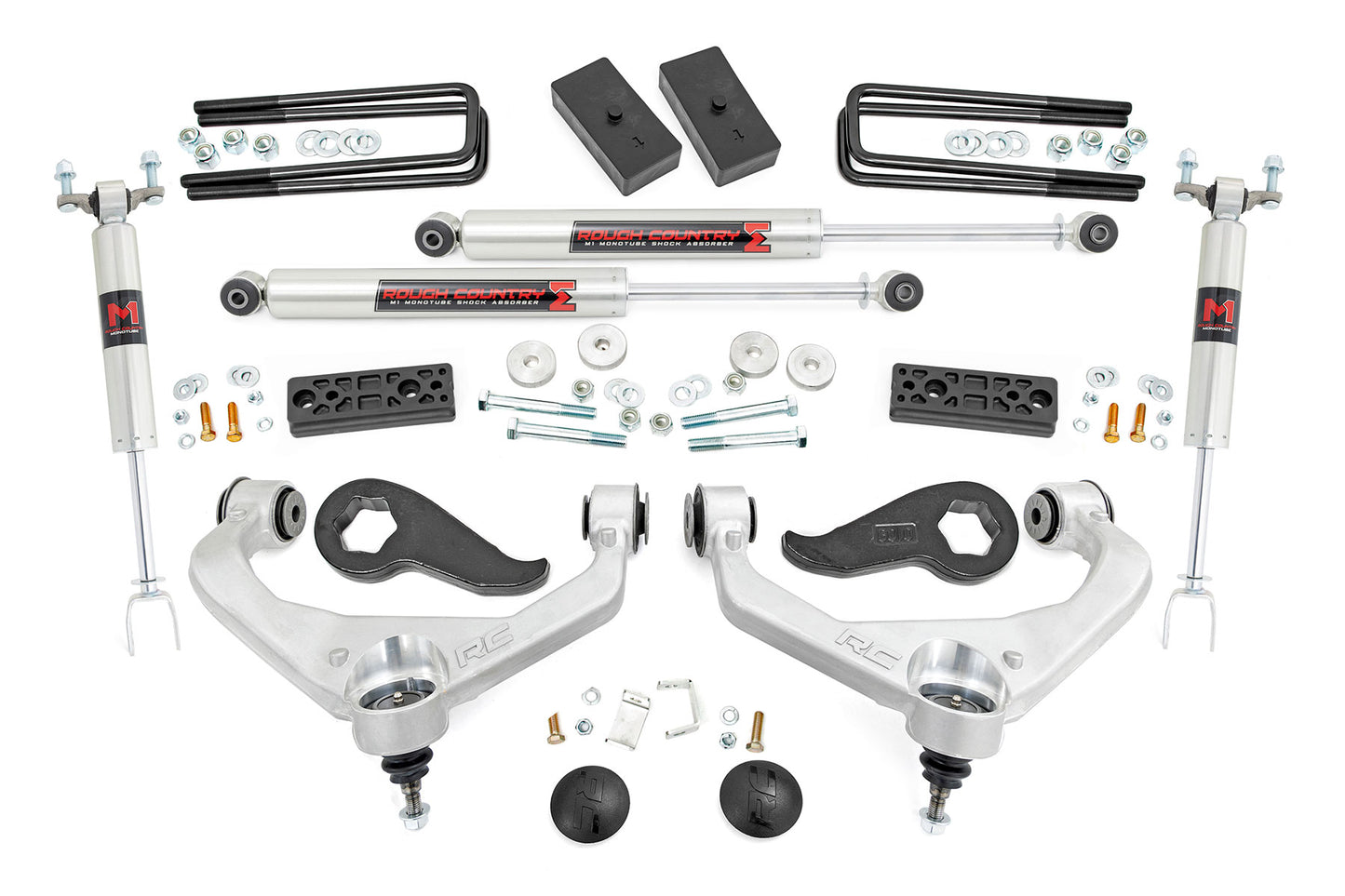

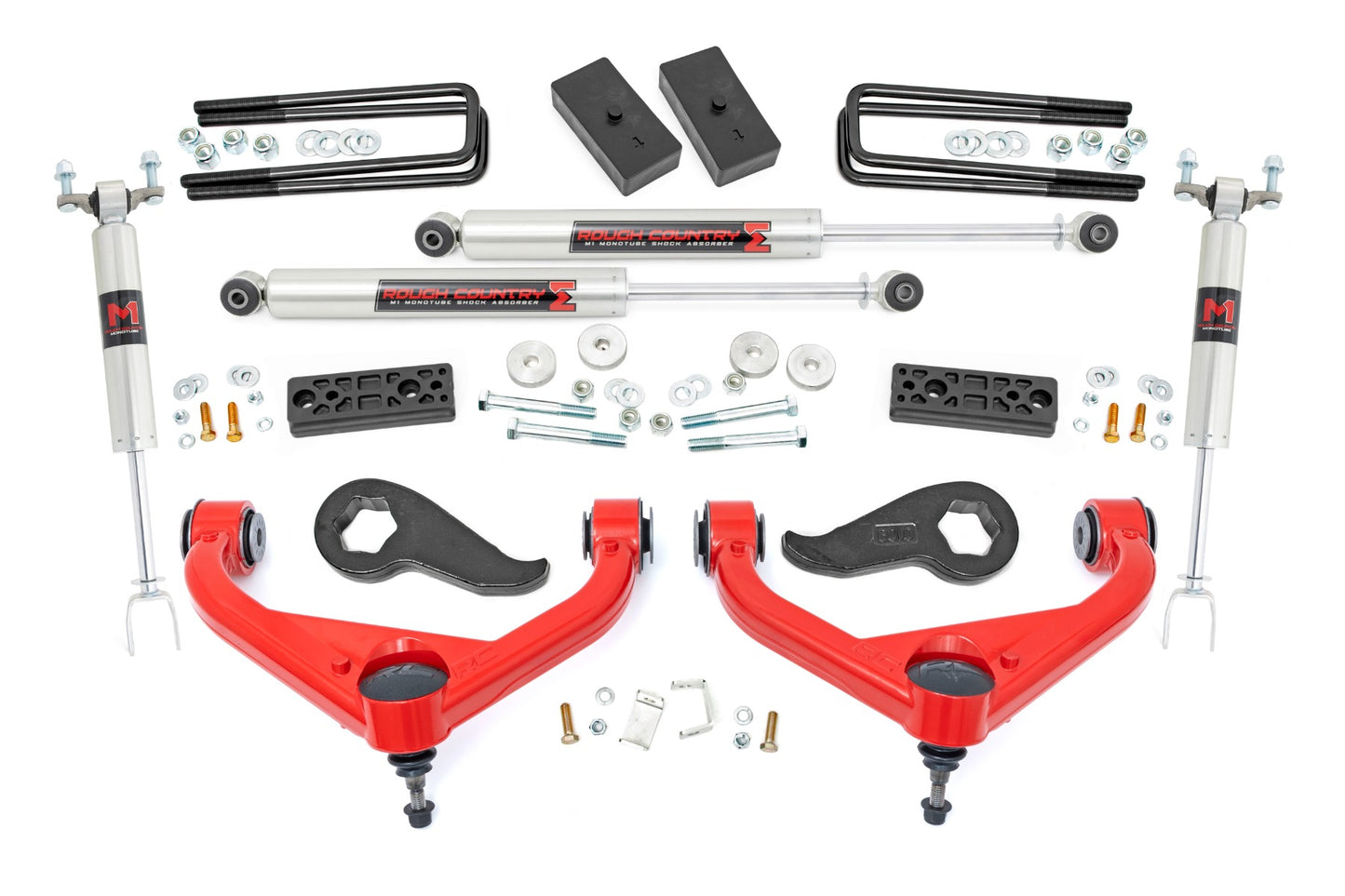

IN THE BOX
- Forged torsion bar adjuster keys
- Upper control arms
- Differential spacers
- Lift Blocks
- U-bolts
- Hardware
- (4) Premium N3 Shocks
INSTRUCTIONS
- Est. Install Time: 4-6 hours
- Instruction Sheet - Kit Installation
- Instruction Sheet - Optional Front Vertex Installation
- Instruction Sheet - Optional Rear Vertex Installation
VEHICLE FITMENT
2020-2024 4WD GMC Sierra 2500 HD
2020-2024 2WD GMC Sierra 2500 HD
2020-2024 2WD Chevy Silverado 2500 HD
2020-2024 4WD Chevy Silverado 2500 HD
ALWAYS read all product page details for more important fitment information
RECOMMENDED TIRES & WHEELS
TIRE WHEEL BOLT PATTERN OFFSET NOTE
285/75R18 Factory 18 8x180 - -
35x12.50R20 20x9 8x180 -12 -
35x12.50R20 20x9 8x180 +0 -
295/60R20 20x9 8x180 +0 -
35x12.50R20 20x9 8x180 +1 -
295/60R20 20x9 8x180 +1 -
295/60R20 20x10 8x180 -19 Minor Trimming
295/60R20 20x10 8x180 -18 Minor Trimming
295/60R20 20x12 8x180 -44 Trimming Required
295/50R22 22x10 8x180 -19 Minor Trimming
285/55R22 22x10 8x180 -19 -
295/50R22 22x10 8x180 -18 Minor Trimming
285/55R22 22x10 8x180 -18 -
295/50R22 22x12 8x180 -44 Trimming Required
Due to differences in manufacturing, dimension and inflated measurements, tire and wheel combinations should be test fit prior to installation
