READY LIFT

3.5"F / 2"R SST LIFT KIT- GM SILVERADO / SIERRA 2500HD W/ FALCON 1.1 MONOTUBE SHOCKS & UCAS 2011-2019

3.5"F / 2"R SST LIFT KIT- GM SILVERADO / SIERRA 2500HD W/ FALCON 1.1 MONOTUBE SHOCKS & UCAS 2011-2019

$1,999.95 USD
$1,999.95 USD
Sale Sold out

69-35140

QUICK OVERVIEW

2011-2019 GM 2500 HD 2wd/4wd 3.5" front / 2" rear SST lift kit Allows for up to 34" tall tires. Includes heavy-duty fabricated steel upper control arms. Best value for a premium 3.5" SST Lift kit 2" rear block gives more rear rake than 1" rear block Forged Torsion Keys Falcon 1.1 Monotube Shocks Will not deform or change shape No Cutting of OEM Parts or Welding Maintains Factory Ride If it needs it - Its in the box




ReadyLIFT Suspension Inc. is excited to offer our popular 3.5" SST Lift Kit for 2011-2019 Chevy and GMC 2500HD truck with our all-new heavy-duty Xtreme-Duty upper control arms. This is a premium lift solution that won't break the bank nor permanently modify your truck. This is a true bolt-on Lift kit with the premium benefit of including our new ultra heavy-duty control arms! The 69-35140 SST Lift Kit by ReadyLIFT will lift the front of your new HD truck a maximum of 3.5 inches! This awesome SST Lift Kit for 2011-19 GM HD trucks includes a pair of tough heavy-duty fabricated steel upper control arms with 1-ton ball joints and maintenance-free TCT pivot bushings. This kit is engineered to match the strength of your truck. 2011-2019 2500HD-specific lift-oriented ReadyLIFT forged torsion keys provide an adjustable lift while maintaining the factory ride. These super strong forged torsion keys are stronger than stock with the same design and features an indexing that is unique to this kit! The 69-35140 Lift Kit also includes CNC-machined differential drop spacers which lowers the differential and puts the front CV axles into safe factory angle on 4WD trucks. 2WD trucks will not use the diff spacers. To lift the rear of your new Chevy Silverado 2500HD truck, the ReadyLIFT SST Lift Kit includes OEM style 2.0" cast iron rear lift blocks complete with new u-bolts and hardware. This kit includes Falcon 1.1 Monotube Shocks. Also included with this kit are new super strong tie-rod end assemblies to replace the weak factory versions. For the longest time, GM tie rod assemblies have been a weak link on all GM trucks. These heavy duty steering assemblies install easily and incredibly stronger than the OEM units. You won't find this kind of attention to detail with any other lift kit for the new GM HD trucks! This great combination gives the new GM HD trucks a great raised stance using super strong components and allows for up to a 34" tall tire. NOTE: Single Rear Wheel Only. NOTE: Not for use on trucks equipped with factory TOP overload spring commonly referred to as a camper package. NOTE: Lift height must not exceed 27.25" when measured from the center of the wheel to the fender lip above the 12 o'clock position for 4WD and 28" for 2WD vehicles.









TIRE FITMENT

34" Maximum tire diameter

34x11.50 for no rub on a 9" wide wheel with +12 offset

18" - 295/70R18

20" - 275/65R20

22" - 285/55R22

Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

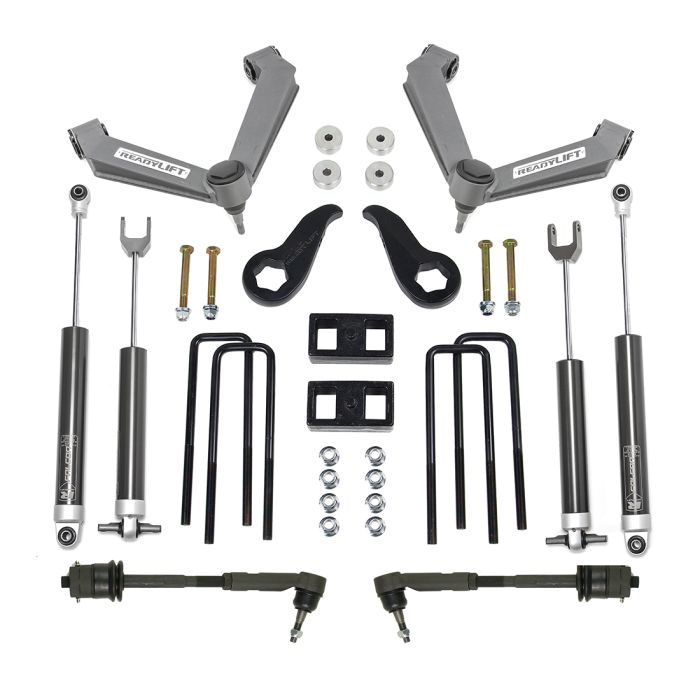

KIT COMPONENTS

2 Xtreme-duty fabricated steel upper control arms

2 Forged torsion leveling keys

4 Differential drop spacers

2 heavy duty tie rod assemblies

2 OEM style cast iron rear lift blocks with longer u-bolts

4 Falcon 1.1 Monotube shocks













INSTALLATION


SAEJ2492 Warning: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than that of factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or roll-over during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.



DO IT YOURSELF!

Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation.




Estimated Installation Time: 6 Hours +/- 1 hour (excluding alignment and wheel/tire assembly)











ADDITIONAL INFORMATION

California Residents: Prop 65 WARNING
Falcon Shocks ‚¬ The Ultimate Blend of Performance, Quality, and Bang for the Buck

‚·‚ ‚ ‚ ‚ ‚ ‚ ‚ ‚ ‚ Falcon 1.1 Monotube Shocks deliver increased stability improved ride quality and comfort for a daily-driven vehicle in an economical, compact performance package.

‚·‚ ‚ ‚ ‚ ‚ ‚ ‚ ‚ ‚ Falcon 1.1 Monotube Shocks have been optimized for on-road driving with increased stability over stock for driven vehicles on and off road.‚ ‚ High-Value Performance is the driving force behind these vehicle-specific dampers for trucks and SUVs.‚

‚·‚ ‚ ‚ ‚ ‚ ‚ ‚ ‚ ‚ Falcon 1.1 Monotube Shocks are ideal for daily driven trucks and SUVs as well as the enthusiast wanting a consistent controlled feel through all driving conditions

‚·‚ ‚ ‚ ‚ ‚ ‚ ‚ ‚ ‚ Falcon 1.1 Monotube shocks include race-inspired performance, handling, and stability for off-road rigs. Falcon Jeep shock absorbers will significantly increase the chassis performance of any lifted truck or SUV.

‚·‚ ‚ ‚ ‚ ‚ ‚ ‚ ‚ ‚ Falcon 1.1 Monotube Shock Specifications

o‚ ‚ ‚ 2-1/8" shock body for high-value performance

o‚ ‚ ‚ 6061-T6 aluminum alloy billet piston

o‚ ‚ ‚ 1/2" induction hardened chrome plated shaft resists rock damage corrosion and shaft buckling

o‚ ‚ ‚ Microcellular ‚¬Å“Foam‚¬ Progressive Bump Stops (Bump stop configuration varies depending on shock absorber collapsed length, tire size, and fenders.)

View full details
