3.5 INCH LIFT KIT MAG-RIDE | ALU/CAST STEEL | GMC SIERRA 1500 DENALI (14-16)
3.5 INCH LIFT KIT MAG-RIDE | ALU/CAST STEEL | GMC SIERRA 1500 DENALI (14-16)
Regular price
$699.95 USD
Regular price
Sale price
$699.95 USD
Unit price
/
per
SKU:18901
Share
OVERVIEW

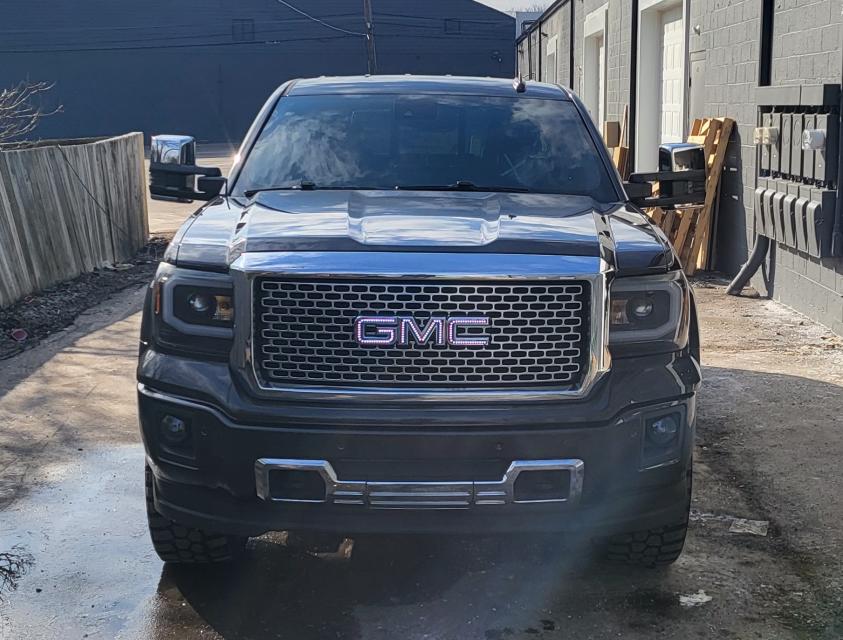

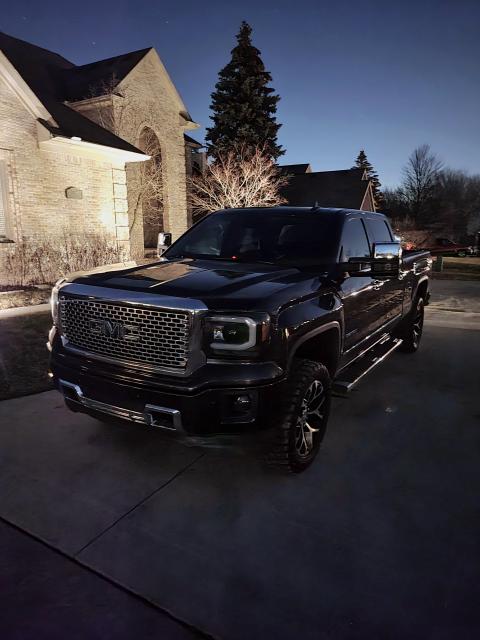

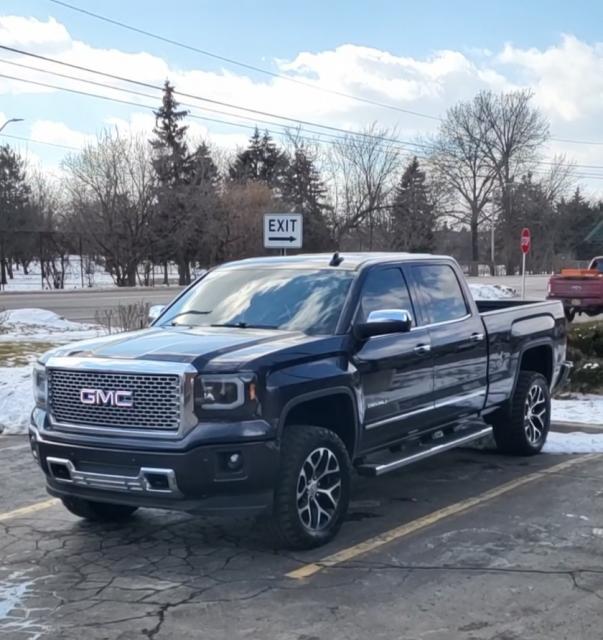

Gain increased ground clearance and killer, good looks with Rough Country’s 3.5in Suspension Lift for GMC Sierra Denali 1500 Pickups equipped with Magnetic Ride Control.
This all-inclusive kit comes with several fantastic features - all at a price that'll leave plenty of room for new tires and wheels! Rough Country’s 3.5in Denali MagneRide lift comes equipped with a set of differential drop spacers, 3in fabricated rear blocks, and a protective differential skid plate for enhanced durability.
This kit also features upper control arms with upgraded Ball Joints by MOOG, the most trusted name in Ball Joint design. Easy to install and easier to maintain than any other joint on the market, the Moog Ball Joint system utilizes two powdered-metal gusher bearings with grease grooves to provide the most durable wear surface available. A sealed boot design with grease-relief valve keeps contaminants out while providing a sealed, serviceable environment. Also included in this kit are a set of fabricated rear blocks. Fabricated blocks are stronger and offer a longer lifespan than cast blocks while being less susceptible to damage and the environment.
This all-inclusive kit comes with several fantastic features - all at a price that'll leave plenty of room for new tires and wheels! Rough Country’s 3.5in Denali MagneRide lift comes equipped with a set of differential drop spacers, 3in fabricated rear blocks, and a protective differential skid plate for enhanced durability.
This kit also features upper control arms with upgraded Ball Joints by MOOG, the most trusted name in Ball Joint design. Easy to install and easier to maintain than any other joint on the market, the Moog Ball Joint system utilizes two powdered-metal gusher bearings with grease grooves to provide the most durable wear surface available. A sealed boot design with grease-relief valve keeps contaminants out while providing a sealed, serviceable environment. Also included in this kit are a set of fabricated rear blocks. Fabricated blocks are stronger and offer a longer lifespan than cast blocks while being less susceptible to damage and the environment.
FEATURES
- Easy bolt-on installation.
- Increased ground clearance.
- Can be returned to stock!
- Differential drops maintain proper axle angle.
- Ball joints are pre-installed to ease installation.
- Fabricated lift blocks are stronger and offer a longer lifespan than cast blocks.
NOTES - IMPORTANT
- ONLY fits GMC Denali models with Magnetic Ride Control.
- Fits Cast Aluminum and Cast Steel Stock Upper Control Arms
- Does NOT fit 2016+ models with Stock Stamped Steel upper control arms
- Requires cutting and grinding
- New lift block replaces the factory equipped block.
- If truck is equipped with a mass damper on the front differential, the damper must be removed.
- Retain your factory wheels with our 0.25" wheel spacers (#1065).

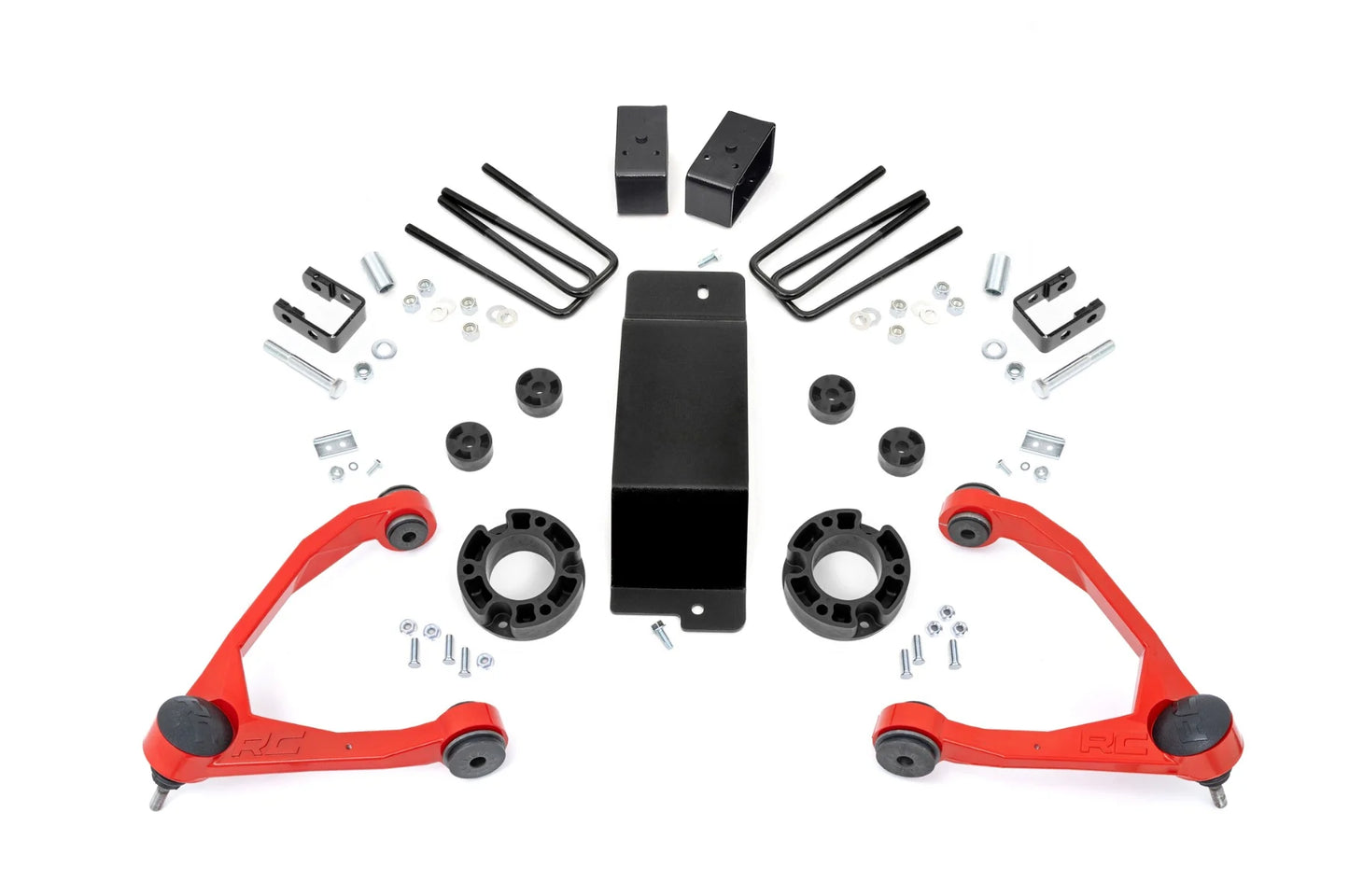

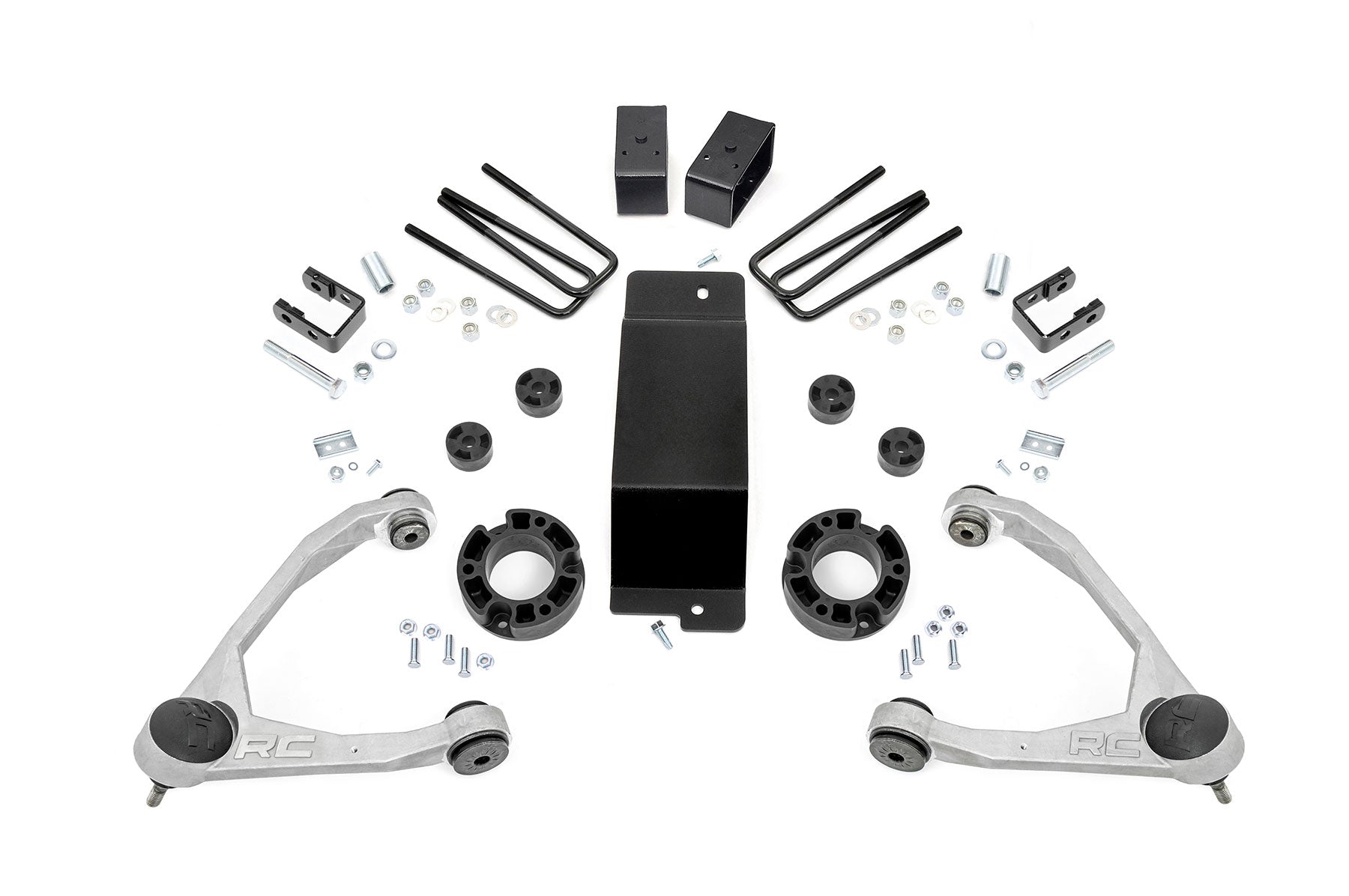

IN THE BOX
FRONT
- Strut spacers
- Upper control arms
- Upper POM ball joints
- Differential drop spacers
- Differential skid plate
- Hardware
REAR
- 3in fabricated lift blocks
- U-bolts
- Hardware
INSTRUCTIONS
- Est. Install Time: 4-5 hours
- View Instruction Sheet
VEHICLE FITMENT
YEARS DRIVE MAKE MODEL
2014-2016 4WD GMC Sierra 1500
ALWAYS read all product page details for more important fitment information
2014-2016 4WD GMC Sierra 1500
ALWAYS read all product page details for more important fitment information
RECOMMENDED TIRES & WHEELS
TIRE WHEEL BOLT PATTERN OFFSET NOTE
285/70R17 Factory 17 6x5.5 - -
285/65R18 Factory 18 6x5.5 - -
285/55R20 Factory 20 6x5.5 - -
285/70R17 17x8.5 6x5.5 +0 -
285/70R17 17x8.5 6x5.5 +1 -
285/70R17 17x9 6x5.5 +0 -
265/70R17 17x9 6x5.5 +0 -
285/70R17 17x9 6x5.5 +1 -
265/70R17 17x9 6x5.5 +1 -
285/70R17 17x9 6x5.5 +12 -
285/70R17 17x9 6x5.5 +18 -
285/70R17 17x9 6x5.5 +20 -
285/65R18 18x8.5 6x5.5 +0 -
285/65R18 18x8.5 6x5.5 +1 -
285/65R18 18x9 6x5.5 +0 -
275/65R18 18x9 6x5.5 +0 -
265/65R18 18x9 6x5.5 +0 -
285/65R18 18x9 6x5.5 +1 -
275/65R18 18x9 6x5.5 +1 -
265/65R18 18x9 6x5.5 +1 -
285/65R18 18x9 6x5.5 +12 -
285/65R18 18x9 6x5.5 +18 -
275/65R18 18x9 6x5.5 +18 -
265/65R18 18x9 6x5.5 +18 -
285/65R18 18x9 6x5.5 +19 -
265/65R18 18x9 6x5.5 +19 -
285/65R18 18x9 6x5.5 +20 -
275/65R18 18x9 6x5.5 +20 -
265/65R18 18x9 6x5.5 +20 -
285/55R20 20x9 6x5.5 +0 -
285/55R20 20x9 6x5.5 +1 -
285/55R20 20x9 6x5.5 +12 -
285/55R20 20x9 6x5.5 +18 -
285/55R20 20x9 6x5.5 +20 -
285/55R20 20x10 6x5.5 -19 Minor Trimming
285/55R20 20x10 6x5.5 -18 Minor Trimming
285/45R22 22x10 6x5.5 -19 Minor Trimming
285/45R22 22x10 6x5.5 -18 Minor Trimming
285/70R17 Factory 17 6x5.5 - -
285/65R18 Factory 18 6x5.5 - -
285/55R20 Factory 20 6x5.5 - -
285/70R17 17x8.5 6x5.5 +0 -
285/70R17 17x8.5 6x5.5 +1 -
285/70R17 17x9 6x5.5 +0 -
265/70R17 17x9 6x5.5 +0 -
285/70R17 17x9 6x5.5 +1 -
265/70R17 17x9 6x5.5 +1 -
285/70R17 17x9 6x5.5 +12 -
285/70R17 17x9 6x5.5 +18 -
285/70R17 17x9 6x5.5 +20 -
285/65R18 18x8.5 6x5.5 +0 -
285/65R18 18x8.5 6x5.5 +1 -
285/65R18 18x9 6x5.5 +0 -
275/65R18 18x9 6x5.5 +0 -
265/65R18 18x9 6x5.5 +0 -
285/65R18 18x9 6x5.5 +1 -
275/65R18 18x9 6x5.5 +1 -
265/65R18 18x9 6x5.5 +1 -
285/65R18 18x9 6x5.5 +12 -
285/65R18 18x9 6x5.5 +18 -
275/65R18 18x9 6x5.5 +18 -
265/65R18 18x9 6x5.5 +18 -
285/65R18 18x9 6x5.5 +19 -
265/65R18 18x9 6x5.5 +19 -
285/65R18 18x9 6x5.5 +20 -
275/65R18 18x9 6x5.5 +20 -
265/65R18 18x9 6x5.5 +20 -
285/55R20 20x9 6x5.5 +0 -
285/55R20 20x9 6x5.5 +1 -
285/55R20 20x9 6x5.5 +12 -
285/55R20 20x9 6x5.5 +18 -
285/55R20 20x9 6x5.5 +20 -
285/55R20 20x10 6x5.5 -19 Minor Trimming
285/55R20 20x10 6x5.5 -18 Minor Trimming
285/45R22 22x10 6x5.5 -19 Minor Trimming
285/45R22 22x10 6x5.5 -18 Minor Trimming
Due to differences in manufacturing, dimension and inflated measurements, tire and wheel combinations should be test fit prior to installation
