3.5 INCH LIFT KIT GMC SIERRA 1500 2WD/4WD (2019-2024)
3.5 INCH LIFT KIT GMC SIERRA 1500 2WD/4WD (2019-2024)
SKU:22630
Share
OVERVIEW
GM’s 2019 Sierra features an impressive all-new design that’s built from the ground up, with aggressive angles and head-turning stylings. Put the finishing touch on your truck with Rough Country’s 3.5in Upper Control Arm Suspension Lift!
Rough Country's 3.5in lift features a set of forged aluminum upper control arms to provide the correct suspension geometry in our most durable control arm to date!

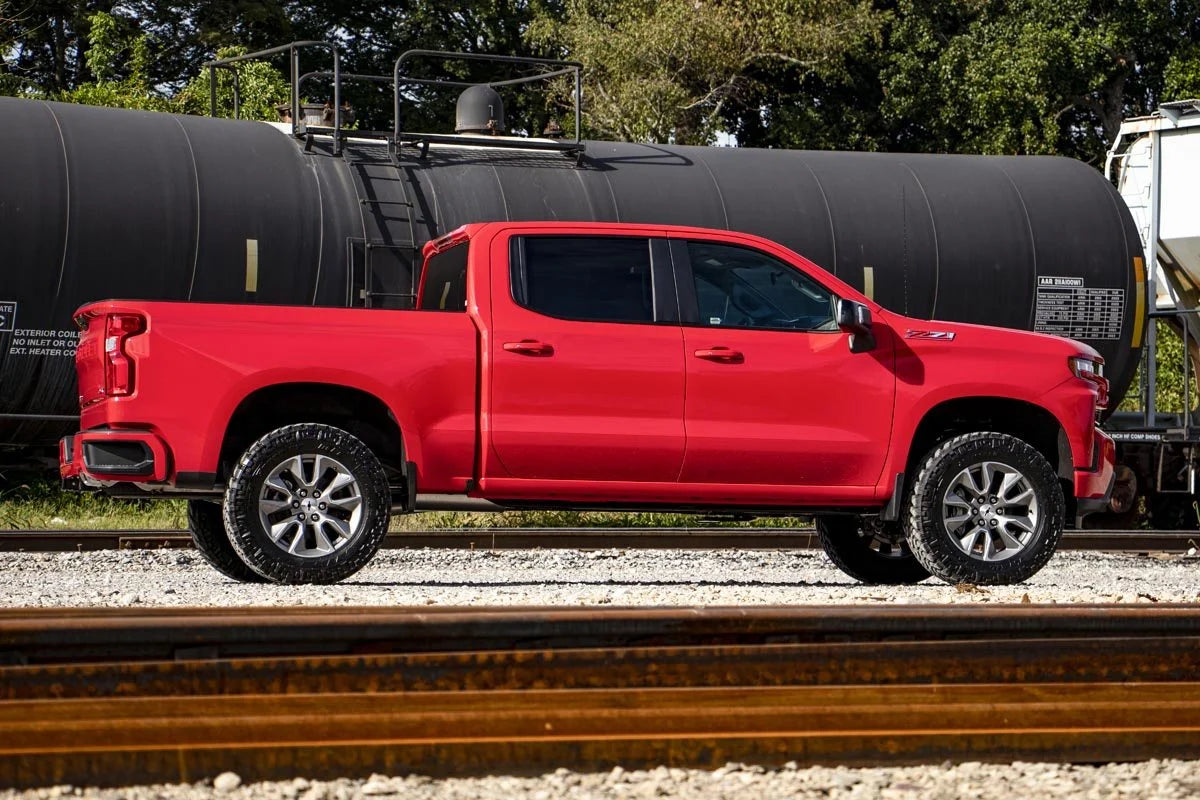

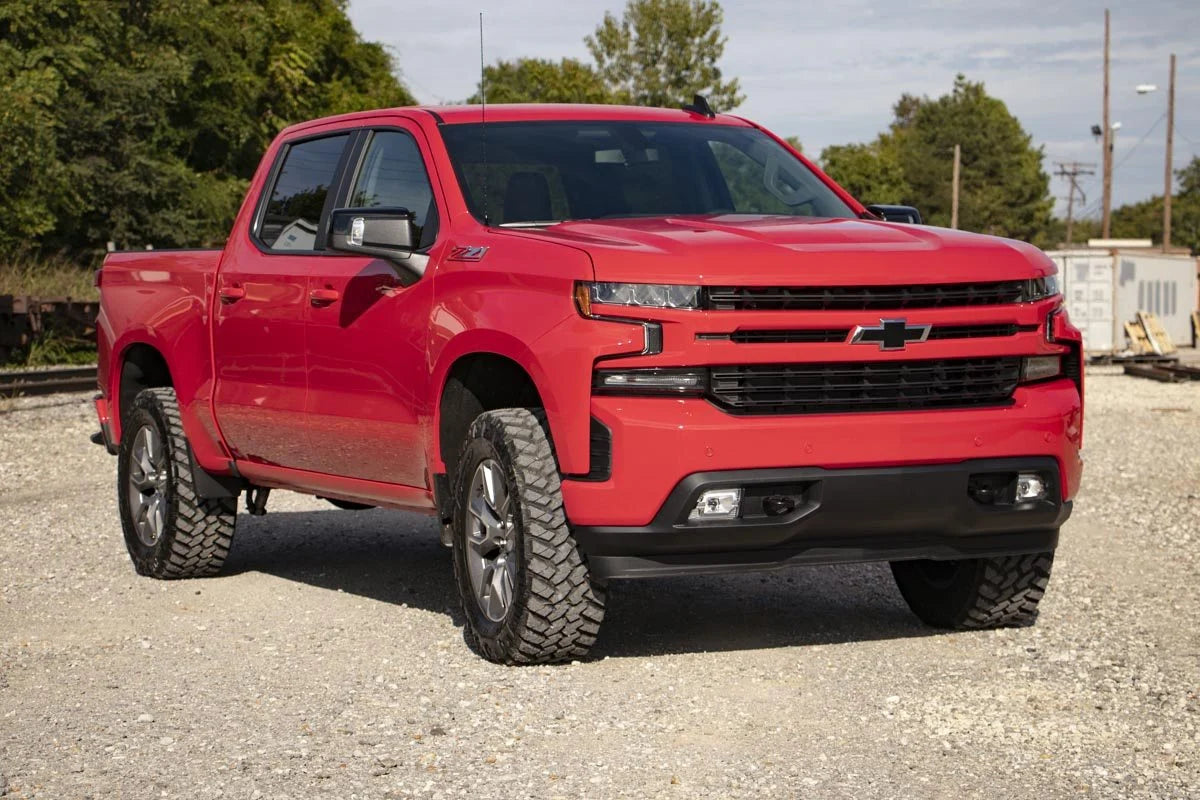

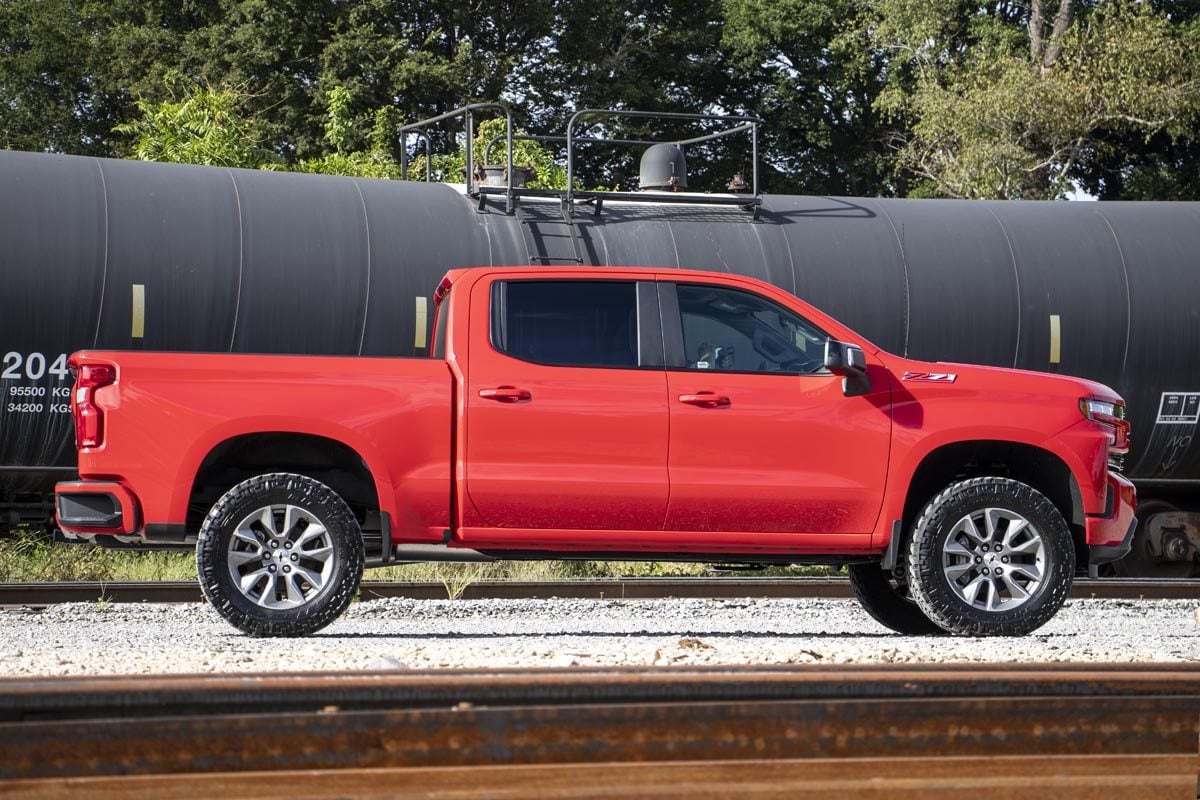

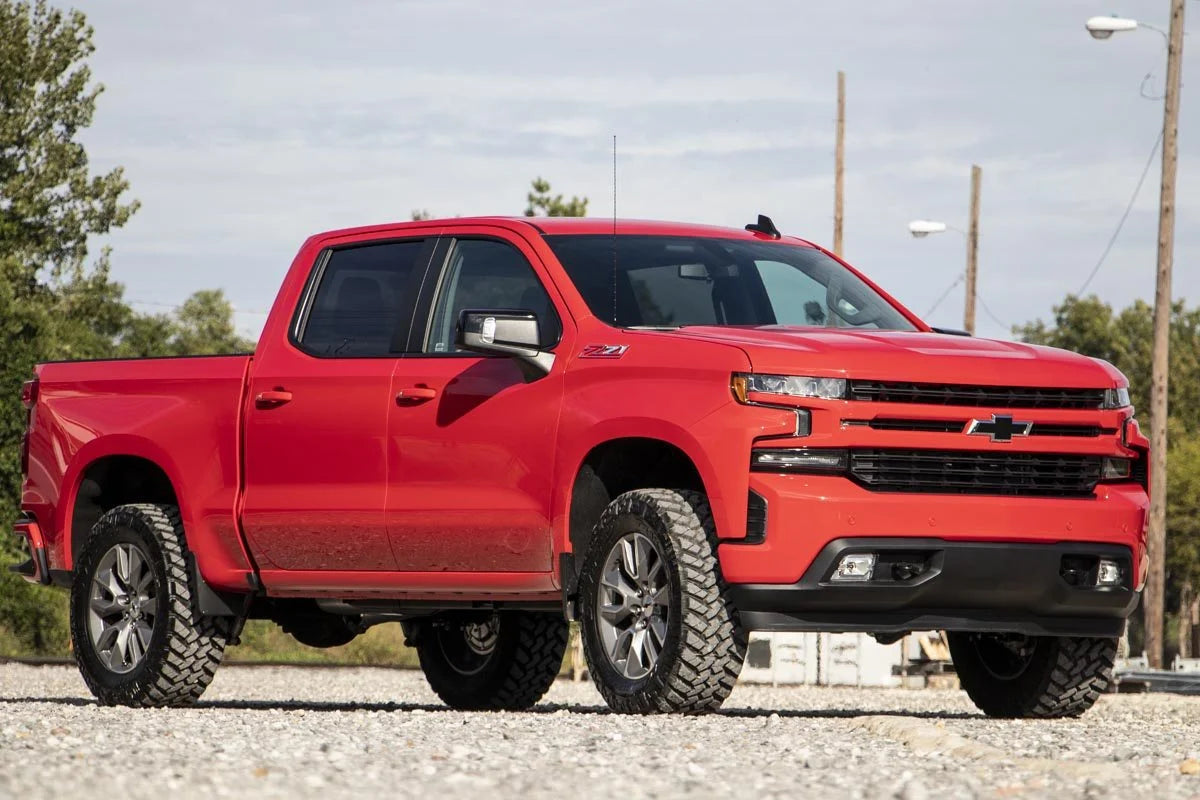

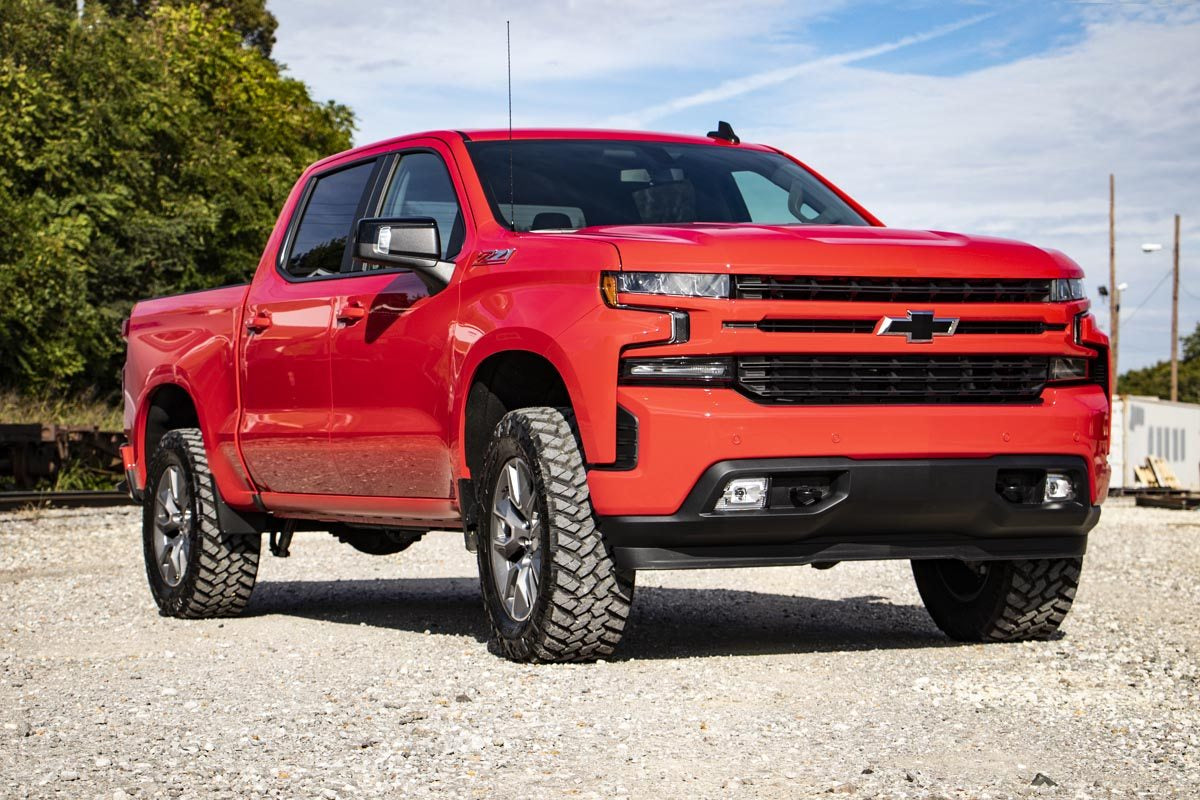

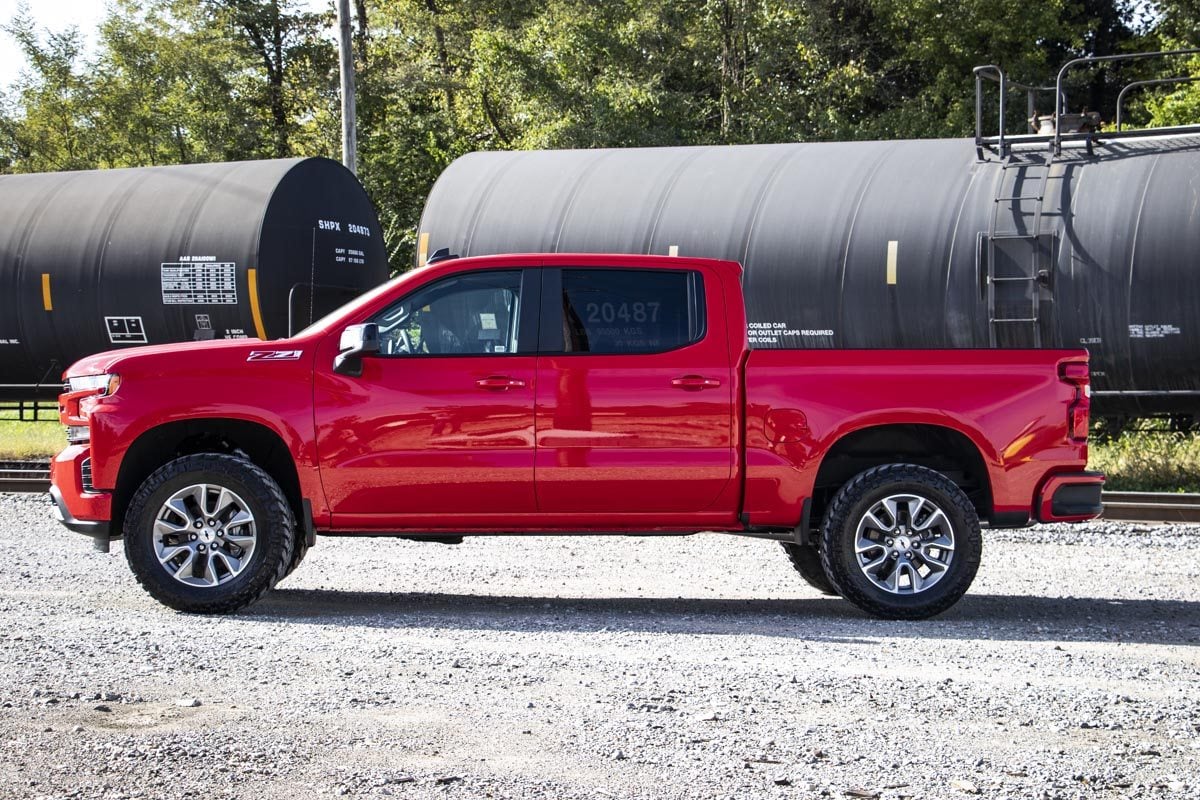

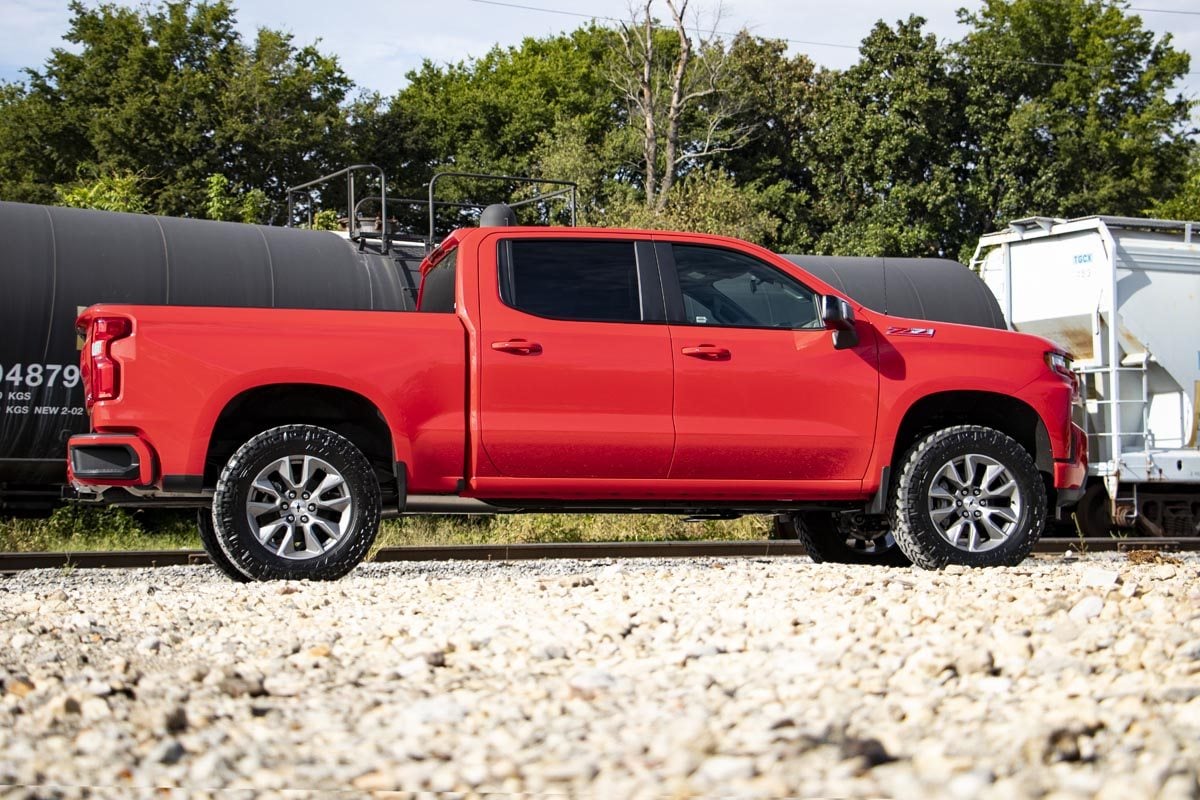

This perfect-height lift is a great choice for anyone who wants more than a simple level but doesn’t quite want the full height of a 6-inch option. This kit lifts and levels the front of the vehicle with the rear, offering enough increased ground clearance to run up to 295/55R20 tires with an improved, aggressive look.
This kit includes Rough Country's premium N3 shocks! These 10-stage variable valving, high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod and faster-cooling 54mm shock body, this shock offers up to 36kN Tensile Strength for a long lifespan of impressive vibration dampening. Features natural rubber bushings and an eye-catching metallic silver paint.
This kit also features upgraded ball joints that are easy to install and maintenance free. These POM ball joints offer a greater range of motion for more wheel articulation than standard or OE replacements and feature a Polyoxymethylene ball race with an extremely low coefficient of friction for longer life, and a larger ball diameter to improve range of motion with a maintenance free design. Includes a Lifetime Replacement Guarantee!
FEATURES
- Lifts and levels front of vehicle with rear.
- Front Lift: 3.5in.
- Rear Lift: 2in.
- Increased ground clearance.
- Includes forged aluminum control arms.
- Control arms include POM ball joints for greater range of motion and easier installation.
- Ball joints are pre-installed to ease installation.
OPTIONAL VERTEX COILOVERS
OPTIONAL V2 MONOTUBE SHOCKS
OPTIONAL N3 SHOCKS

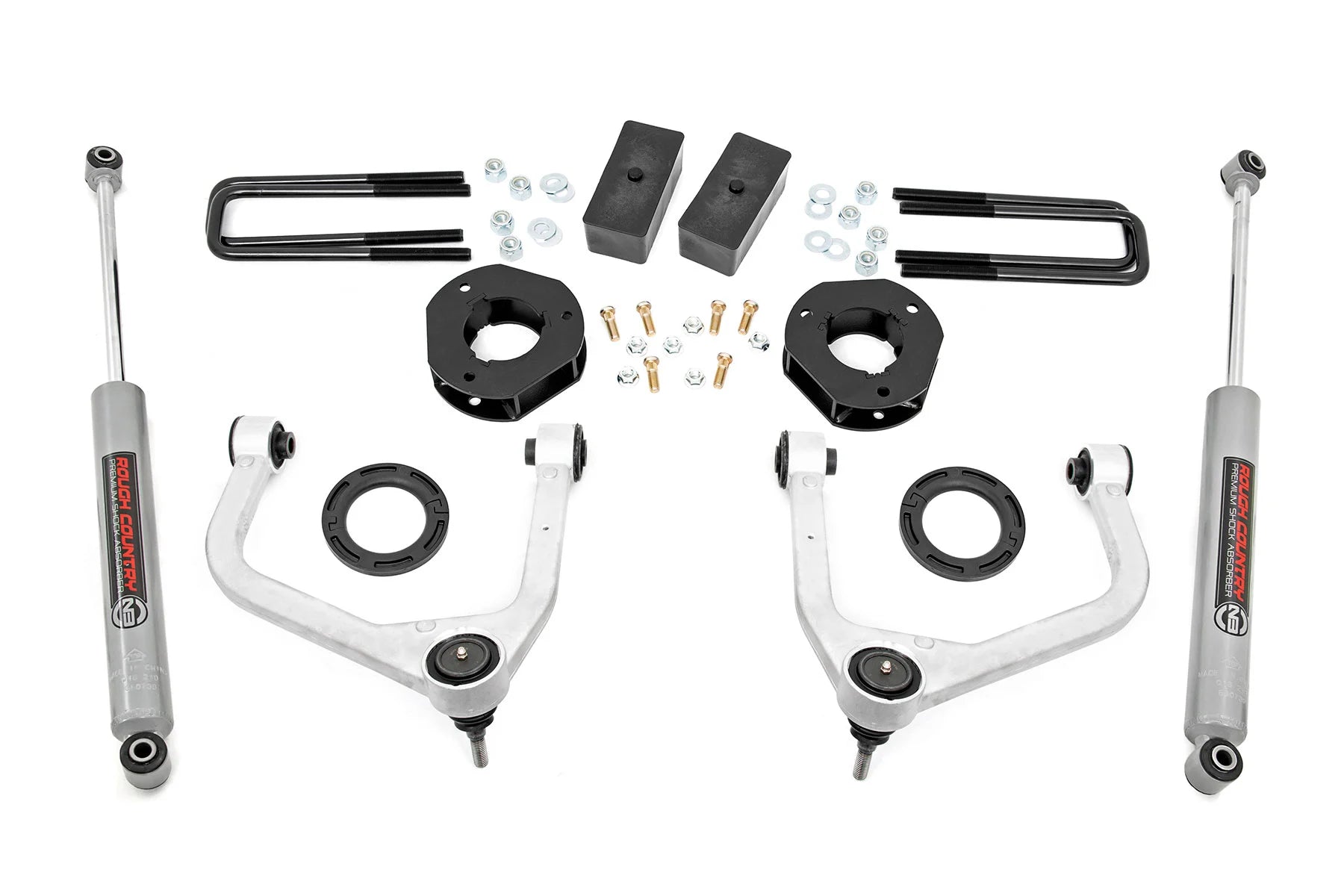

IN THE BOX
- Strut Spacers
- Forged Aluminum Upper Control Arms
- Upper POM Ball Joints
- Hardware
- 2in Fabricated Lift Blocks
- U-bolts
- Hardware
- (2) Rear Premium N3 Series
INSTRUCTIONS
- Est. Install Time: 5-6 hours
- Instruction Sheet - Kit Installation
- Instruction Sheet - Optional Strut Installation
- Instruction Sheet - Optional Front Vertex Installation
- Instruction Sheet - Optional Rear Vertex Installation
VEHICLE FITMENT
2019-2024 2WD GMC Sierra 1500
2019-2024 4WD GMC Sierra 1500
ALWAYS read all product page details for more important fitment information
RECOMMENDED TIRES & WHEELS
TIRE WHEEL BOLT PATTERN OFFSET NOTE
295/55R20 Factory 20 6x5.5 - -
285/60R20 Factory 20 6x5.5 - -
32x11.50R17 17x8.5 6x5.5 +30 -
33x12.50R17 17x9 6x5.5 -12 Minor Trimming
295/70R17 17x9 6x5.5 -12 -
285/70R17 17x9 6x5.5 -12 -
33x12.50R18 18x9 6x5.5 -12 -
305/60R18 18x9 6x5.5 -12 -
285/65R18 18x9 6x5.5 -12 -
33x12.50R20 20x9 6x5.5 -12 Minor Trimming
305/55R20 20x9 6x5.5 -12 Minor Trimming
295/60R20 20x9 6x5.5 -12 Trimming Required
295/55R20 20x9 6x5.5 -12 -
285/55R20 20x9 6x5.5 -12 -
33x12.50R20 20x10 6x5.5 -25 Trimming Required
305/55R20 20x10 6x5.5 -25 Trimming Required
295/55R20 20x10 6x5.5 -25 -
285/55R20 20x10 6x5.5 -25 Minor Trimming
33x12.50R22 22x10 6x5.5 -25 Trimming Required
305/45R22 22x10 6x5.5 -25 -
Due to differences in manufacturing, dimension and inflated measurements, tire and wheel combinations should be test fit prior to installation
