Rough Country

3.5 INCH LIFT KIT FORD BRONCO 4WD (2021-2024)

$599.95 USD

Sale Sold out

Quantity

SKU:51027

OVERVIEW

Improved Ground Clearance and Ride Quality. The Ford Bronco is back and better than ever! Rough Country has hit the ground running to give your 2021-up Ford Bronco an improved, aggressive stance with a 3.5-inch lift kit! This suspension kit provides everything needed to lift your vehicle, giving you increased ground clearance to run larger tires while reducing the nose-down factory look for a commanding presence.

Innovative Design and Construction. This suspension kit combines the use of aluminum upper control arms and differential spacers to reduce cv angles and ball joint angles. Featuring a set of upper strut spacers that offer uncompromised strength and rigidity gaining lift height is no issue. Completing the rear of this suspension kit included is a rear track bar and brake line relocation that allows you to retain factory-like geometry. This combined setup provides enough clearance to run 35" tires without additional modifications.

Installation. With minor cutting and strut compressor required to install, an estimated timeframe of 3-5 hours this full kit can be installed at home and can be completed efficiently and quickly!

Lifetime Replacement Warranty. Rough Country's 3.5" Suspension Lift Kit is backed with a lifetime replacement warranty towards manufacturer defects. As such, the product is protected from structural and workmanship damage after the date of purchase. With our industry-leading warranty give yourself peace of mind when using Rough Country's Suspension products!

FEATURES

Aluminum control arms.
Greaseable high-angle ball joints.
Easy bolt-on installation.
Maintains factory ride quality.
Increased ground clearance.
Upper control arms improve ball joint angle and correct suspension geometry.

NOTES - IMPORTANT

Spacer kit 51027 does NOT fit Badlands, Wildtrack, Raptor or First Edition models.
Spacer kit 51027 does NOT fit models equipped with Sasquatch Package.
Spacer kit 51027 does NOT fit models equipped with HOSS 3.0 or 4.0 suspension system.
Vertex/M1R kit does fit Badlands, Wildtrack, and First Edition models.
VVertex/M1R kit does fit models equipped with Sasquatch Package but will only provide 1.5-2.5" of lift.

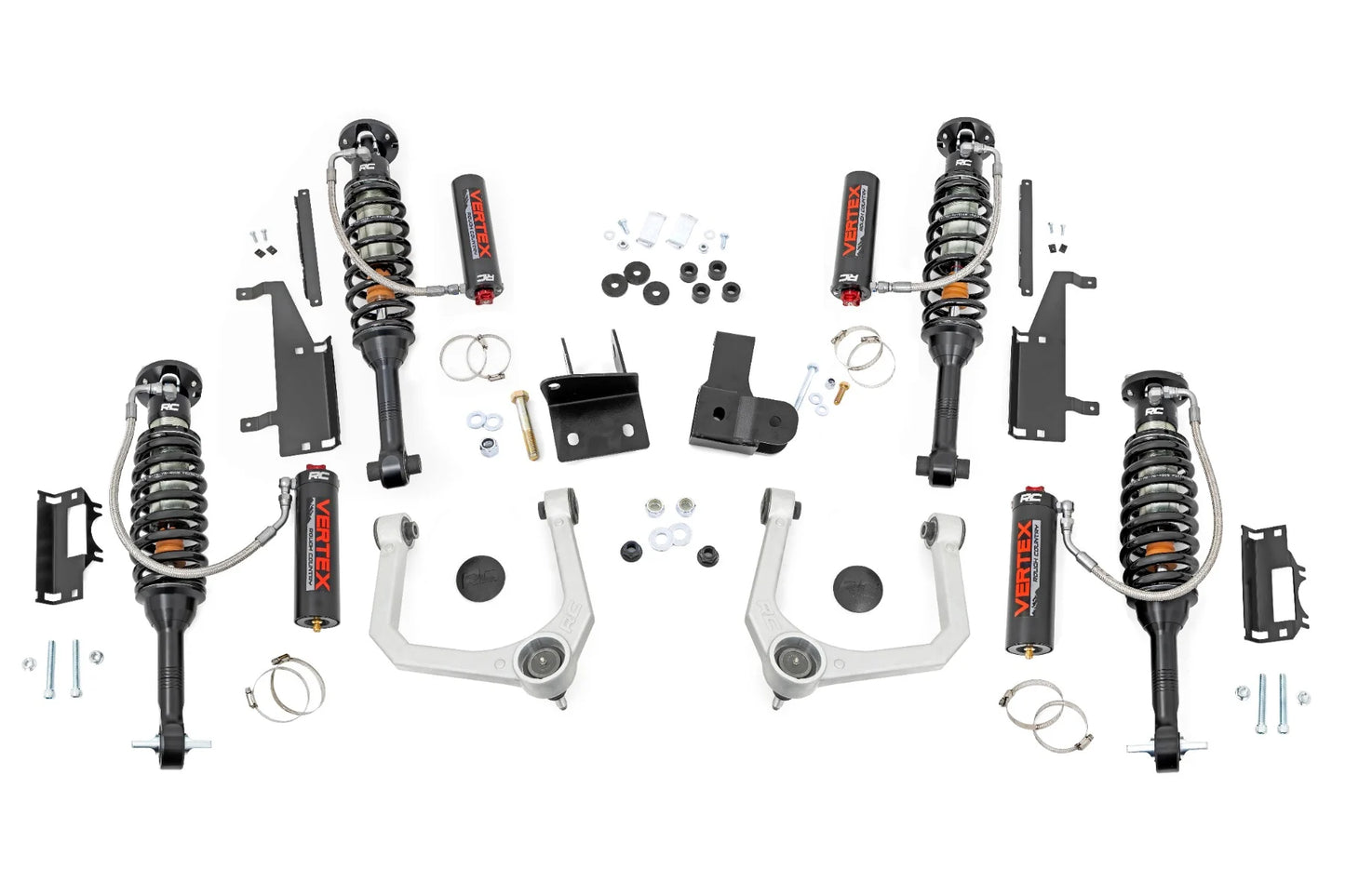

IN THE BOX

FRONT

(2)Upper Control Arms
(2) Upper Strut Spacers
Pre-Load Spacers
Differential Drops
Hardware

REAR

(2) Upper Strut Spacers
Track Bar Bracket
Brake Line Relocation Bracket
Hardware

INSTRUCTIONS

Est. Install Time: 3-5 hours
Instruction Sheet - Kit Installation
Instruction Sheet - Optional Front Vertex Installation
Instruction Sheet - Optional Rear Vertex Installation

VEHICLE FITMENT

YEARS DRIVE MAKE MODEL
2021-2023 4WD Ford Bronco
ALWAYS read all product page details for more important fitment information

RECOMMENDED TIRES & WHEELS

TIRE WHEEL BOLT PATTERN OFFSET NOTE
305/70R17 17x8.5 6x5.5 -12 -
285/75R17 17x8.5 6x5.5 -12 -
35x12.50R17 17x8.5 6x5.5 +0 -
305/70R17 17x8.5 6x5.5 +0 -
35x12.50R17 17x8.5 6x5.5 +1 -
305/70R17 17x8.5 6x5.5 +1 -
315/70R17 17x9 6x5.5 -19 -
305/70R17 17x9 6x5.5 -19 -
285/75R17 17x9 6x5.5 -19 -
315/70R17 17x9 6x5.5 -18 -
305/70R17 17x9 6x5.5 -18 -
285/75R17 17x9 6x5.5 -18 -
35x12.50R17 17x9 6x5.5 -12 -
305/70R17 17x9 6x5.5 -12 -
35x12.50R17 17x9 6x5.5 +0 -
305/70R17 17x9 6x5.5 +0 -
35x12.50R17 17x9 6x5.5 +1 -
305/70R17 17x9 6x5.5 +1 -
35x12.50R17 17x9 6x5.5 +18 -
305/70R17 17x9 6x5.5 +18 -
35x12.50R17 17x9 6x5.5 +20 -
305/70R17 17x9 6x5.5 +20 -
35x12.50R18 18x8.5 6x5.5 -12 -
295/70R18 18x8.5 6x5.5 -12 -
35x12.50R18 18x8.5 6x5.5 +0 -
305/65R18 18x8.5 6x5.5 +0 -
295/70R18 18x8.5 6x5.5 +0 -
285/75R18 18x8.5 6x5.5 +0 -
285/70R18 18x8.5 6x5.5 +0 -
35x12.50R18 18x8.5 6x5.5 +1 -
305/65R18 18x8.5 6x5.5 +1 -
295/70R18 18x8.5 6x5.5 +1 -
285/75R18 18x8.5 6x5.5 +1 -
285/70R18 18x8.5 6x5.5 +1 -
35x12.50R18 18x9 6x5.5 -12 -
305/65R18 18x9 6x5.5 -12 -
295/70R18 18x9 6x5.5 -12 -
35x12.50R18 18x9 6x5.5 +0 -
305/65R18 18x9 6x5.5 +0 -
295/70R18 18x9 6x5.5 +0 -
35x12.50R18 18x9 6x5.5 +1 -
305/65R18 18x9 6x5.5 +1 -
295/70R18 18x9 6x5.5 +1 -
35x12.50R18 18x9 6x5.5 +18 -
305/65R18 18x9 6x5.5 +18 -
295/70R18 18x9 6x5.5 +18 -
35x12.50R18 18x9 6x5.5 +20 -
305/65R18 18x9 6x5.5 +20 -
295/70R18 18x9 6x5.5 +20 -
295/70R18 18x10 6x5.5 -25 -
295/70R18 18x10 6x5.5 -19 -
295/70R18 18x10 6x5.5 -18 -
35x12.50R20 20x9 6x5.5 -12 -
295/60R20 20x9 6x5.5 -12 -
285/60R20 20x9 6x5.5 -12 -
35x12.50R20 20x9 6x5.5 +0 -
295/60R20 20x9 6x5.5 +0 -
285/60R20 20x9 6x5.5 +0 -
35x12.50R20 20x9 6x5.5 +1 -
295/60R20 20x9 6x5.5 +1 -
285/60R20 20x9 6x5.5 +1 -
35x12.50R20 20x9 6x5.5 +18 -
295/60R20 20x9 6x5.5 +18 -
285/60R20 20x9 6x5.5 +18 -
35x12.50R20 20x9 6x5.5 +20 -
295/60R20 20x9 6x5.5 +20 -
285/60R20 20x9 6x5.5 +20 -
35x12.50R20 20x10 6x5.5 -25 Minor Trimming
295/60R20 20x10 6x5.5 -25 Minor Trimming
285/60R20 20x10 6x5.5 -25 -
35x12.50R20 20x10 6x5.5 -19 Minor Trimming
295/60R20 20x10 6x5.5 -19 Minor Trimming
285/60R20 20x10 6x5.5 -19 -
35x12.50R20 20x10 6x5.5 -18 Minor Trimming
295/60R20 20x10 6x5.5 -18 Minor Trimming
285/60R20 20x10 6x5.5 -18 -
35x12.50R22 22x10 6x5.5 -25 Minor Trimming
285/55R22 22x10 6x5.5 -25 -
35x12.50R22 22x10 6x5.5 -19 Minor Trimming
285/55R22 22x10 6x5.5 -19 -
35x12.50R22 22x10 6x5.5 -18 Minor Trimming
285/55R22 22x10 6x5.5 -18 -
Due to differences in manufacturing, dimension and inflated measurements, tire and wheel combinations should be test fit prior to installation
