3.5 INCH LIFT KIT CHEVY/GMC 2500HD/3500HD (11-19)
3.5 INCH LIFT KIT CHEVY/GMC 2500HD/3500HD (11-19)
SKU:95920
Couldn't load pickup availability
Share
OVERVIEW
This kit features a set of high-quality, Forged Aluminum Upper Control Arms with a reinforced gusset plate and durable rubber bushings. These arms are designed to promote a factory-like geometry by keeping the ball joint at optimum angles after lifting. This design allows for an improved, full range of motion from the ball-joint, with less stress, wear and tear.

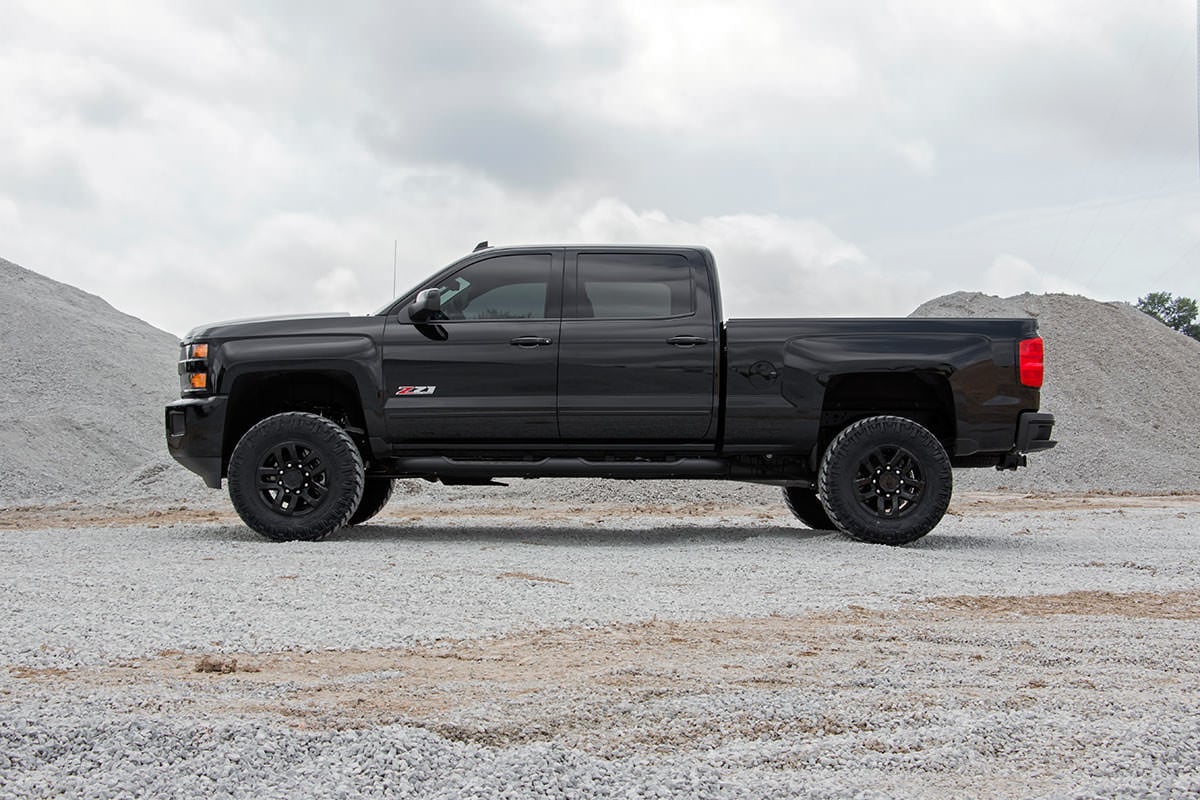

This kit also features a set of durable, forged torsion bar keys, offering uncompromising strength and rigidity over factory keys. A set of front and rear N3 Nitrogen-charged shocks are also included in the kit, giving your truck incredible ride-quality both on and off-road. Once installed, this kit gives your truck plenty of ride height for up to 33in tires while offering a clean, level look from front to rear.
This all-inclusive kit comes with everything you need, and installation is a piece of cake compared to other kits on the market! Featuring a 100% bolt-on installation process that requires zero cutting or drilling, this kit can be installed using common tools in a home garage, and allows the truck to be returned to stock at any time if so desired. Best of all this kit features Rough Country’s Lifetime Replacement Warranty.
FEATURES
- Easy bolt-on installation
- No cutting
NOTES - IMPORTANT
- Does NOT fit models with rear overload springs
- Does NOT fit models with Magnetic Ride Control.
- Does NOT fit Dually models

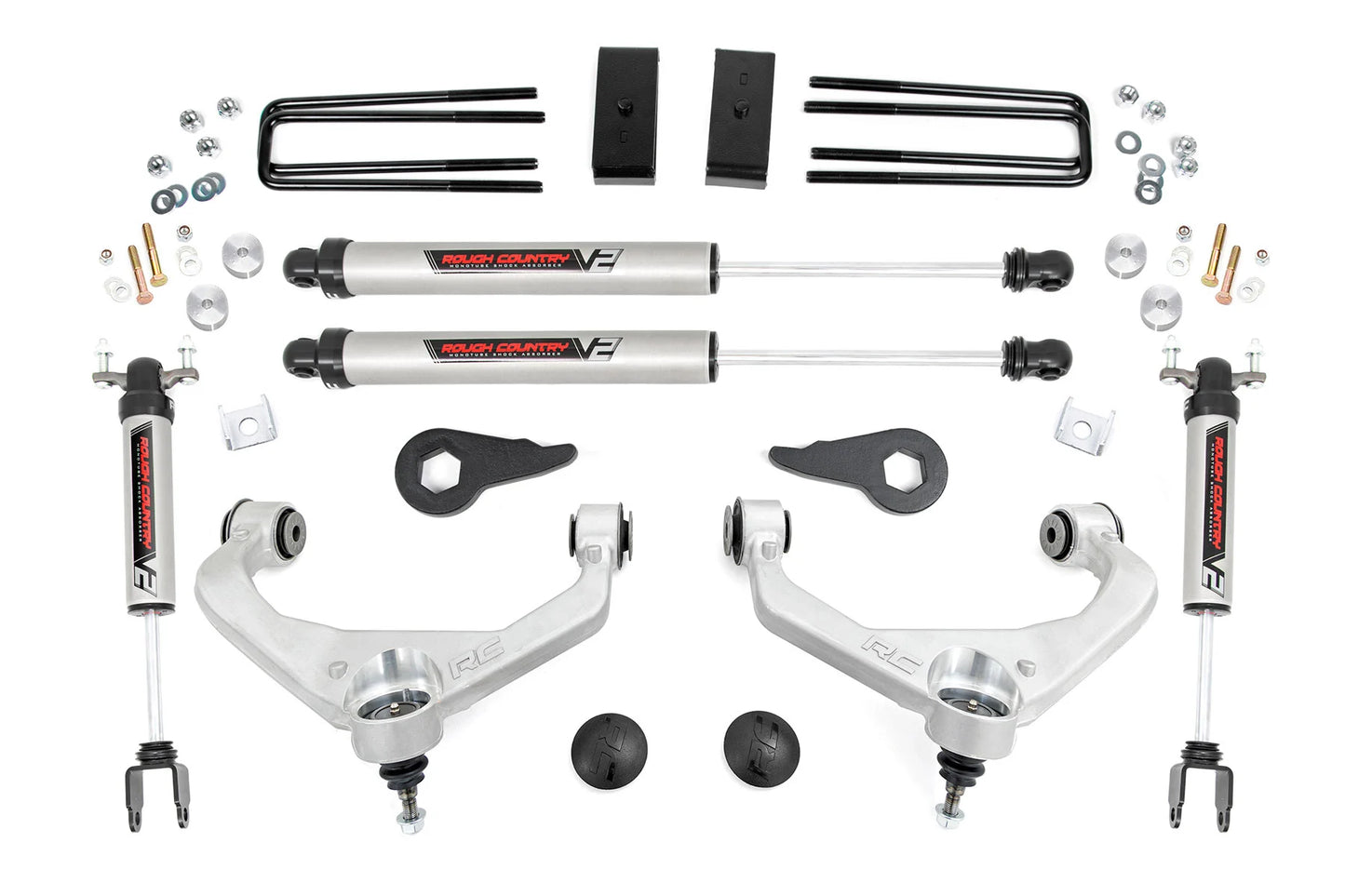

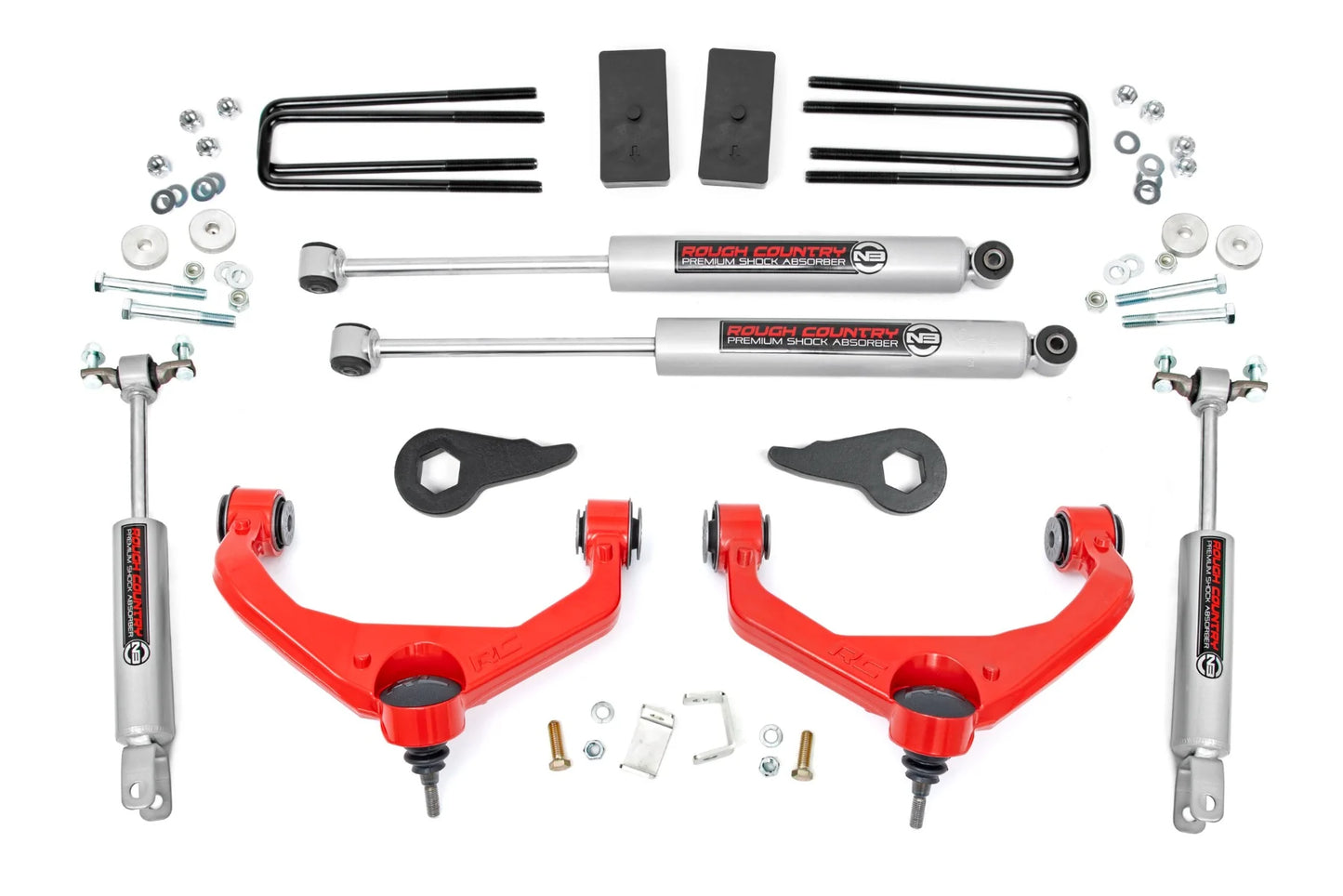

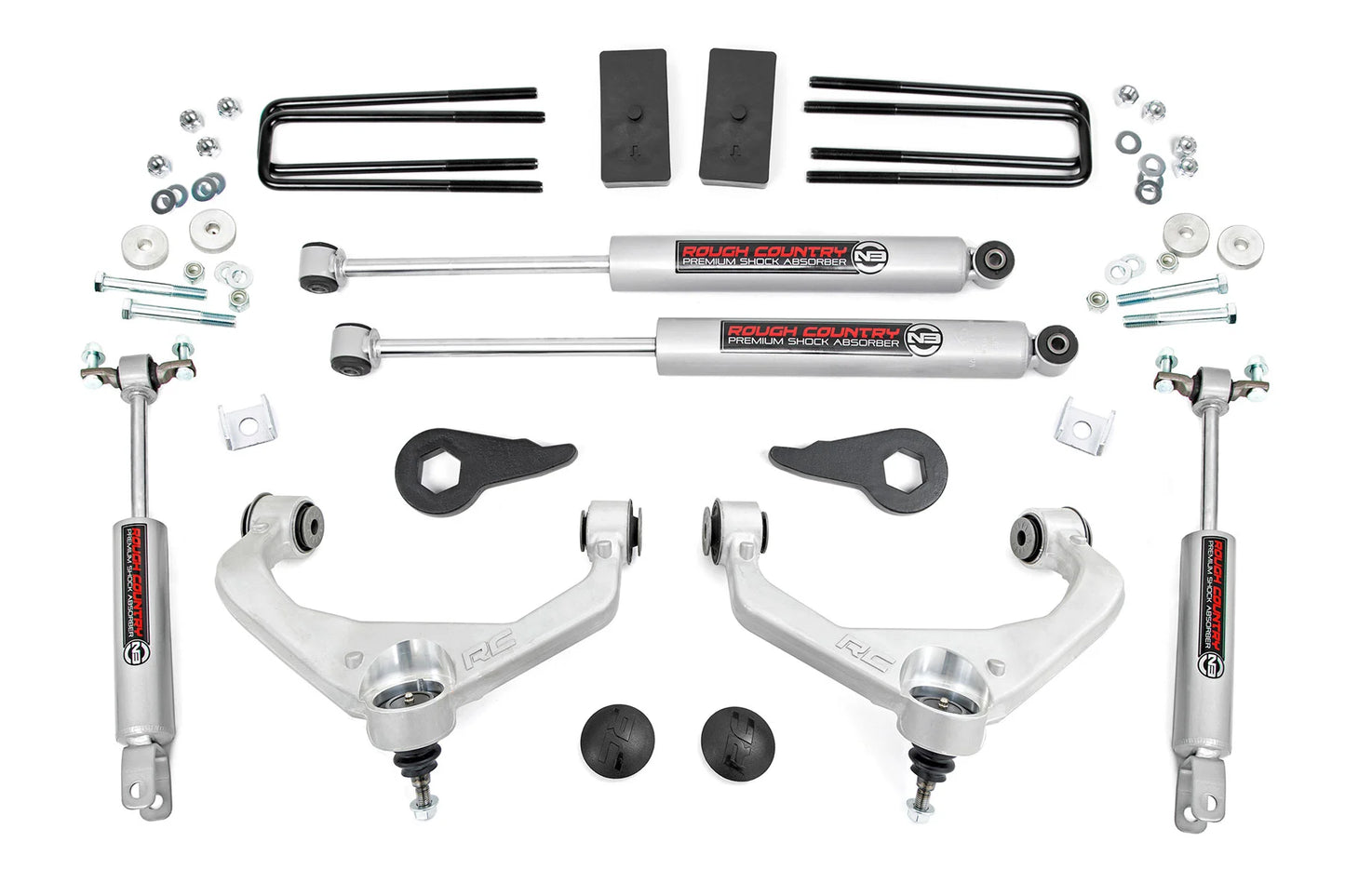

IN THE BOX
- Forged torsion bar adjuster keys
- Upper control arms
- Differential spacers
- Lift Blocks
- U-bolts
- Hardware
- (4) Premium N3 Shocks
INSTRUCTIONS
- Est. Install Time: 3-4 hours
- Instruction Sheet - Kit Installation

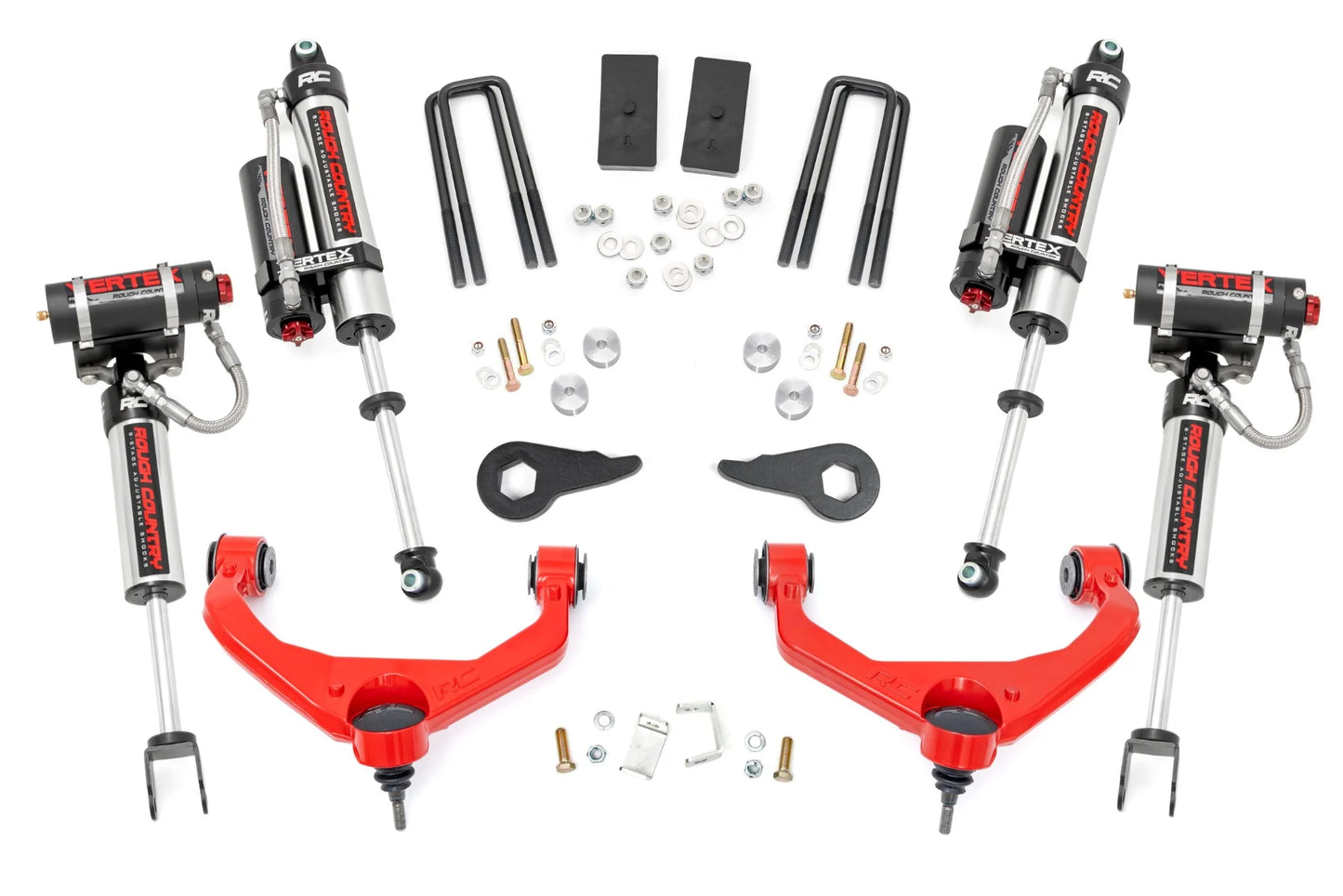

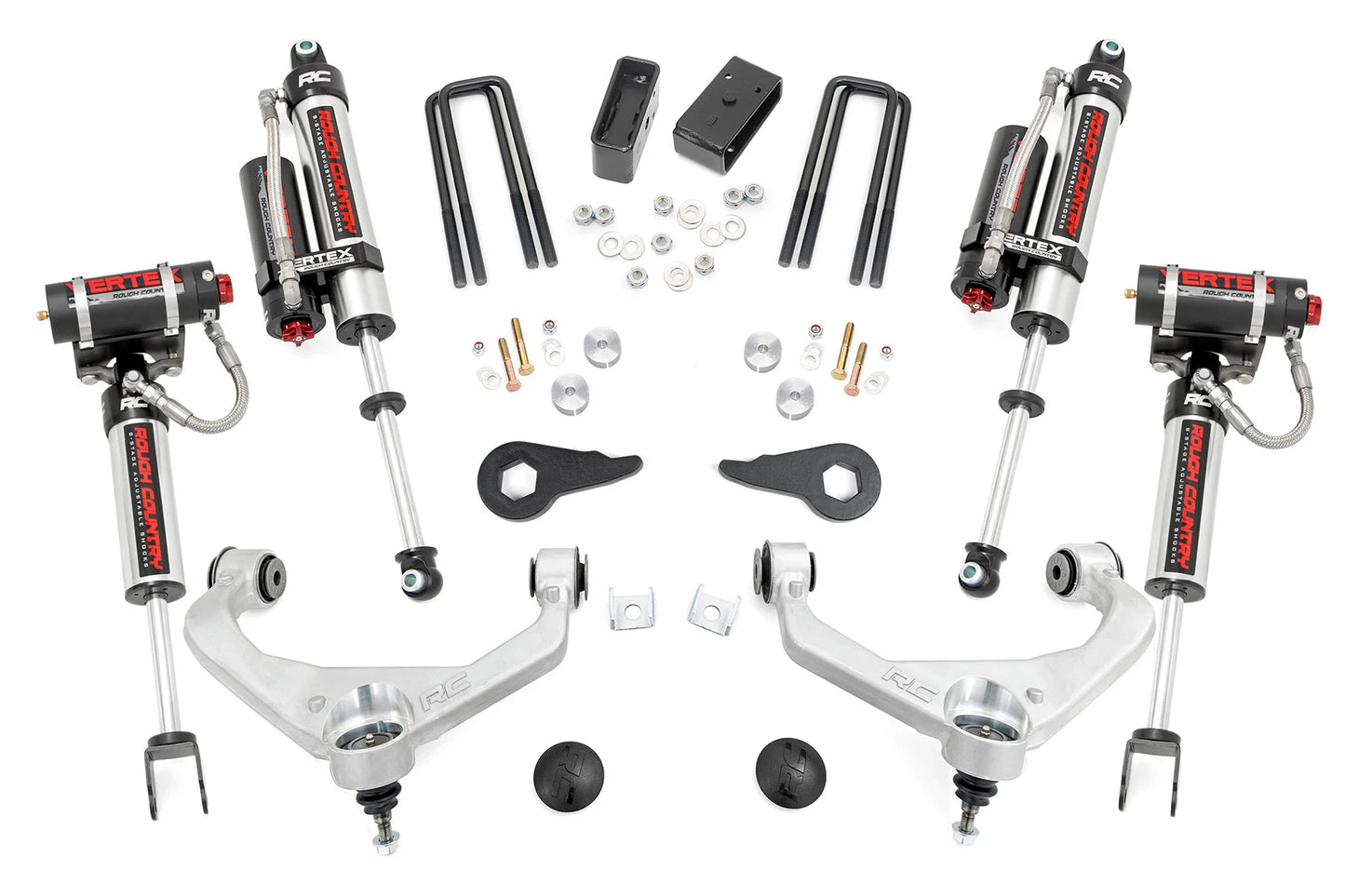

- Instruction Sheet - Optional Front Vertex Installation
- Instruction Sheet - Optional Rear Vertex Installation
VEHICLE FITMENT
2011-2019 2WD GMC Sierra 2500 HD
2011-2019 4WD GMC Sierra 3500 HD
2011-2019 4WD Chevy Silverado 2500 HD
2011-2019 4WD Chevy Silverado 3500 HD
2011-2019 2WD Chevy Silverado 3500 HD
2011-2019 2WD GMC Sierra 3500 HD
2011-2019 2WD Chevy Silverado 2500 HD
2011-2019 4WD GMC Sierra 2500 HD
ALWAYS read all product page details for more important fitment information
RECOMMENDED TIRES & WHEELS
TIRE WHEEL BOLT PATTERN OFFSET NOTE
295/70R18 Factory 18 8x180 - -
295/60R20 Factory 20 8x180 - -
33x12.50R17 17x8.5 8x180 +0 -
33x12.50R17 17x8.5 8x180 +1 -
33x12.50R18 18x8.5 8x180 +0 -
33x12.50R18 18x8.5 8x180 +1 -
33x12.50R18 18x9 8x180 +0 -
33x12.50R18 18x9 8x180 +1 -
33x12.50R18 18x9 8x180 +18 -
33x12.50R18 18x9 8x180 +20 -
33x12.50R20 20x9 8x180 +0 -
305/55R20 20x9 8x180 +0 -
295/60R20 20x9 8x180 +0 Minor Trimming
295/55R20 20x9 8x180 +0 -
285/55R20 20x9 8x180 +0 -
33x12.50R20 20x9 8x180 +1 Minor Trimming
305/55R20 20x9 8x180 +1 -
295/60R20 20x9 8x180 +1 Minor Trimming
295/55R20 20x9 8x180 +1 -
285/55R20 20x9 8x180 +1 Minor Trimming
305/55R20 20x9 8x180 +18 -
305/55R20 20x9 8x180 +20 -
33x12.50R20 20x10 8x180 -19 Minor Trimming
305/55R20 20x10 8x180 -19 Minor Trimming
295/60R20 20x10 8x180 -19 Trimming Required
295/55R20 20x10 8x180 -19 -
285/55R20 20x10 8x180 -19 Minor Trimming
33x12.50R20 20x10 8x180 -18 Minor Trimming
305/55R20 20x10 8x180 -18 Minor Trimming
295/60R20 20x10 8x180 -18 Trimming Required
295/55R20 20x10 8x180 -18 -
285/55R20 20x10 8x180 -18 Minor Trimming
33x12.50R20 20x12 8x180 -44 Trimming Required
305/55R20 20x12 8x180 -44 Trimming Required
285/55R20 20x12 8x180 -44 Trimming Required
33x12.50R22 22x10 8x180 -19 Minor Trimming
305/45R22 22x10 8x180 -19 -
295/50R22 22x10 8x180 -19 Minor Trimming
33x12.50R22 22x10 8x180 -18 Minor Trimming
305/45R22 22x10 8x180 -18 -
295/50R22 22x10 8x180 -18 Minor Trimming
33x12.50R22 22x12 8x180 -44 Trimming Required
285/45R22 22x12 8x180 -44 Trimming Required
Due to differences in manufacturing, dimension and inflated measurements, tire and wheel combinations should be test fit prior to installation
