3.25 INCH LIFT KIT COMBO | CHEVY/GMC CANYON/COLORADO 2WD/4WD (2015-2022)

OVERVIEW

Rough Country’s Canyon/Colorado 3.25-inch Combo Kit gives you the best of both worlds, featuring our popular 2-inch Leveling Kit and our 1.25-inch Body Lift for significant ground clearance in an easy-to-install package that preserves the factory look and feel.

Gain enough ride height to run up to 265/70 R17 tires with this blend of two different Rough Country kits! This easy-to-install kit offers a big boost in ground clearance while retaining the factory look and feel. Each kit includes a bumper relocation system to ensure the bumper and body sit flush after lifting – further preserving the nicer parts of the factory design.

A set of fiberglass reinforced nylon body pucks provide superior strength and durability, with a large surface area for maximum contact. This kit includes a set of durable upper strut and pre-load spacers, and comes backed by Rough Country’s Lifetime Replacement Guarantee and Warranty Guard New Model Protection.

FEATURES

• Maintains factory ride quality
• Increased ground clearance
• Works with factory wheels
• Levels the front of the vehicle with the rear
• Body lift includes front and rear bumper brackets
• Body lift pucks are made from fiberglass reinforced nylon for superior strength and durability
• Body lift features 10.9 grade body mount bolts
• Body lift hardware is zinc coated to protect against the elements

NOTES - IMPORTANT

• Does NOT fit models with Duramax diesel engine
• Does NOT fit ZR2 models
• Requires drilling
• If offset wheels are used, trimming may be required
• If installing aftermarket wheels or wheel spacers, it is highly recommended they be hub-centric
• Rear bumper brackets are to enhance appearance only, bumper cannot be used for towing
• If equipped with factory fender flares - Front flares must be removed to install the front bumper brackets. To reinstall, new double sided tape is required.

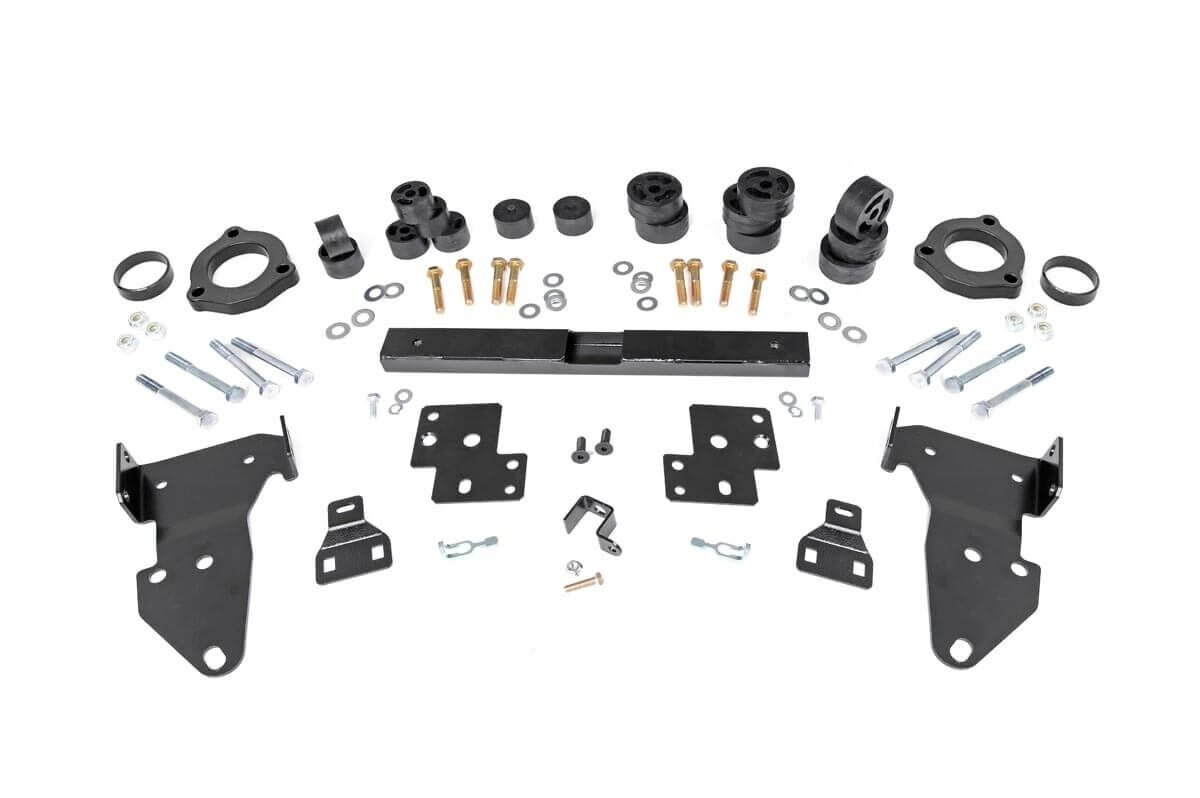

IN THE BOX

FRONT

• (2) Upper strut spacers
• (2) Pre-load spacers
• Hardware

INSTRUCTIONS

• Est. Install Time: 5-6 hours
• View Instruction Sheet

VEHICLE FITMENT

YEARS DRIVE MAKE MODEL
2015-2022 4WD Chevy Colorado
2015-2022 2WD GMC Canyon
2015-2022 2WD Chevy Colorado
2015-2022 4WD GMC Canyon
ALWAYS read all product page details for more important fitment information

RECOMMENDED TIRES & WHEELS

TIRE WHEEL BOLT PATTERN OFFSET NOTE
265/70R17 Factory 17 6x120 - -
265/65R17 17x9 6x120 +18 -
265/65R17 17x9 6x120 +20 -
265/60R18 18x9 6x120 +18 -
265/60R18 18x9 6x120 +20 -
265/50R20 20x9 6x120 +18 -
265/50R20 20x9 6x120 +20 -
Due to differences in manufacturing, dimension and inflated measurements, tire and wheel combinations should be test fit prior to installation
