1.75 INCH LEVELING KIT FORGED ALUM UCA | AT4 | GMC SIERRA 1500 4WD (19-25)
1.75 INCH LEVELING KIT FORGED ALUM UCA | AT4 | GMC SIERRA 1500 4WD (19-25)
SKU:1325
Couldn't load pickup availability
Share
OVERVIEW
The Easy Way to a Leveled Stance. Take your Sierra 1500 to new heights and add a more aggressive appearance with Rough Country's 1.75-inch Leveling Kit. From the factory, the GMC Sierra AT4 sits lower in the front than the rear, creating a nose-down look that leaves a lot to be desired. This leveling kit is the easiest way to lift the front of your ride 1.75 inches, providing a leveled look and additional clearance for larger tires, while maintaining factory ride quality.
Innovative Design and Construction. The Rough Country's 1.75" leveling kit includes two front pre-load strut spacers constructed from a proprietary composite material that is lightweight, durable, and 100% corrosion-resistant. Our kit includes upper control arms for improved ball joint angles and promotes better CV angles for off-road driving.
Easy Installation. With no cutting or drilling required, this easy bolt-on installation takes approximately 2-3 hours to complete.
Limited Lifetime Replacement Warranty. Rough Country's 1.75" Leveling Kit is backed with a limited lifetime replacement warranty towards manufacturer defects. As such, the product is protected from structural and workmanship damage after the date of purchase. With our industry-leading warranty give yourself peace of mind when using Rough Country's Suspension products!
FEATURES
- Maintains factory ride quality.
- Increased ground clearance.
- Levels the front with the rear of the vehicle.
- Includes upper control arms for improved ball joint angles.
- Made of forged aluminum for unsurpassed strength and durability.
- No welding weak spots.
- Includes POM ball joints for a greater range of motion and easier installation.
- Ball joints are fully greaseable.
- Includes Clevite brand OEM-style rubber bushings.
NOTES - IMPORTANT
- ONLY fits GMC AT4 models.
- Does NOT fit models equipped with Multimatic DSSV suspension. (AT4X)
- Does NOT fit Chevy Trailboss models.

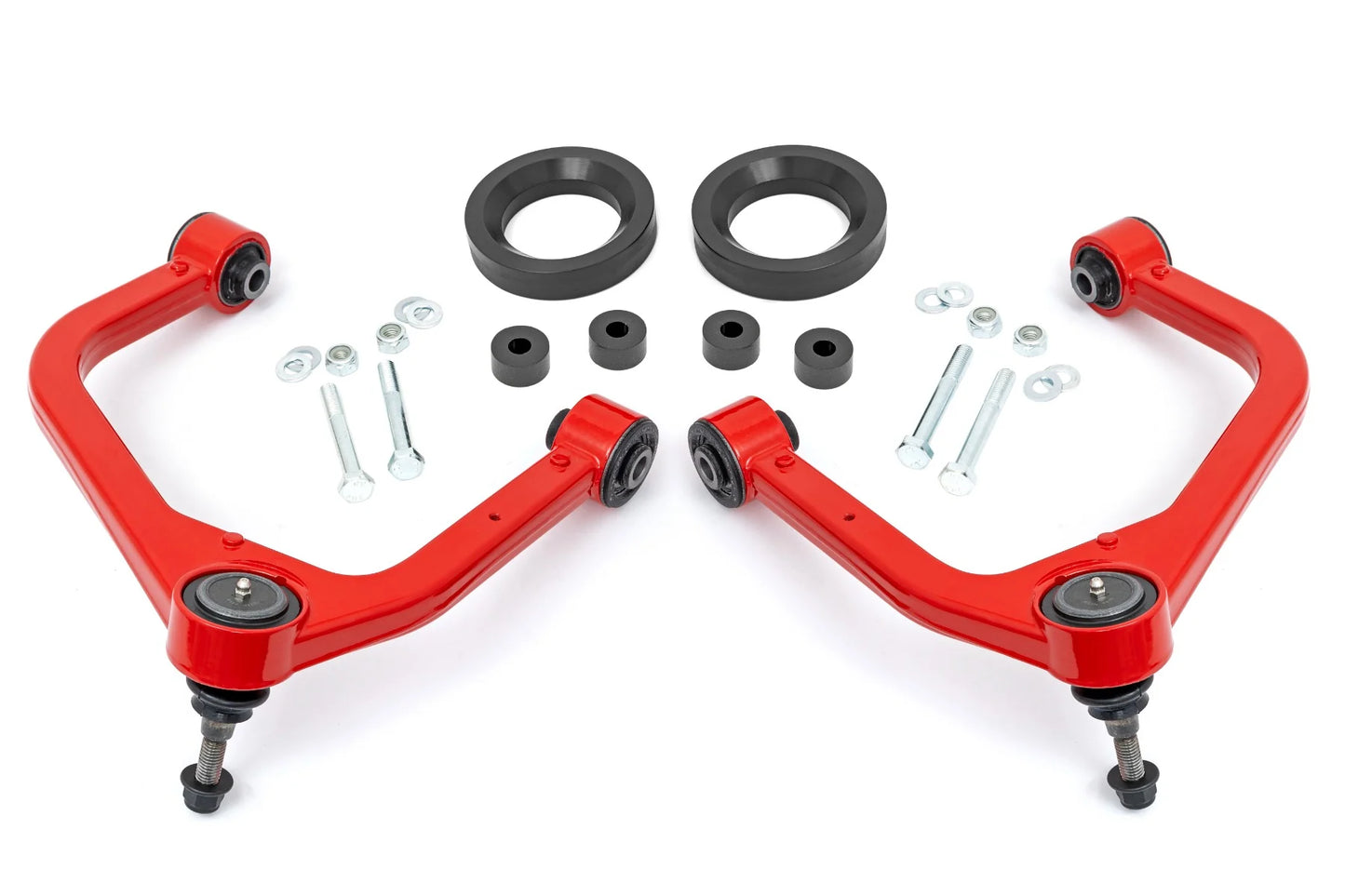

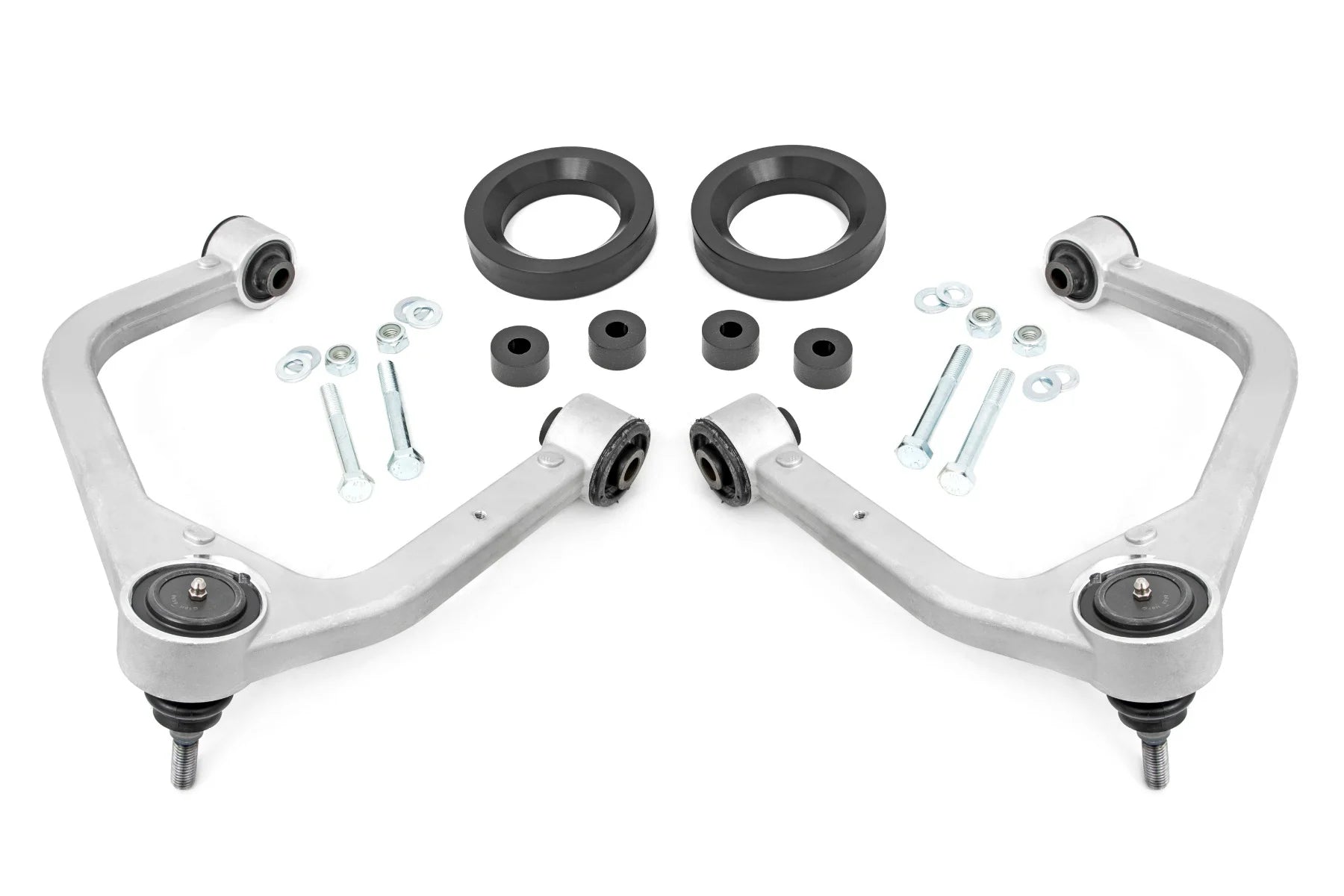

IN THE BOX
- (2) Pre-load Spacers
- (2) Upper Forged Control Arms
- (2) Lower Strut Spacers
- Hardware
INSTRUCTIONS
- Est. Install Time: 2-3 hours
- View Instruction S
VEHICLE FITMENT
YEARS DRIVE MAKE MODEL
2019-2024 4WD GMC Sierra 1500
ALWAYS read all product page details for more important fitment information
RECOMMENDED TIRES & WHEELS
TIRE WHEEL BOLT PATTERN OFFSET NOTE
275/65R20 Factory 20 6x5.5 - -
305/65R18 18x9 6x5.5 +0 -
305/60R18 18x9 6x5.5 +0 -
295/70R18 18x9 6x5.5 +0 -
285/70R18 18x9 6x5.5 +0 -
285/65R18 18x9 6x5.5 +0 Minor Trimming
275/75R18 18x9 6x5.5 +0 -
305/65R18 18x9 6x5.5 +1 -
305/60R18 18x9 6x5.5 +1 -
295/70R18 18x9 6x5.5 +1 -
285/70R18 18x9 6x5.5 +1 -
285/65R18 18x9 6x5.5 +1 Minor Trimming
275/75R18 18x9 6x5.5 +1 -
305/65R18 18x9 6x5.5 +18 -
305/60R18 18x9 6x5.5 +18 -
295/70R18 18x9 6x5.5 +18 -
285/70R18 18x9 6x5.5 +18 -
285/65R18 18x9 6x5.5 +18 Minor Trimming
275/75R18 18x9 6x5.5 +18 -
305/65R18 18x9 6x5.5 +20 -
305/60R18 18x9 6x5.5 +20 -
295/70R18 18x9 6x5.5 +20 -
285/70R18 18x9 6x5.5 +20 -
285/65R18 18x9 6x5.5 +20 Minor Trimming
275/75R18 18x9 6x5.5 +20 -
305/55R20 20x9 6x5.5 +0 Minor Trimming
295/60R20 20x9 6x5.5 +0 Minor Trimming
285/60R20 20x9 6x5.5 +0 -
285/55R20 20x9 6x5.5 +0 -
275/65R20 20x9 6x5.5 +0 -
265/60R20 20x9 6x5.5 +0 -
305/55R20 20x9 6x5.5 +1 Minor Trimming
295/60R20 20x9 6x5.5 +1 Minor Trimming
285/60R20 20x9 6x5.5 +1 -
285/55R20 20x9 6x5.5 +1 -
275/65R20 20x9 6x5.5 +1 -
265/60R20 20x9 6x5.5 +1 -
305/55R20 20x9 6x5.5 +18 Minor Trimming
295/60R20 20x9 6x5.5 +18 Minor Trimming
285/60R20 20x9 6x5.5 +18 -
285/55R20 20x9 6x5.5 +18 -
275/65R20 20x9 6x5.5 +18 -
265/60R20 20x9 6x5.5 +18 -
305/55R20 20x9 6x5.5 +20 Minor Trimming
295/60R20 20x9 6x5.5 +20 Minor Trimming
285/60R20 20x9 6x5.5 +20 -
285/55R20 20x9 6x5.5 +20 -
275/65R20 20x9 6x5.5 +20 -
265/60R20 20x9 6x5.5 +20 -
