1.5 INCH LEVELING KIT AT4X/ZR2 | CHEVY/GMC 1500 (22-25)
1.5 INCH LEVELING KIT AT4X/ZR2 | CHEVY/GMC 1500 (22-25)
SKU:1301
Share
OVERVIEW

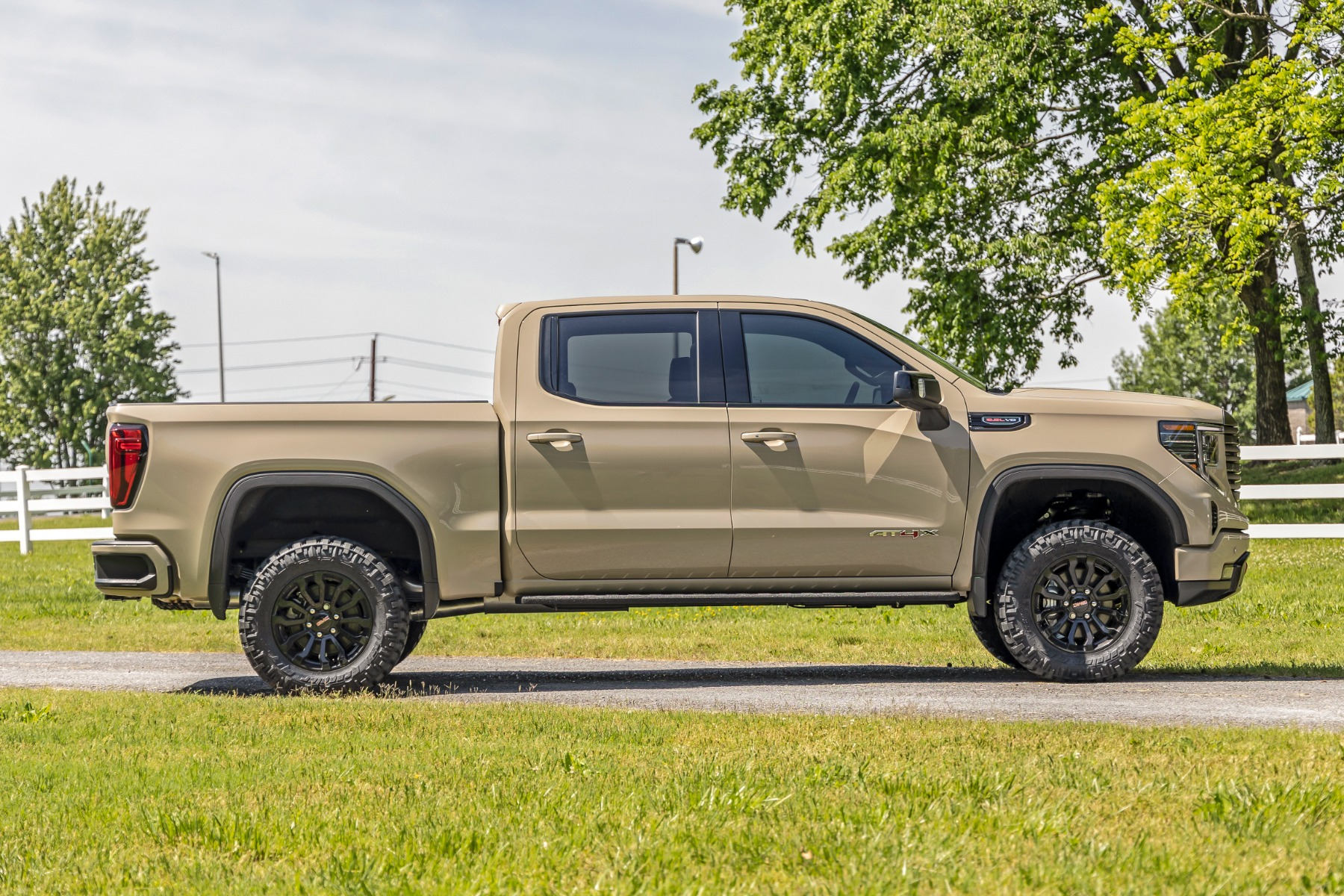

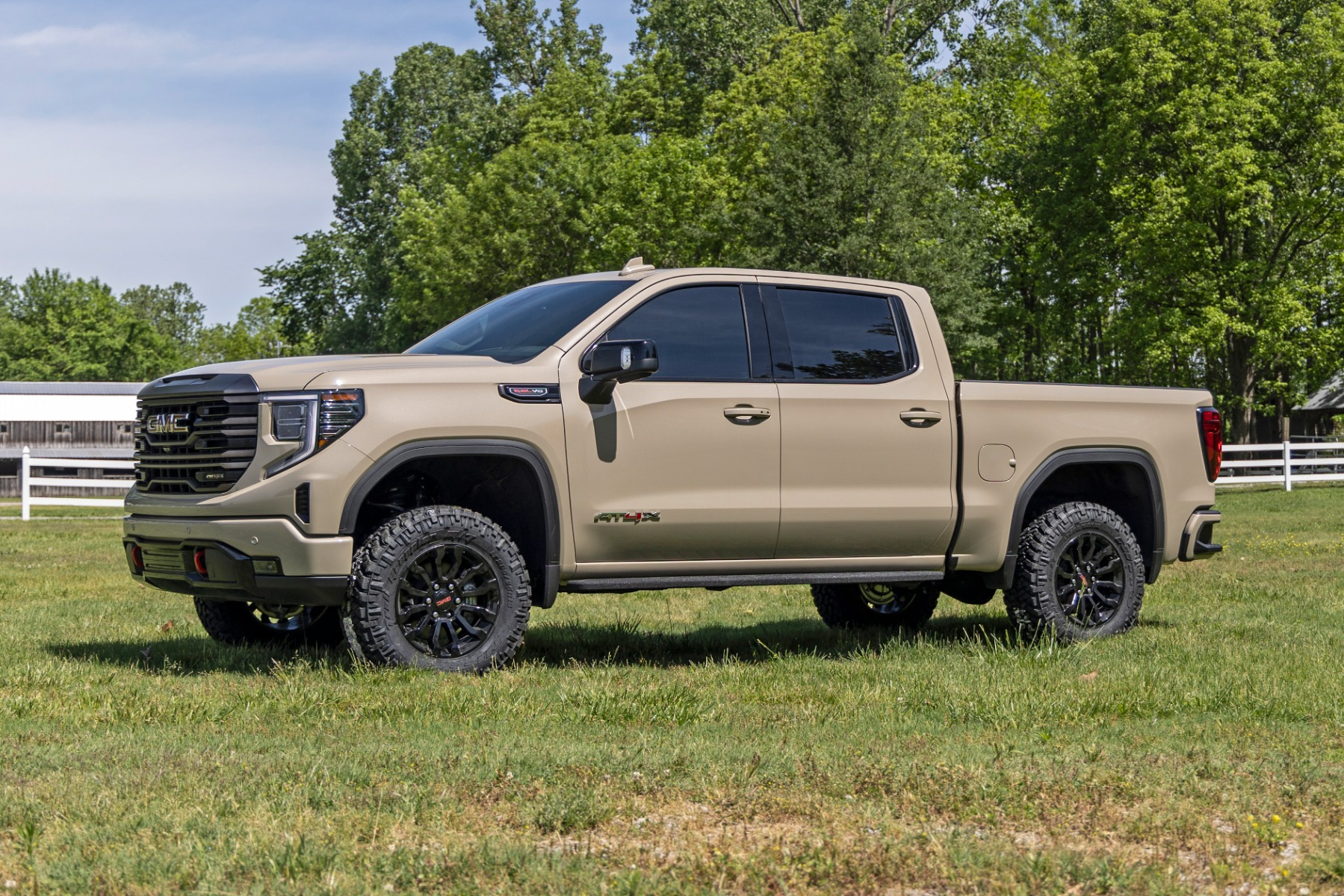

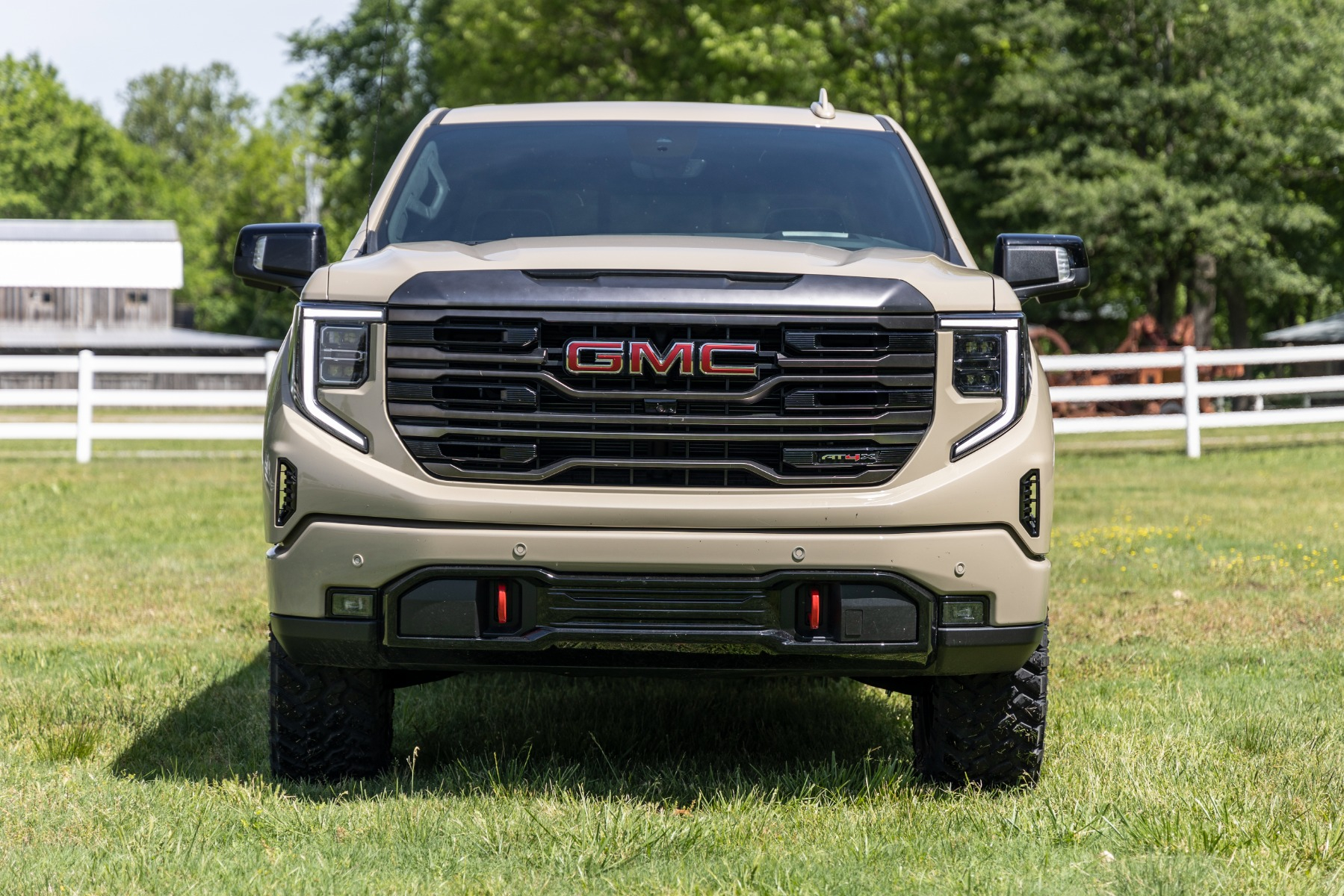

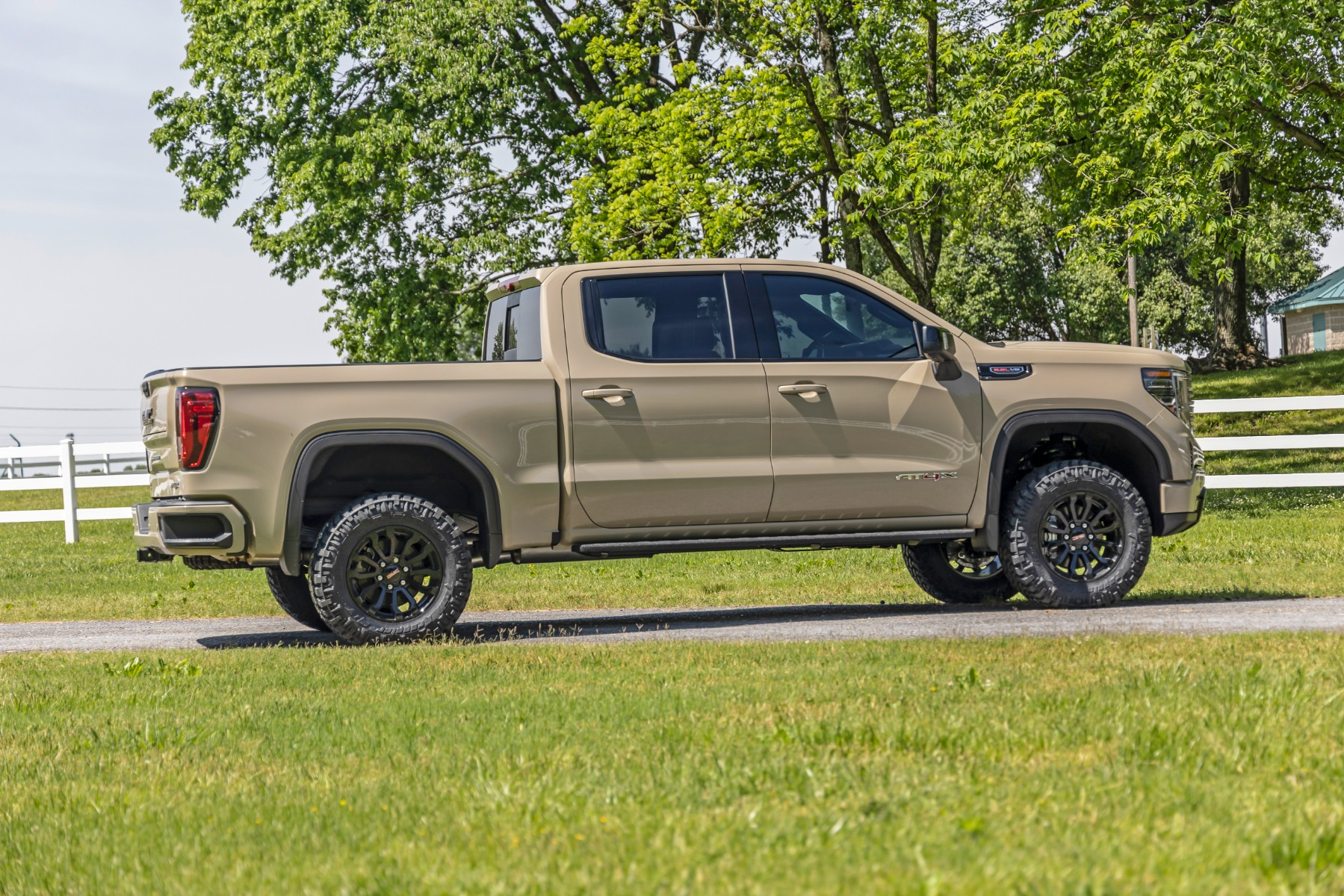

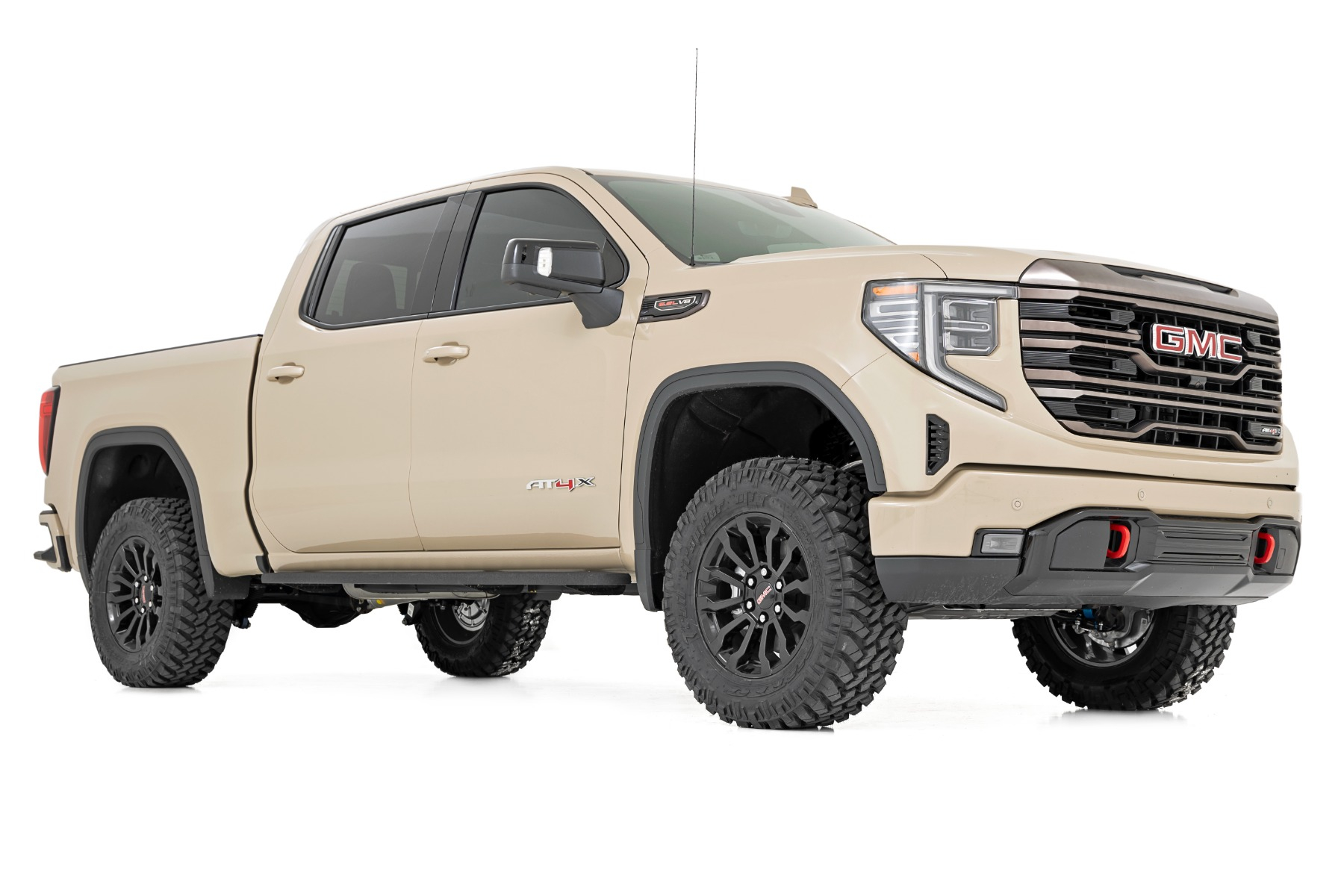

Improved Ground Clearance and Ride Quality. Give your GMC Sierra AT4X/Chevy Silverado ZR2 increased ride height and a more aggressive appearance with Rough Country’s 1.5in Leveling Kit! From the factory, the GMC Sierra AT4X/Chevy Silverado ZR2 sits lower in the front than the rear, creating a nose-down look that leaves a lot to be desired.
Innovative Design and Construction. Rough Country's 1.5in leveling kit is exactly what your GMC Sierra AT4X/Chevy Silverado ZR2 needs to achieve the aggressive look it was meant to have. Rough Country’s 1.5in Leveling Kit durable strut spacers, giving your AT4X incredible ride quality both on and off-road. Once installed, this kit gives your AT4X/ZR2 plenty of ride height for larger tires while offering a clean, level look from front to rear.
Installation. Featuring a 100% bolt-on process, installation couldn't be easier. With an estimated timeframe of 3-4 hours, this full kit can be installed can be completed efficiently and quickly!
Limited Lifetime Replacement Warranty. Rough Country’s 1.5in Leveling Kit is backed with a limited lifetime replacement warranty towards manufacturer defects. As such, the product is protected from structural and workmanship damage after the date of purchase. With our industry-leading warranty give yourself peace of mind when using Rough Country's Suspension products!
FEATURES
- Maintains factory ride quality.
- Increased ground clearance.
- Levels the front by 1.5" of lift.
- 100% bolt-on installation.
- Strut disassembly NOT required.
NOTES - IMPORTANT
- ONLY fits GMC AT4X models.
- ONLY fits Chevy ZR2 models.

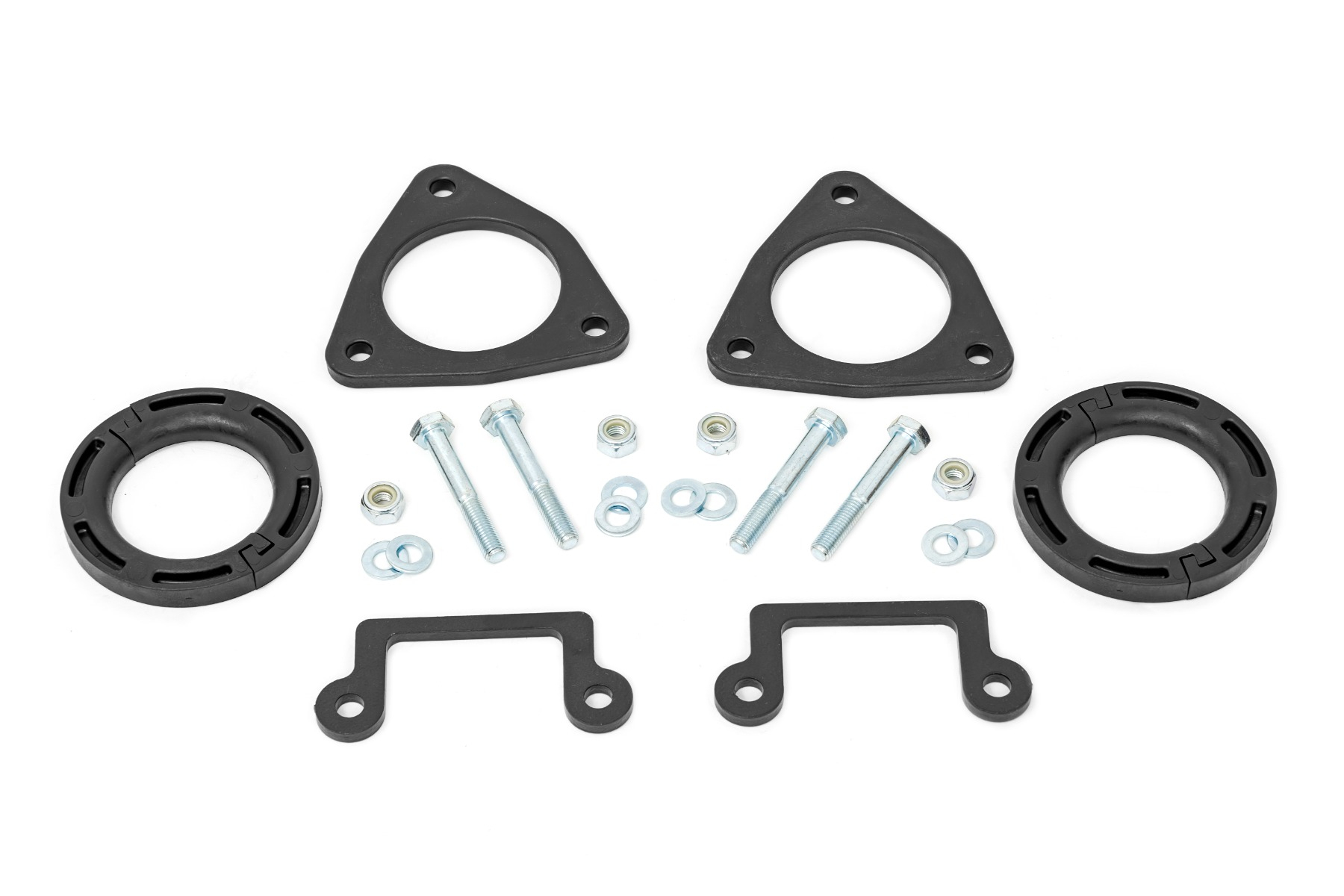

IN THE BOX
- (2) Strut Preload Spacers
- (2) Upper Strut Spacers
- (2) Lower Strut Spacers
- Hardware
INSTRUCTIONS
- Est. Install Time: 3-4 hours
-
View Instruction Sheet
VEHICLE FITMENT
YEARS DRIVE MAKE MODEL
2023-2024 4WD Chevy Silverado 1500
2022-2024 4WD GMC Sierra 1500
RECOMMENDED TIRES & WHEELS
TIRE WHEEL BOLT PATTERN OFFSET NOTE
275/75R18 Factory 18 6x5.5 - -
305/65R18 18x8.5 6x5.5 +0 Minor Trimming
295/60R18 18x8.5 6x5.5 +0 -
305/65R18 18x8.5 6x5.5 +1 Minor Trimming
295/60R18 18x8.5 6x5.5 +1 -
305/65R18 18x9 6x5.5 +0 Minor Trimming
295/60R18 18x9 6x5.5 +0 -
305/65R18 18x9 6x5.5 +1 Minor Trimming
295/60R18 18x9 6x5.5 +1 -
305/65R18 18x9 6x5.5 +18 Minor Trimming
295/60R18 18x9 6x5.5 +18 -
305/65R18 18x9 6x5.5 +20 Minor Trimming
295/60R18 18x9 6x5.5 +20 -
285/55R20 20x10 6x5.5 -19 -
285/55R20 20x10 6x5.5 -18 -
Due to differences in manufacturing, dimension and inflated measurements, tire and wheel combinations should be test fit prior to installation
