Rough Country

1.5-2 INCH LEVELING KIT CHEVY/GMC 2500HD/3500HD (11-19)

$129.95 USD

Sale Sold out

Quantity

SKU:9593

OVERVIEW

Get a killer, level look and run up to 295/55R20 tires with Rough Country’s 1.5 - 2-inch Leveling Suspension Kit for 11-16 GM HD models. This torsion bar leveling kit features a set of durable, forged torsion keys that level the front of your truck with the rear. Forged torsion keys are much stronger than cast, and ours are ready to stand up to the elements and take whatever you can dish out. Installation is a cinch, so you'll be ready and rolling in no time.

FEATURES

Easy bolt-on installation
Increased ground clearance
Levels the front with the rear of the vehicle
Forged torsion bar adjuster keys

NOTES - IMPORTANT

Does NOT fit models with Magnetic Ride Control.

IN THE BOX

FRONT

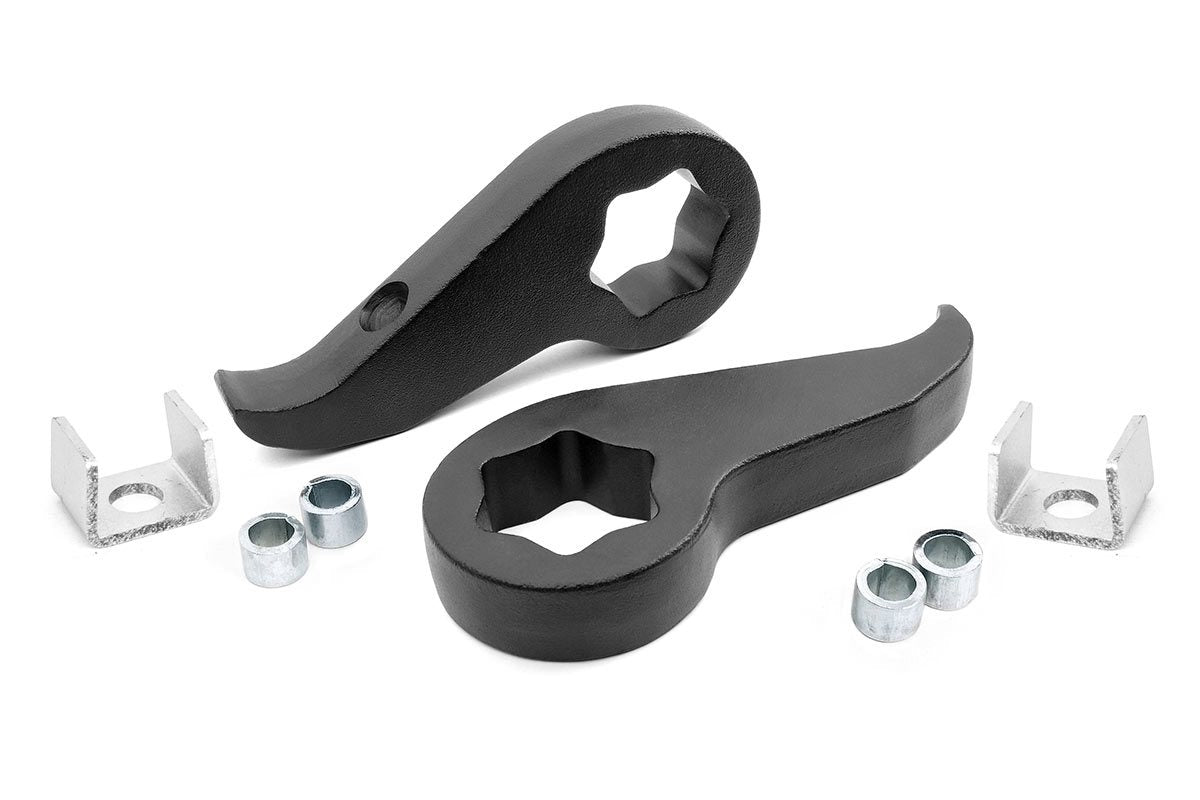

Forged torsion bar adjuster keys
Shock extension sleeves

SHOCKS

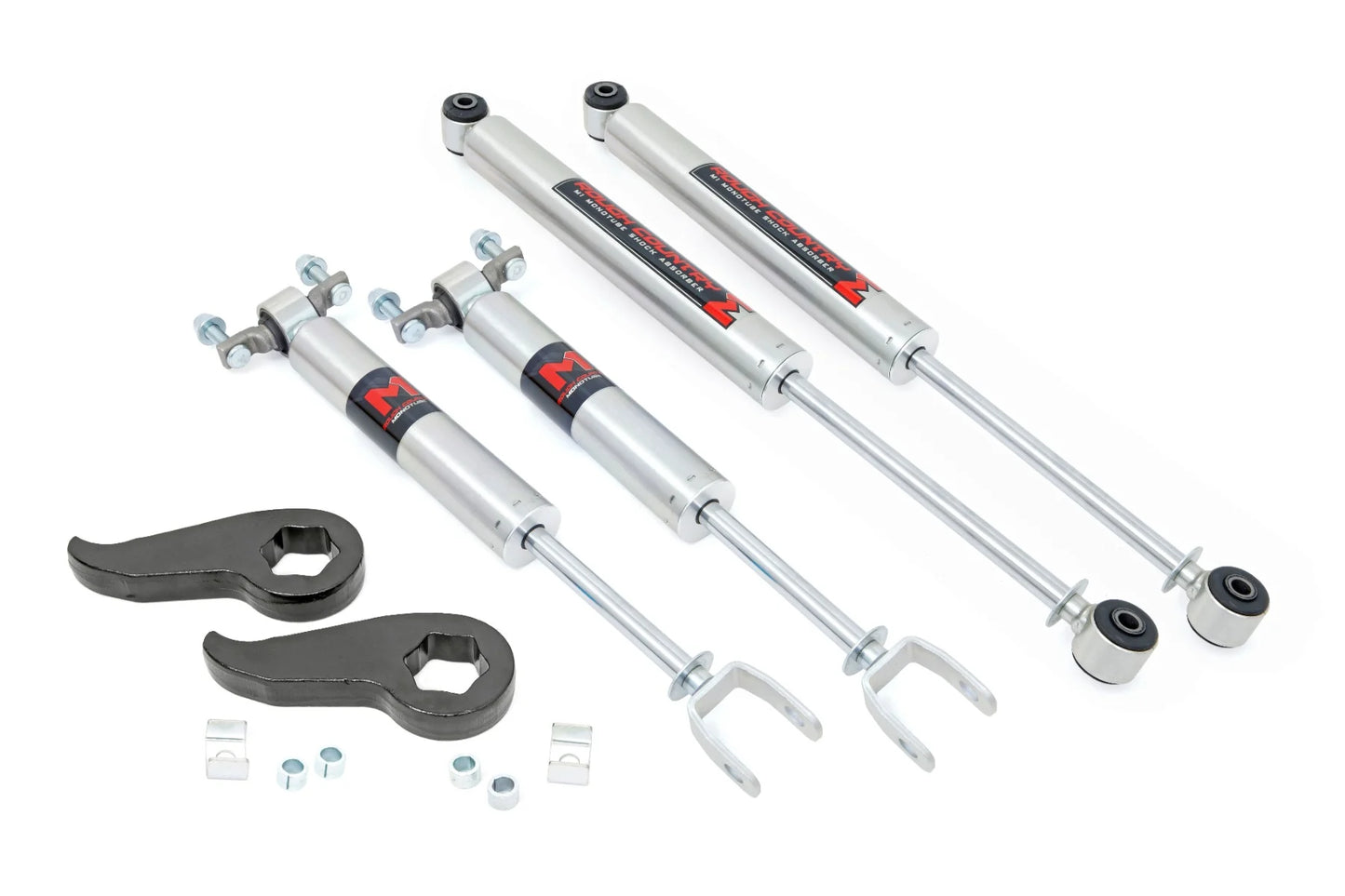

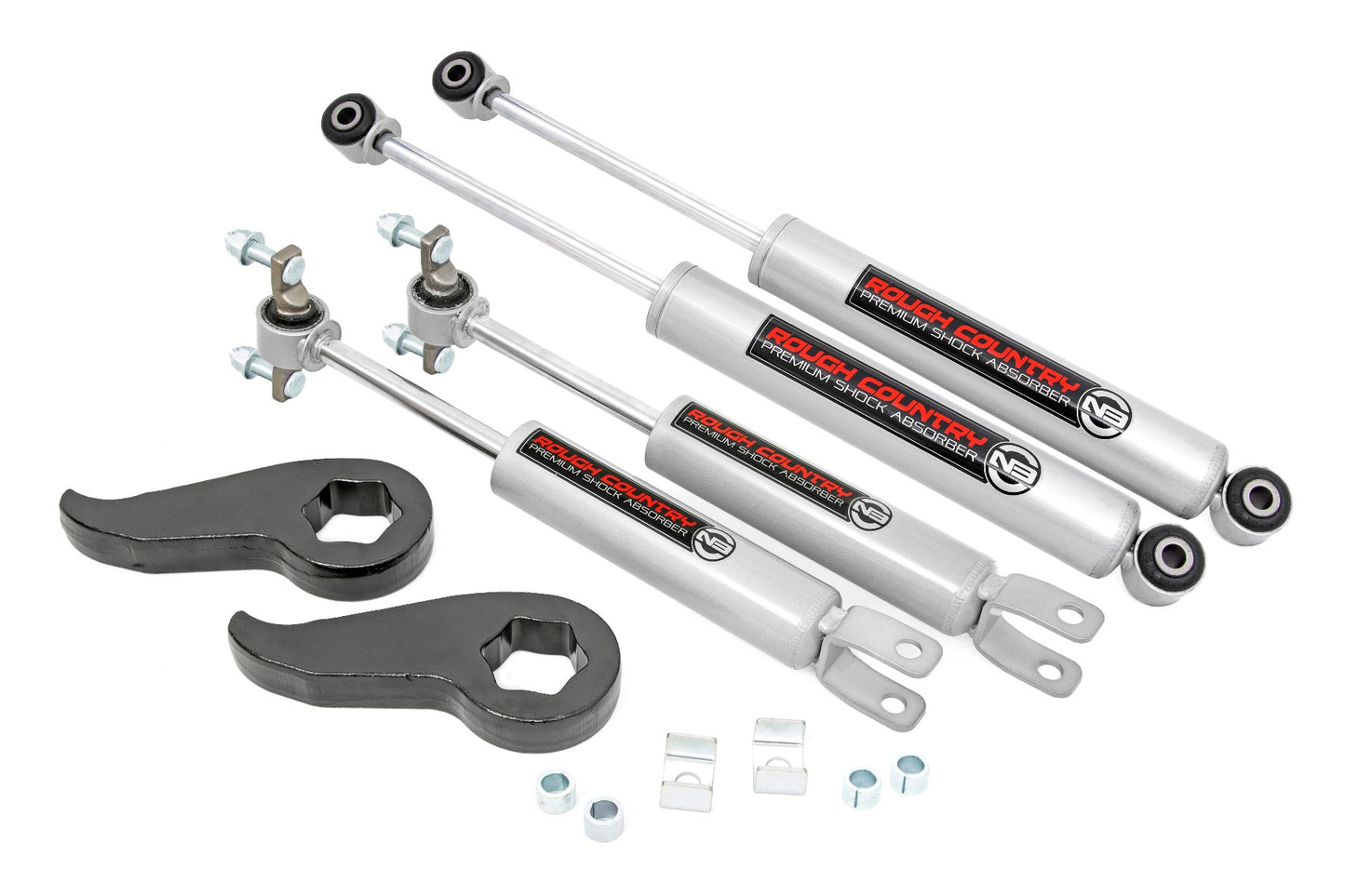

OPTIONAL: (4) Premium N3 Shocks

INSTRUCTIONS

Est. Install Time: 2 - 3 hours
Instruction Sheet - Kit Installation
Instruction Sheet - Optional N3 Installation

VEHICLE FITMENT

YEARS DRIVE MAKE MODEL
2011-2019 4WD GMC Sierra 2500 HD
2011-2019 4WD GMC Sierra 3500 HD
2011-2019 4WD Chevy Silverado 3500 HD
2011-2019 4WD Chevy Silverado 2500 HD
ALWAYS read all product page details for more important fitment information

RECOMMENDED TIRES & WHEELS

TIRE WHEEL BOLT PATTERN OFFSET NOTE
305/70R17 Factory 17 8x180 - -
285/70R18 18x8.5 8x180 +0 -
285/70R18 18x8.5 8x180 +1 -
285/70R18 18x9 8x180 +0 -
285/70R18 18x9 8x180 +1 -
285/70R18 18x9 8x180 +18 -
285/70R18 18x9 8x180 +20 -
295/60R20 20x9 8x180 +0 Trimming Required
295/55R20 20x9 8x180 +0 -
285/55R20 20x9 8x180 +0 -
295/60R20 20x9 8x180 +1 Trimming Required
295/55R20 20x9 8x180 +1 -
285/55R20 20x9 8x180 +1 -
295/55R20 20x9 8x180 +18 -
295/55R20 20x9 8x180 +20 -
295/60R20 20x10 8x180 -19 Minor Trimming
295/55R20 20x10 8x180 -19 -
285/55R20 20x10 8x180 -19 Minor Trimming
295/60R20 20x10 8x180 -18 Minor Trimming
295/55R20 20x10 8x180 -18 -
285/55R20 20x10 8x180 -18 Minor Trimming
295/60R20 20x12 8x180 -44 Trimming Required
305/45R22 22x10 8x180 -19 -
295/50R22 22x10 8x180 -19 Minor Trimming
305/45R22 22x10 8x180 -18 -
295/50R22 22x10 8x180 -18 Minor Trimming
295/50R22 22x12 8x180 -44 Trimming Required
Due to differences in manufacturing, dimension and inflated measurements, tire and wheel combinations should be test fit prior to installation
